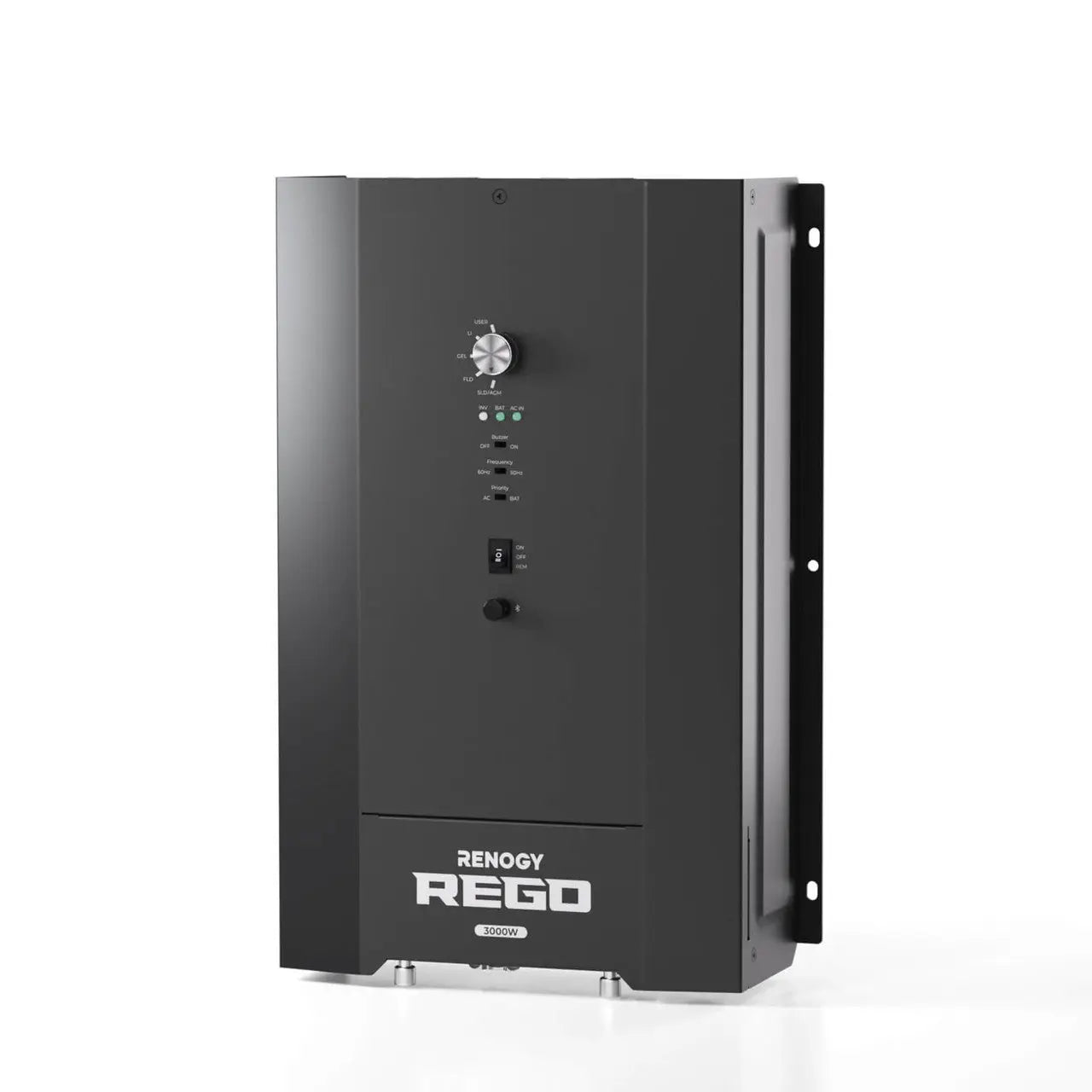

Renogy REGO 3000W 12V Pure Sine Wave HF Inverter Charger Split-phase Design

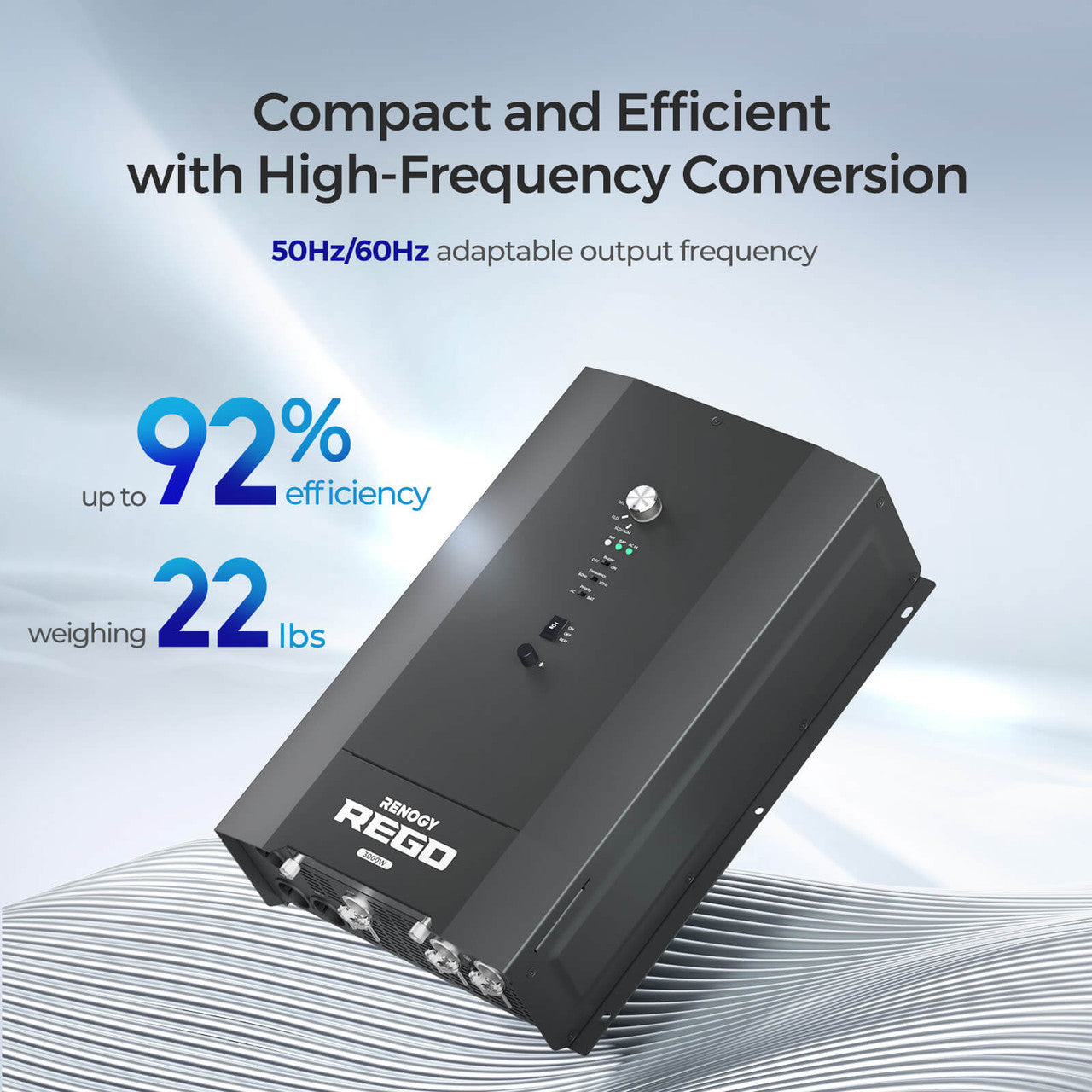

• Compact, high-frequency design for quieter, efficient operation.
• Available with split phase AC input for specific setup compatibility.

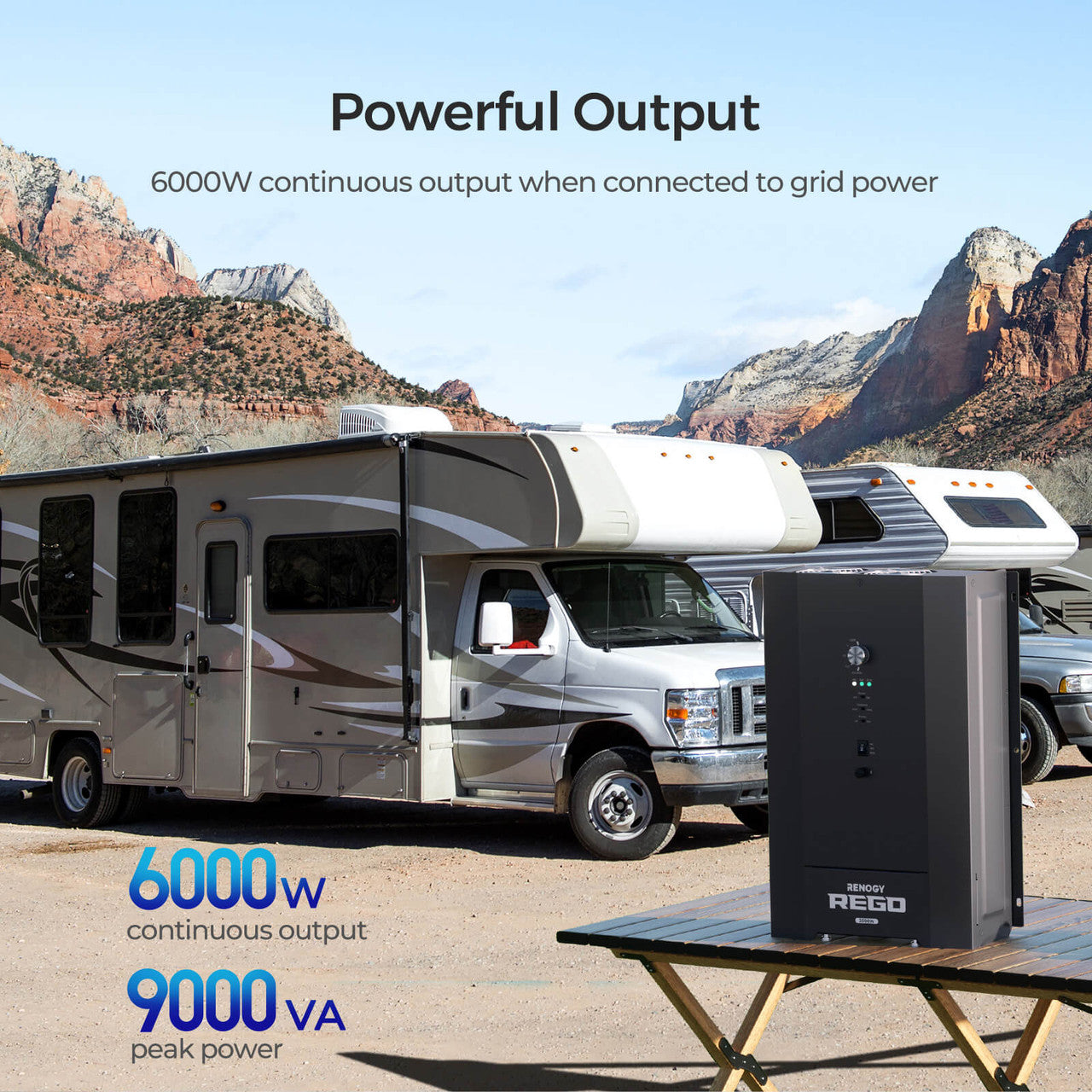

• Delivers up to 6000W in grid-connected scenarios for robust power.

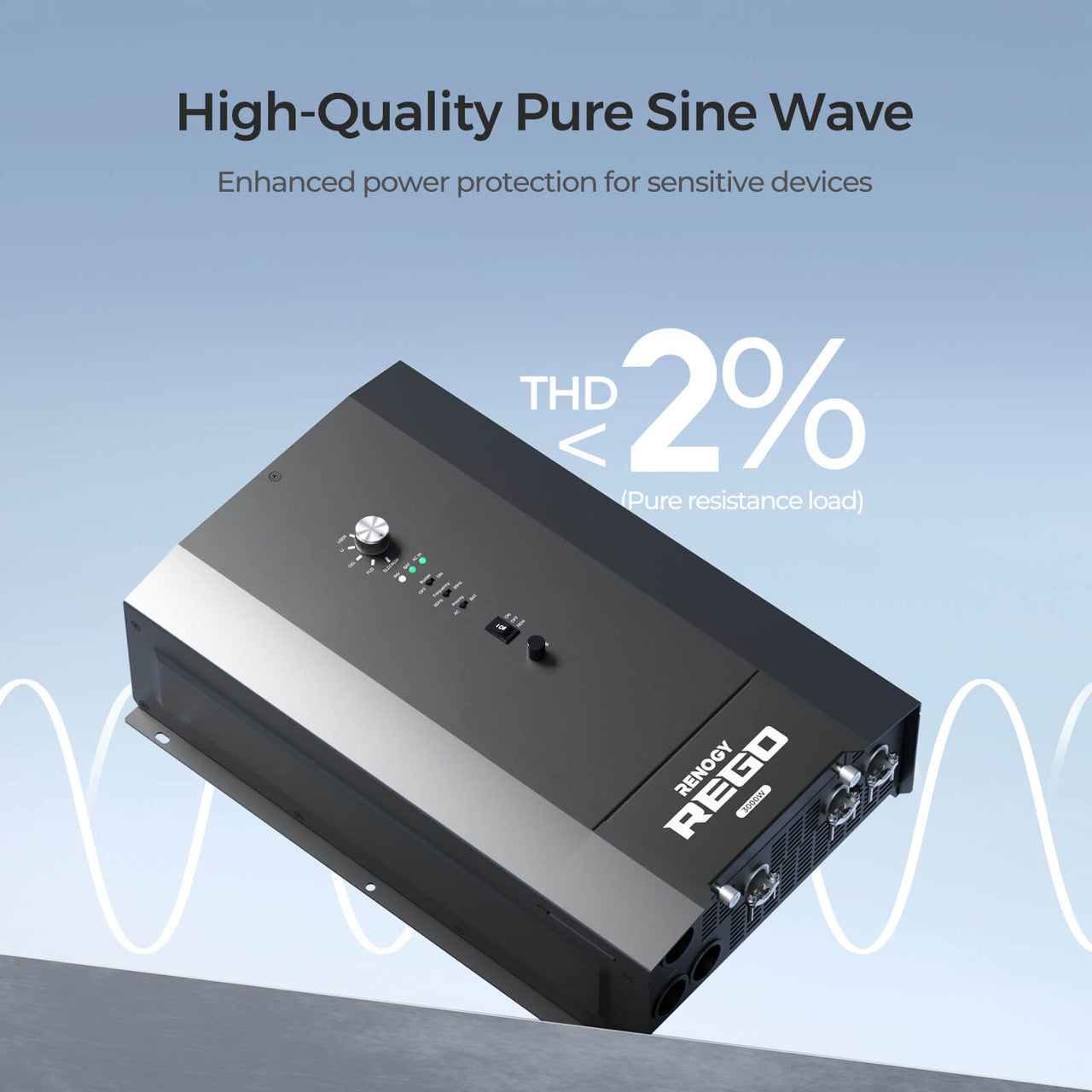

• Ensures consistent, smooth power with pure sine wave technology.
• Built-in Bluetooth for easy monitoring with Renogy ONE M1 & Core.

3000W 12V Pure Sine Wave High Frequency Inverter Charger
The only compact and minimal noise high frequency split phase inverter charger.
Please Note: 240VAC output is available only when the inverter/charger is supplied by a split-phase 120/240VAC source.
Operates with Remarkably Low Noise
Rediscover a bedroom-caliber, quiet environment with Renogy's high-frequency inverter, ensuring peaceful nights and uninterrupted slumber.
Space-Saving Design for Enhanced User Convenience
The all-in-one design simplifies installation, minimizes equipment space, and enhances user convenience.
High Environmental Adaptability
Maintains peak performance without power reduction at full load up to 113°F, while others typically begin to reduce at around 104°F.
Enhanced Lithium Battery Activation and Heating Capability
Optimize your battery performance and extend longevity with advanced lithium battery activation and heating features, ensuring reliable operation in any environment.
Battery Temperature Sensor
Smart temperature control ensures consistent and effective performance of lithium batteries, regardless of the weather.
Swift Adaptation to Load Changes
Superior Safety
Address RV grounding issues by managing simultaneous neutral grounding of both the RV and external AC power, ensuring safety and minimizing electric shock risks.
Clearer Signals with Higher Frequency
Experience lower electromagnetic disturbance for enhanced performance of onboard electronics and wireless communication.
Learn more

Package Includes

Inverter only option
  • 1 x 3000W Pure Sine Wave HF Inverter Charger
  • 1 x Battery Temperature sensor
  • 1 x Voltage detection line
  • 1 x Inverter Wired Remote Control
Inverter w/ renogy one core option
  • 1 x 3000W Pure Sine Wave HF Inverter Charger
  • 1 x Battery Temperature sensor
  • 1 x Voltage detection line
  • 1 x Inverter Wired Remote Control
  • 1 x Renogy ONE Core

ELECTRICAL DATA


Operating Voltage 8-60 VDC (5 VDC for USB Type-C)
Power Consumption at 12V Operating, WiFi On, 100% illumination: 3.2 W
Operating, WiFi On, 50% illumination: 2.4 W
Operating, WiFi On, 0% illumination: 1.9 W
Off, logger still active: 1.5 W
Communication Wi-Fi (IEEE 802.11b/g/n 2.4 GHz)
Bluetooth LE and Bluetooth Mesh
Zigbee 3.0 (IEEE 802.15.4)
RS-485
Touch Screen 4 inches (480 x 480p)
Leveling Range and Accuracy ±89°, 0.1°
GENERAL DATA
Model RSHGWSN-W02W-G1
Operating Temperature -4℉ to 158℉ (-20℃ to 70℃)
Operating Humidity 0% to 95% RH
Operating Altitude Less than 5000m above sea level
Installation Flush mount or place on a table
Dimensions 4.17 x 4.17 x 1.05 in (106 x 106 x 26.6 mm)
Weight 0.28 lb (128g)
Certification CE, FCC, RoHS, TSCA, BQB, IC-ID
Warranty 2 years


1. What are the differences between this REGO 3000W inverter (RIV1230RCH-SPS) and the previous REGO 3000W inverter (RIV1230RCL-1SS)?


The main difference is that the REGO 3000W inverter (RIV1230RCH-SPS) operates at high frequency, while the REGO 3000W inverter (RIV1230RCL-1SS) operates at standard frequency. The RIV1230RCH-SPS inverter also supports North American 120/240V AC split-phase input and has a higher load capacity, making it better suited for handling larger power demands.

2. Is this inverter compatible with DC Home or Renogy One M1/Core?


Yes, the REGO 3000W inverter (RIV1230RCH-SPS) features built-in Bluetooth connectivity, allowing you to monitor and control it using the DC Home app or the Renogy One M1/Core Monitor. Additionally, it supports the RV-C communication protocol for seamless integration with your system.

3. When connected to shore power, does the inverter's self-consumption draw from the shore power or the battery?


In UPS mode, the inverter’s self-consumption is provided by the shore power (grid). However, in battery priority mode, the inverter draws power from the battery to cover its self-consumption.

4. In bypass mode, is the load capacity still restricted by the rated output power?


When the inverter is supplied with 120VAC input in bypass mode, the maximum output is 6000W, with a rated current of 50A. This means that the inverter can provide more power in bypass mode than its rated output in normal operation.

5. Is it possible to control the inverter and modify its settings through the app?

Yes, you can use the app to activate the inverter’s ECO mode. While powering off the inverter via the app isn’t possible, you can adjust settings such as the charging current and battery protection parameters for better system customization and efficiency.
