DESCRIPTION
Add Renogy ONE Core for smart, real-time energy monitoring.
Multiple protections on input and output terminals.
Anderson terminals with adapter reduce install time by 60%.
MPPT: 99% efficiency, 4-stage charging for battery health.
Compatible with multiple types of batteries.
Control via smartphone with Renogy DC Home App.

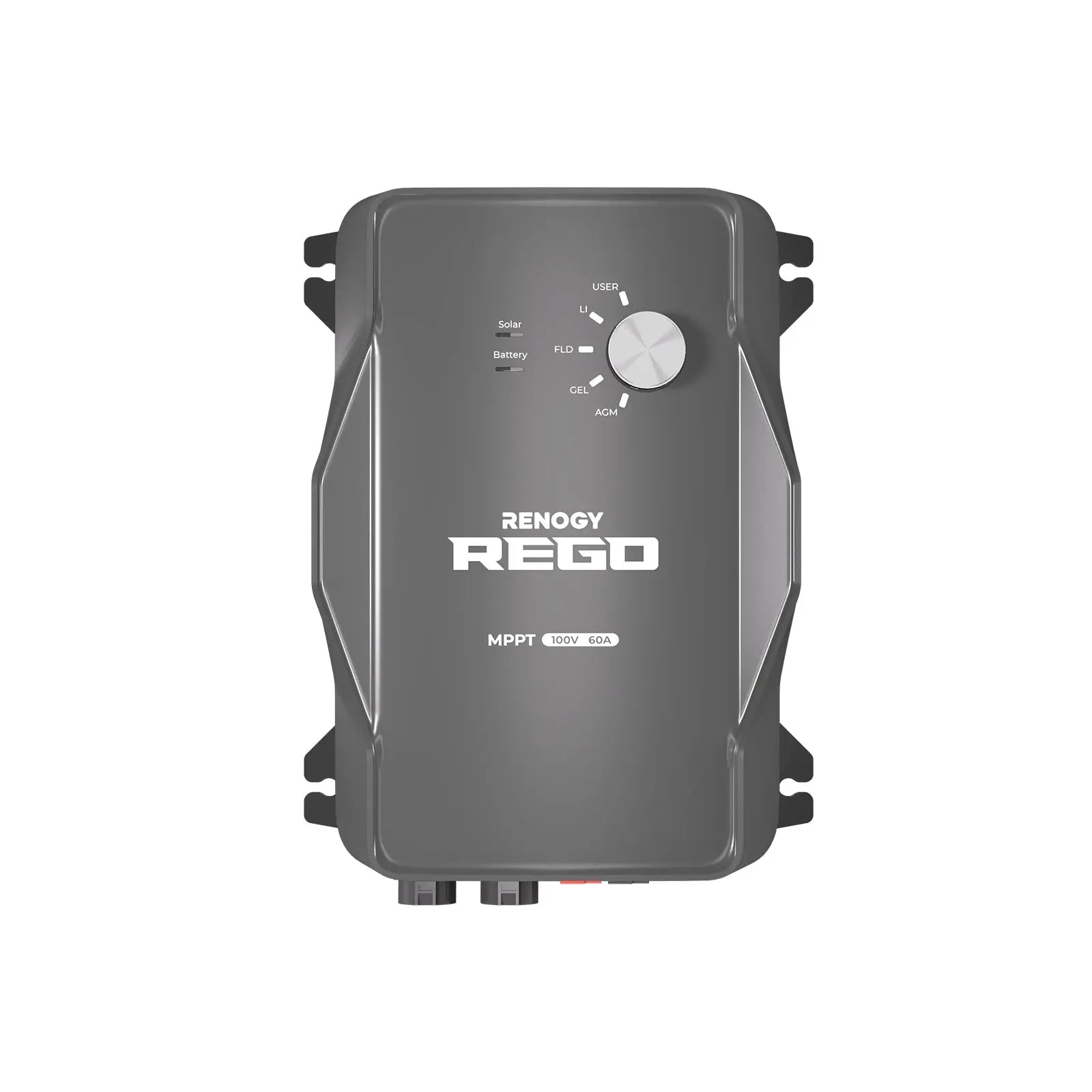

The REGO 12V 60A MPPT Solar Charge Controller is designed to install easily and protect your solar system completely. Its plug-and-play connections can save a lot of installation time compared with traditional controllers. With advanced BPU (Battery Protect Unit) technology, it provides excellent protection for the batteries from cell damage and failure, ensuring the whole system is safe. The MPPT technology here increases tracking efficiency to 99%, which significantly improves solar power output and thus increases more energy to your system. It is compact yet durable, combining high technology with pleasing aesthetics, saving space yet outperforming competitors in its class. The REGO 12V 60A MPPT Solar Charge Controller gives you unequal efficiency and reliability.

REGO 12V 60A MPPT Solar Charge Controller

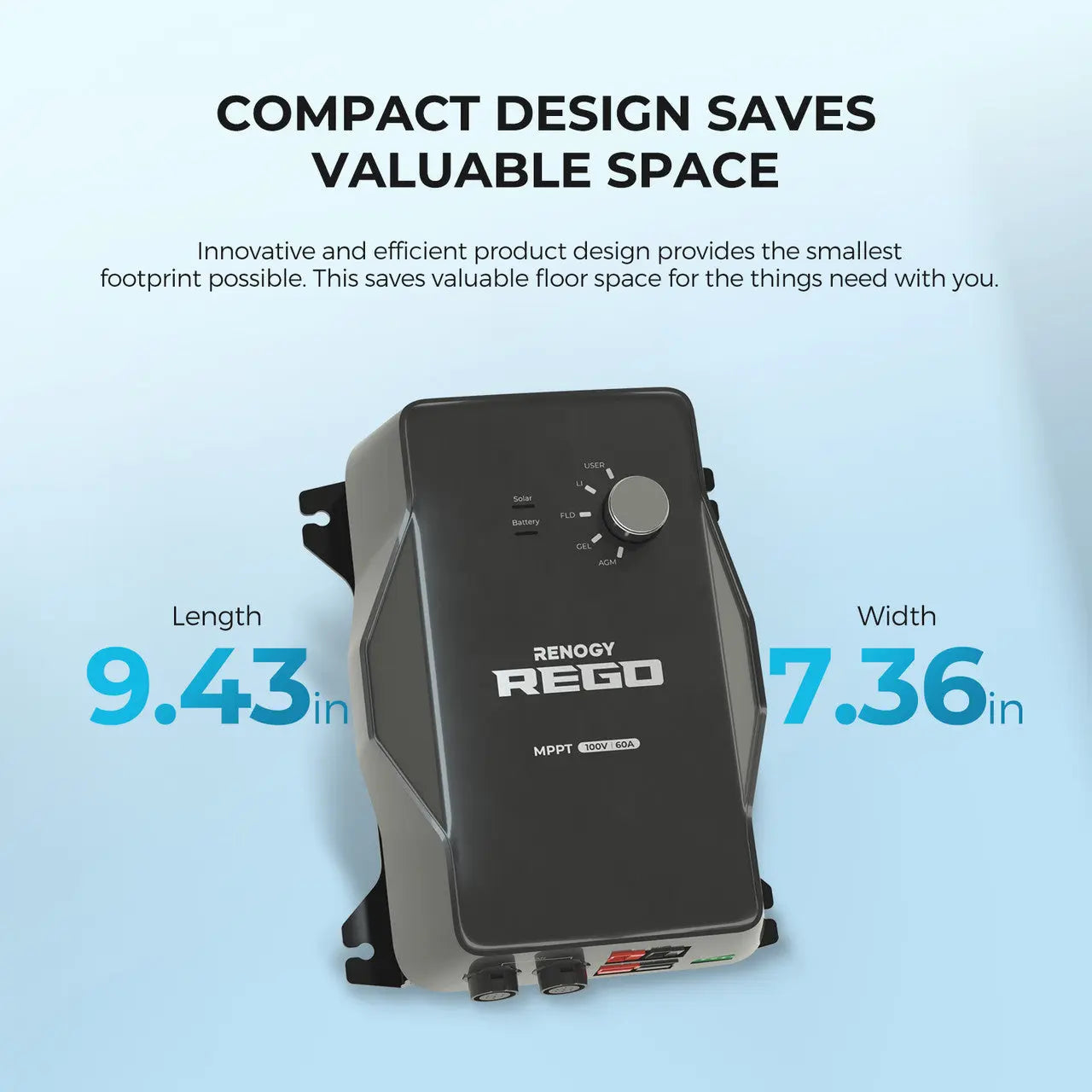

Save Up to 60% Installation Time, Take Less Installation Space

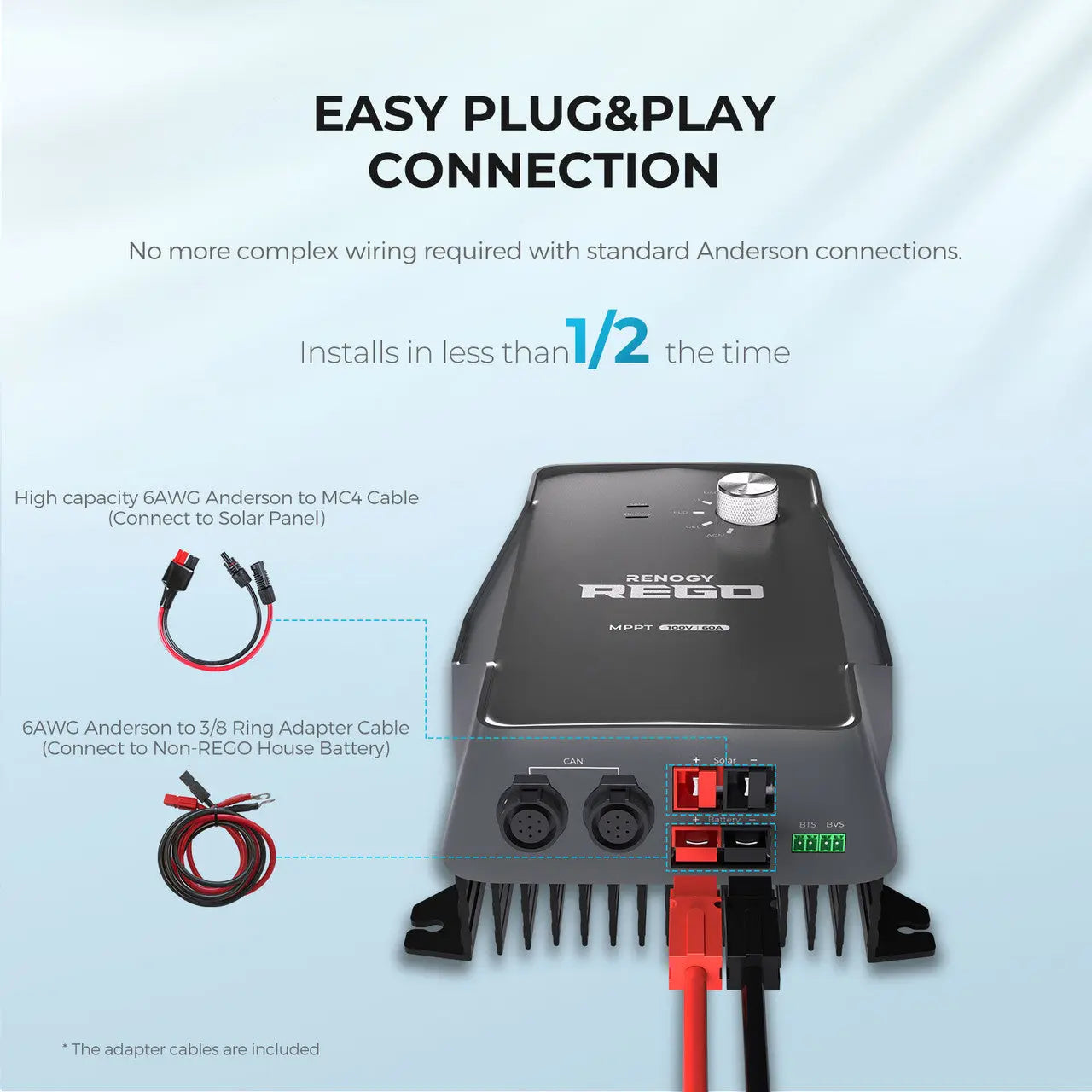

The REGO charge controller features a custom-designed Anderson to MC4 adapter cable, offering a quick and easy way to connect the controller to your solar panels—reducing installation time by 60%! Its compact and durable design blends advanced technology with style, while its minimized size saves installation space compared to other controllers.

Please note: If you wish to connect the charge controller to a non-REGO house battery, an Anderson to Ring terminal cable (sold separately in the Renogy Store) will be required.

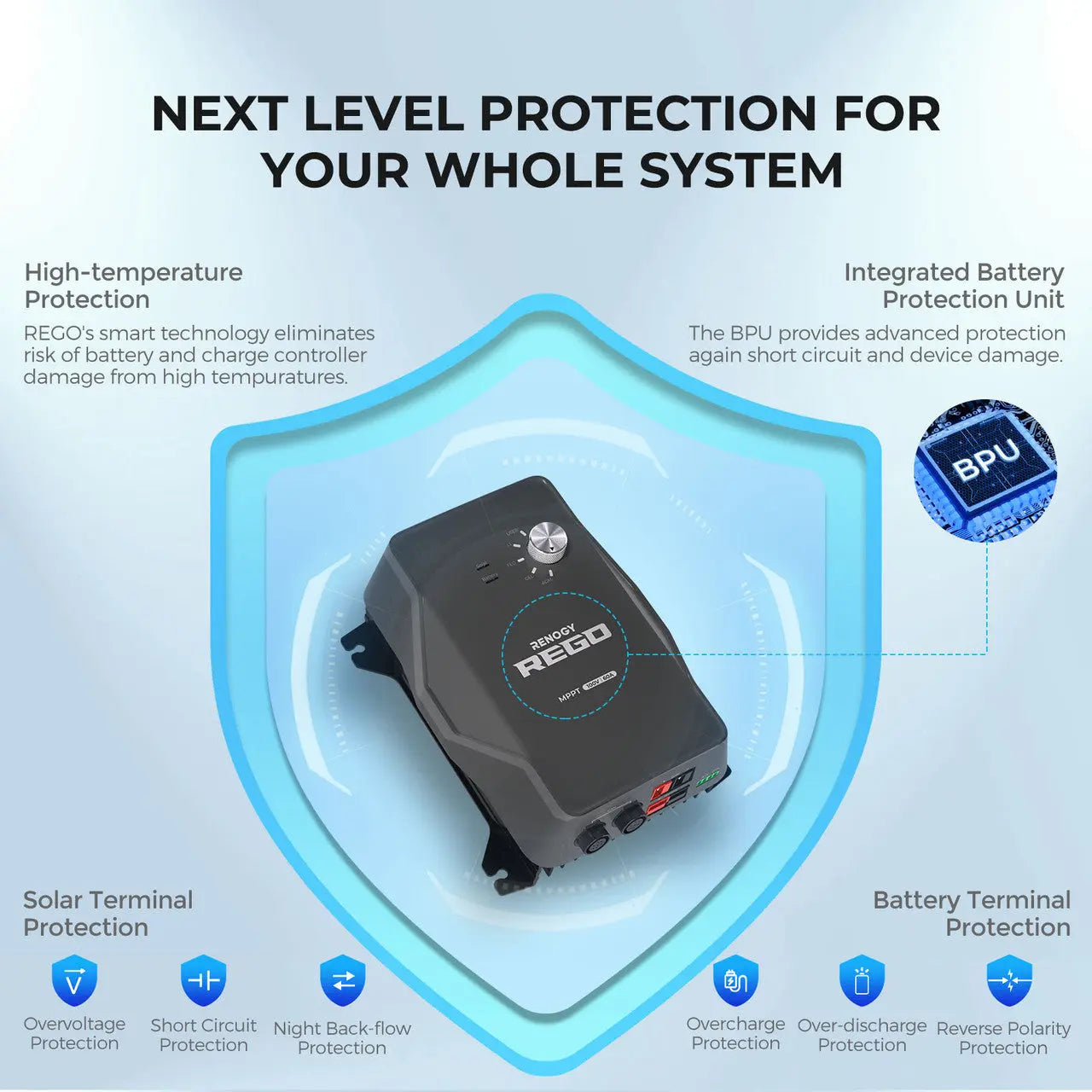

Smart Manage the Batteries, Protect the Whole System

The REGO charge controller features a three- to four-stage charging design (Bulk, Boost, Float, EQU) for lead-acid batteries and a two-stage design for lithium batteries, ensuring high charging efficiency while optimizing battery health for a longer lifespan. It offers comprehensive protection on both solar input and battery output terminals. The integrated High Battery Protect Unit (BPU) disconnects non-essential loads from the battery before it is fully discharged or when it lacks sufficient power to start the engine, providing complete system protection.

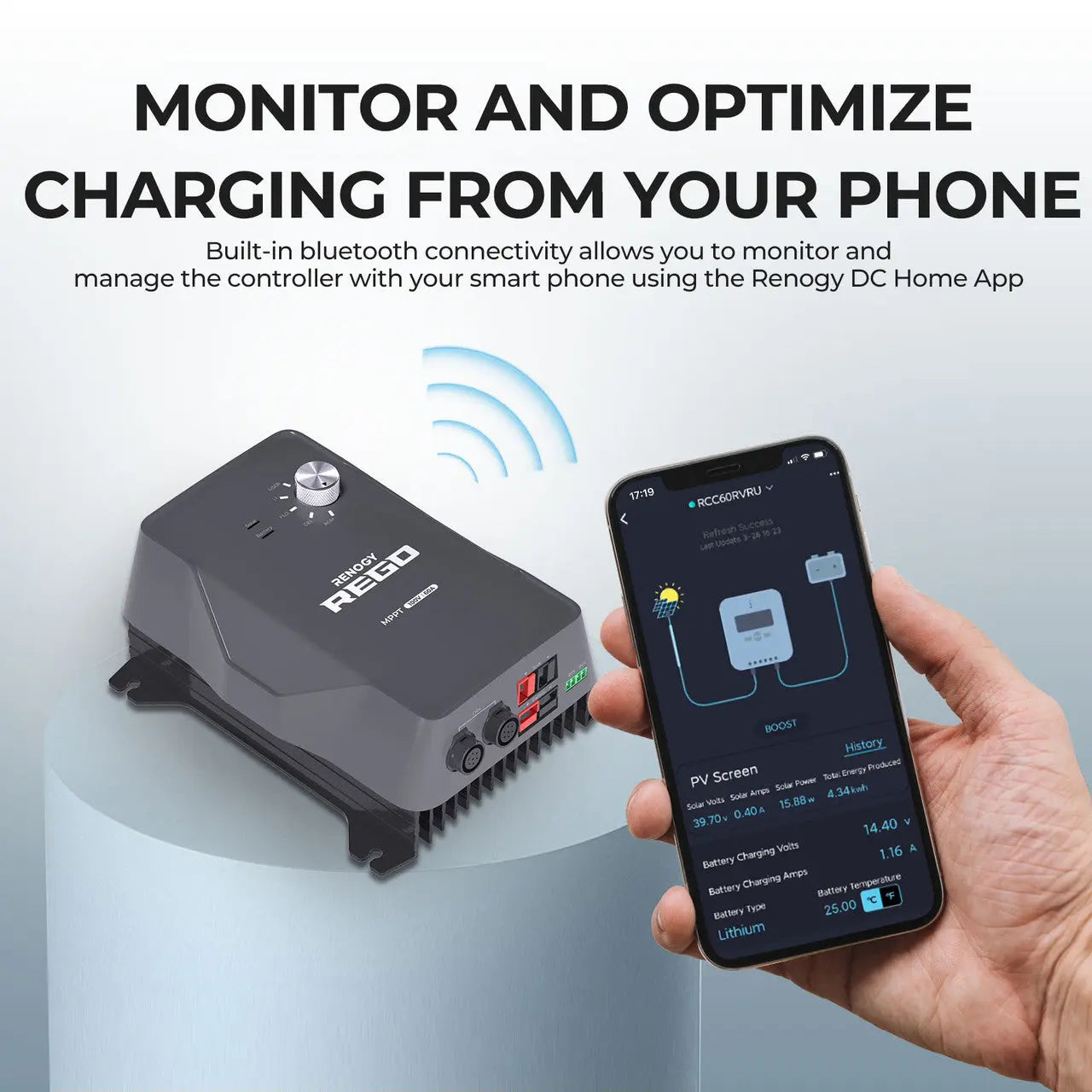

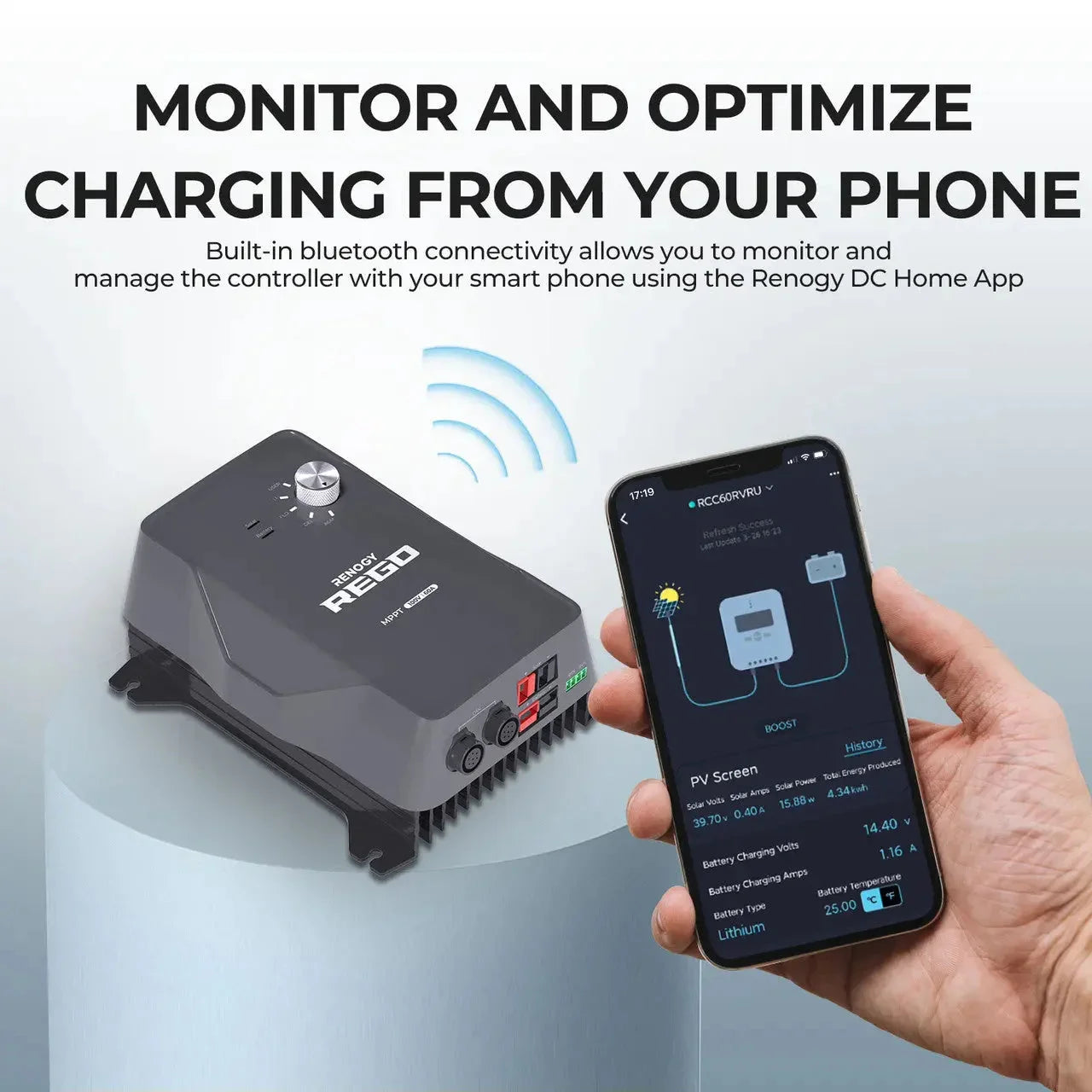

Built-in Bluetooth Puts Monitoring and Control in Your Hands

The built-in Bluetooth allows you to monitor the REGO charge controller on your smartphone with the Renogy DC Home App. With the app, you can customize multiple battery data such as the boost voltage, float voltage, and duration data.

Integrated Thermal Management, Ensure Stable and Constant Charging

The design of the die-cast aluminum heat sink provides maximum surface area exposed to ambient air, efficiently transferring and dissipating heat produced by the REGO charge controller. This keeps the device at optimal temperatures and provides excellent heat dissipation for stable, continuous charging.

Wide Operating Temperature Range, Accurate Temperature Compensation

The REGO charge controller operates within a wide temperature range from -4°F to 140°F. It includes a built-in temperature sensor that measures battery temperature in real time, using this data for precise temperature compensation (-3mV/°C/2V for non-lithium batteries; no compensation for lithium batteries), ensuring efficient and stable charging.

Tested to the Highest Standard, Eradicate Performance Issues

The REGO charge controller is multi-icertified to UL1741, CAN/CSA-C22.2 No. 107.1/CB+IEC 62109/EMC,EN61000-3-1/-3; EN301489-1/17; RF,EN300328; and FCC, 47 CFR 15B. Built to meet and exceed the most rigorous quality and performance standards, maximize your system energy and provide comprehensive protections.

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or contact us with livechat for troubleshooting assistance.

More questions about your off-grid power system? Learn more from Renogy Learning Center!

RV

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

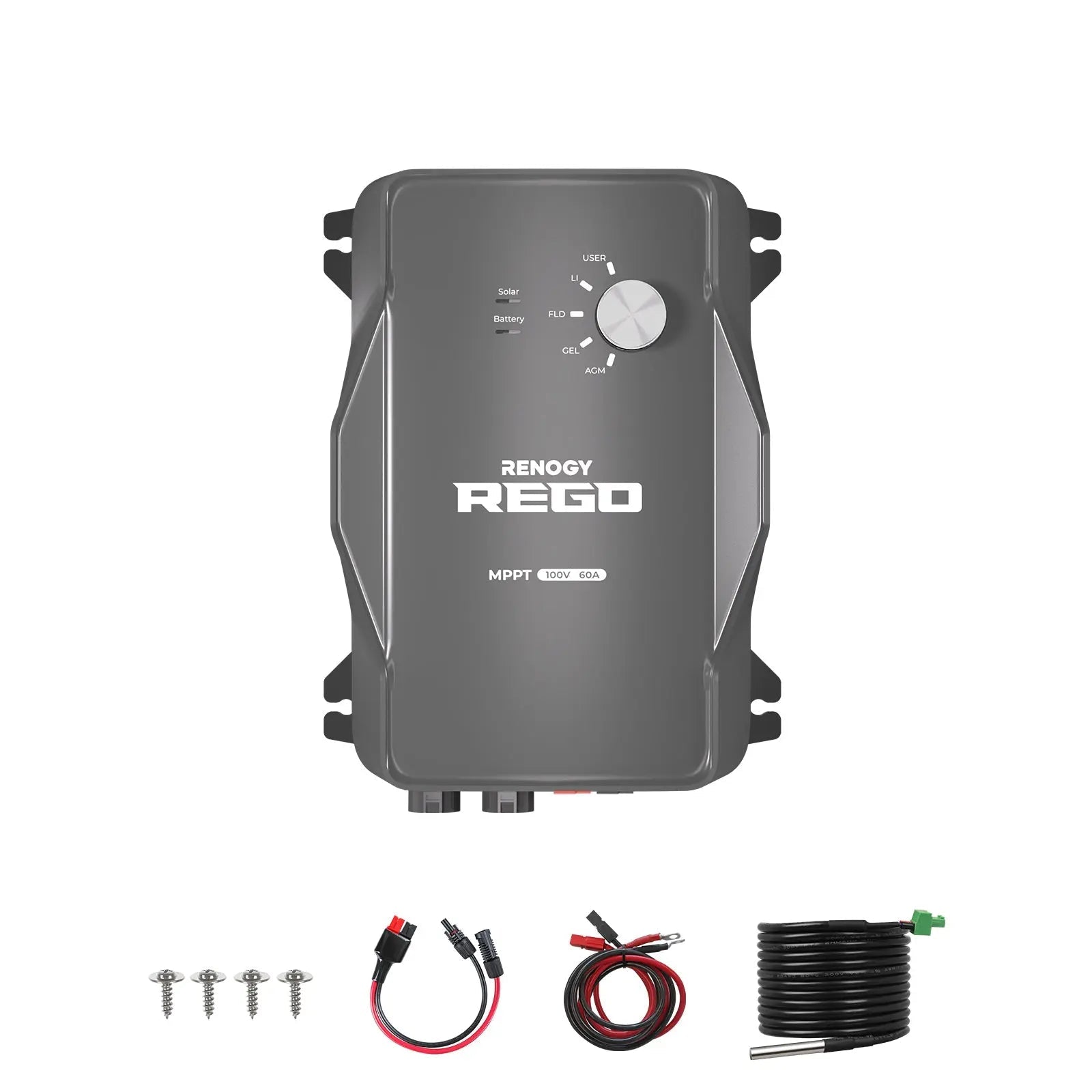

Package Includes

REGO 12V 60A MPPT Charge Controller

REGO 12V 60A MPPT Charge Controller

1 x



Renogy Temperature Sensor

Renogy Temperature Sensorr

1 x

Solar Adapter Cable

1 X

Mounting Screws

BT-1 Bluetooth Module

4 x

Options 1 :5FT 6AWG Anderson Adapter Cable

1 X

Options 2 :10FT 6AWG Anderson Adapter Cable

BT-1 Bluetooth Module

1 x



REGO 12V 60A MPPT Solar Charge Controller


Electrical Parameters

Nominal System Voltage: 12 V
Rated Charge Current: 60A
Max. PV Input Power: 800W
MPPT Voltage Range: 15 - 100 VDC /12V
Solar Input Voltage Range (VOC): 100 V
Max Input Current (short-circuit, Isc): 50A
Power Limiting Protection: Up to 800W/12V
Battery Operating Range: 10 -16V
Power Consumption: ≤0.5 W
Ground Type: Common Negative Lug
Battery Types: AGM/Sealed, GEL, FLOODED, LFP, USER*
Electronic Protections: Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection


Environmental Data

Operating Temperature Range: -20 ℃ - 60℃ Storage Temperature Range: -25 ℃ - 65℃
Operating / Storage Humidity: 0%-90% RH Temperature Compensation: '-3mV / ℃ / 2V (Non-Lithium);'0mV / ℃ / 2V; no compensation (Lithium)


Mechanical Specifications

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm Weight: 5.07 lbs/ 2.30kg
Terminals Size:  Anderson PP75


Optional Accessories

Remote Monitor:



Bluetooth Module BT-2 (RS485 / CAN bus signal)

Certifications

CE and RoHS compliant: YES

 FCC Class B Part 15 Compliant: YES

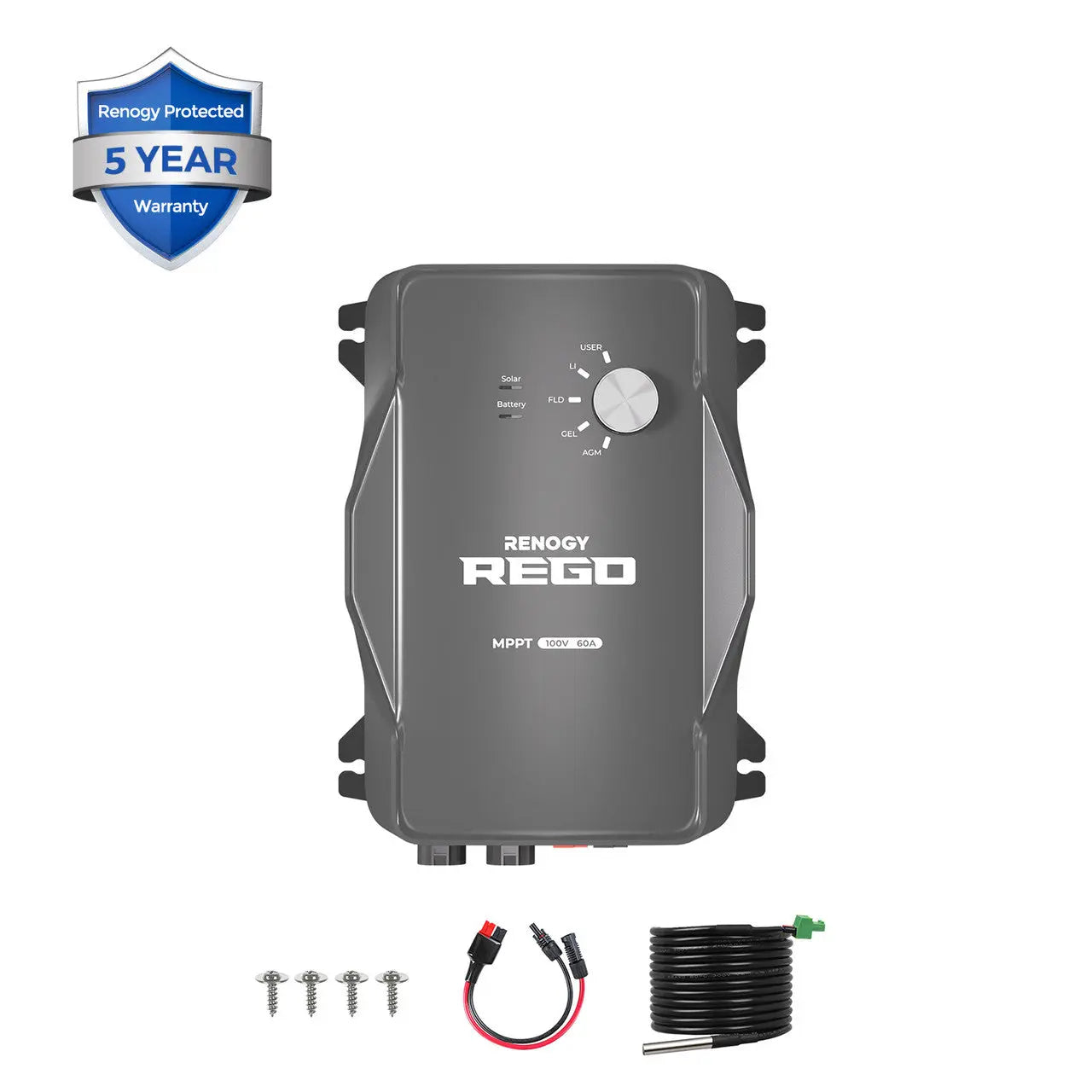

Warranty

Material and workmanship warranty:

5 Year


1. The controller has no screen to display data, so is there any way to observe the power generation of components?

The controller has bluetooth embedded so you can download th Renogy DC Home APP to pair the controller to a smart phone to observe solar power generation. In addition, this controller also provides a wired communication method to the Renogy Super Panel by which you can observe the solar power generation.
2. Can I charge my 24V Lithium Bank with this controller?

This controller is only compatible with 12V battery systems that include 12V Sealed Lead Acid, AGM, Flooded or wet cell, Lithium, or Gel batteries.
3. What is the max solar I can connect to this controller?

The maximum solar voltage 100V at the input.The max solar power is up to 800W. It is better to combine similar panels and do not exceed the voltage input limit.
4. Is there anything to be aware of when installing wiring for this controller?


1. Ensure the controller is installed vertically with 150mm of clearance for proper heat dissipation.

2. Connect the controller to the battery first and solar panels second.

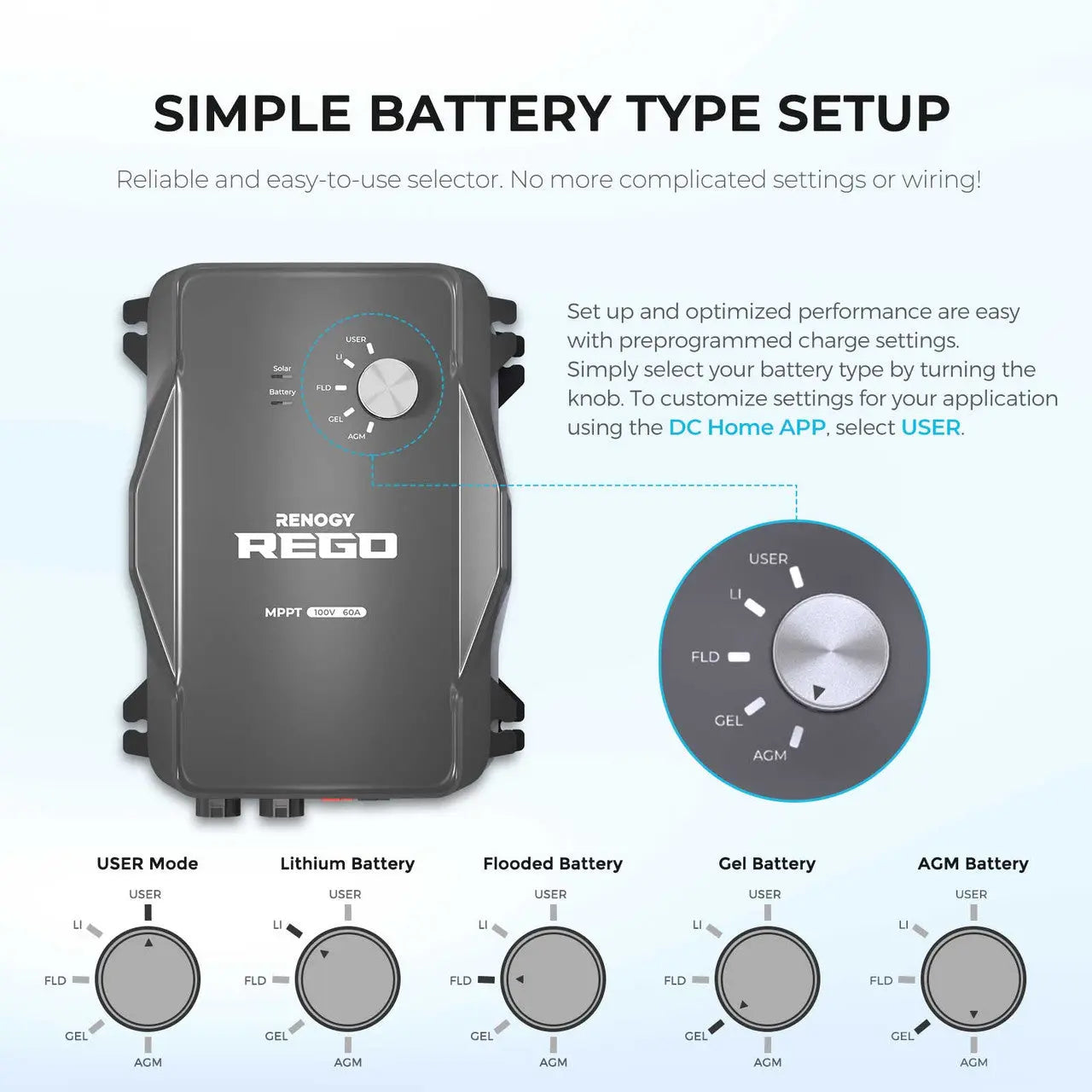

5. What is the User battery type and how do I use it?

Catered to advanced DIY players, the User battery type lets users set their own battery charge parameters. When the battery knob selects the USER mode, the controller will enter a custom mode where users can use the Renogy DC Home APP to program their desired voltages.
