• Description

Summary

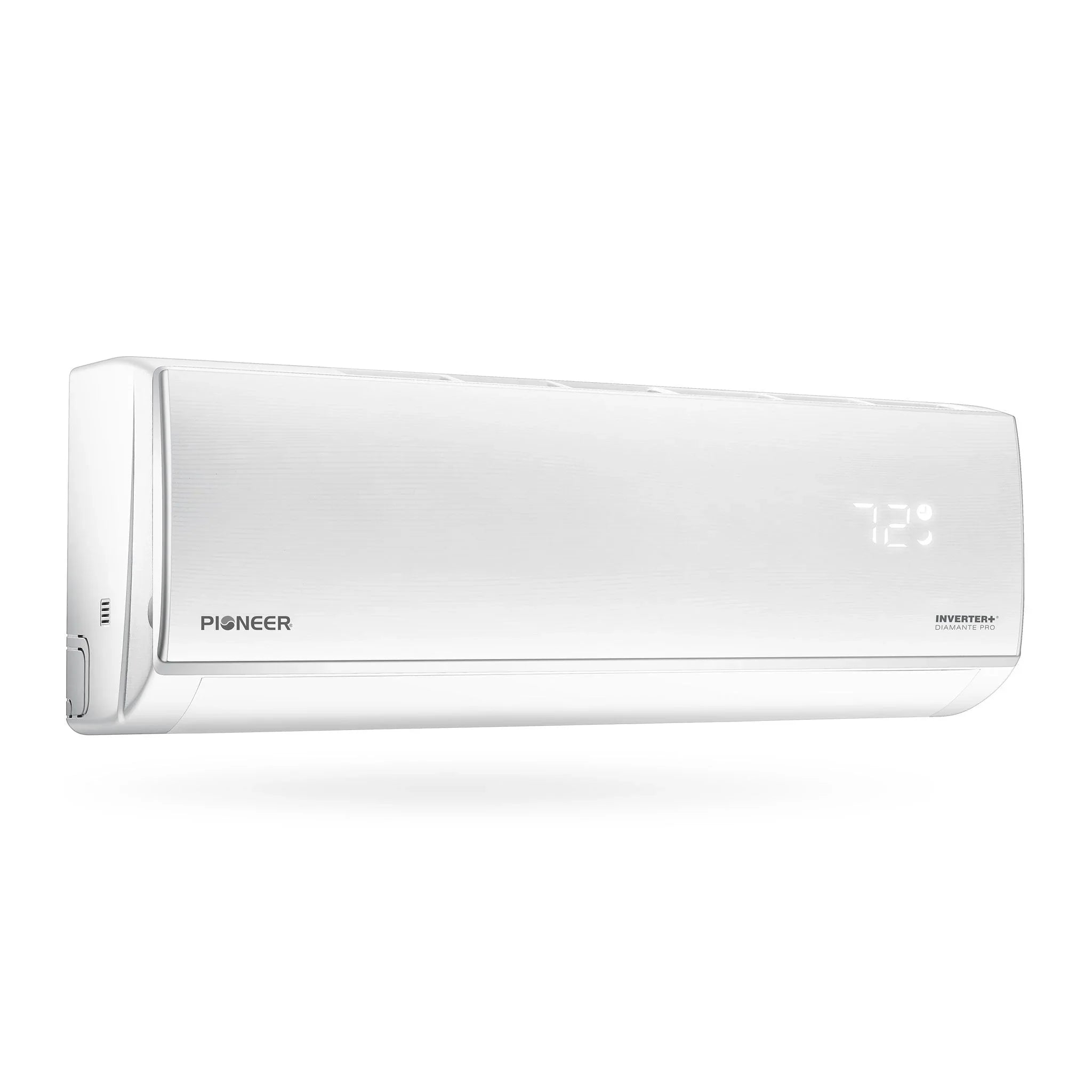

  • High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 9,000 BTU/H with 19 SEER2 / 11.7 EER2 efficiency
  • Heating capacity: 10,000 BTU/H with 9.5 HSPF2 / 3.81 COP2 efficiency
  • Voltage: 110/120V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

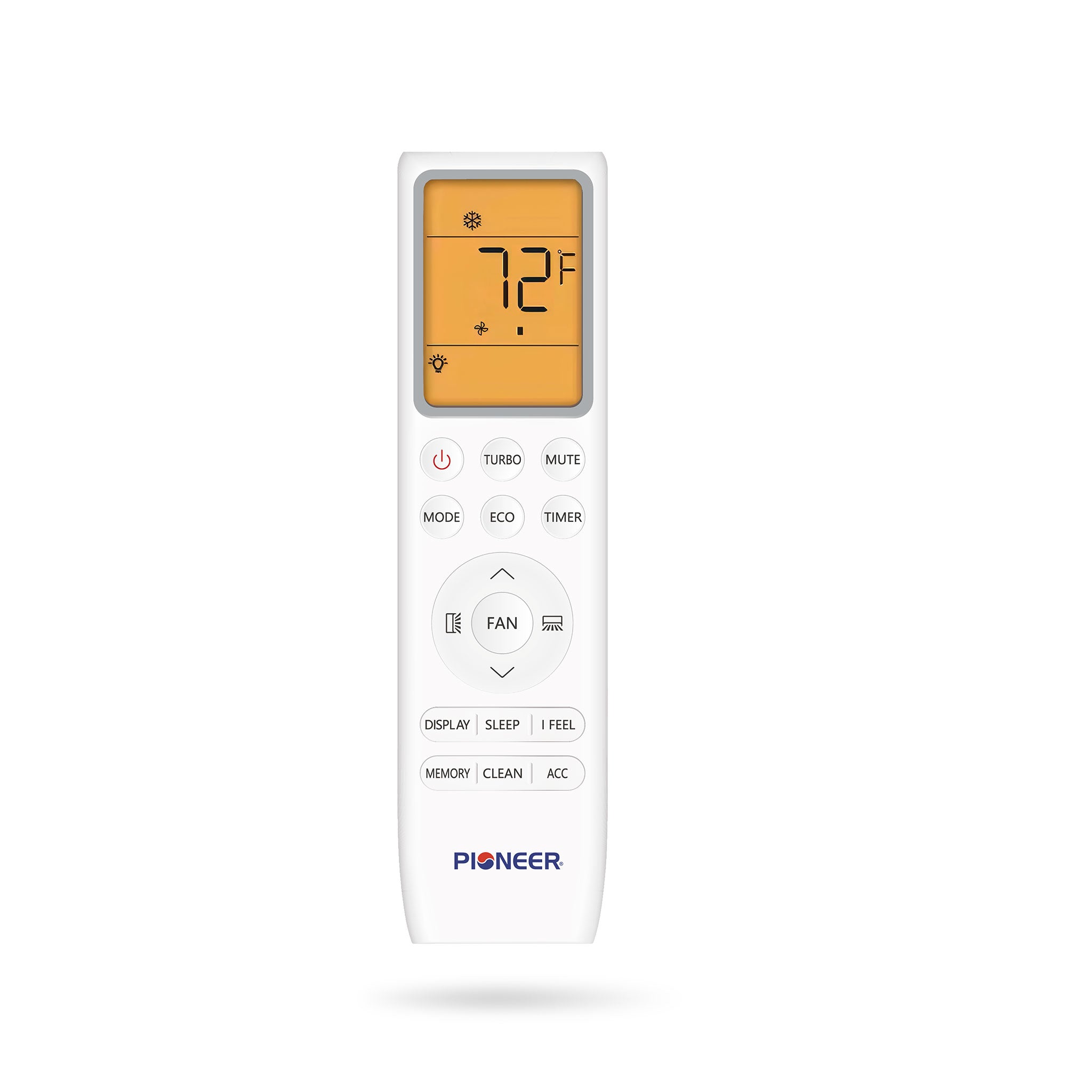

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

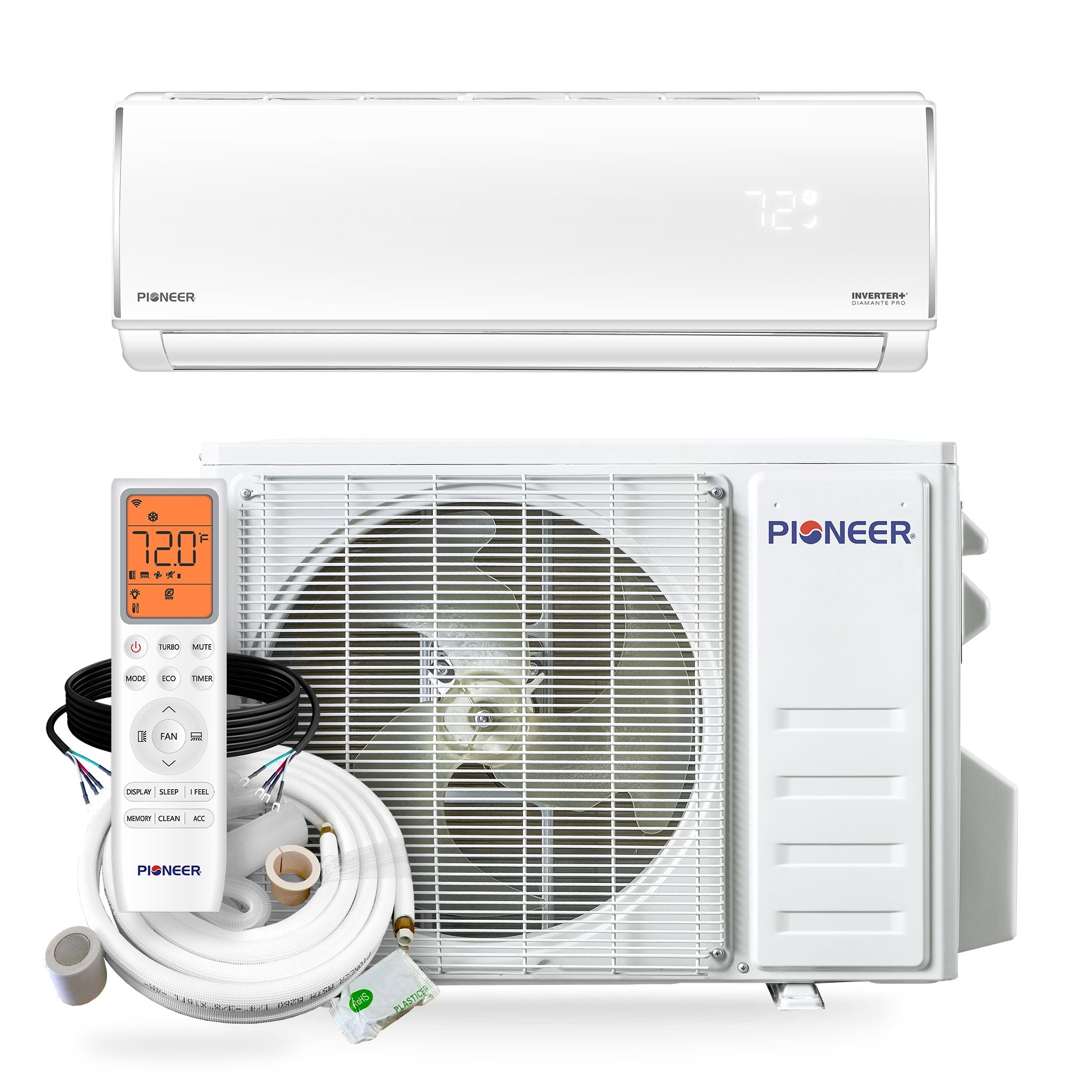

  • System Kit
    • Power Supply: 110~120V, 60Hz, 1Ph
    • Cooling Rated Capacity: 9,000 BTU/h (0.75 Ton)
    • Cooling Capacity Range: 2,050~11,250 BTU/h
    • Cooling SEER2: 19.0 BTU/W.h
    • Cooling EER2: 11.7 BTU/W.h
    • Heating Rated Capacity: 10,000 BTU/h (0.83 Ton)
    • Heating Capacity Range: 2,050~12,200 BTU/h
    • Heating HSPF2 (Region IV/V): 9.5 / 8.0 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.81 / 1.9 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 250~350 sq ft
    • Minimum Room Size: 26 sq ft

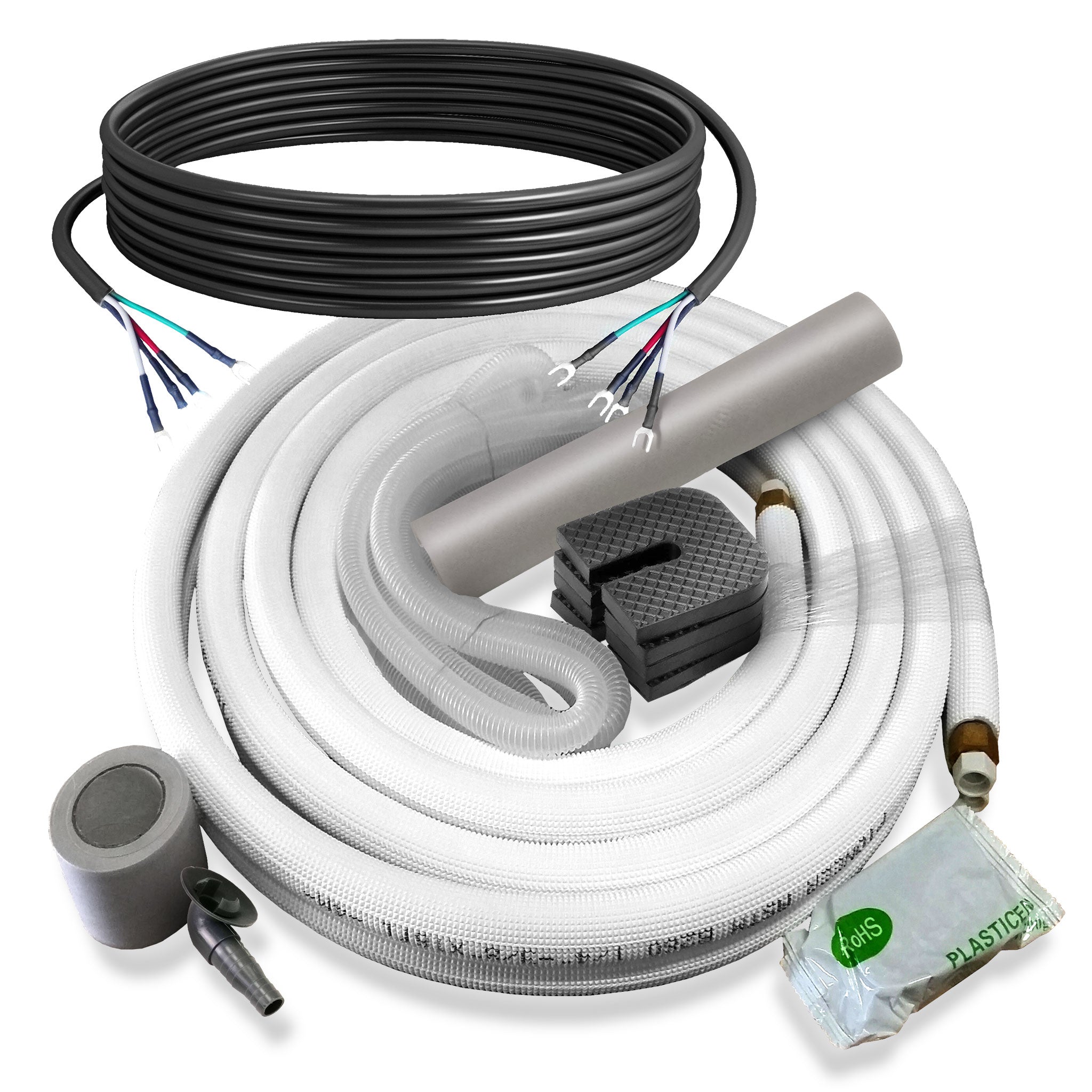

    • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048740

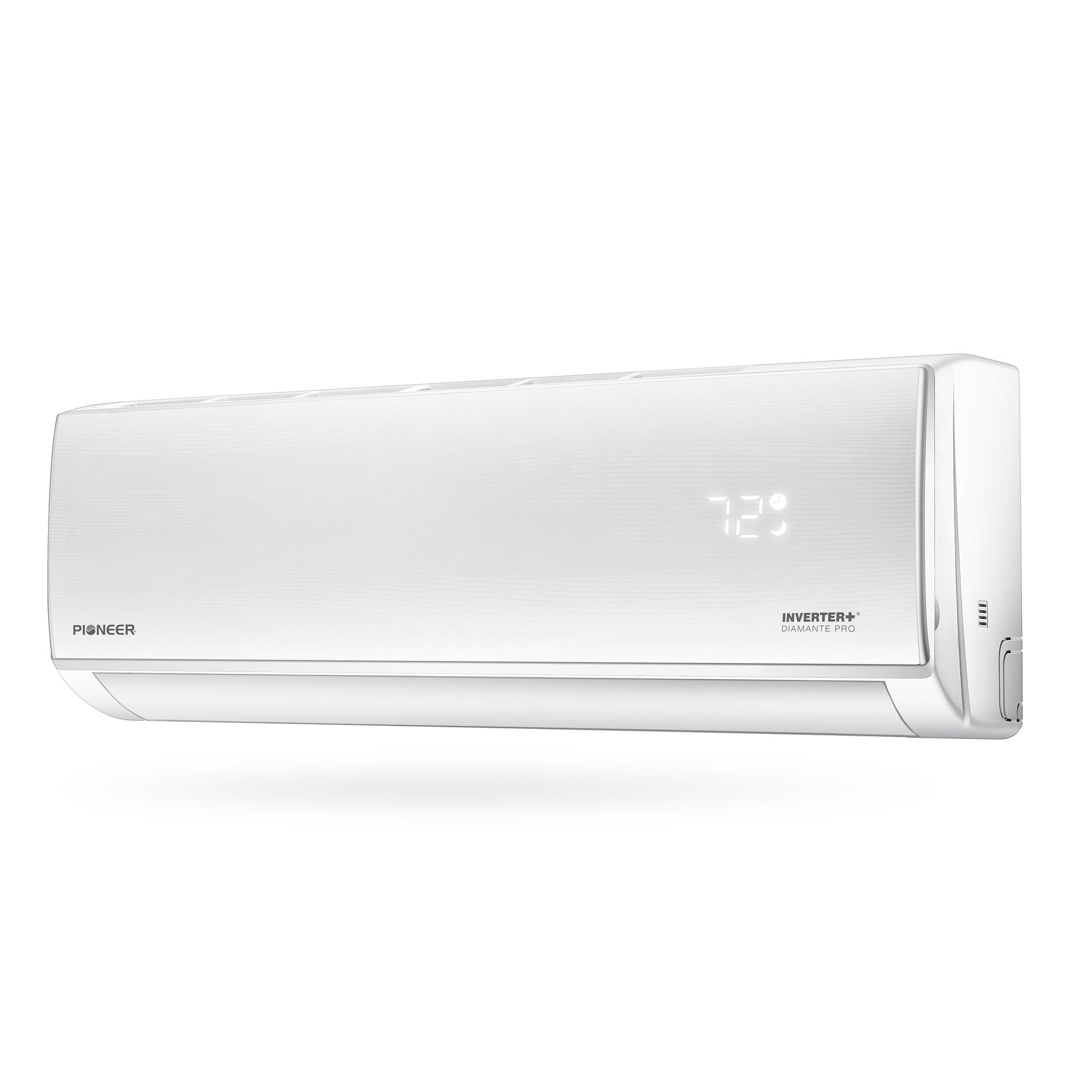

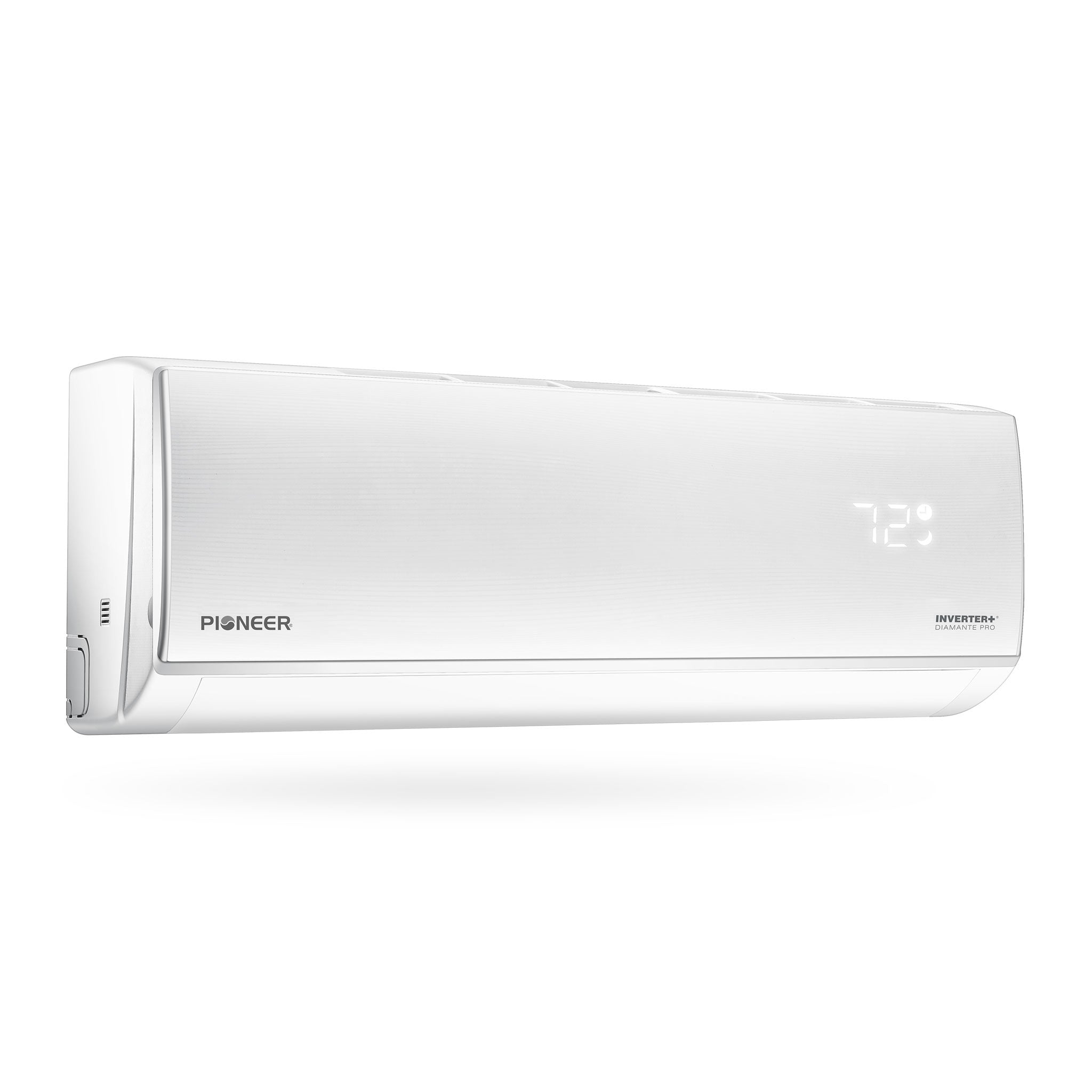

  • Indoor Unit
    • Part Number: WT009ALSI20HLF
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 342 / 270 / 235 / 200 / 152 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 42 / 40 / 35 / 30 / 28 dB(A)
    • Product Dimensions (WDH): 31"-7/8 x 8" x 11"-1/2 Inches
    • Carton Dimensions (WDH): 34"-7/8 x 10"-3/4 x 14"-3/8  Inches
    • Net / Gross Weight: 19.8 / 26.5 lbs

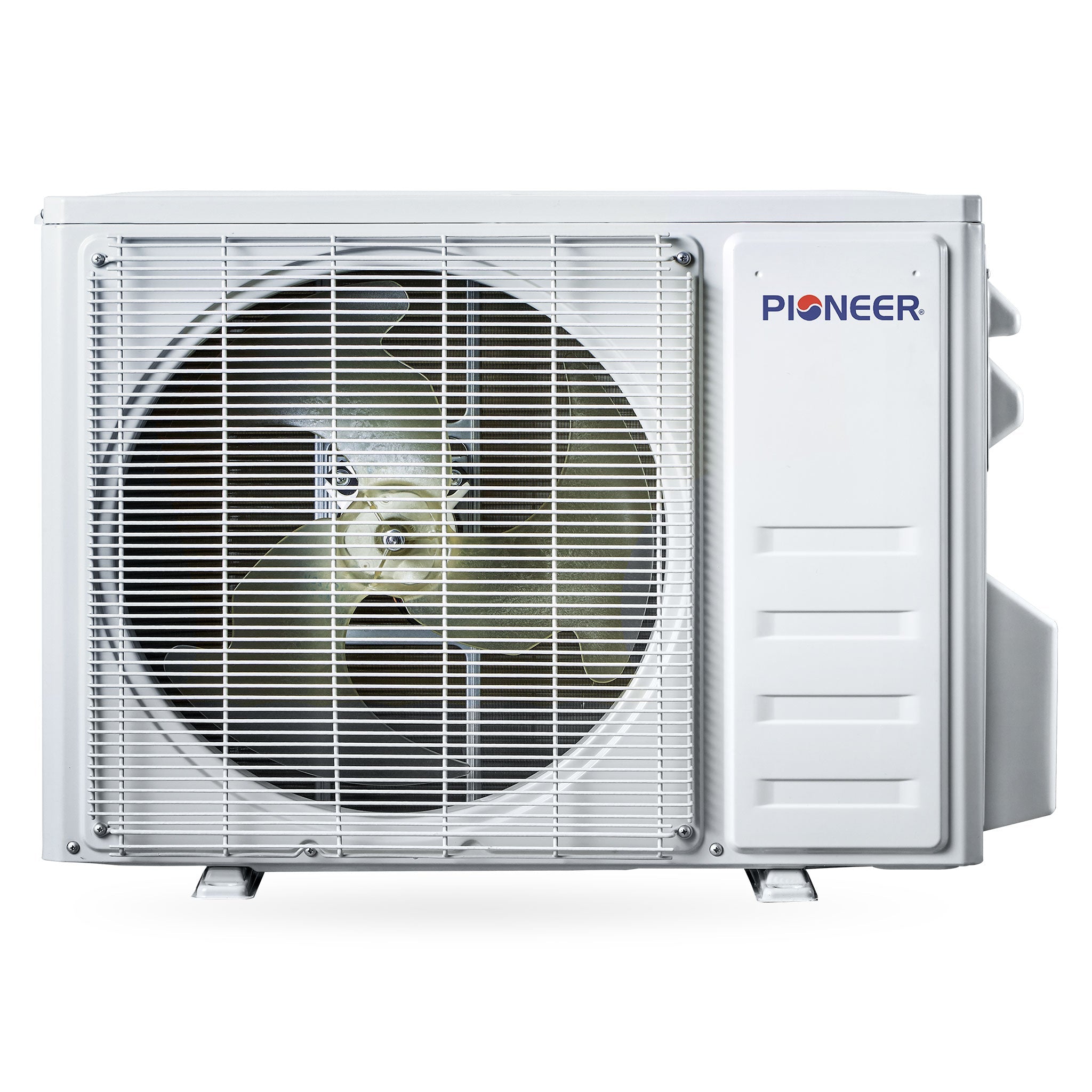

  • Outdoor Unit
    • Part Number: YN009ALSI20RPF
    • Breaker Needed: 25A (single-pole)
    • Sound Level: 54 dB(A)
    • Net Dimensions (WDH): 31" x 11"-1/2 x 19"-3/8 Inches
    • Carton Dimensions (WDH): 33" x 13"-3/8 x 22"-3/4 Inches
    • Net / Gross Weight: 51.8 / 62.8 lbs

Dimension Chart

31⅞ 8 11½ 31 11½ 19⅜ ¾
