Summary

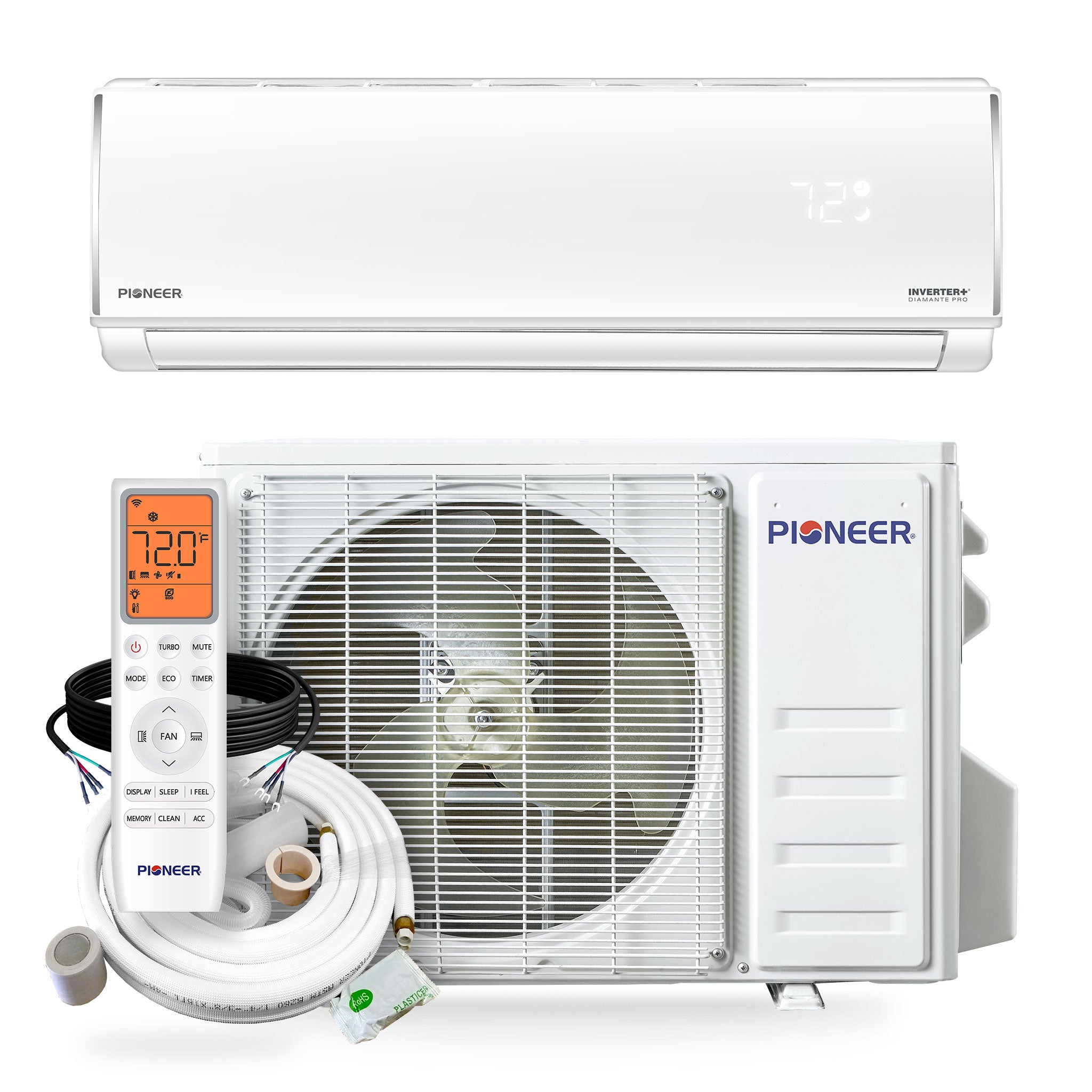

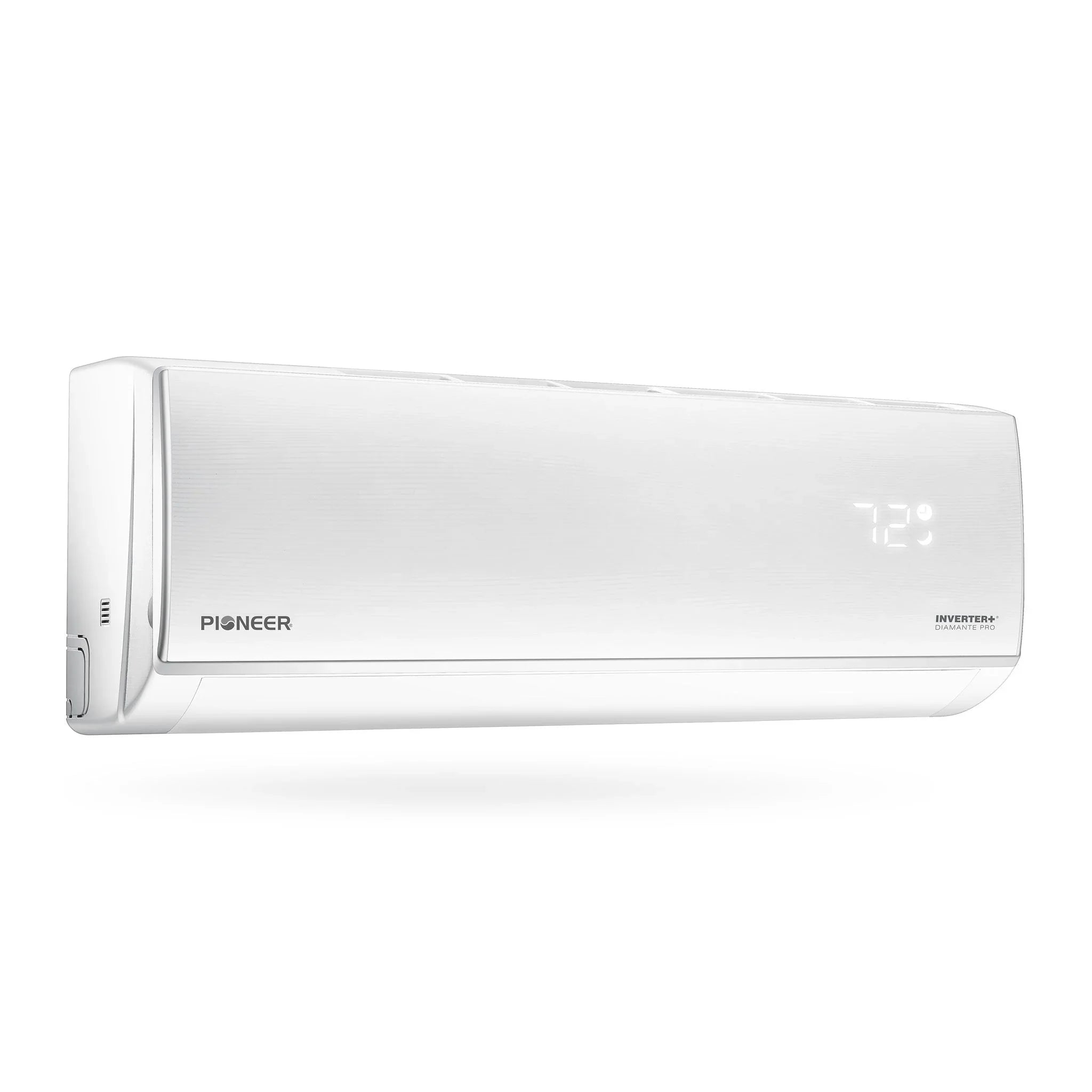

  • High Efficiency Diamante Pro™ Ductless Mini Split Heat Pump System
  • Cooling capacity: 18,000 BTU/H with 21 SEER2 / 10.5 EER2 efficiency
  • Heating capacity: 18,000 BTU/H with 9.5 HSPF2 / 3.41 COP2 efficiency
  • Voltage: 208/230V, 60Hz, 1Ph
  • High Wall-Mounted Ductless Air Conditioning & Heating System
  • Variable-Speed DC Inverter Driven Performance
  • Factory-Precharged with Environmentally Friendly R454b Refrigerant
  • Low Ambient Range Operation (As low as -4°F in Heating / As high as 122°F in Cooling)

Features

  • Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
  • Dual-Drainage Ports
  • Washable, Reusable Air Filters
  • Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers)

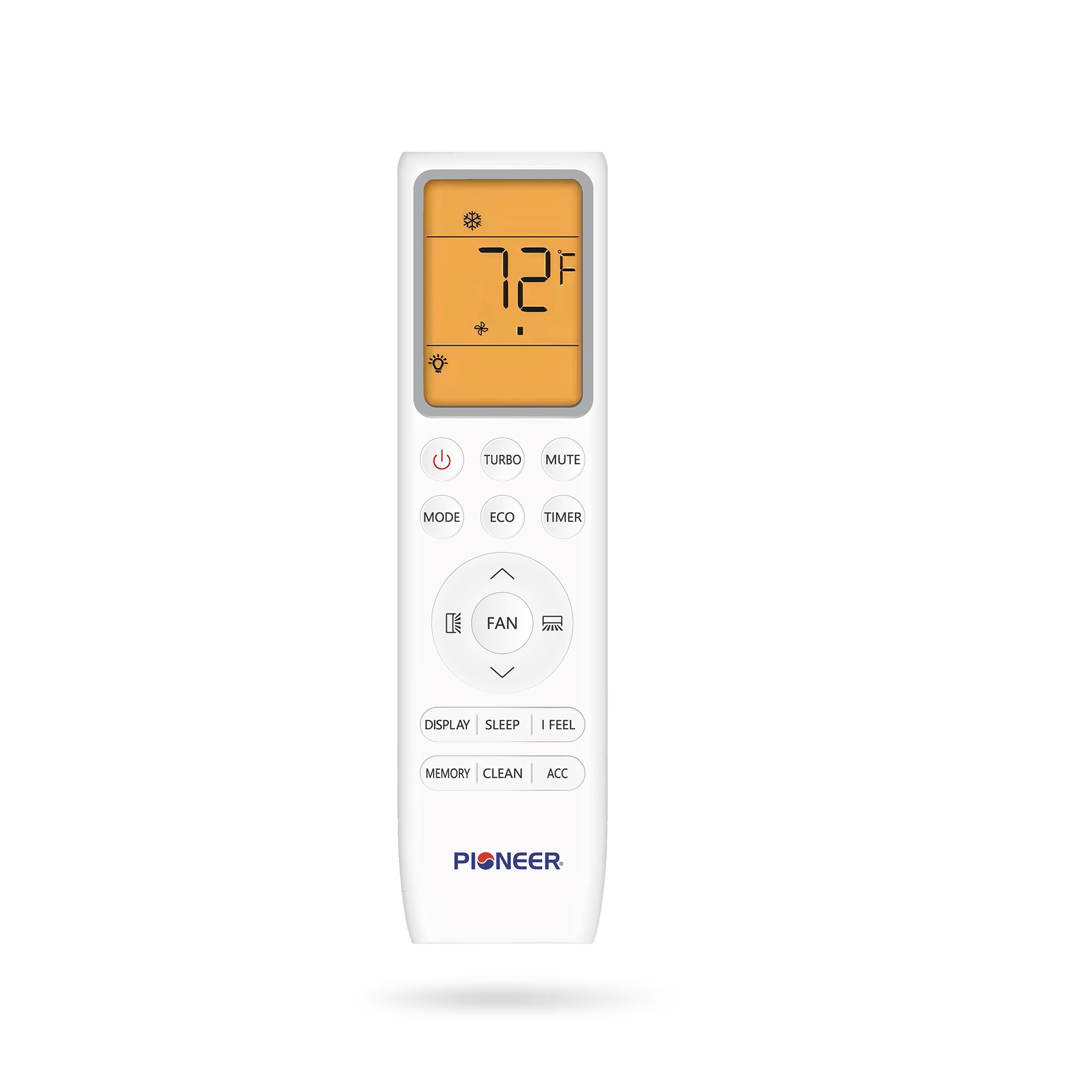

  • Functional Remote with:
    • ECO and SLEEP Modes, for Energy-Conservation
    • Timer On/Off Control
    • TURBO, for Times of High-Demand
    • Self-Clean Cycle
    • MEMORY, to Recall Favorite Settings
    • IFEEL, to Detect and Adjust to Local Temperature

Technical Information & Performance

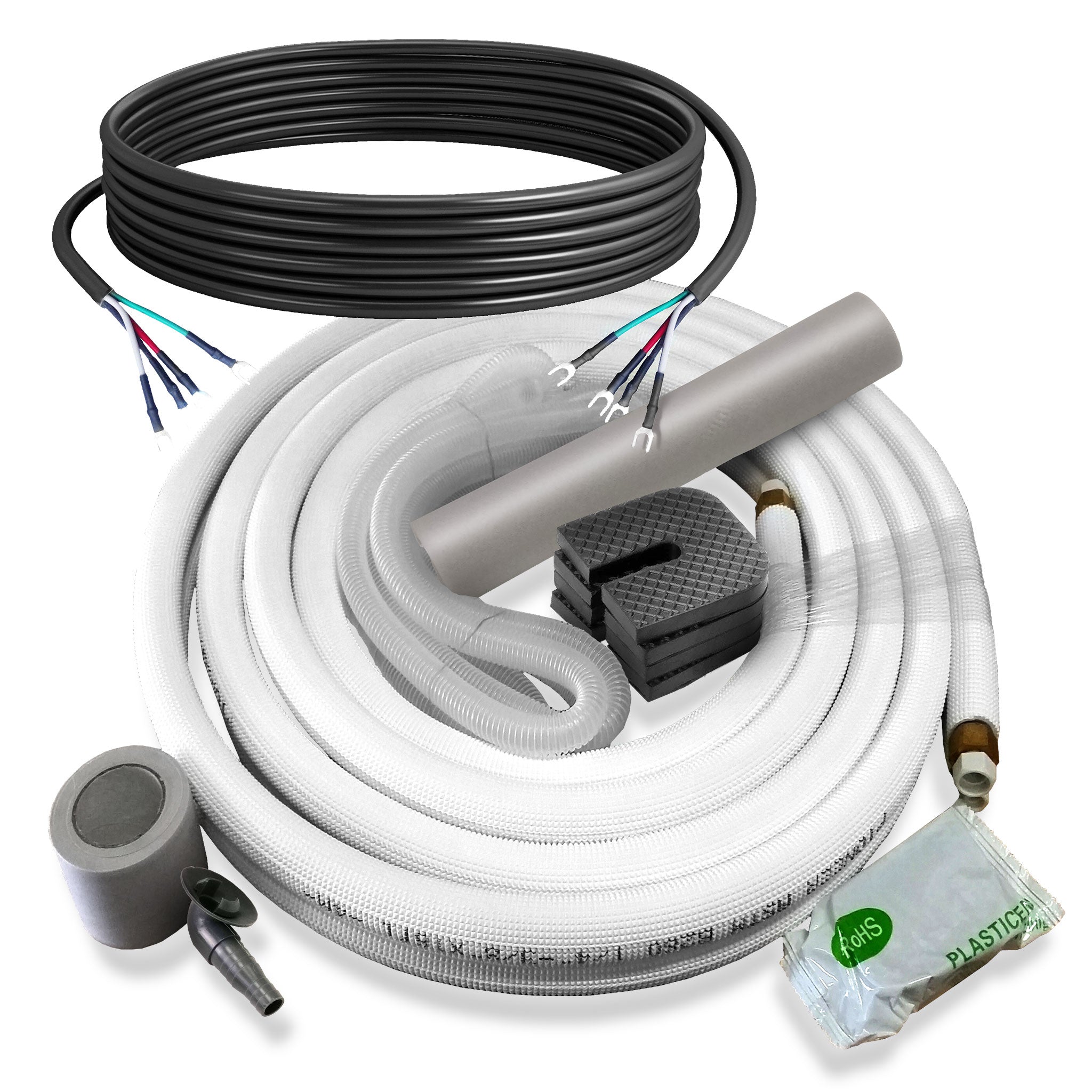

  • System Kit
    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Rated Capacity: 18,000 BTU/h (1.5 Ton)
    • Cooling Capacity Range: 4,090~18,400 BTU/h
    • Cooling SEER2: 21.0 BTU/W.h
    • Cooling EER2: 10.5 BTU/W.h
    • Heating Rated Capacity: 18,000 BTU/h (1.5 Ton)
    • Heating Capacity Range: 4,090~19,000 BTU/h
    • Heating HSPF2 (Region IV/V): 9.5 / 8.2 BTU/W.h
    • Heating C.O.P.2 (47°F/5°F): 3.41 / 1.8 W/W
    • Refrigerant Type: R454b
    • Recommended Room Size: 500~750 sq ft
    • Minimum Room Size: 40 sq ft
    • Piping Diameter: 3/8" (Gas) / 1/4" (Liquid)
    • AHRI Reference: 217048744

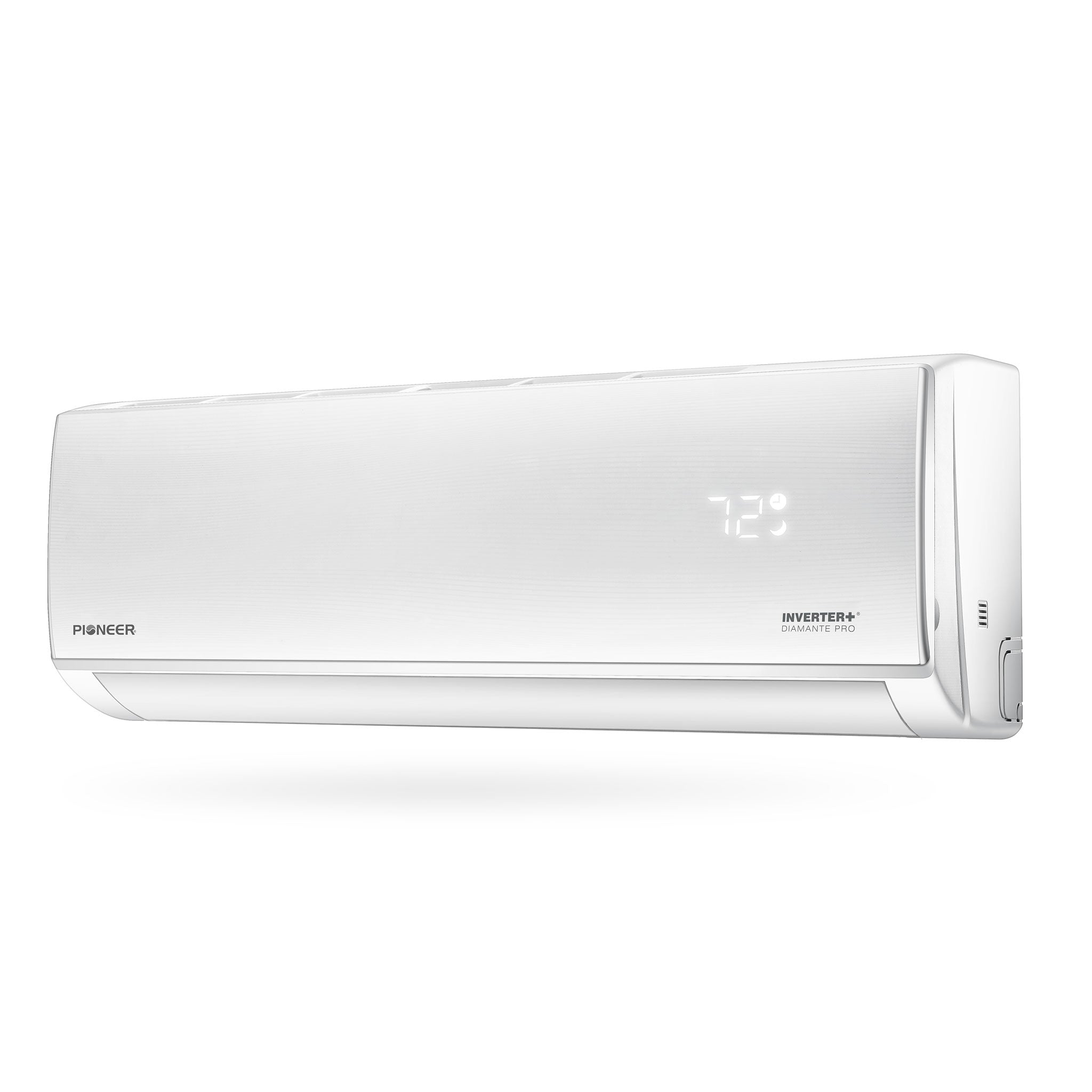

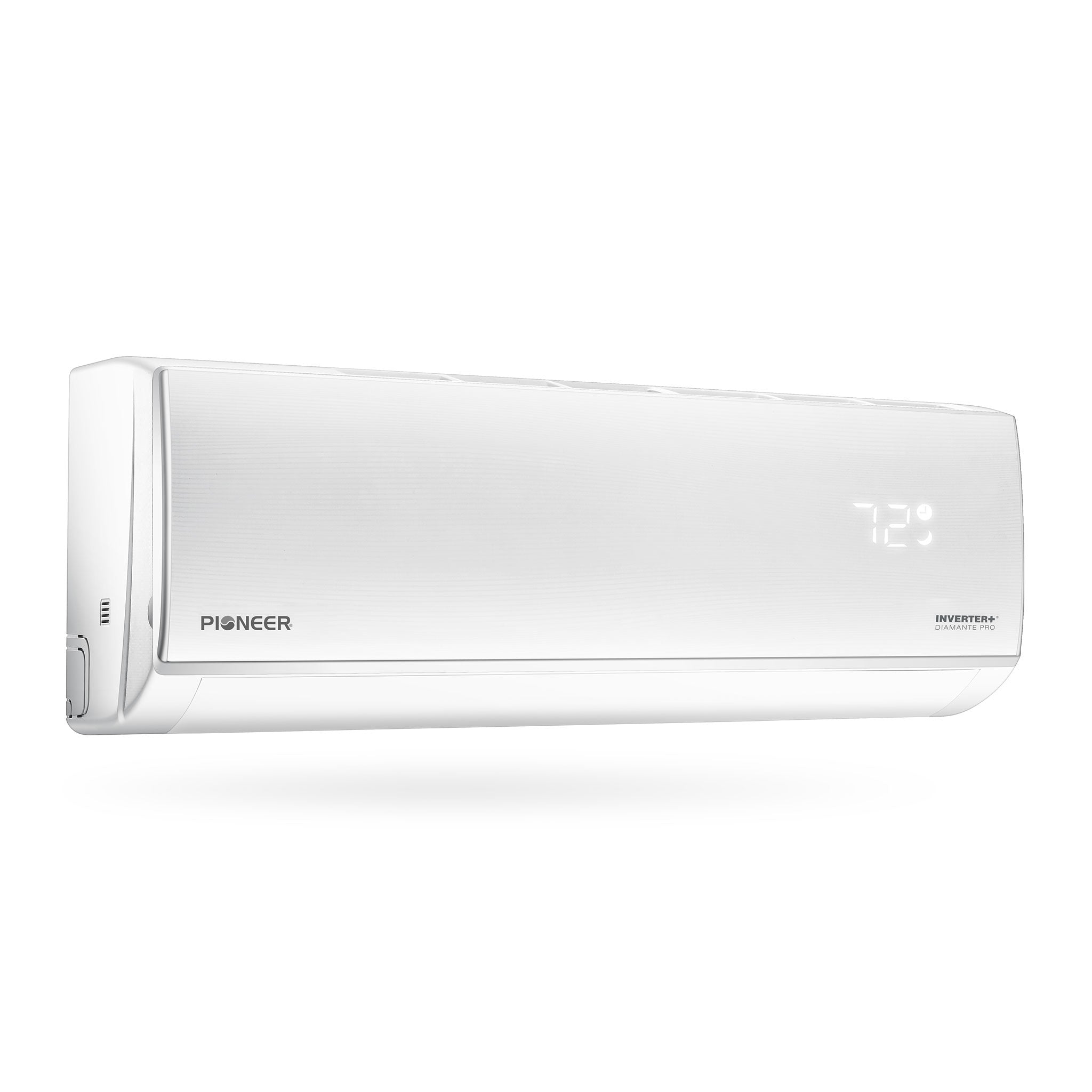

  • Indoor Unit
    • Part Number: WT018GLSI20HLF
    • Air Flow (Turbo/Hi/Med/Lo/Mute): 617 / 575 / 511 / 411 / 382 CFM
    • Sound Level (Turbo/Hi/Med/Lo/Mute): 49 / 47 / 42 / 37 / 32 dB(A)
    • Product Dimensions (WDH): 39"-3/4 x 9" x 12"-3/8 Inches
    • Carton Dimensions (WDH): 43"-1/8 x 11"-3/4 x 15"-3/8 Inches
    • Net / Gross Weight: 27.6 / 33.7 lbs

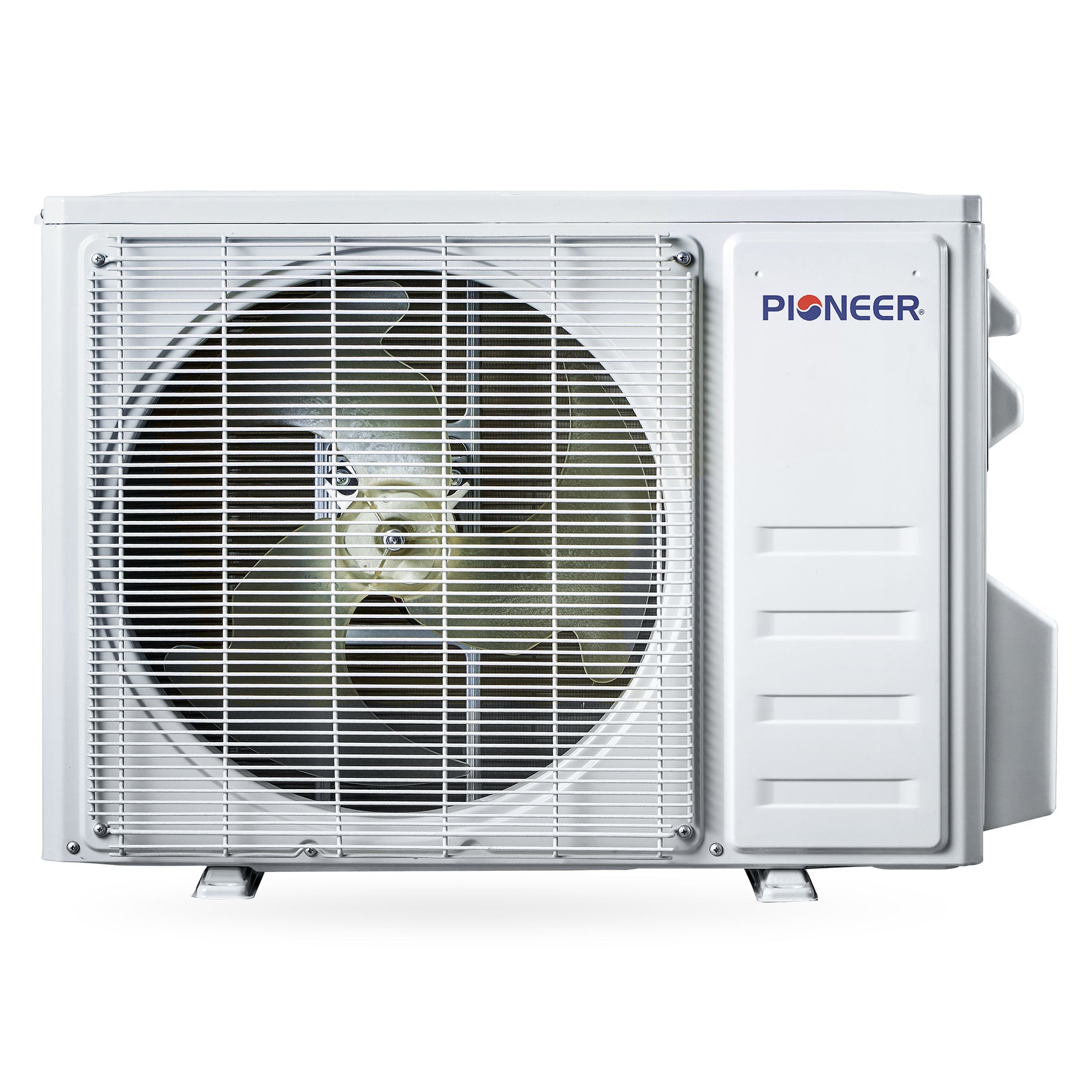

  • Outdoor Unit
    • Part Number: YN018GLSI20RPF
    • Breaker Needed: 20A (double-pole)
    • Sound Level: 55 dB(A)
    • Net Dimensions (WDH): 34" x 13"-3/4 x 23"-3/4 Inches
    • Carton Dimensions (WDH): 35"-1/2 x 16" x 27" Inches
    • Net / Gross Weight: 70.5 / 82.7 lbs

Dimension Chart

39¾ 9 12⅜ 34 13¾ 23¾ ¾
