Overview

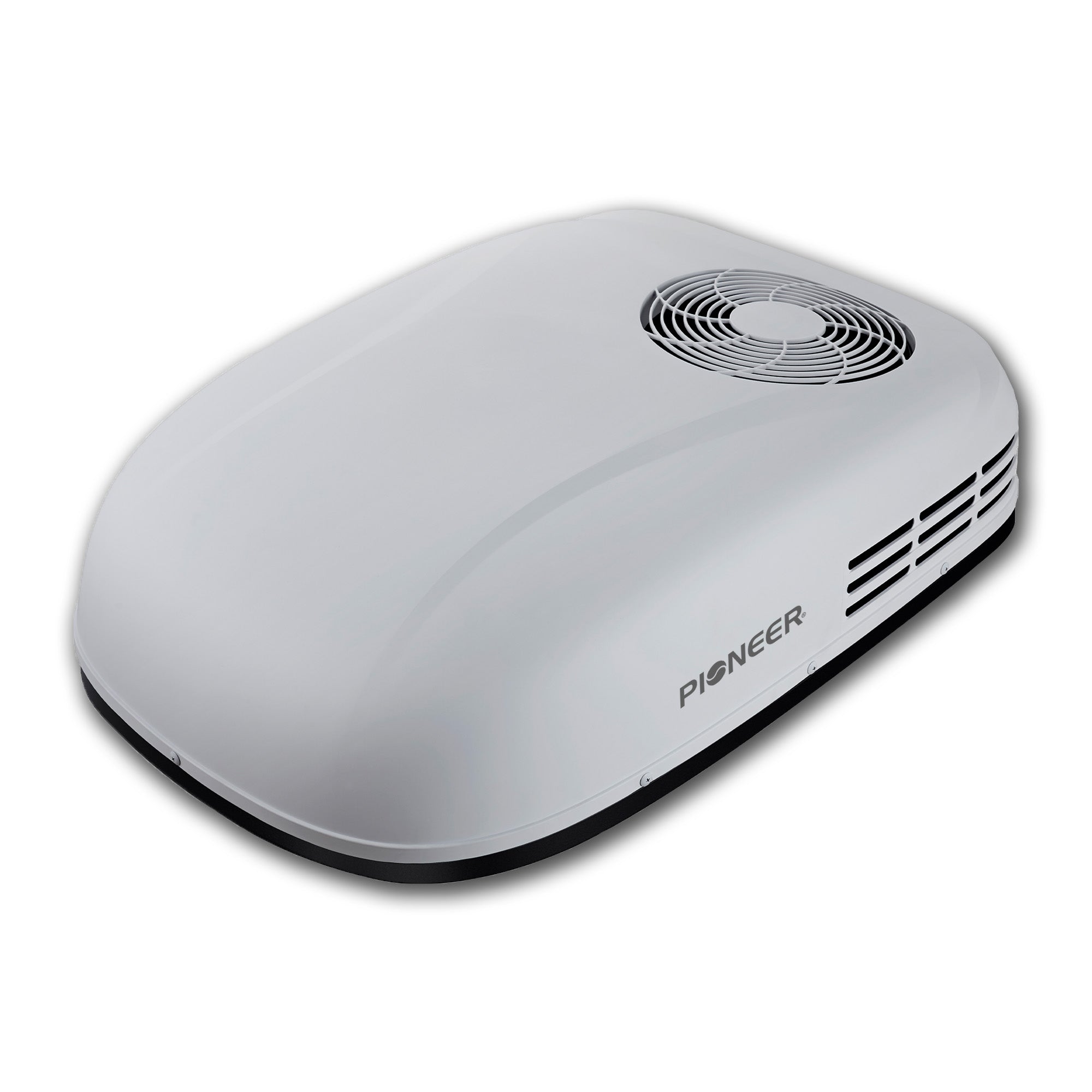

Go further than ever before and experience the next level of RV climate control with the PYZ012AZUDCIPD Full Inverter RV Rooftop Air Conditioner Heat Pump. Designed for maximum efficiency and comfort, this unit features DC inverter technology with a dual-fan structure, ensuring superior performance, reduced power consumption, and ultra-quiet operation.

With 13,500 BTU of cooling and heating power, this unit keeps your RV comfortable in all seasons. The sleek, aerodynamic shroud minimizes drag, while the smart app and remote control compatibility offer effortless operation. Using eco-friendly R32 refrigerant, it delivers powerful climate control with a reduced environmental footprint. And with its fully DC Inverter-driven tech, the system offers a starting current close to 0 amps, removing the need to implement any expensive soft-starter systems for powering via generators or batteries.

Ideal for standard RV roof openings (14-1/2 x 14-1/4 inch or 15-3/4 x 15-3/4 inch), this unit integrates seamlessly into your setup. Whether you're exploring the desert or camping in the mountains, this rugged and efficient air conditioner heat pump keeps you comfortable wherever the road takes you.

Summary

• Model Number: PYZ012AZUDCIPD
• Cooling Capacity: 13,500 BTU
• Cooling Efficiency (EER): 9.0 BTU/w.h
• Heating Capacity: 13,500 BTU
• Heating Efficiency (C.O.P.): 3.04 W/W
• Power Supply: 115V / 60Hz
• Full DC Inverter Technology for high efficiency & quiet operation
• Zero In-Rush Current eliminates the need for expensive soft-starters
• Dual-Fan Structure for improved airflow and noise reduction
• App & Remote Control Compatible for easy operation
• Heat Pump Function for cooling and heating versatility

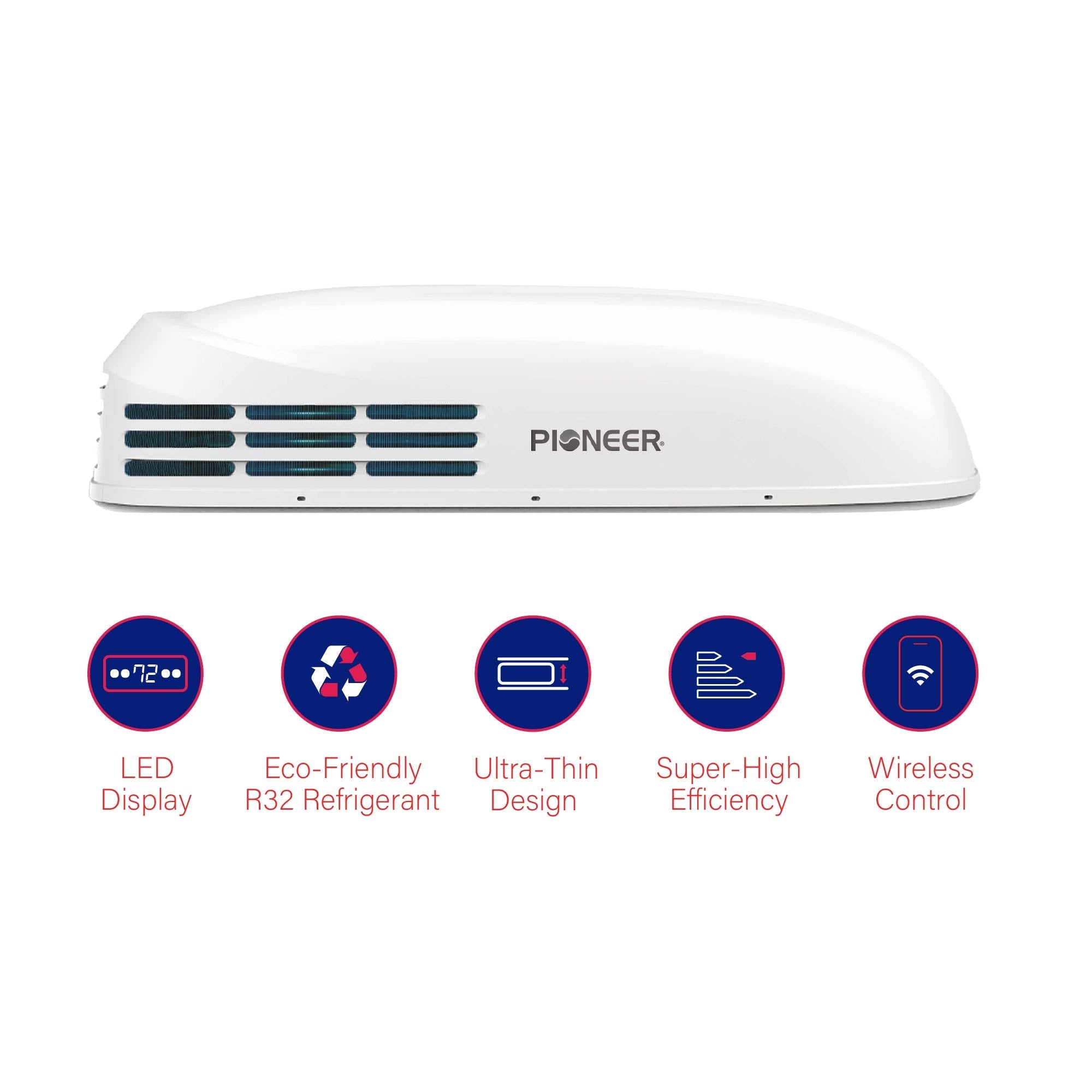

• Sleek, Low-Profile Design (<10" height) reduces wind resistance
• Smart Airflow Distribution for even temperature control
• Energy-Efficient R32 Refrigerant (non-ozone depleting)
• Wide Operating Temperature Range:
  • Cooling Mode: 63°F - 109°F (Outdoor) / 63°F - 90°F (Indoor)
  • Heating Mode: 28°F - 75°F (Outdoor) / 28°F - 81°F (Indoor)

What's Included

• RV Rooftop Air Conditioner Heat Pump Unit (PYZ012AZUDCIPD)

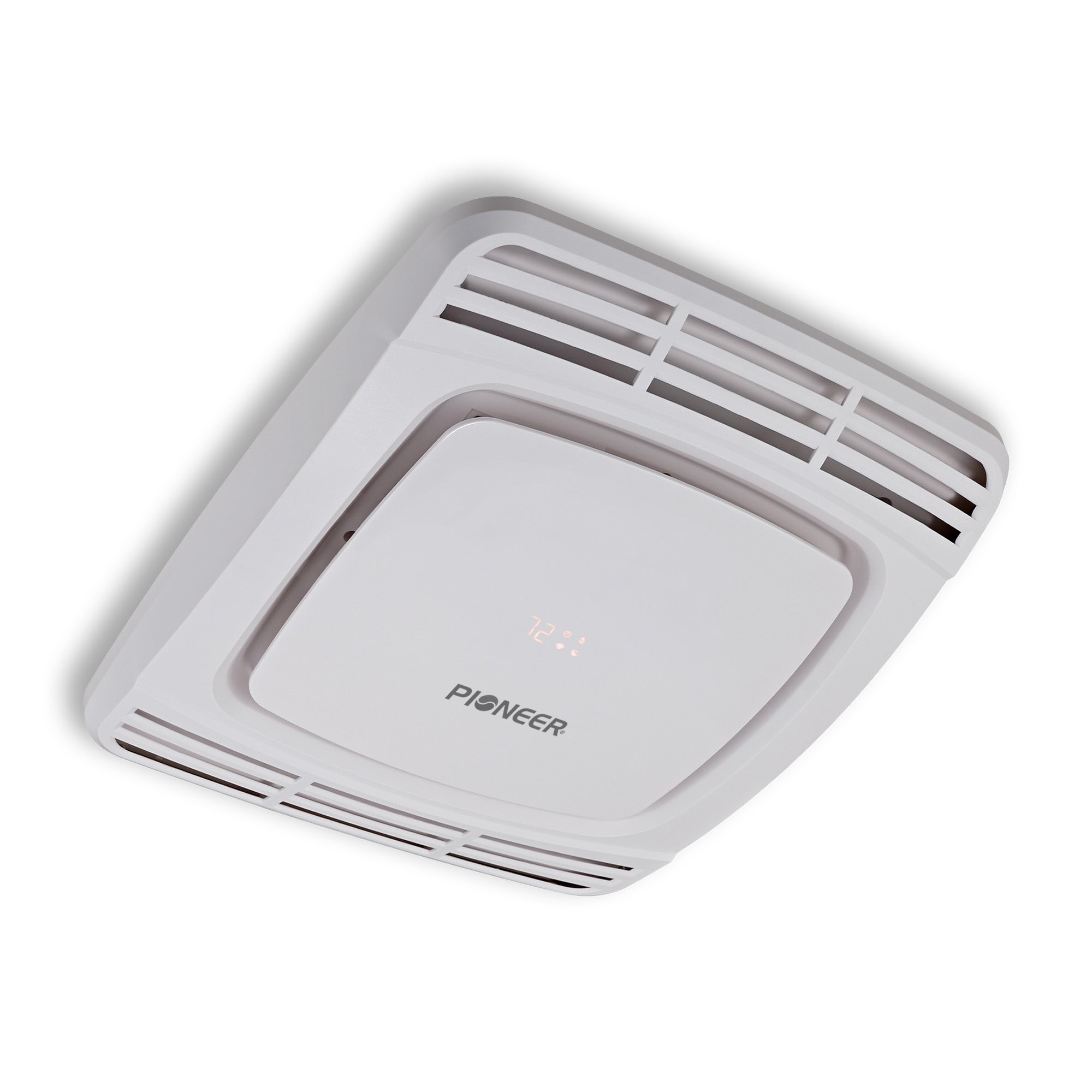

• Interior Ceiling Assembly with LED Display & Controls
• Mounting Gasket & Hardware Kit
• User Manual & Installation Guide

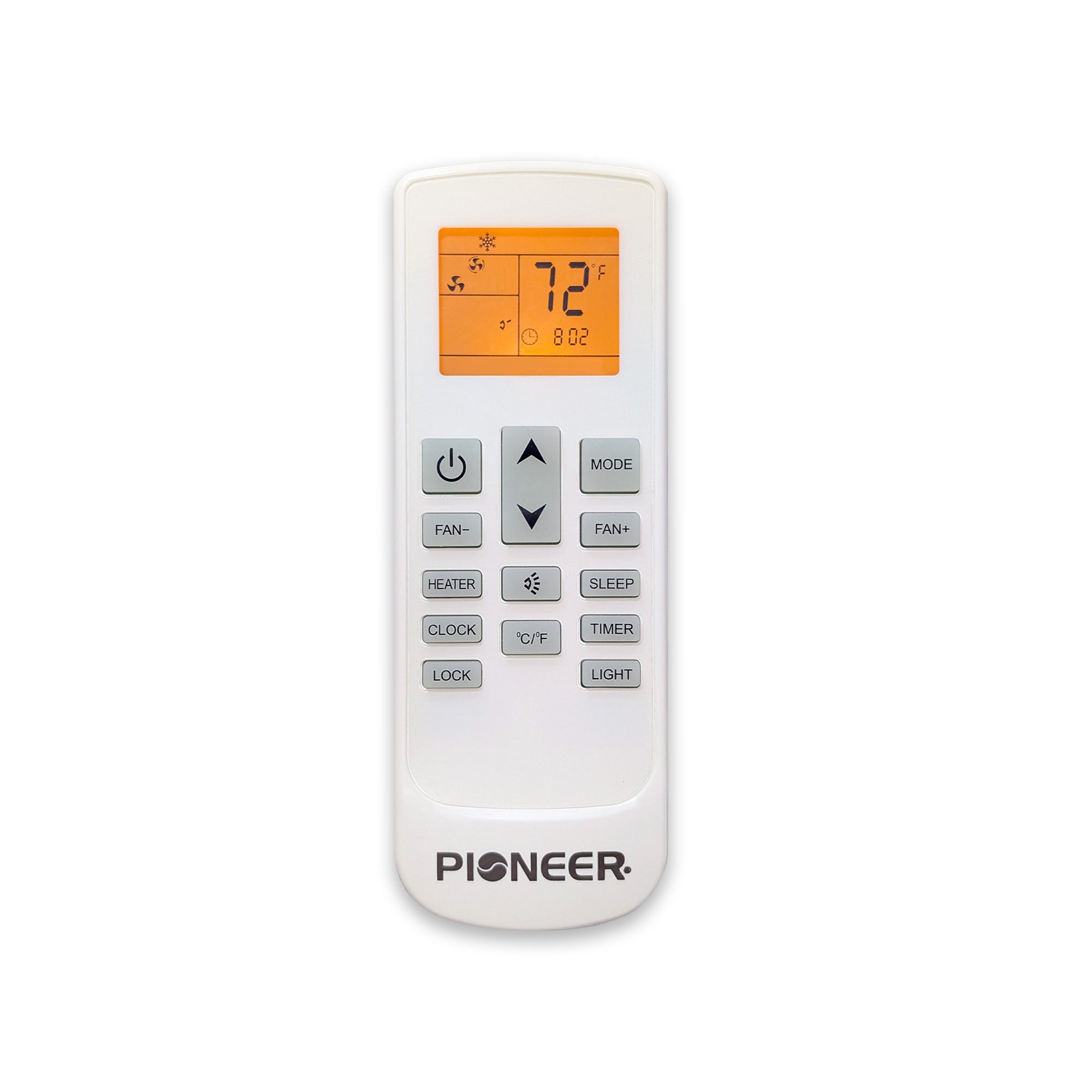

• Remote Control

Our Guarantee

Your comfort and satisfaction are our top priority. The PYZ012AZUDCIPD RV rooftop air conditioner heat pump is backed by:

• 3 year parts limited warranty
• 3 year compressor limited warranty

Technical Information

Performance Data

• Rated Cooling Capacity (Range): 7,500 ~ 13,500 BTU/hr
• Rated Heating Capacity (Range): 7,200 ~ 13,500 BTU/hr
• Power Supply / Frequency: 115V / 60Hz
• Cooling Input Power: 850 ~ 1500W
• Heating Input Power: 750 ~ 1300W
• Rated Input Current of the Converter: 11A
• Current (Cooling/Heating): 9.8 ~ 16.9A / 8.9 ~ 14.5A
• MCA (Minimum Circuit Ampacity): 16A
• MOP (Maximum Overcurrent Protection): 25A
• Airflow High/Med/Low (CFM): 290 / 265 / 245
• Sound Level (from 40 In. Distance, High Fan Speed): 57 dB(A)
• Refrigerant Type: R32
• Refrigerant Charge: 19.75 oz

Unit Physical Data

• Dimensions (Outdoor Section - L x W x H): 41-5/8 x 29 x 10 (inches)
• Weight (Outdoor Section): 92.6 lbs
• Dimensions (Indoor Section - L x W x H): 21-1/4 x 23-1/4 x 2-7/8 (inches)
• Weight (Indoor Section): 8.2 lbs
• Standard Roof Opening Sizes: 14-1/2 x 14-1/4 (inch) or 15-3/4 x 15-3/4 (inch)
• Cable Standard: 12 AWG / <25 ft
• Circuit Protection Fuse: 20A

Product Documentation

• Sales Brochure
• Install/Instructions
• Exploded Parts Diagram
