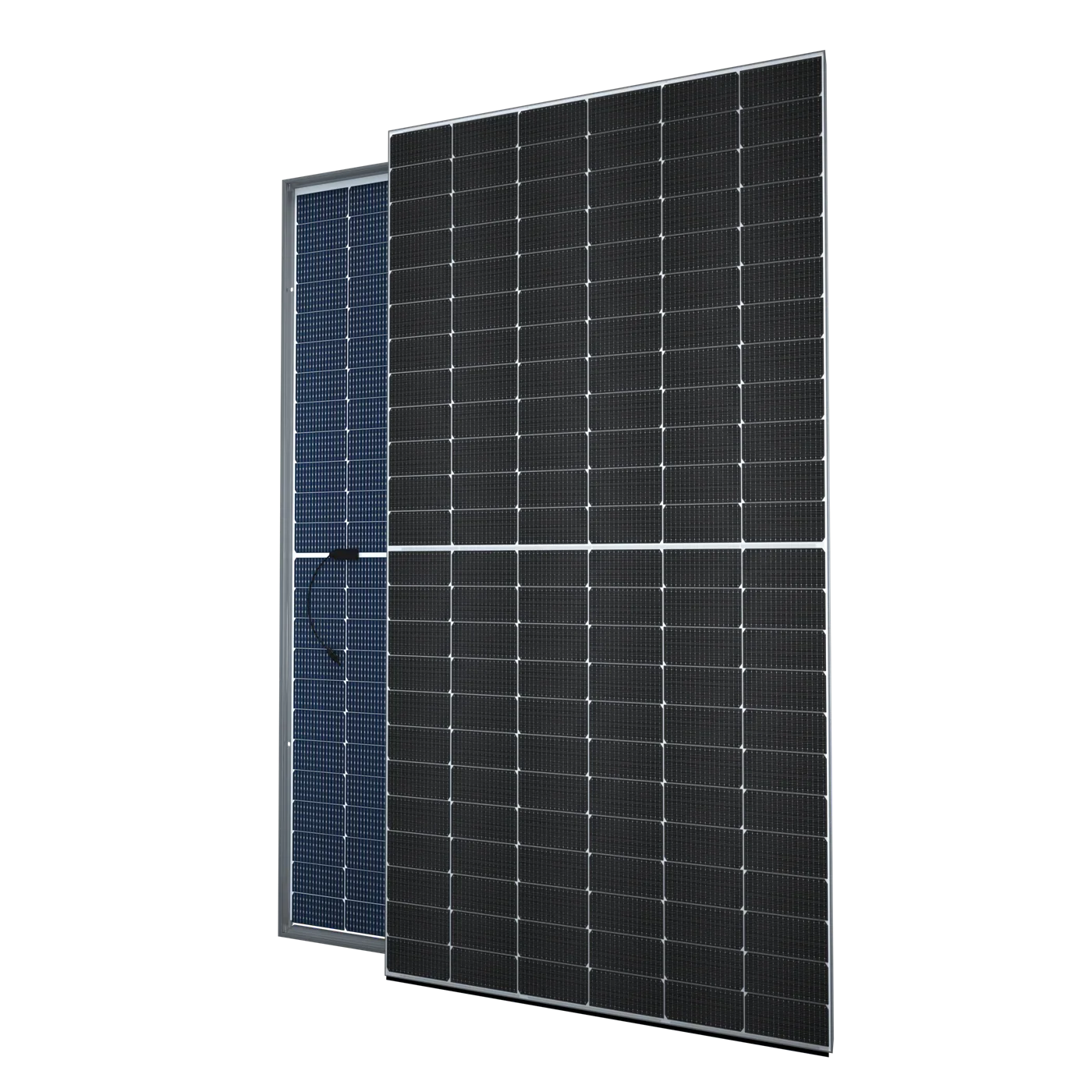

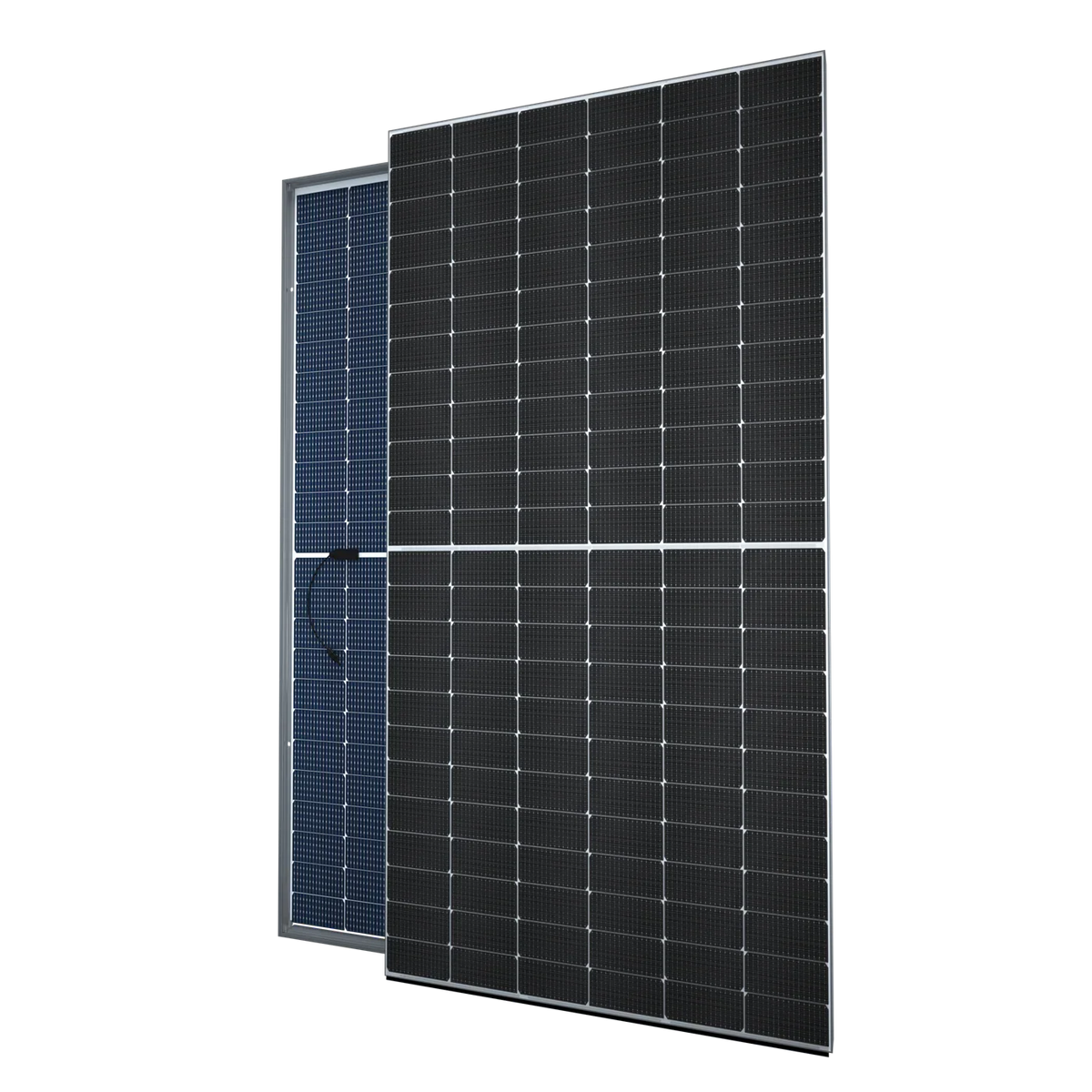

Philadelphia Solar 600W (Pallet of 36) PS-MNB144(HBCF)-600W

These panels are California Energy Commission (CEC) Listed

The PS-MNB144(HBCF)-600W is a 600 W half-cell, n-type 16-busbar bifacial module engineered for high energy yield and long-term reliability. Built with 3.2 mm AR-coated tempered glass, an anodized aluminum frame, and a transparent backsheet, it supports 1,500 V DC systems and delivers strong low-light performance with positive power tolerance and low degradation.

Key Benefits

High Output & Efficiency: 600 W nameplate with up to 23.23% module efficiency.

Bifacial Gain: ~80% bifaciality ratio—5–25% rear-side boost reduces LCOE.

Durability: Rated for 5400 Pa front / 2400 Pa back static loads and 1000 Pa dynamic load.

Low Degradation: Only −0.4%/year; 12-yr product and 30-yr linear power warranties.

Special Technology

N-Type Half-Cell with 16BB: Better temperature behavior, lower LID/PID risk, improved low-irradiance response. :

Optimized Light Trapping & Collection: Enhances current collection and overall reliability.

Warranty

Product: 12 Years · Power: 30 Years (94.6% @ year 12; 87.4% @ year 30).

Best Uses

Commercial/Industrial Rooftops · Utility & Ground-Mount · Off-Grid Systems: High-power, bifacial applications targeting low LCOE and long service life.

Bifacial Design and N-Type Half-Cells, Structure Explained

These advanced features define the high-efficiency performance and extended durability of this solar panel:

Bifacial Technology
This bifacial module is engineered to capture solar energy from both the front and rear sides. While the front absorbs direct sunlight, the rear side collects reflected light from surrounding surfaces such as concrete, snow, or sand. This dual-sided exposure increases overall energy harvest, significantly boosting total output and system efficiency—especially in high-albedo environments.

N-Type Half-Cell Architecture
The panel utilizes N-Type monocrystalline cells with a half-cut layout, offering superior efficiency and thermal performance compared to traditional P-Type cells. N-Type cells are inherently more resistant to light-induced degradation (LID) and offer improved electron mobility, resulting in higher efficiency and longer operational stability. The half-cell configuration minimizes resistive losses and enhances energy yield even under partial shading.

Specifications Table

About Philadelphia Solar:

Philadelphia Solar is a Tier‑1 solar PV manufacturer founded in 2007 in Jordan, now expanding in the USA. They produce bifacial and N‑type PERC modules (400–635 Wp), with a 580 MW/yr capacity, exporting to 52+ countries, offering EPC services and strong quality credentials.

FAQs

Q: What is the power output of the PS-MNB144(HBCF)-600W panel?
The PS-MNB144(HBCF)-600W solar panel produces 600 watts of power, delivering exceptional efficiency for both residential and commercial solar installations.

Q: Are PS-MNB144(HBCF)-600W panels suitable for areas with low sunlight?
Yes, these panels are engineered to maintain strong performance in low-light conditions, including cloudy weather, hazy skies, and early-morning or late-afternoon sunlight.

Q: What kind of warranty does the manufacturer offer for the PS-MNB144(HBCF)-600W panel?
This model includes a 12-year product warranty and a 30-year linear power output warranty, ensuring dependable performance and long-term investment protection.

Q: Are these panels compatible with different mounting systems?
Yes, the PS-MNB144(HBCF)-600W is fully compatible with standard racking and mounting systems, simplifying installation for both roof-mounted and ground-mounted setups.

Q: How durable are PS-MNB144(HBCF)-600W panels in harsh weather conditions?
These panels are built to withstand heavy snow, strong winds, and high heat. The robust aluminum alloy frame and anti-reflective, tempered glass enhance both durability and efficiency in extreme environments.

Q: Can PS-MNB144(HBCF)-600W panels help me save on energy costs?
Absolutely. With their high-efficiency monocrystalline half-cut bifacial design, these panels generate more energy per square foot—helping you reduce electricity bills and accelerate your ROI.

Q: How many panels do I need for my home?
This depends on your energy consumption and available roof space. For a typical home using 10,000 kWh/year, you’ll need approximately 17 to 20 PS-MNB144(HBCF)-600W panels. Consult with a certified installer for an exact estimate.

Q: How many panels are in each pallet?
Each pallet includes 36 high-efficiency PS-MNB144(HBCF)-600W panels, providing convenient logistics for large-scale and commercial projects.
