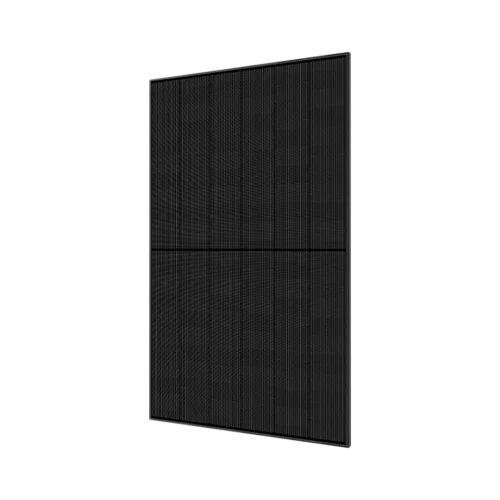

Panasonic EverVolt Black Series EVPV400HK 400Watt 132 1/2 Cells Black Backsheet Monocrystalline 30mm Black Frame Solar Panel

Manufacturer Part#: EVPV400HK

Panasonic's goal is to create a better world as they believe technology should move us forward as a society. For nine consecutive years, Panasonic has been recognized as a leader in sustainability. Panasonic is a pioneer in solar photovoltaic panels, electric vehicle batteries and data center battery-backup solutions, as well as new technologies like hydrogen fuel cells.

  • Higher Module Efficiency - Superior module efficiency of 22.2% and 21.6%, respectively, allows maximum power production with less roof space
  • High Efficiency In High Temperatures - Product more energy throughout the day even on the hottest days in the warmest climates
  • Durability & Quality Assurance - N-type cells result in minimal LOW Induced Degradation (LID) and Potential Induced Degradation (PID), which supports reliability and longevity



Specifications

Full data sheet can be found in View Data Sheet.

Mechanical Specifications
Junction Box 3-part, 3 bypass diodes, IP68 rated in accordance with IEC 62790
Connector Type Stäubli MC4 PV-KBT4/KST4, 12 AWG(4 mm²) in accordance with IEC 62852 IP68 only when connected
Cable Size / Type 12AWG(4mm2) PV Wire, 43in + 47in in accordance with EN 50618
Max Snow Load (+)² 146 psf (7000 Pa)+
Max Wind Load (-)² 83.5 psf (4000 Pa)+
Quantity per Pallet / Pallet Weight 33 pcs / 1620 lbs.(735kg)
Dimensions 1821 x 1016 x 30 mm
71.7 x 40.0 x 1.2 in
Weight 20.5 kg I 45.0 lbs



Electrical Specifications
Rated Power (Pmax)¹ 400 W
Maximum Power Voltage (Vpm) 42.1 V
Maximum Power Current (lpm) 9.51 A
Open Circuit Voltage (Voc) 48.8 V
Short Circuit Current (lsc) 10.25 A
Temperature Coefficient (Pmax) -0.26 %/°C
Temperature Coefficient (Voc) -0.24 %/°C
Temperature Coefficient (lsc) 0.04 %/°C
NOCT 44°C (±2°C)
CEC PTC Rating 381.0 W
Module Efficiency 21.6 %
Power Density 20.6 W/ft²
Maximum System Voltage 1000 V
Maximum Series Fuse 25 A
Watt Class Sorting -0/+10W



Documents:

View Data Sheet
