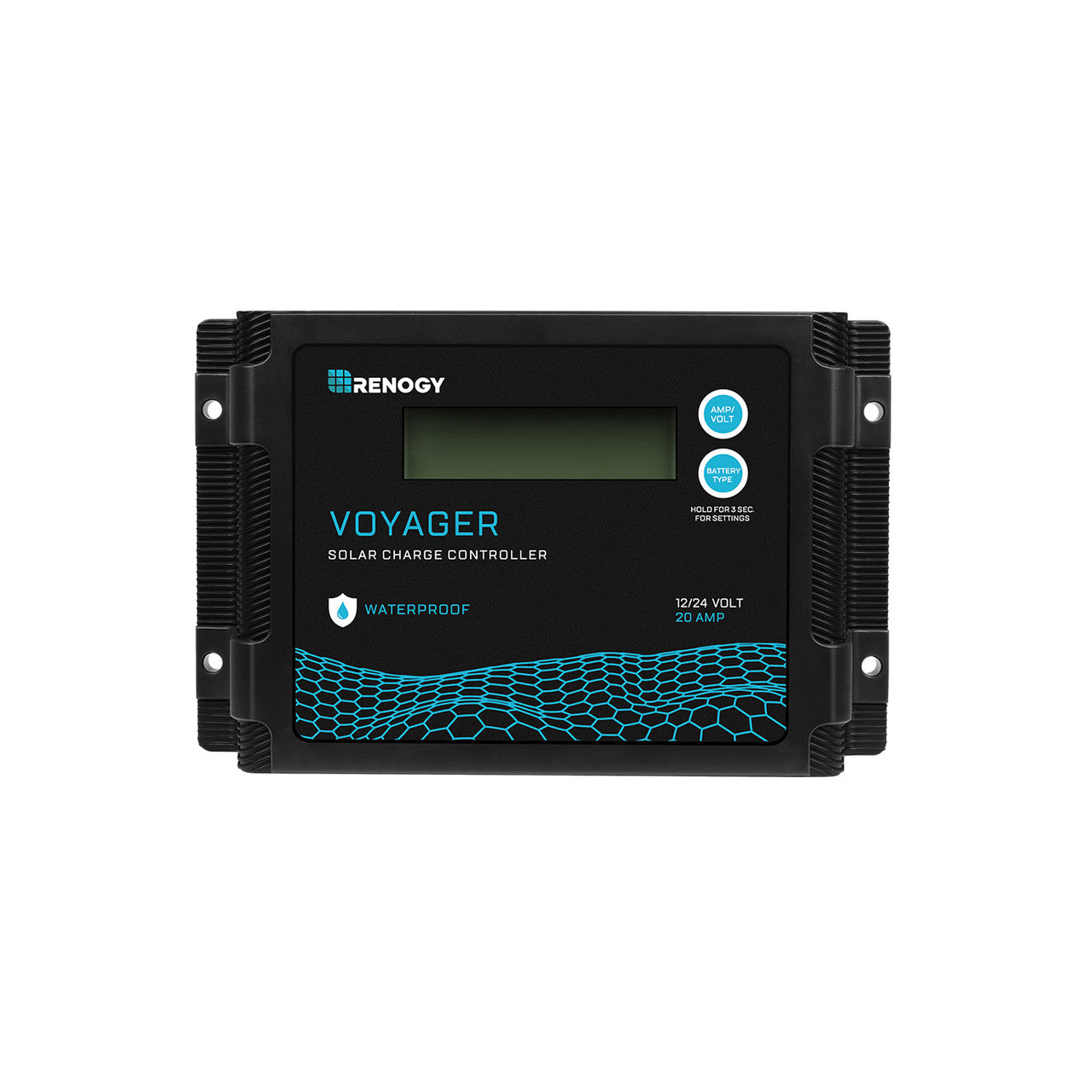

Renogy New Edition Voyager 20A PWM Waterproof Solar Charge Controller

Key Feature
Smart PWM with 4-stage charging for battery protection.

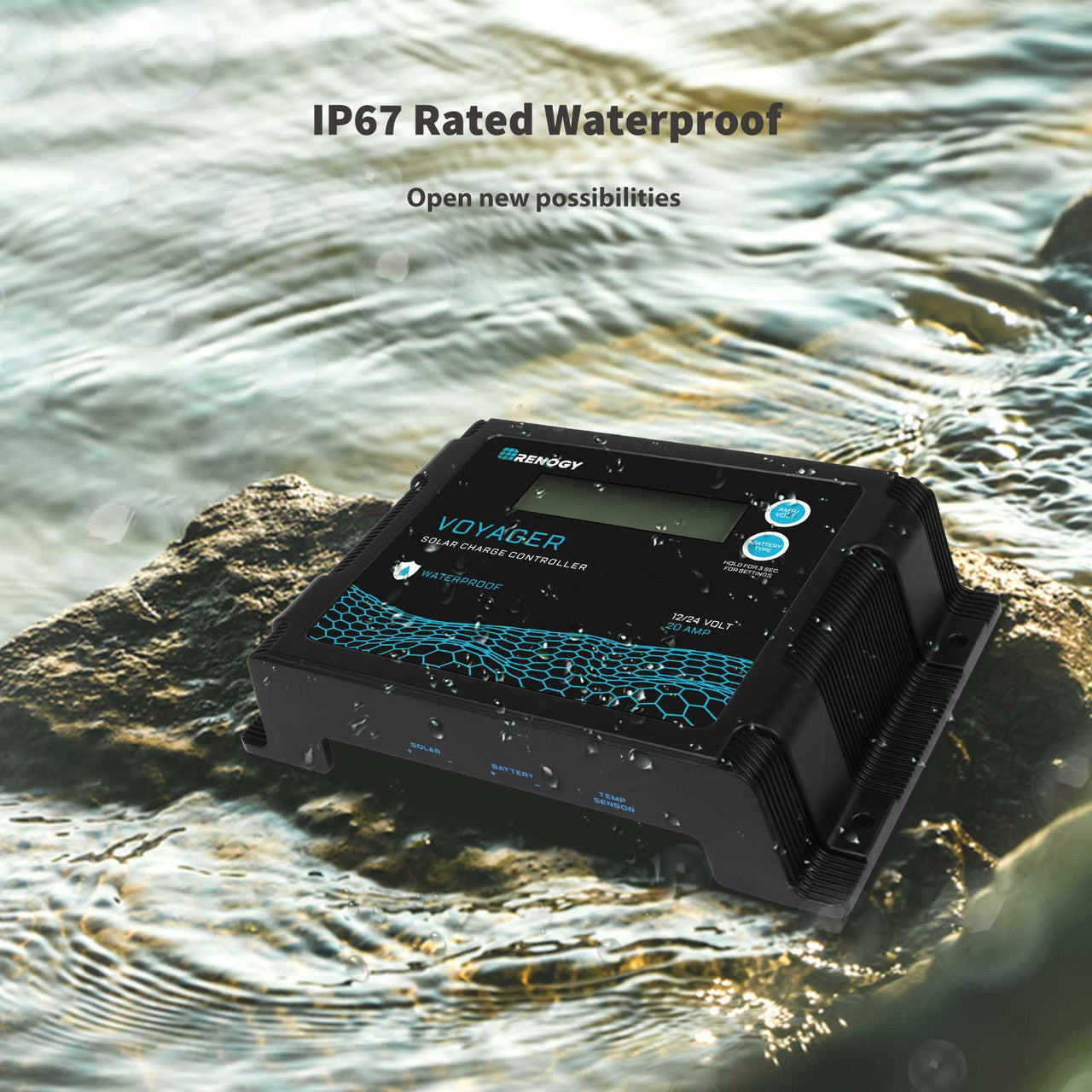

IP67 waterproof design, operable in water spray or rain.

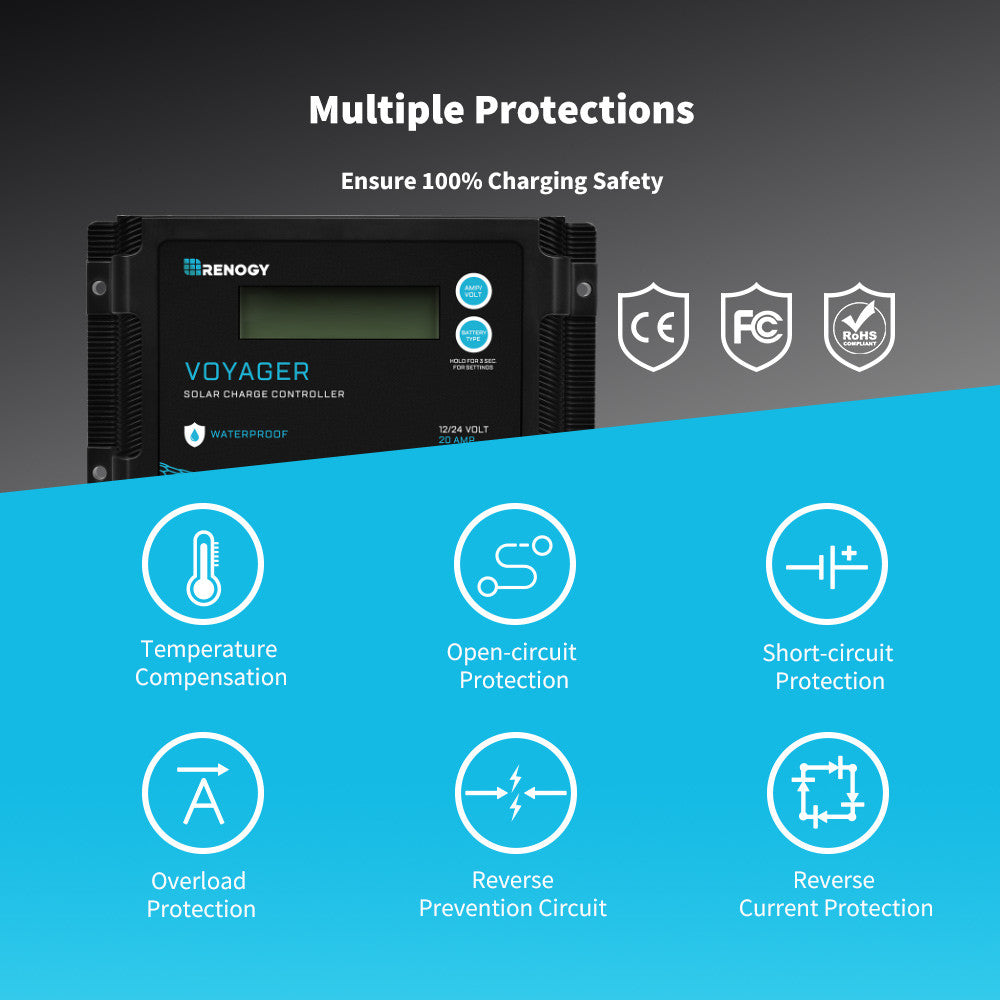

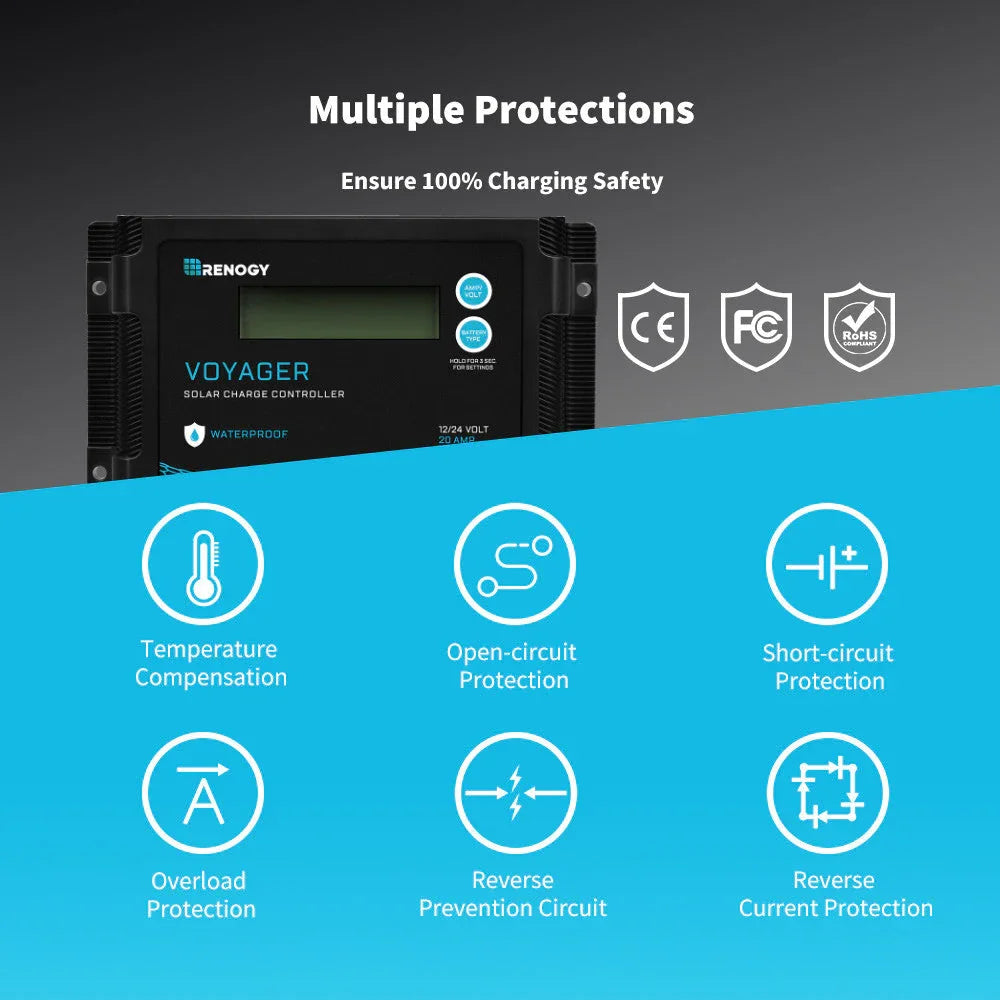

Multiple protections.
Auto detects 12V/24V with Gel, AGM, Flooded; Lithium option.

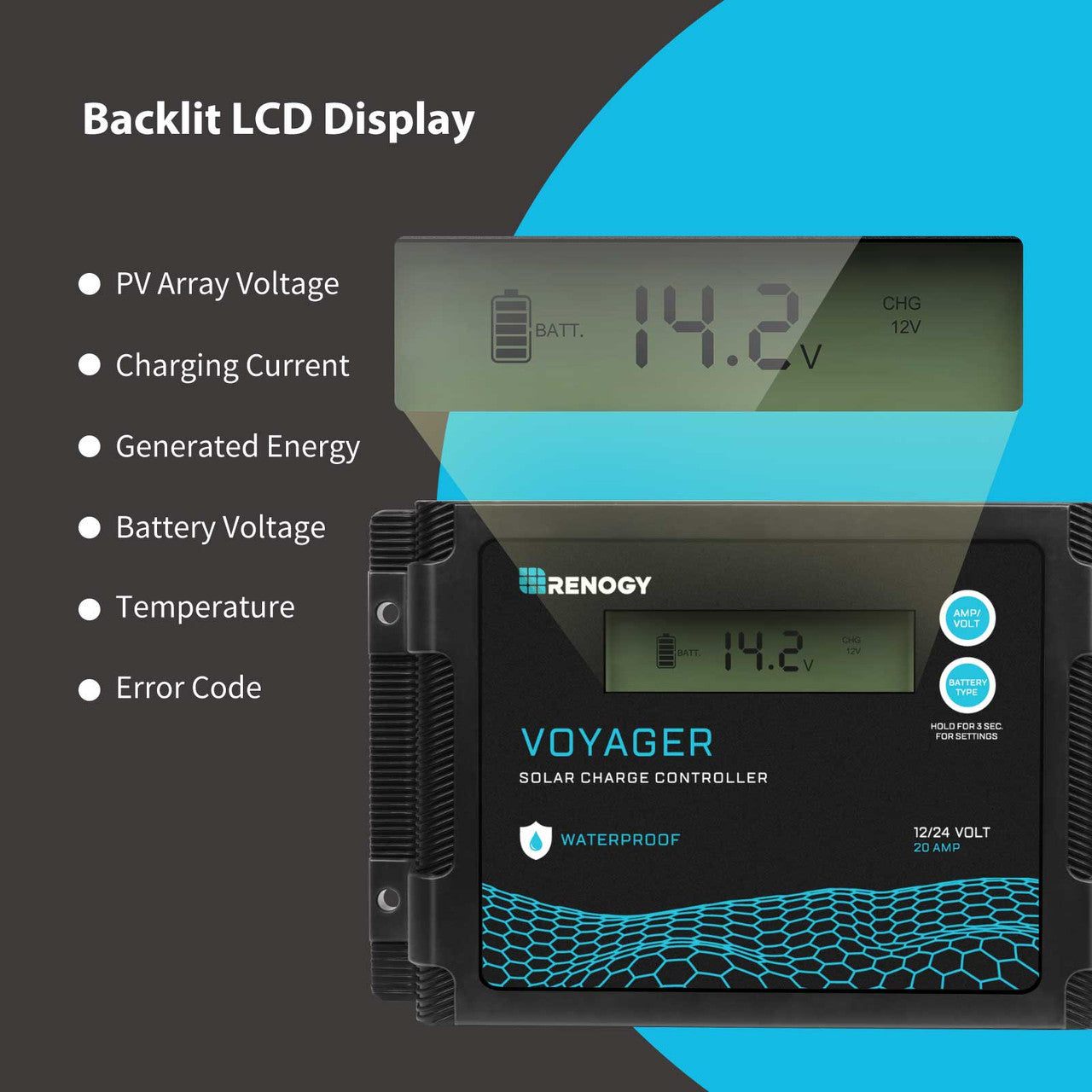

LCD display for accurate info and error codes.


The Voyager 20A is a top-tier 20-amp charge controller, rated IP67, making it perfect for outdoor use in conditions involving water spray, rain, and condensation. Featuring advanced PWM technology, it supports both 12V and 24V off-grid applications and is compatible with four different battery types, including Lithium Iron Phosphate. With built-in protections for the solar panel, battery, and controller, the Voyager 20A ensures the longevity of your system. PLEASE NOTE: For lithium batteries, it is essential to manually set the voltage for optimal charging.

Note: Please set the voltage manually to charge lithium batteries.

Efficient, Stable, and Safe Charging

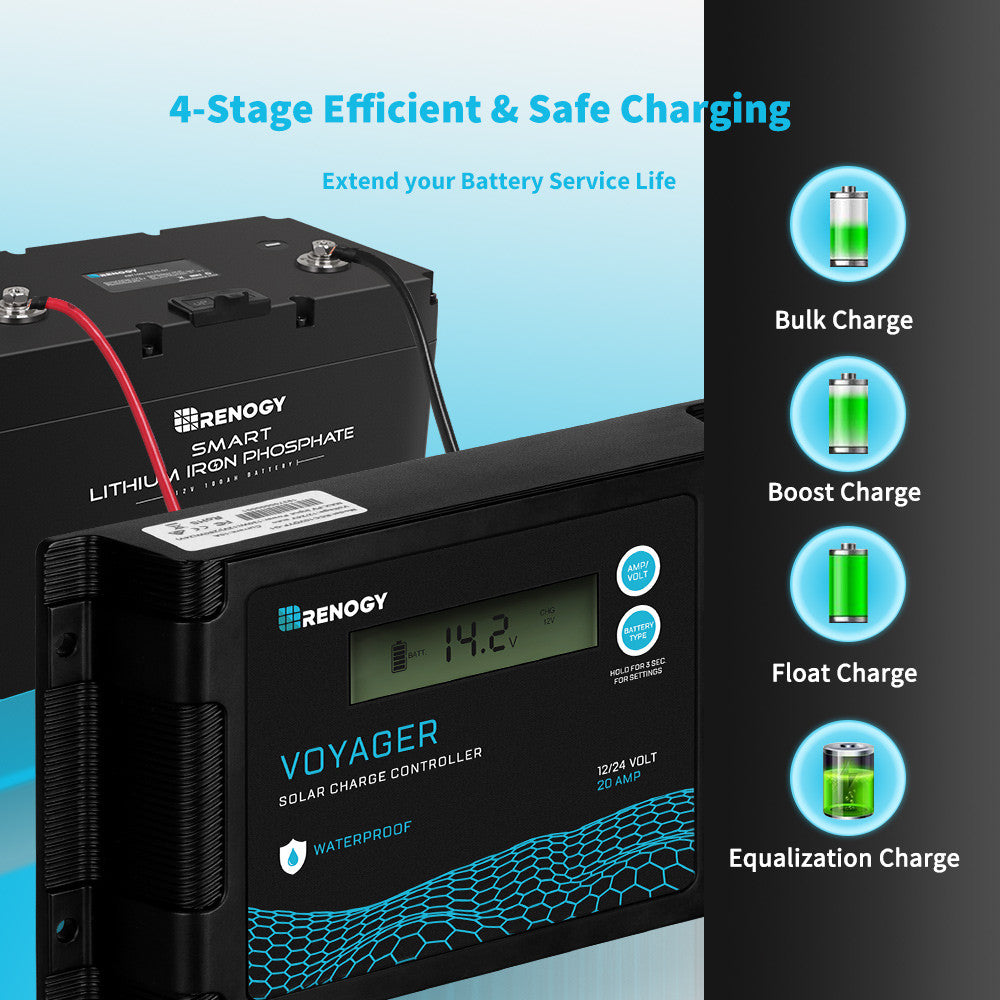

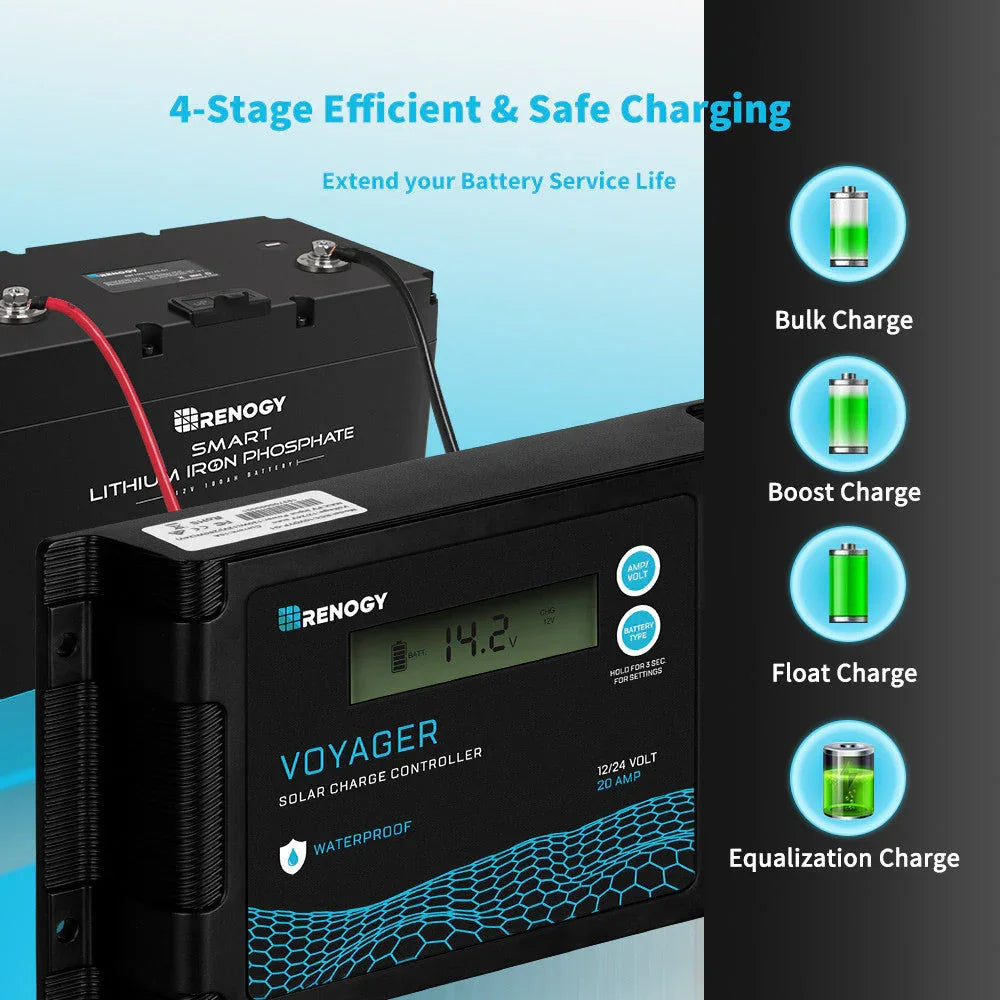

Leveraging intelligent PWM technology, the Voyager 20A offers 4-stage charging (Bulk, Absorption, Float, and Equalization) to protect the battery. It also includes multiple electronic protections for the battery, controller, and PV system, ensuring safe and efficient charging and usage.

Compact and lightweight

The Renogy Voyager PWM Waterproof Controller is compact and lightweight, making it perfect for applications with limited space. With a weight of only 0.55lb, a height of 3.84 inches and a width of 6.08 inches, this controller is ready to be installed in small spaces.

Common Positive Ground

The Voyager PWM Waterproof Controller is a common positive ground charge controller, beneficial in ensuring charging safety.

Temperature Monitor and Compensation

Equipped with a Remote Temperature Sensor Port, the Voyager 20A measures battery temperature in real-time and uses this data for precise temperature compensation, ensuring stable and consistent charging performance.

Extremely Low Self-Consumption

In a 12V system, the Voyager PWM Waterproof Controller consumes just 0.22W/h or 1.92kWh per year (365 days), making it highly energy-efficient while effectively charging your battery.

Automatic Voltage Detection

The Voyager PWM Waterproof Controller supports both 12V and 24V systems and automatically detects system voltage when connected to Gel, AGM, or Flooded battery banks. REMEMBER: For lithium batteries, please manually set the voltage to ensure proper charging.

NOTE
  • For users with a PWM controller in their solar system, we highly recommend connecting the solar panels in parallel. This setup helps maintain the PV output voltage, allowing the controller to operate at optimal efficiency.
  • Never install the controller in a sealed enclosure with flooded batteries as gas can accumulate and there is a risk of explosion.
  • The solar controller should be installed as near the battery as possible to avoid efficiency loss.

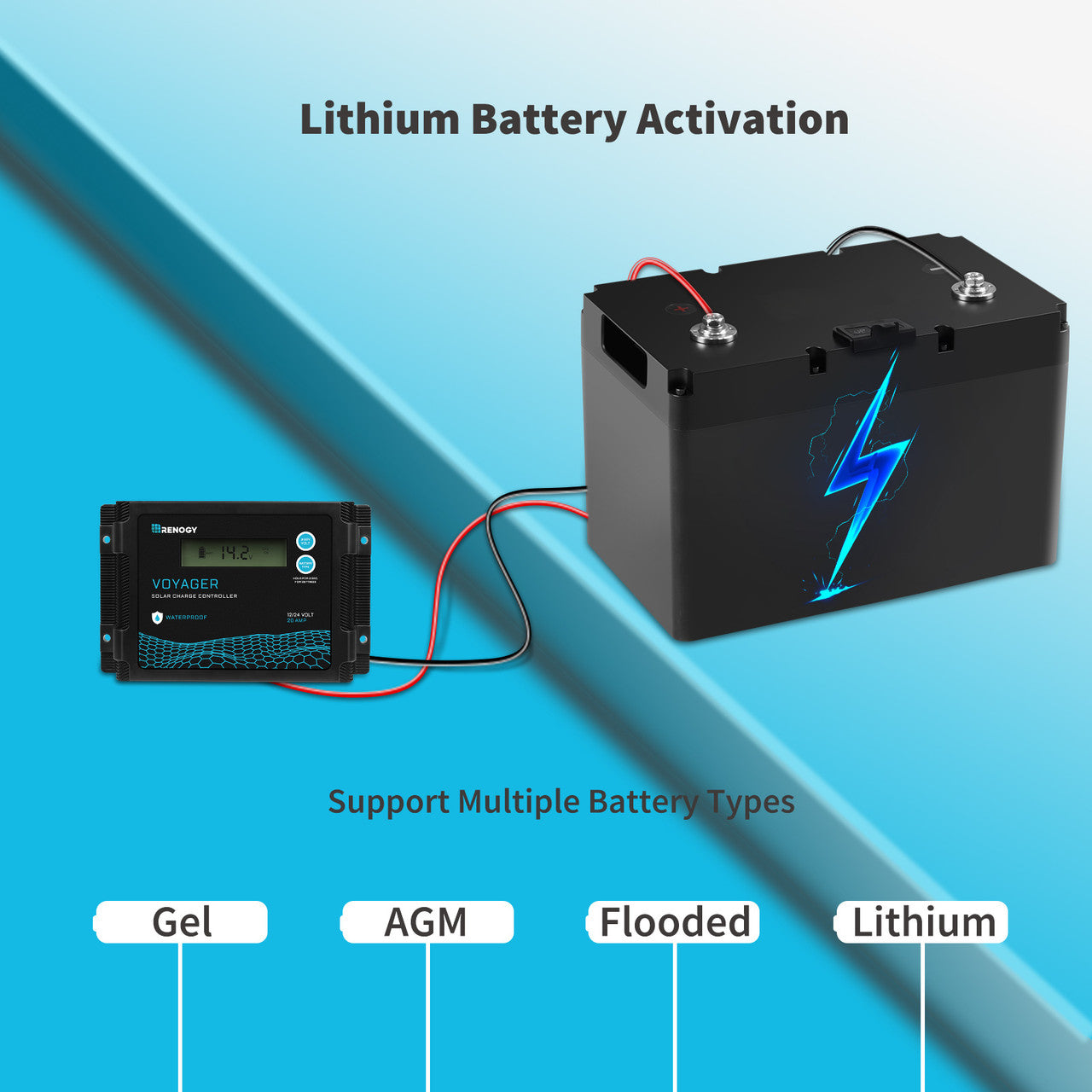

  • Incorrectly setting the battery type on the controller may damage your battery. The system's auto-recognition feature is only compatible with Gel, AGM, and Flooded batteries. When using the Voyager to charge a lithium battery bank, make sure to manually set the system voltage. Otherwise, an over-discharged lithium battery may not be activated.
  • To ensure optimal controller performance, avoid any damage or wear to the wires connected to the controller. Ensure all terminals are tightly secured, and regularly inspect for loose, broken, or burnt connections. It is a good idea to sporadically clean the controller’s case with a damp cloth to keep it in good condition.



RV

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK


Package Includes

New Edition Voyager 20A PWM Waterproof Solar Charge Controller

1 x


Voyager 20A PWM Waterproof Solar Charge Controller
Electrical Parameters Environmental Data
Nominal System Voltage 12/24V Auto-Detection (For Non-Lithium Batteries) Protection Level IP67
Rated Charge Current 20A Operating Temperature Range -31°F - 113°F
PV Input Voltage Range 15V-55V Storage Temperature Range -31°F - 167°F
Max. Pv Open Circuit Voltage 12V@25V 24V@55V Operating / Storage Humidity 10%-90%, No Condensation
Max. PV Input Power 12V @ 260W / 24V@520W Temperature Compensation '-3mV/C/2V excludes LI
 Warranty  2-year material and workmanship warranty Mechanical Specifications
Battery Types SLD/AGM, GEL, FLD. LI Dimensions 6.08*3.83*1.40 in
Power Consumption 12V @ 0.24W / 24V@0.74W Weight 0.55Ibs
Max Battery Voltage 32V Max. Cable Size 6 AWG
Ground Type Positive Controller Terminals 20 - 6 AWG, 2-pin terminals
Electrical Protection Battery/Controller over-temperature protection, PV/Battery reverse polarity, Over-voltage, Over-current protection Optional Accessories
Communication Port N/A Temperature Sensor RTSVOY-US 22AWG 10FT

1. Can i connect the controller to my 12v/24v solar system?


Yes, the controller is suitable for both 12v and 24v systems, and it can sense the system voltage automatically once it is correctly connected to a GEL, AGM, or Flooded battery bank. Please set the parameters first before charging your lithium batteries.

2. Does it support Lithium battery?


Yes, this controller supports Gel, AGM, Flooded, and Lithium batteries. Still, please set the correct battery type to use the charge controller with a Lithium battery. Please manually set the system voltage and other parameters to charge your lithium batteries.

3. What does IP67 means?


IP67 rated indicates that the controller will remain protected and fully operational under various environments, including those where the controller is exposed to water spray, rain, etc., perfectly suitable for outdoor use.

4. What is 4-stage charging and how does it benefit the battery?


4-stage charging is an intelligent charging capability that allows the controller to monitor the battery status constantly. It will automatically adjust the converter output voltage to eliminate battery over & undercharging problems and fully, efficiently, and safely charge the battery.

Bulk charging charges batteries to 75-80% of full charge.

Boost Charging gradually completes the remaining charge to full.

Float Charging maintains battery charge.

Equalization Charging increases the battery voltage to higher than the standard complement voltage and gasifies the battery electrolyte, which is carried out every 28 days. Certain types of batteries benefit from periodic equalizing charges, stirring the electrolyte, balancing battery voltage, and completing chemical reactions.
