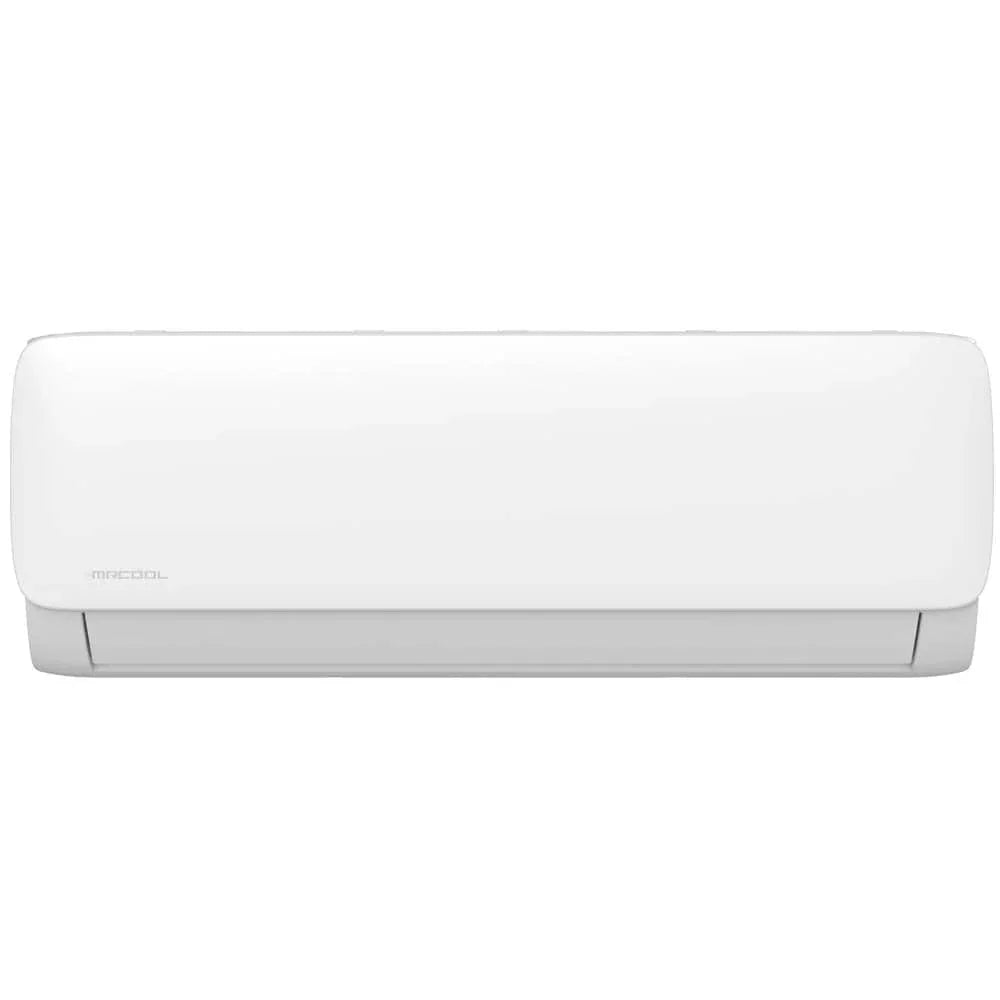

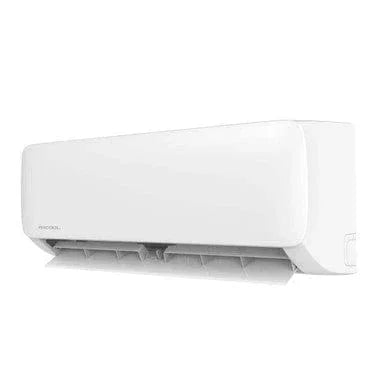

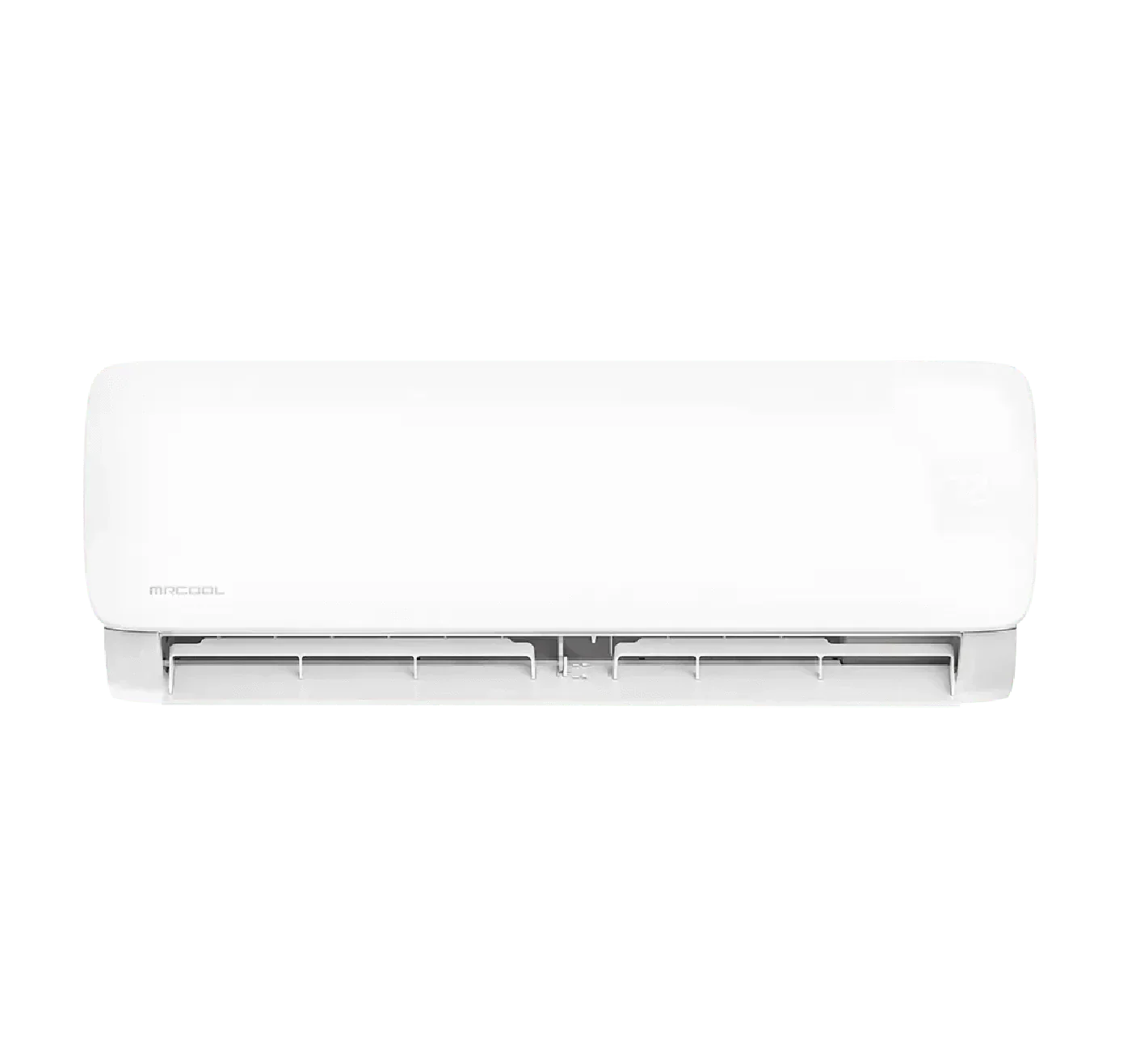

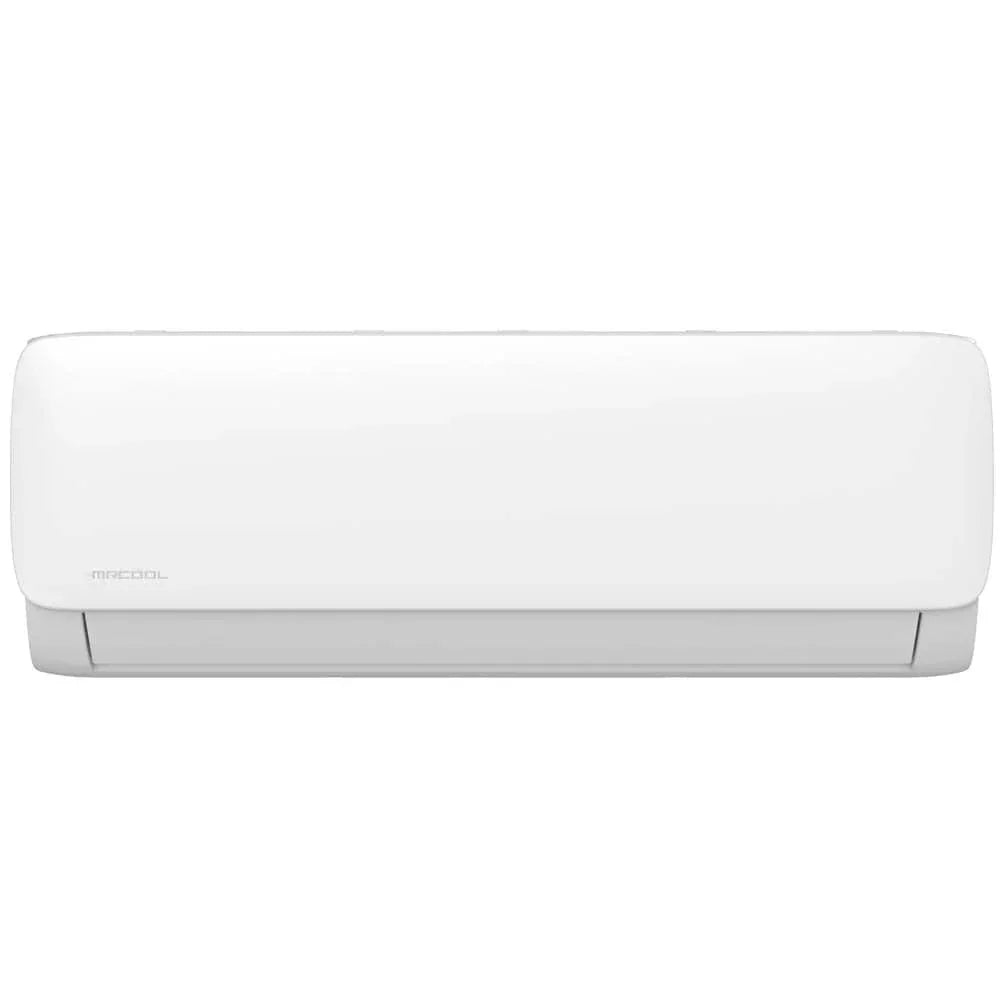

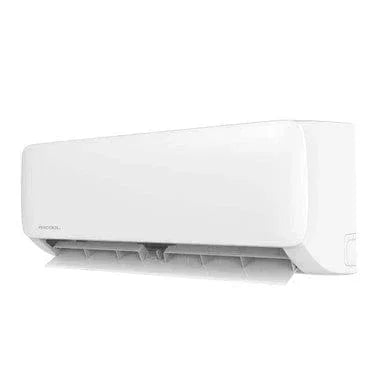

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Single Zone Mini Split Air Handler 115V with DIYPRO Cable | Air Handler Only

The MRCOOL DIY EasyPro 9,000 BTU Air Handler is the perfect companion to the EasyPro condenser, delivering efficient and quiet heating and cooling for rooms up to 400 sq. ft. Designed for true do-it-yourself installation, this air handler includes the DIYPRO cable for safe, easy setup. With modern modes, WiFi compatibility, and whisper-quiet operation, it’s ideal for small spaces that need year-round comfort.

Please note: This system is designed for DIY installation and connects seamlessly with the EasyPro Condenser using the included DIYPRO cable.

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Air Handler Features

DIY Installation with DIYPRO Cable

 Simple setup with no specialized tools or certification required.

Efficient Heating & Cooling

 Provides 9,000 BTU cooling and 10,000 BTU heating for small rooms.

Energy Efficient

 High 20.2 SEER2 and 9.2 HSPF2-4 ratings reduce energy costs.

Whisper-Quiet Operation

 Indoor noise levels as low as 18 dB(A) ensure uninterrupted comfort.

Smart Control Ready

 WiFi-enabled, compatible with iOS and Android for remote operation.

Multiple Modes for Comfort

 Auto, Cool, Heat, Dry, Fan, and Sleep modes for customizable performance.

Placeholder Image

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Air Handler Applications

  • Bedrooms – efficient, quiet comfort for restful sleep
  • Home offices – maintain focus with steady climate control
  • Small apartments – perfect for limited living spaces
  • Sunrooms – extend comfort throughout seasonal changes
  • Workshops – reliable temperature control for year-round use

What's Included

Everything you need is included with your product.

  • 9,000 BTU EasyPro Air Handler
  • DIYPRO Cable
  • User Manual

Warranty

  • 2 Year Parts Warranty

MRCOOL DIY 5th Gen EasyPro 9,000 BTU Air Handler Specifications

Dimensions & Weight

Specifications Details
Dimensions 28.7 W" x 7.87 D" x 11.5 H"
Weight 23.81 lbs

Capacity & Performance

Specifications Details
Zone Capacity 1
Cooling Capacity 9,000 BTU
EER2 11.3
SEER2 20.2
Heating Capacity 10,000 BTU
HSPF2-4 9.2
HSPF2-5 7.1
Coverage Area Up to 400 sq ft.
Indoor Noise Level (Hi/Mi/Lo) 43.0/31.0/18.0 dB(A)

Electrical Requirements

Specifications Details
Voltage 115V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15A
Min Circuit Ampacity 3A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Liquid Line Size 1/4"
Suction Line Size 3/8"

Features

Specifications Details
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes
New Row

Auto Mode: Automatically selects heating or cooling based on the room's temperature.
Cool Mode: Lowers the room temperature to your desired setting.
Heat Mode: Raises the room temperature to your desired setting.
Fan-Only Mode: Circulates air without heating or cooling.
Dry Mode (Dehumidification): Reduces humidity levels in the room.
Sleep Mode: Gradually adjusts temperature settings for comfortable sleep and energy savings.

Certifications & Warranty

Specifications Details
Certifications UL Listed, CSA Listed, ETL Listed, AHRI Certified
Warranty 2 Year Parts

Frequently-Asked Questions

Does this air handler come pre-charged?

No, refrigerant is pre-charged in the condenser, not the air handler.

What is the noise level of this air handler?

It operates as low as 18 dB(A) on the quiet setting, making it nearly silent.

Can I install this myself?

Yes. It is specifically designed for DIY installation using the DIYPRO cable.

Manual

  • MRCOOL DIY 5th Gen EasyPro 9,000 BTU Air Handler Manual
