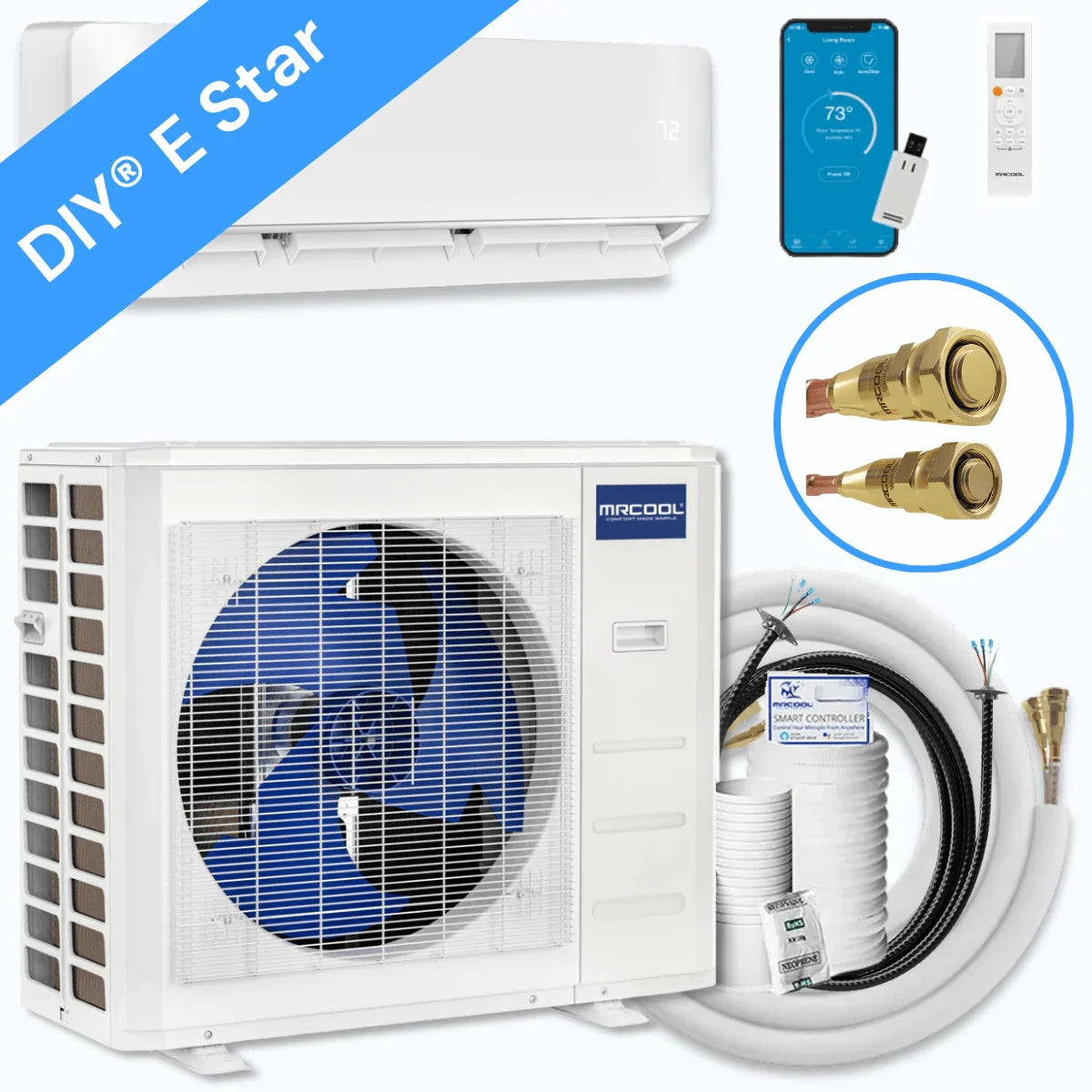

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V | System Set



The MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split System is designed for powerful performance, energy efficiency, and the easiest installation possible. Featuring the pre-charged Quick Connect line set, this system allows homeowners to install their own ductless mini split without special tools, training, or certification. With advanced inverter technology, ENERGY STAR® efficiency, and smart controls, it delivers reliable heating and cooling comfort for spaces up to 1,000 sq. ft.

Please note: This system is designed for DIY installation and includes a pre-charged Quick Connect line set for easy setup without HVAC tools or certification.

MRCOOL DIY 24K System Features

Do-It-Yourself Installation

Includes a 25 ft. pre-charged Quick Connect line set — no HVAC tools or professional installation required.

ENERGY STAR® Certified Efficiency

High SEER2 ratings keep energy costs low while maintaining consistent comfort.

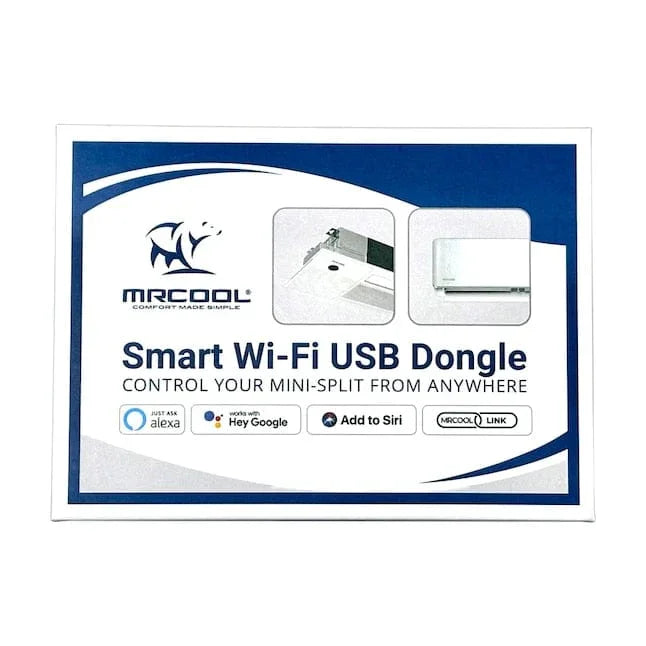

Smart Home Integration

Control your system with the MRCOOL SmartHVAC app, Amazon Alexa, or Google Assistant.

Advanced Inverter Technology

Ensures smooth, efficient, and quiet operation by adjusting power output to meet comfort needs.

Whisper-Quiet Operation

Designed to operate at low noise levels, making it ideal for bedrooms, offices, and living spaces.

Placeholder Image

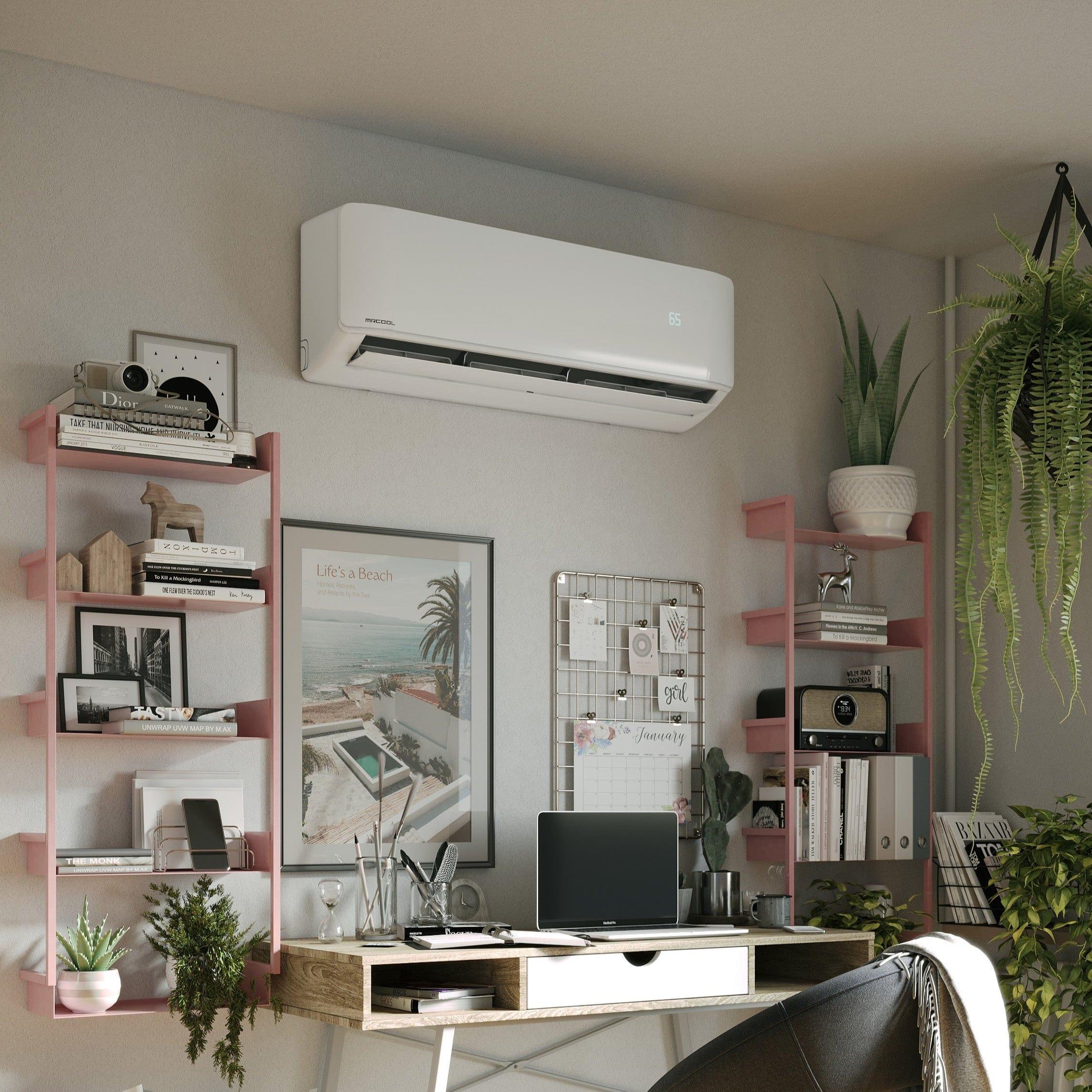

MRCOOL DIY 24K System Applications

  • Large bedrooms – quiet, efficient comfort for restful sleep

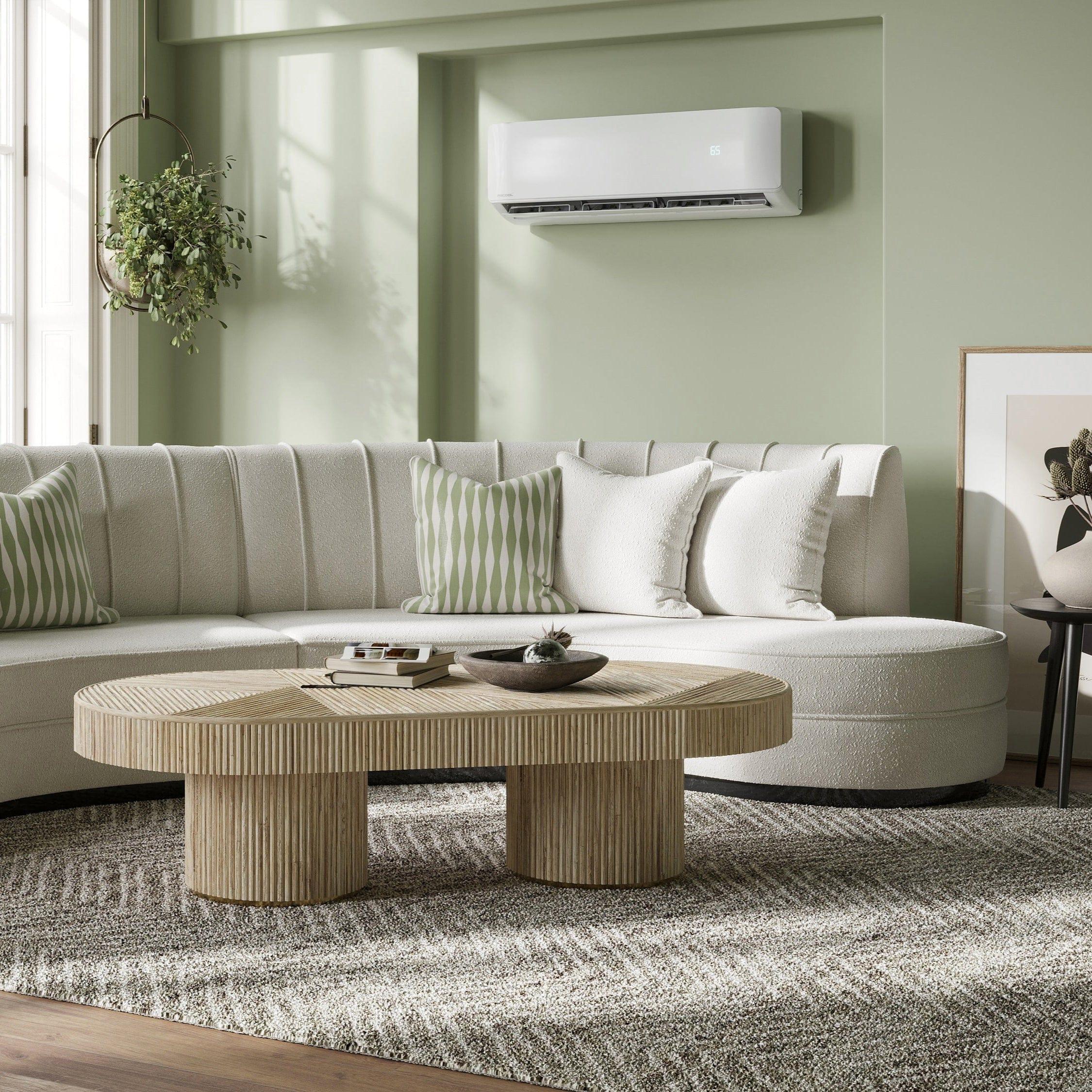

  • Living rooms – consistent heating and cooling for family gathering areas
  • Home offices – maintain productivity in a comfortable environment
  • Small apartments/condos – efficient solution for up to 1,000 sq. ft.

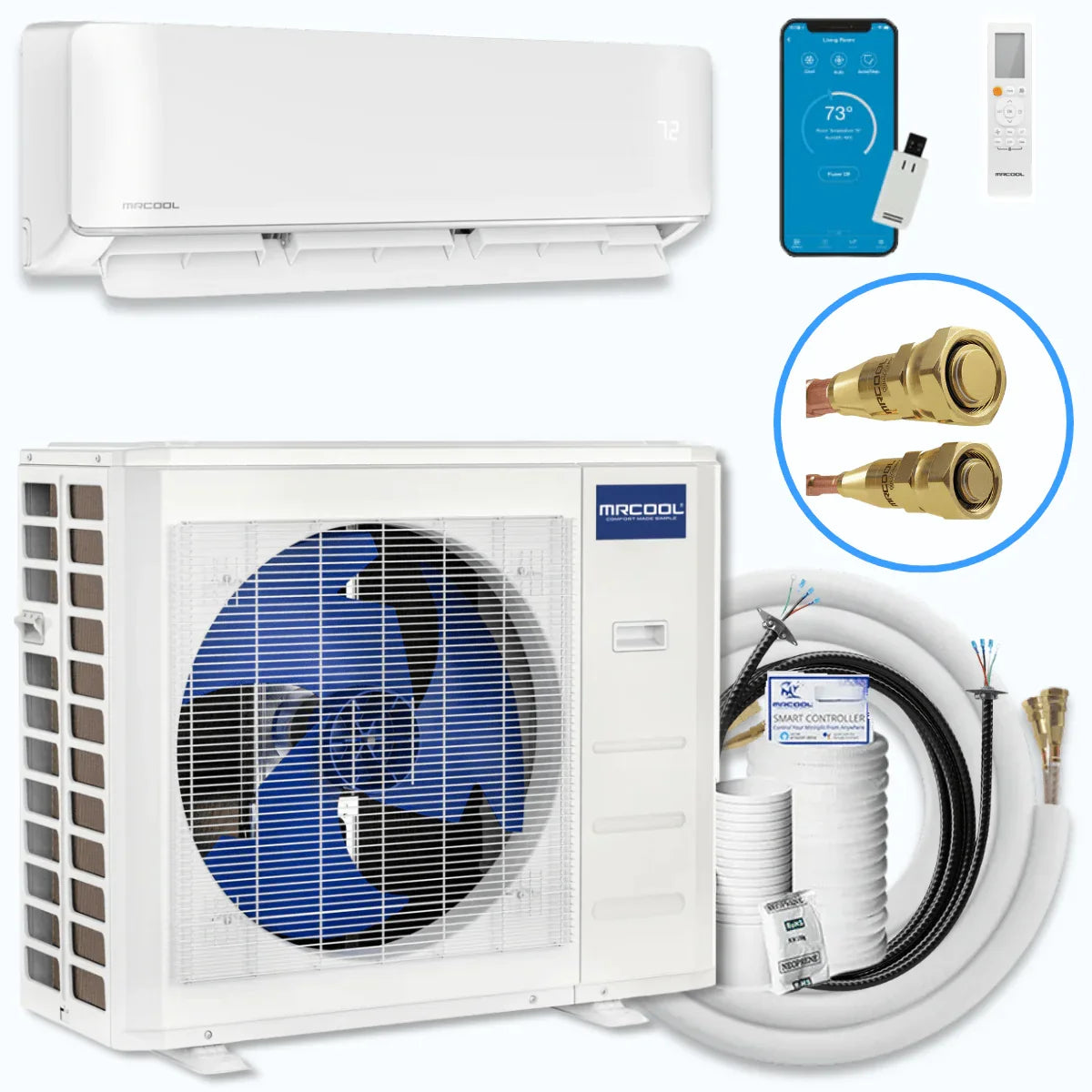

What's Included

Everything you need is included with your product.

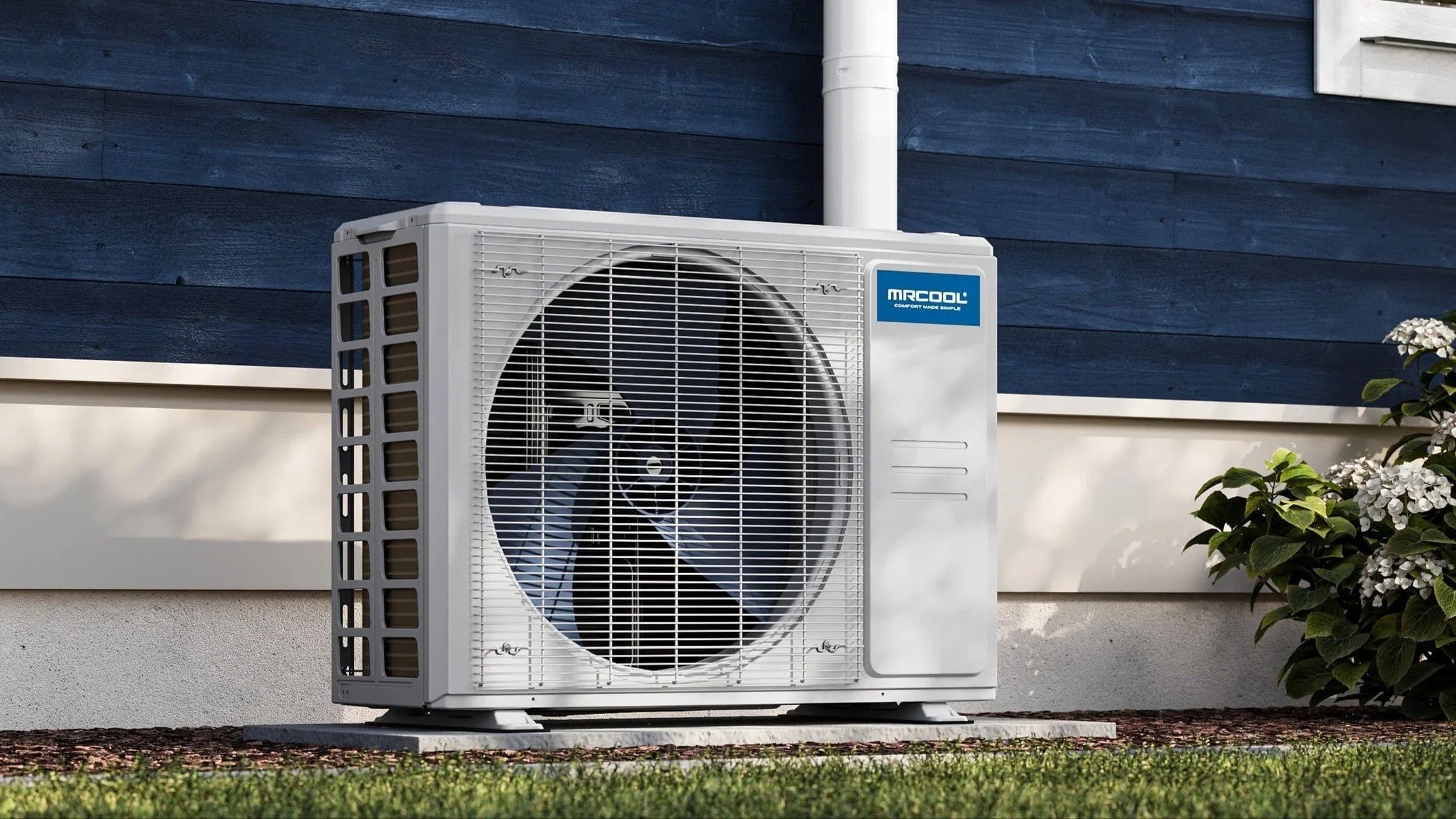

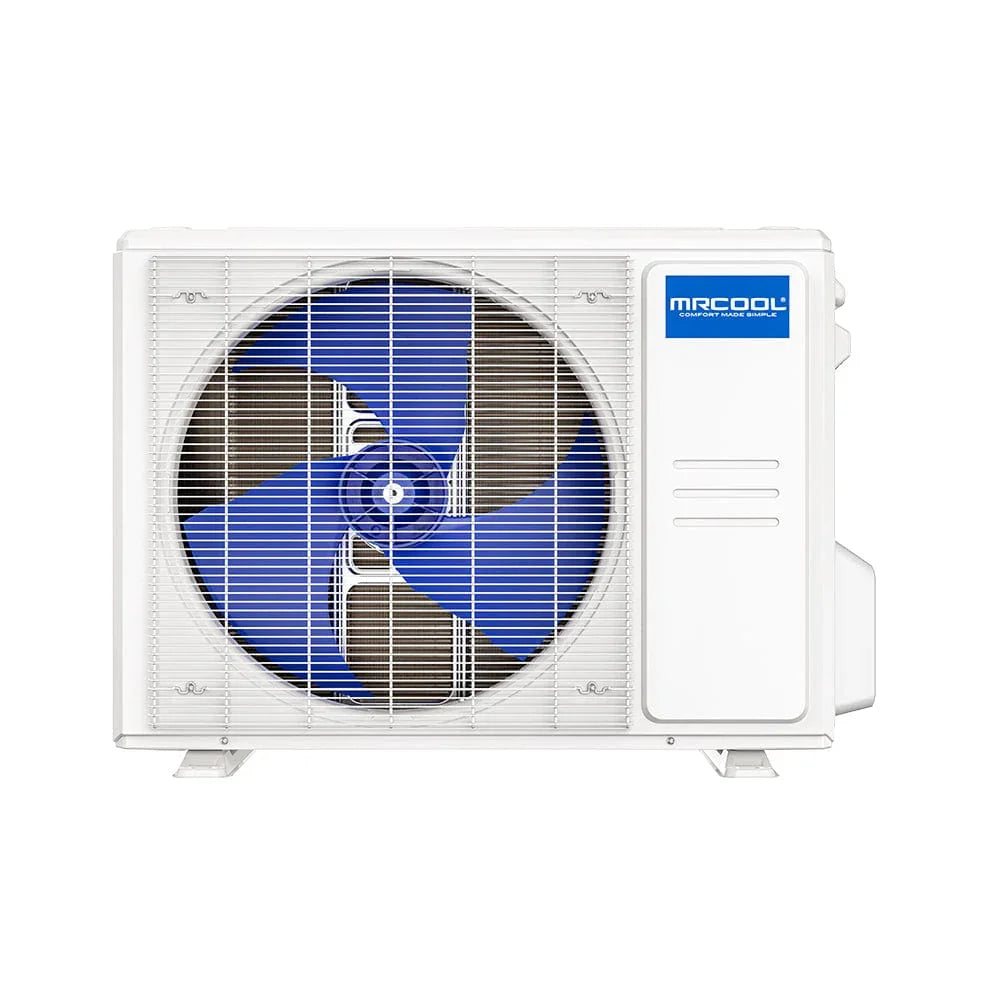

  • Condenser Unit

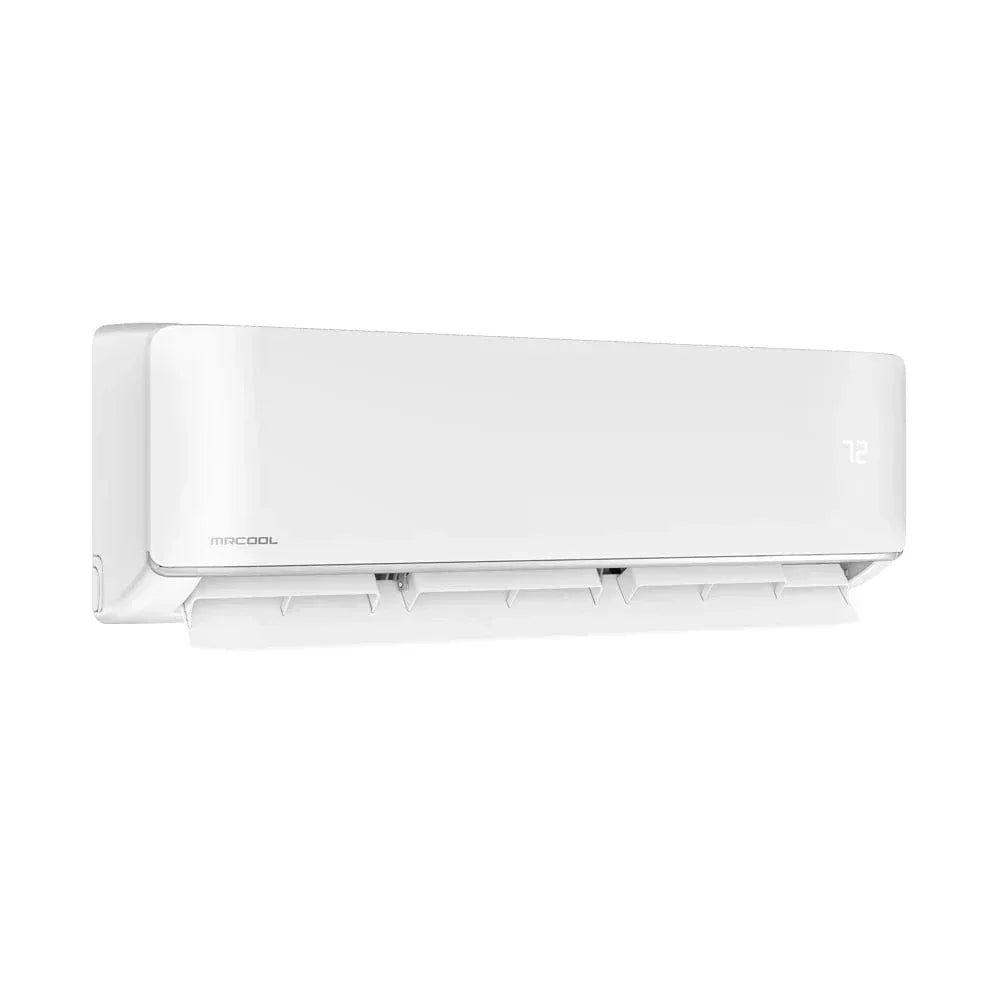

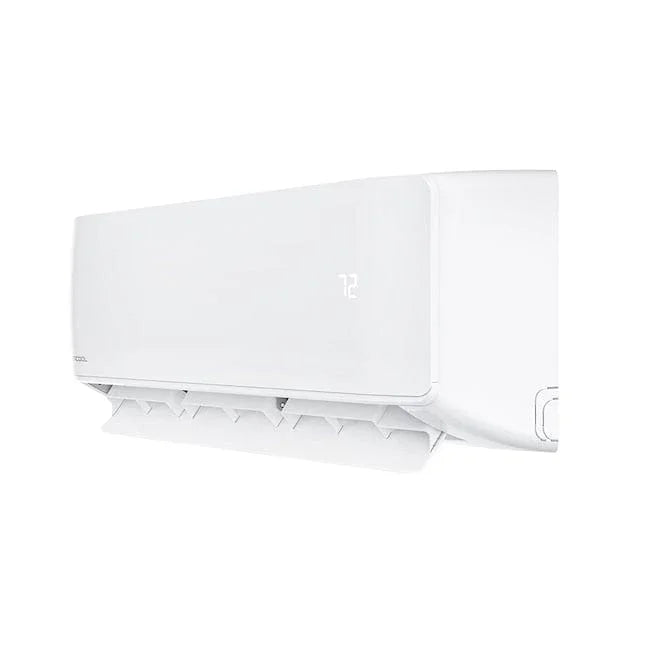

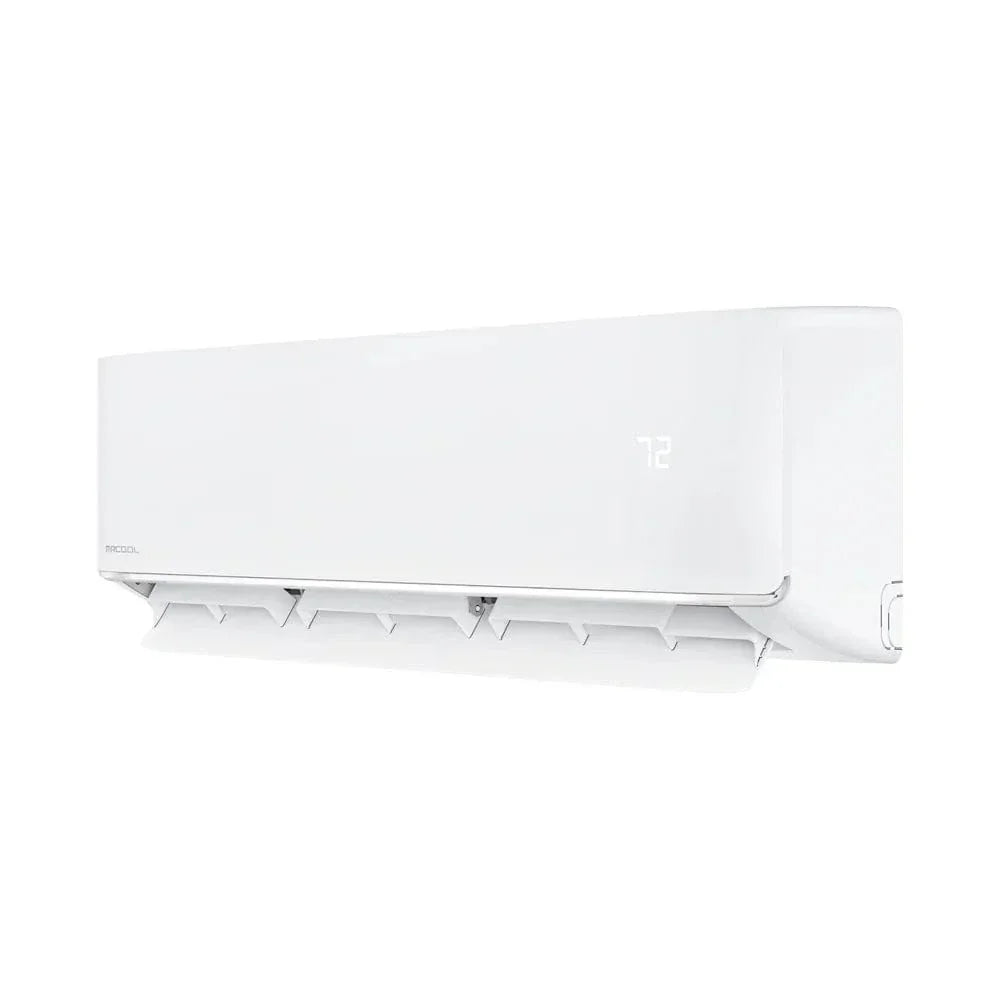

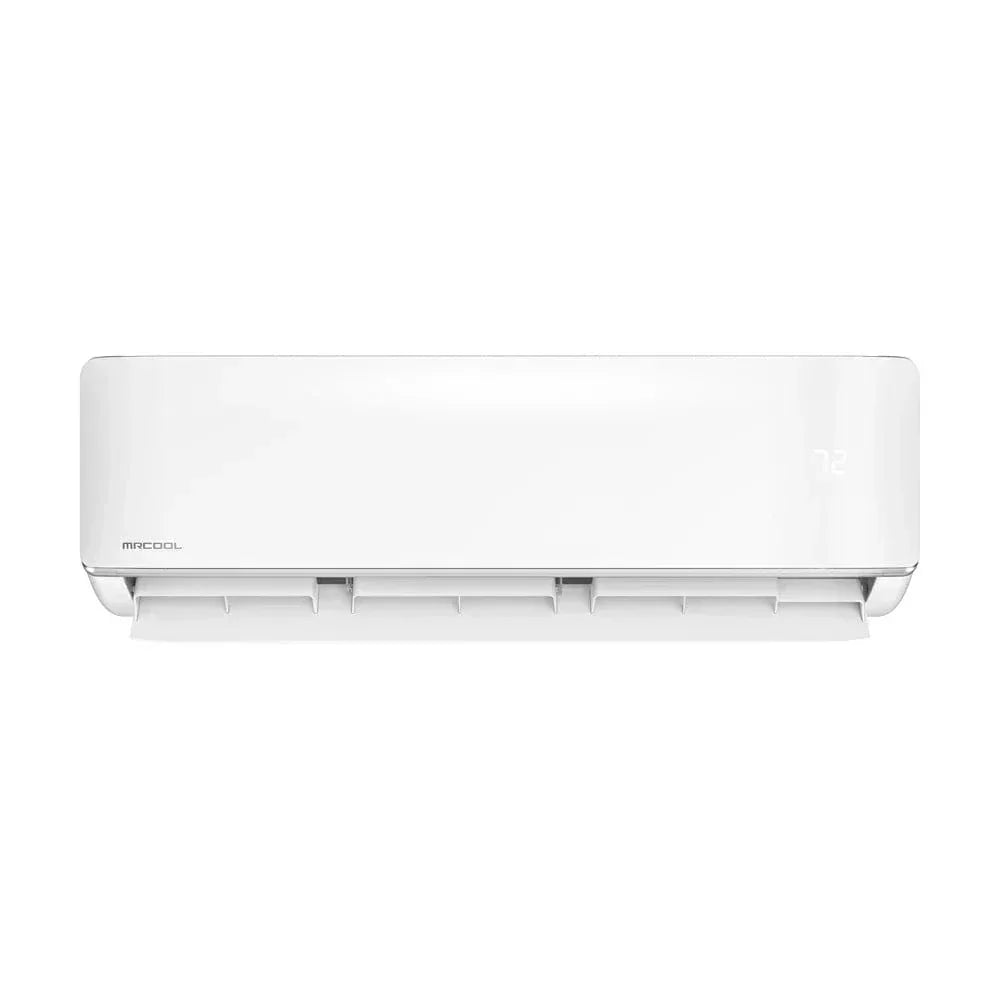

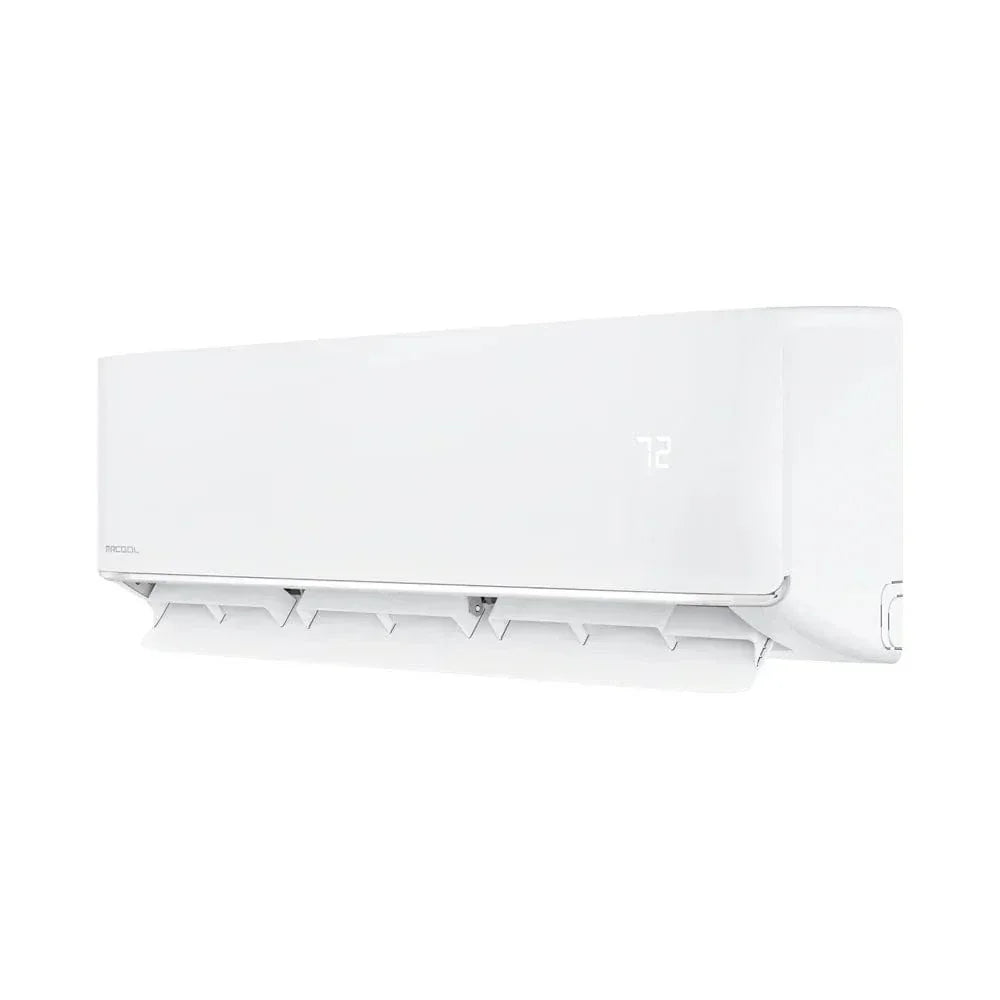

  • Air Handler

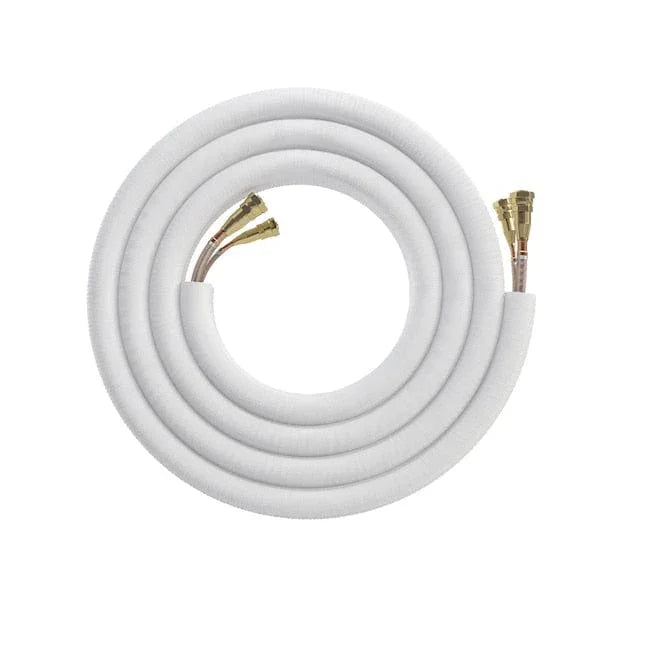

  • 25 ft. Pre-Charged DIY Quick Connect Line Set

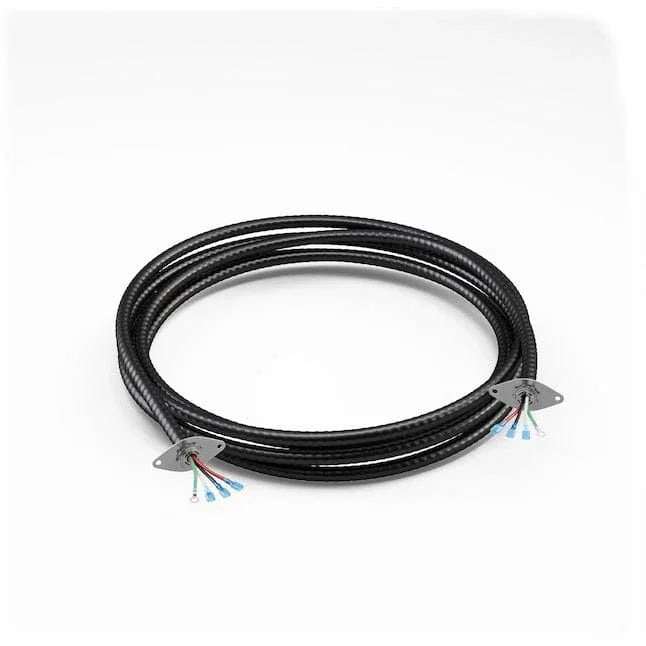

  • DIYPRO Communication Cable

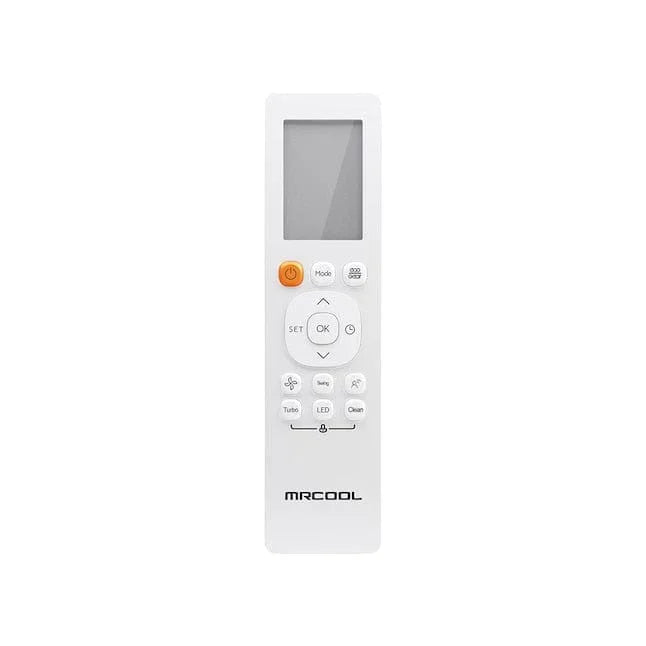

  • Remote Control
  • Installation Accessories
  • User Manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL DIY 5th Gen E Star 24K BTU Single Zone Mini Split Complete System with 25ft. Line Set 230V Specifications

Dimensions & Weight

Specifications Details
Condenser Dimensions 37.24 W" x 16.14 D" x 31.89 H"
Condenser Weight 112.8 lbs / 55.7 kg
Air Handler Dimensions 42.52 W" x 8.90 D" x 13.19 H"
Air Handler Weight 35.49 lbs / 16.1 kg

Capacity & Performance

Specifications Details
Zone Capacity 1
Cooling Capacity 23,000 BTU
EER2 12.7
SEER2 22.7
Heating Capacity 23,000 BTU
HSPF2-4 9.6
HSPF2-5 7.1
Coverage Area 750 to 1,000 sq ft.
Outdoor Noise Level 58.5 dB(A)
Indoor Noise Level (Hi/Mi/Lo) 54.0/48.0/43.0/33.5/20.0 dB(A)

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 25A
Min Circuit Ampacity 24A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Refrigerant Volume 67.37 oz
Liquid Line Size 3/8"
Suction Line Size 5/8"
Max Line Set Length 164 ft.

Features

Specifications Details
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications UL Listed, ETL Listed, Energy Star Certified, AHRI Certified
Warranty 7 Years Compressor | 5 Years Parts | Extended Limited Lifetime Replacement *If the original owner does not register the unit, the warranty defaults to the standard 5 year parts, 7 year compressor warranty **The original, registered owner must be enrolled in the MrCool Care Program every year in order to qualify for the 7 year full unit replacement for compressor failure and lifetime compressor replacement.

Frequently-Asked Questions

Is this system really DIY-friendly?

Yes, the MRCOOL DIY series includes pre-charged Quick Connect line sets, allowing homeowners to install the system without special HVAC tools or certification.

What size area does this system cover?

This 24,000 BTU model is ideal for spaces between 750–1,000 sq. ft.

Does it work in very cold or hot climates?

Yes, the Hyper Heat design allows operation in conditions as low as -22°F and as high as 122°F.

Can I control it from my phone?

Absolutely. The system is WiFi-enabled and compatible with both iOS and Android through the MRCOOL app.

Manual

  • MRCOOL DIY 5th Gen E Star 24,000 BTU Single Zone Mini Split Complete System Manual
