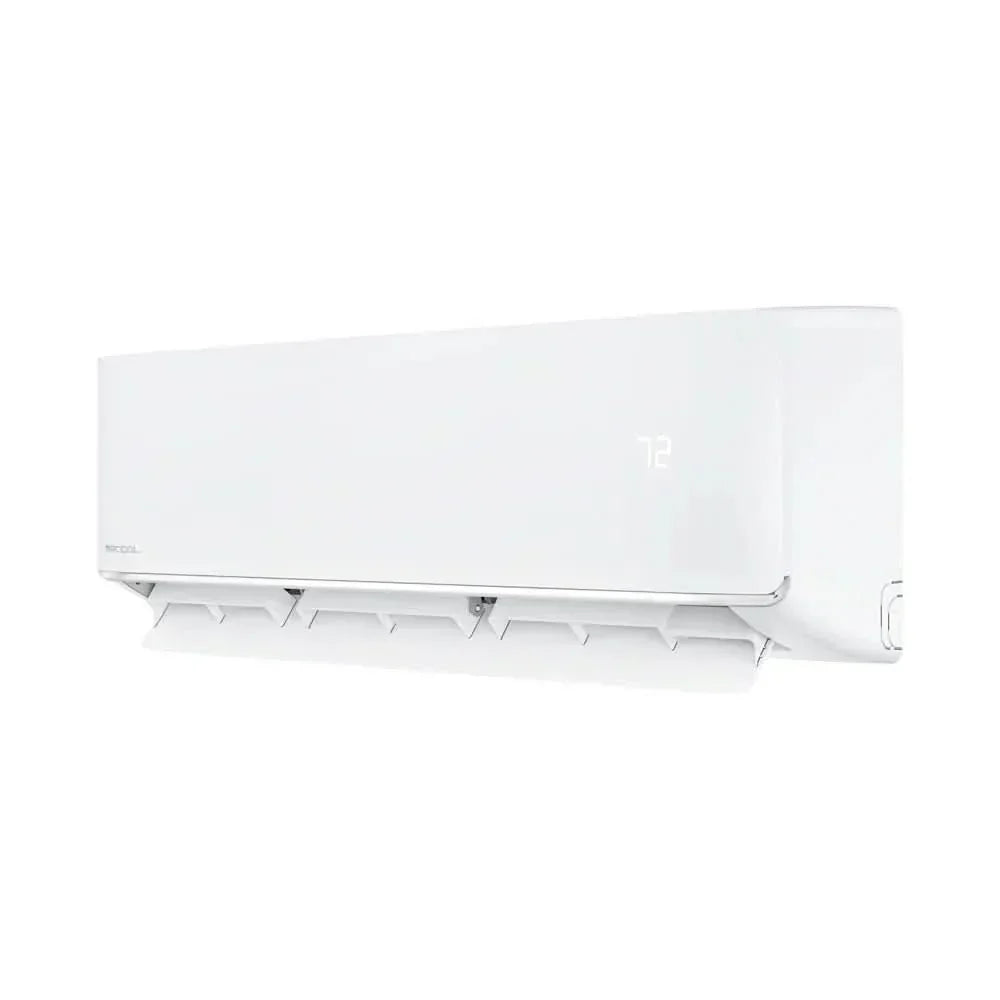

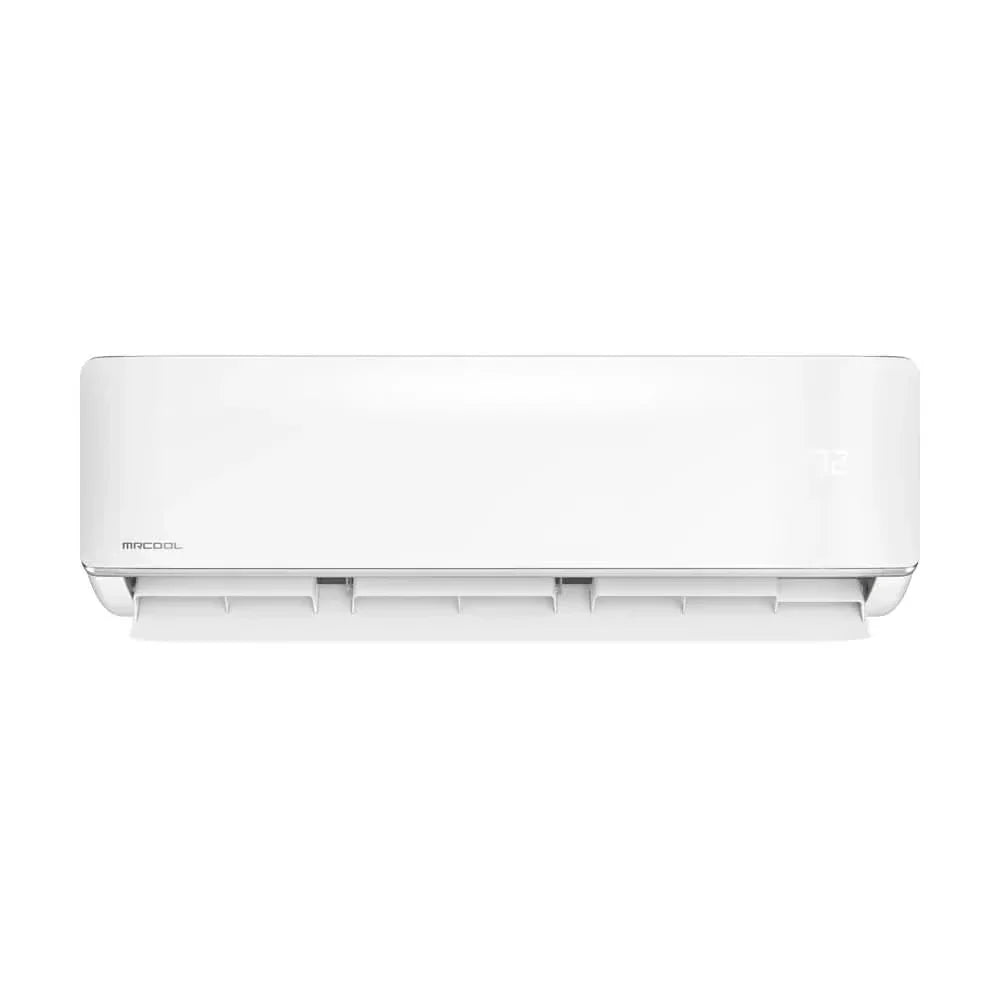

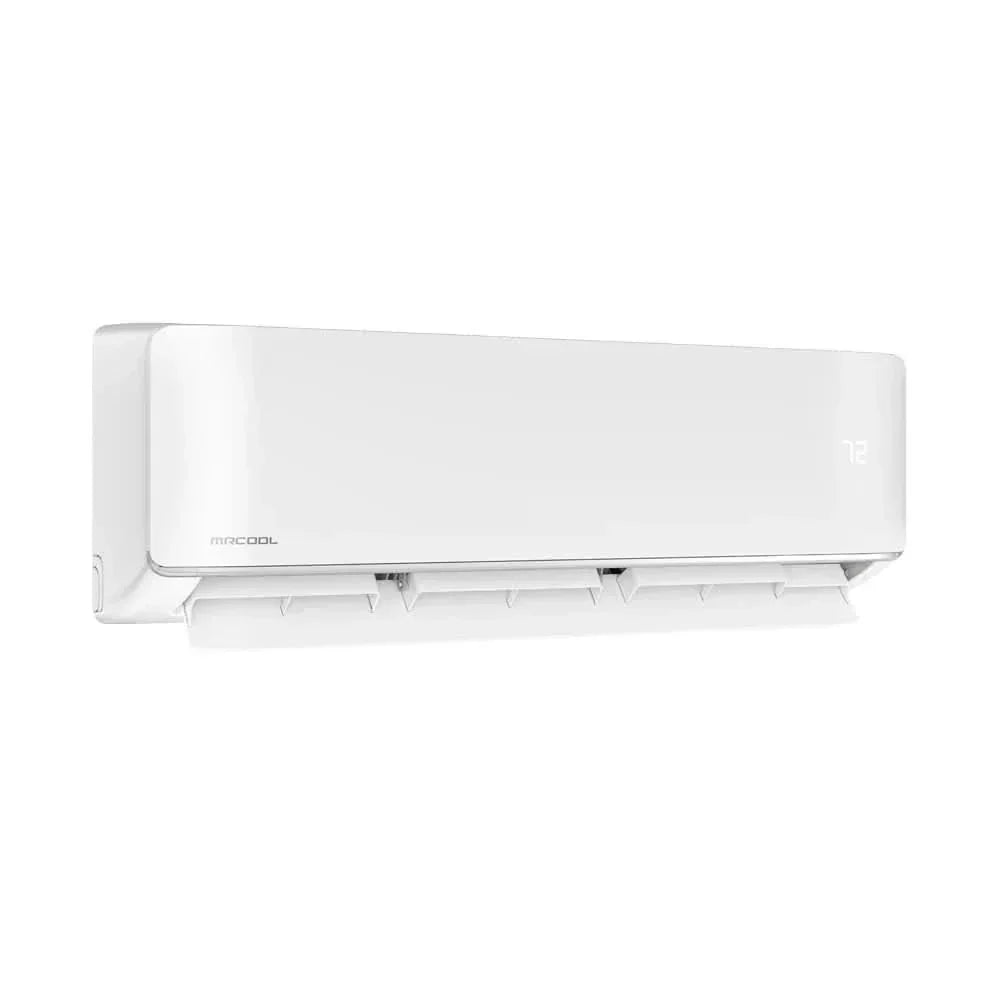

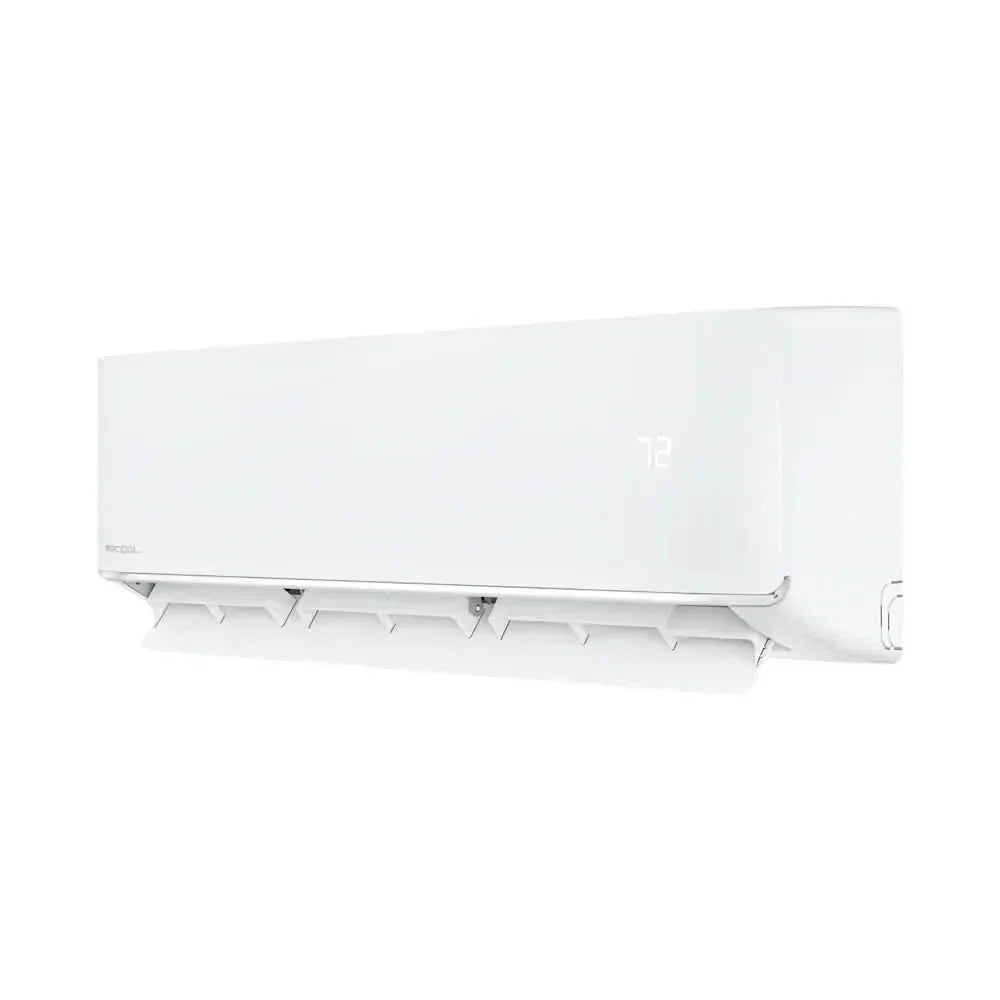

MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V | Air Handler Only

The MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler is a high-efficiency indoor unit designed to pair seamlessly with MRCOOL DIY multi-zone condensers. It delivers customizable comfort to a specific zone in your home, all while being easy to install without the need for professional HVAC tools or certification. With smart home capabilities, quiet operation, and durable construction, this air handler is perfect for those wanting reliable, energy-efficient climate control in their DIY setup.

Please note: This unit is part of the DIY Multi-Zone series and is designed for DIY installation when used with a compatible MRCOOL pre-charged condenser and Quick Connect line set. Line set is sold separately.

MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V Features

Easy DIY Installation

Pairs with a pre-charged Quick Connect line set for simple, tool-free setup.

Smart Controller Ready

Compatible with the MRCOOL SmartHVAC app, Amazon Alexa, and Google Assistant for wireless control.

Energy Efficient Design

Engineered to optimize performance and reduce power consumption.

Quiet Operation

Delivers powerful airflow while maintaining whisper-quiet sound levels.

Auto Restart & Follow Me Mode

Restores settings after power outages and adjusts temperature based on remote location.

Placeholder Image

MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V Applications

  • Small bedroom – provides zoned comfort with energy-efficient operation.
  • Home office – ideal for maintaining quiet and consistent air control.
  • Guest room – perfect for separate temperature control from the main home.
  • Studio – compact and powerful enough for open, multi-functional spaces.

What's Included

Everything you need is included with your product.

  • 9,000 BTU air handler
  • Mounting bracket and hardware
  • Smart remote control
  • User manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL DIY 5th Gen E Star 18K BTU Single Zone Mini Split Air Handler 230V Specifications

Dimensions & Weight

Specifications Details
Dimensions 31.57" W x 7.44" D x 11.63" H
Mount Type Wall
Weight 24.47 lbs

Capacity & Performance

Specifications Details
Capacity 9,000 BTU
Coverage Area 151 to 350 sq. ft.

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 15A
Min Circuit Ampacity 3A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Liquid Line Size 1/4"
Suction Line Size 3/8"

Features

Specifications Details
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications UL Listed, ETL Listed, AHRI Certified
Warranty 5 Year Parts and 7 Year Compressor

Frequently-Asked Questions

Does this unit come with a line set?

No. The line set must be purchased separately and matched to the condenser and BTU rating of this air handler.

Can I install this by myself?

Yes. When used with a compatible MRCOOL DIY condenser and pre-charged Quick Connect line set, installation can be completed without HVAC tools or professional certification.

Is this compatible with any MRCOOL condenser?

No. This model is designed specifically for use with MRCOOL DIY Multi-Zone Condensers only.

Manual

  • MRCOOL DIY 5th Gen 9,000 BTU Multi-Zone Mini Split Air Handler 230V Manual
