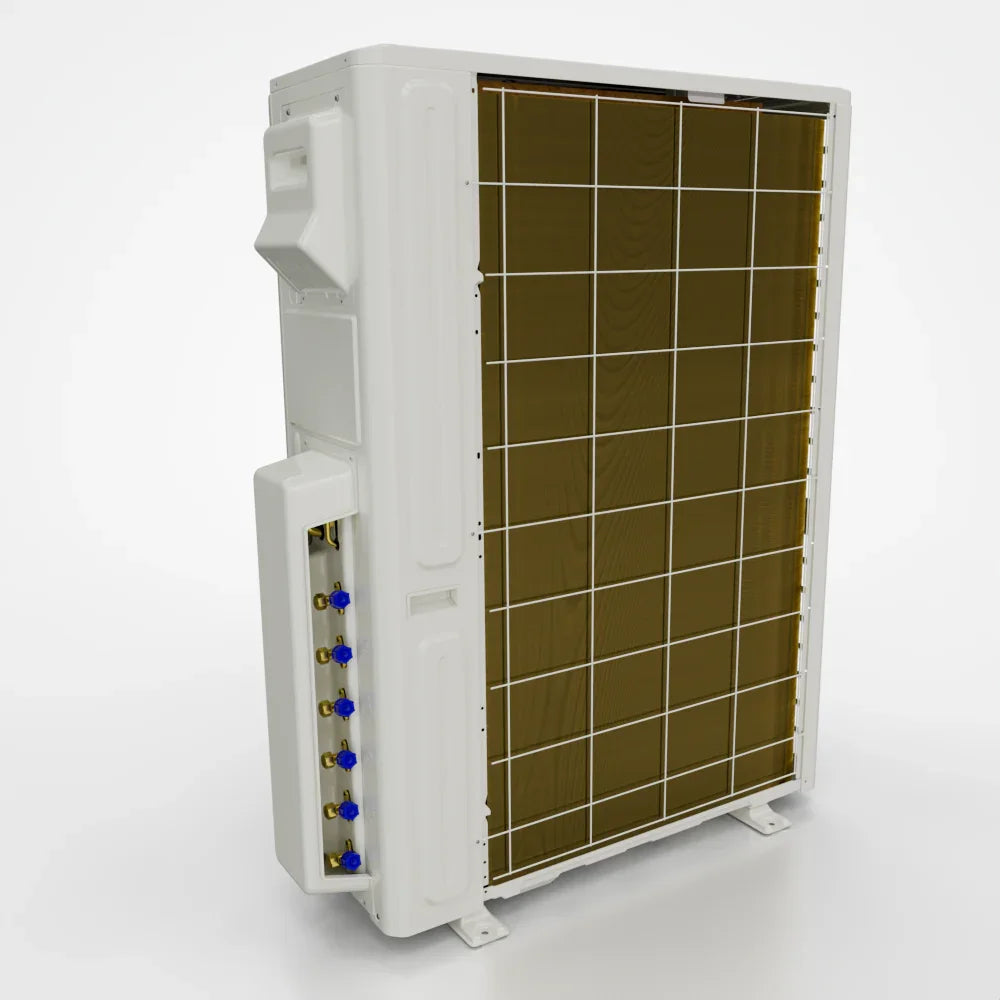

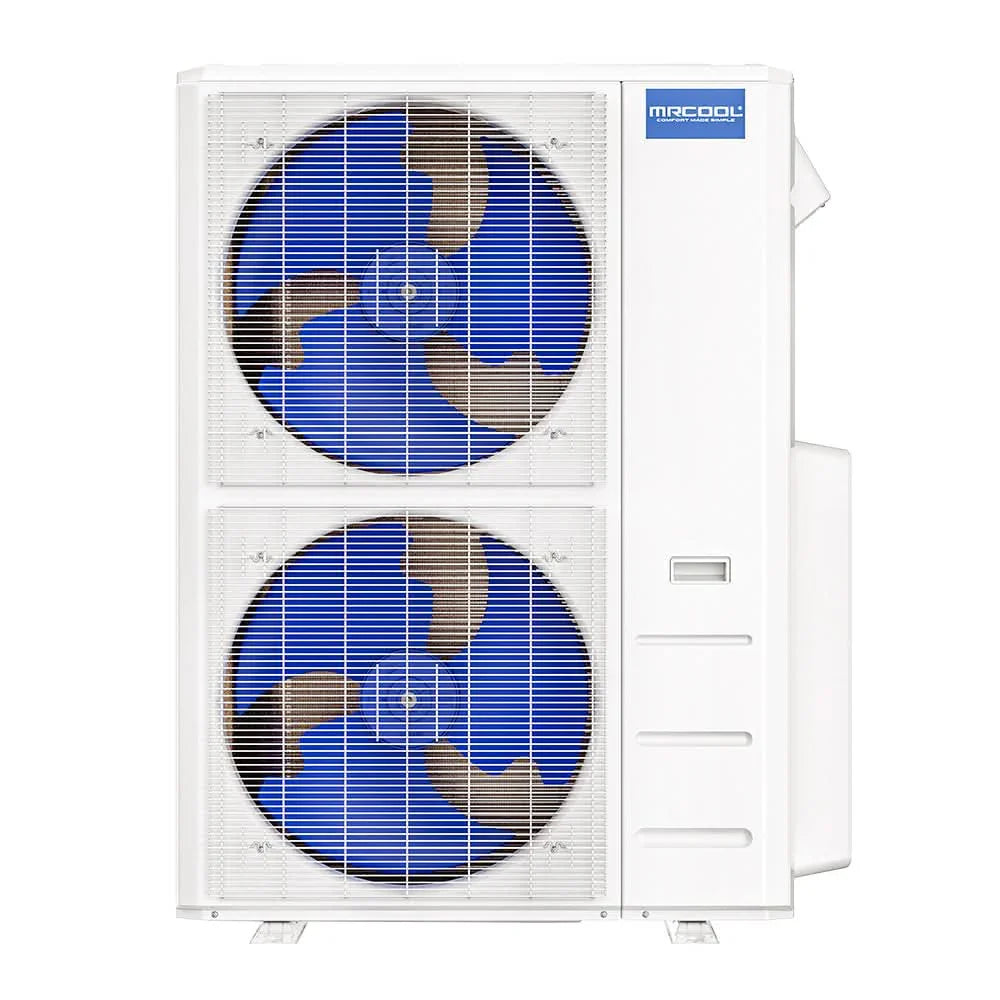

MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V | Condenser Only

The MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser is the ultimate solution for whole-home or large-space comfort. Designed to support up to six indoor air handlers, this unit provides powerful 47,000 BTU cooling capacity and 55,000 BTU heating capacity. With its 22 SEER2 energy efficiency rating, smart home integration, and true DIY installation, it’s ideal for homeowners looking to save on installation costs while enjoying efficient, zoned comfort across multiple rooms.

Please note: This is a condenser-only listing. Compatible MRCOOL DIY air handlers and Quick Connect line sets must be purchased separately to complete the system.

MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V | Condenser Only Features

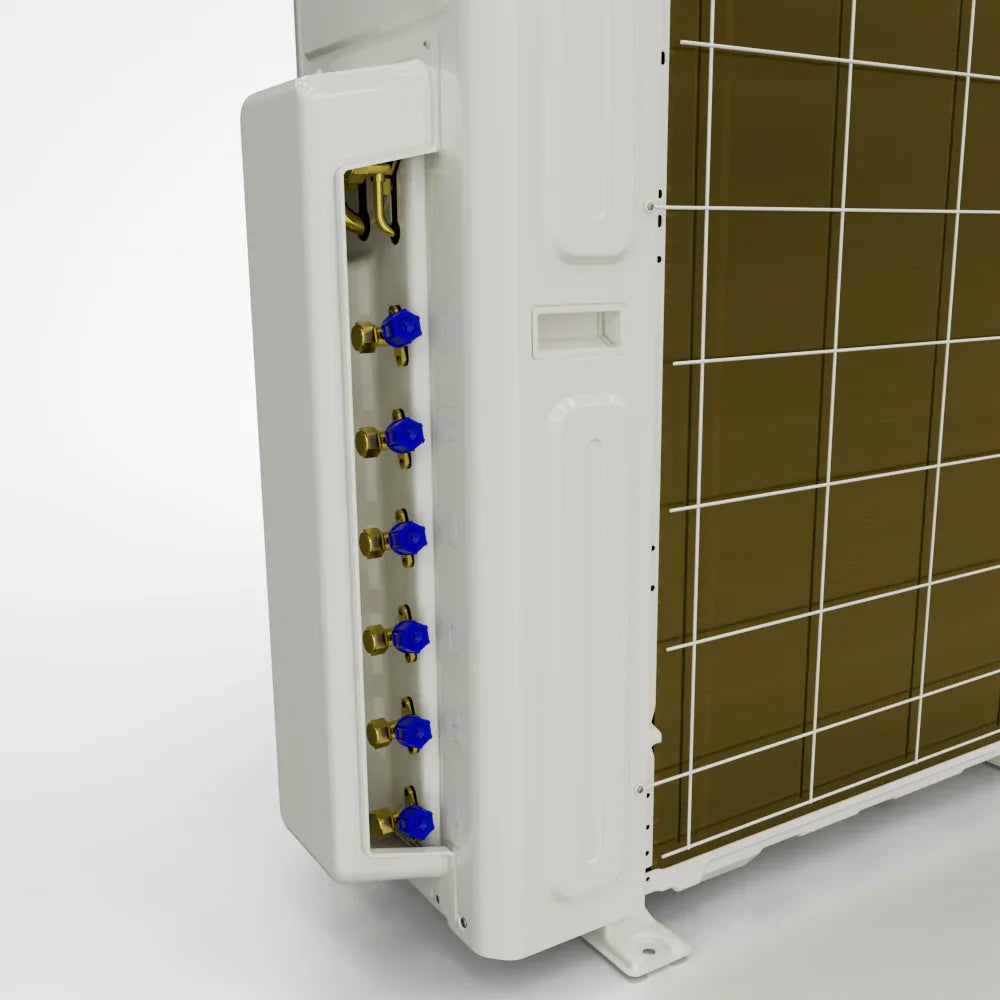

Supports 6 Zones

Powerful enough to connect up to six indoor units, giving each room independent climate control.

Energy Efficient

Rated at 22 SEER2 and 12 EER2, offering maximum comfort while keeping energy bills low.

All-Climate Heating & Cooling

Provides efficient operation in outdoor temps from -13°F to 122°F, ensuring year-round reliability.

DIY Installation

Features MRCOOL’s Quick Connect pre-charged line sets, eliminating the need for HVAC tools or professional installation.

Smart Control

Wi-Fi enabled for seamless integration with iOS, Android, Alexa, and Google Assistant.

Quiet & Durable

Utilizes a rotary DC inverter compressor with a low operating noise of 64 dB(A).

Placeholder Image

MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V | Condenser Only Applications

  • Large homes – Perfect for whole-house heating and cooling.
  • Multi-zone setups – Great for dividing comfort across bedrooms, offices, and living spaces.
  • Small commercial spaces – Reliable performance for shops, salons, and workspaces.
  • Add-ons & expansions – Eliminate ductwork hassle in renovations or additions.

What's Included

Everything you need is included with your product.

  • MRCOOL DIY 55,000 BTU condenser unit
  • User Manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V | Condenser Only Specifications

Dimensions & Weight

Specifications Details
Dimensions 37.48" W x 16.34" D x 52.48" H
Weight 245.81 lbs

Capacity & Performance

Specifications Details
Zone Capacity 6
Cooling Capacity 47,000 BTU
SEER2 22
EER2 12
Heating Capacity 55,000 BTU
HSPF2-4 10.6
HSPF2-5 8.5
Coverage Area up to 2,290 sq. ft.
Outdoor Noise Level 64 dB(A)
Outdoor Operating Temperature Cooling: 5°F – 122°F | Heating: -13°F – 75°F

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 45A
Min Circuit Ampacity 43A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Refrigerant Volume 151.68 oz
Liquid Line Size 1/4"
Suction Line Size (3/8 X4) (1/2 X2)
Max Line Set Length 221.4 ft.

Features

Specifications Details
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
Warranty 7 Years Compressor | 5 Years Parts

Frequently-Asked Questions

Does this include indoor air handlers?

No, this is the condenser-only listing. Compatible MRCOOL DIY air handlers must be purchased separately.

Can homeowners install this without a contractor?

Yes. The MRCOOL DIY 5th Gen uses Quick Connect line sets pre-charged with refrigerant, making installation accessible for homeowners.

How many zones can it support?

Up to six indoor zones, depending on which air handler sizes are paired with the unit.

Manual

  • MRCOOL DIY 5th Gen 55,000 BTU 6-Zone Mini Split Condenser 230V Manual
