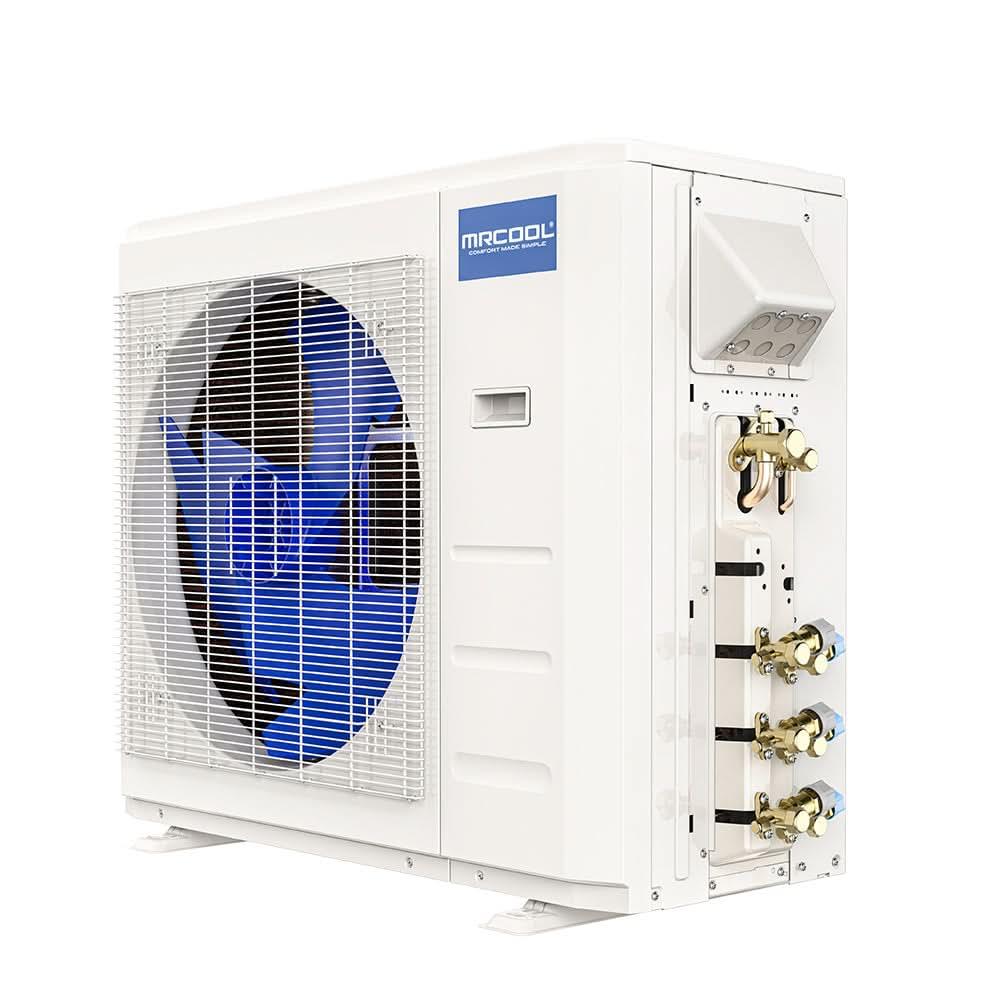

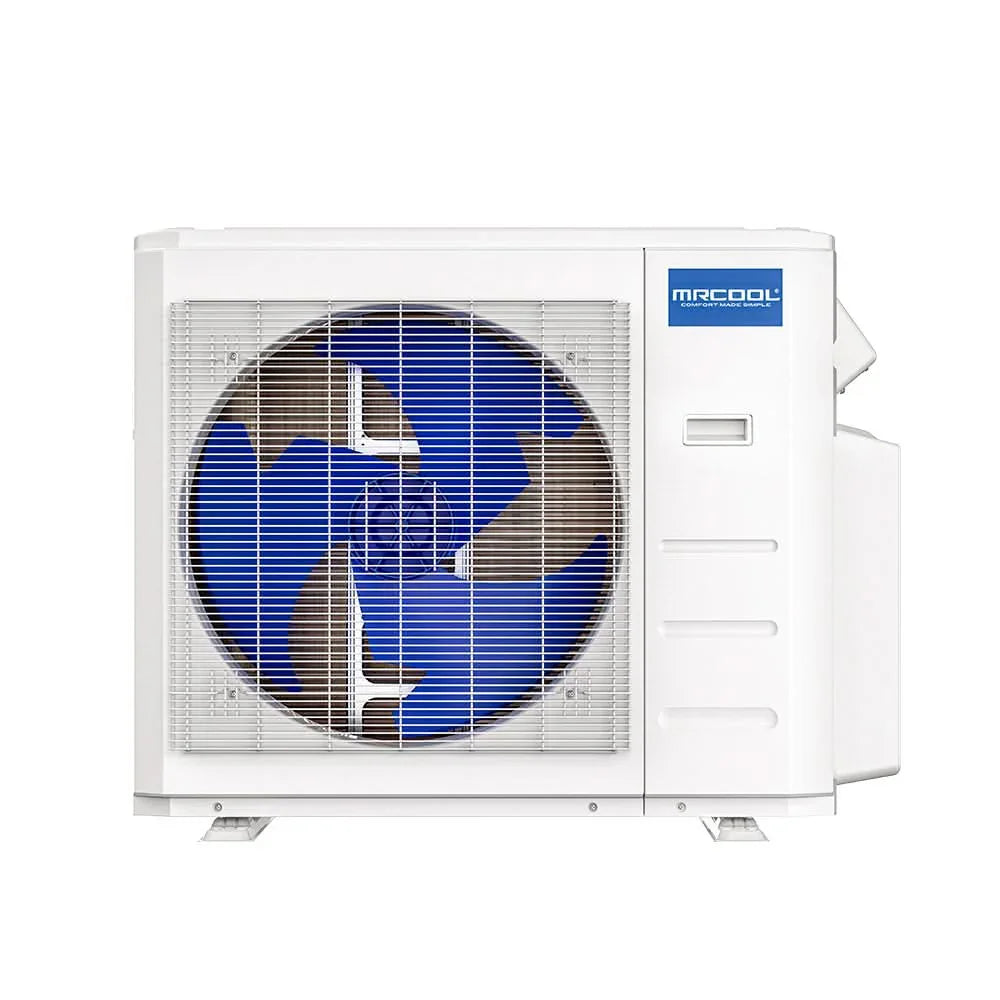

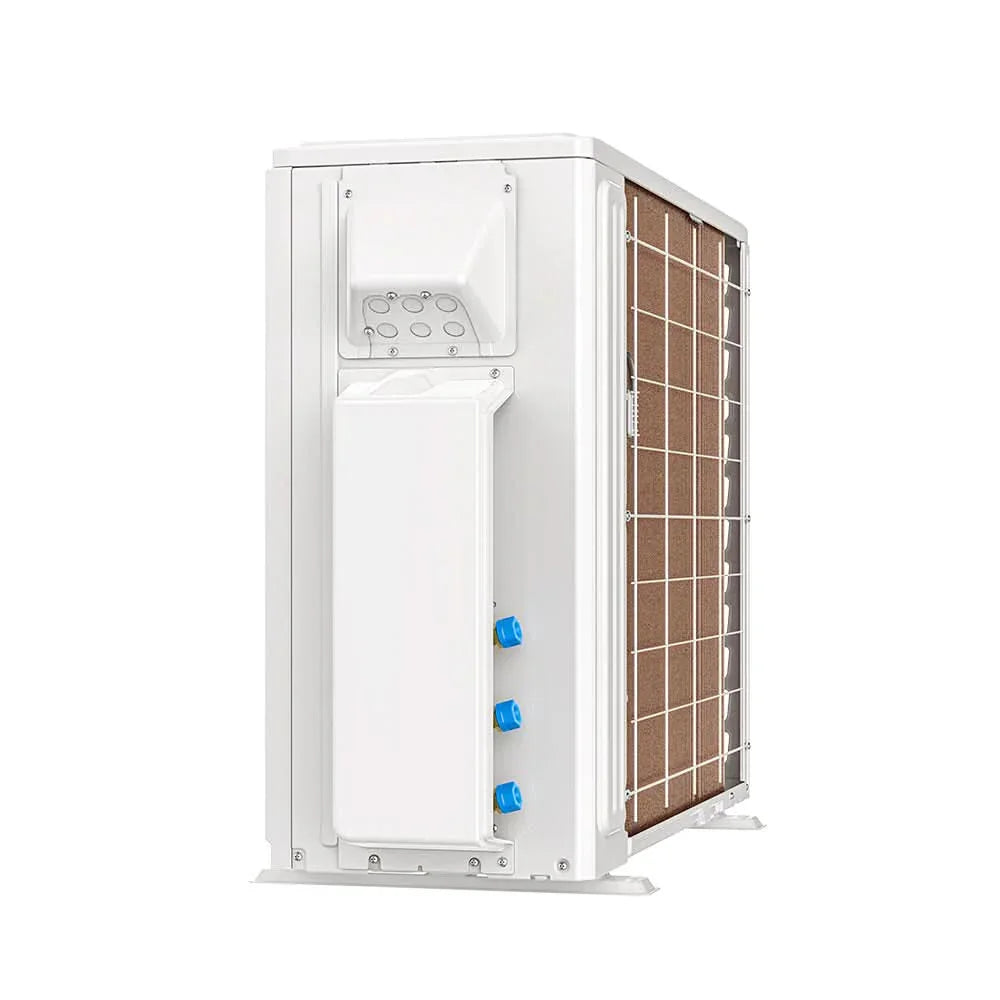

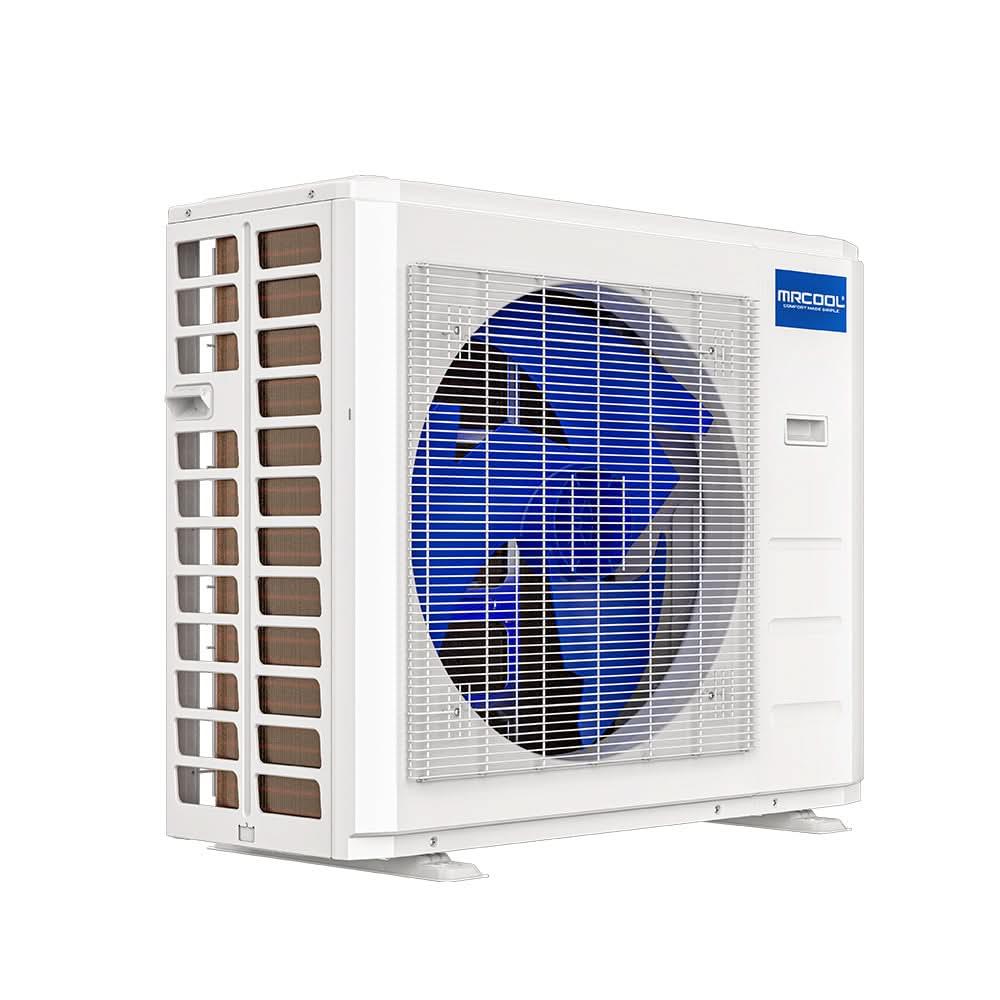

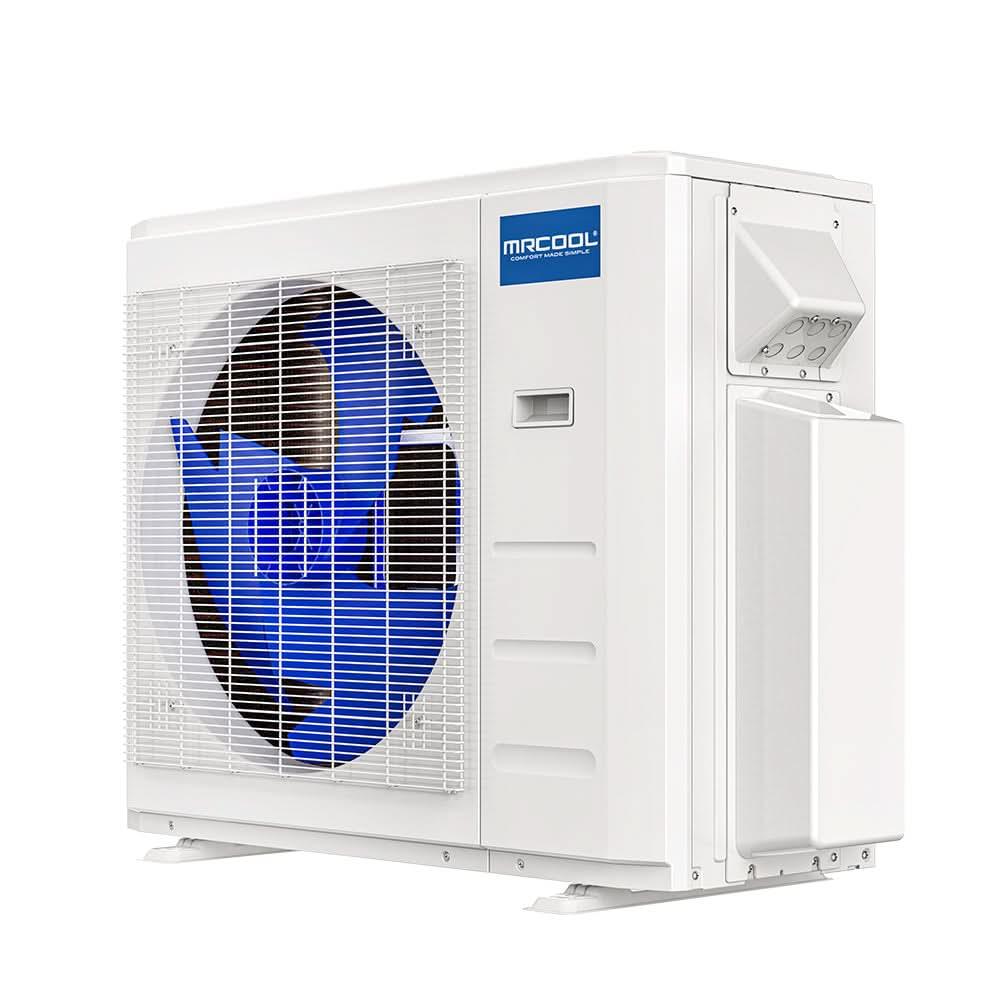

MRCOOL DIY 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V | Condenser Only

The MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser provides powerful and efficient heating and cooling for up to four zones. Designed with MRCOOL’s patented Quick Connect technology, this condenser allows homeowners to install the system without specialized HVAC tools or certification. With a coverage capacity of up to 1,125 sq. ft., it is the perfect choice for homes and small businesses looking for customizable comfort, energy efficiency, and quiet operation.

Please note: This condenser must be paired with MRCOOL DIY 5th Gen air handlers and Quick Connect line sets for full functionality.

MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser 230V Features

Multi-Zone Flexibility

Supports up to 4 indoor air handlers, letting you control multiple rooms with one system.

Energy Efficient

With 23 SEER2 and 12 EER2 ratings, this condenser provides excellent energy savings.

Powerful Heating & Cooling

Delivers 27,000 BTUs of heating and cooling capacity, keeping your home comfortable year-round.

DIY Installation

Includes MRCOOL’s Quick Connect technology, eliminating the need for vacuum pumps or refrigerant charging.

Smart Home Ready

Wi-Fi enabled with compatibility for iOS, Android, Alexa, and Google Assistant for hands-free control.

Quiet Operation

Operates at 61 dB(A), minimizing outdoor noise while delivering reliable performance.

Placeholder Image

MRCOOL DIY 5th Gen 27,000 BTU Multi-Zone Mini Split Condenser 230V Applications

  • Homes – Ideal for multi-room comfort with independent zone control.
  • Offices – Efficient solution for workspaces needing separate climate settings.
  • Additions – Great for garages, basements, or home expansions.
  • Small businesses – Energy-efficient comfort solution for shops or studios.

What's Included

Everything you need is included with your product.

  • 27,000 BTU 4-Zone Outdoor Condenser
  • User Manual

Warranty

  • 7 Years Compressor
  • 5 Years Parts

MRCOOL Hyper Heat 48K Condenser Specifications

Dimensions & Weight

Specifications Details
Dimensions 37.24" W x 16.14" D x 31.89" H
Weight 140.21 lbs

Capacity & Performance

Specifications Details
Zone Capacity 4
Cooling Capacity 26,000 BTU
SEER2 23
EER2 12
Heating Capacity 26,000 BTU
HSPF2-4 9.5
HSPF2-5 7
Coverage Area up to 1,125 sq. ft.
Outdoor Noise Level 61 dB(A)
Outdoor Operating Temperature Cooling: 5°F – 122°F | Heating: -13°F – 75°F

Electrical Requirements

Specifications Details
Voltage 208-230V
Phase 1
Cycle 60 Hz
Max Fuse Breaker 25A
Min Circuit Ampacity 23A

Refrigerant & Piping

Specifications Details
Refrigerant Type R-454B
Refrigerant Volume 84.66 oz
Liquid Line Size 1/4"
Suction Line Size 3/8"
Max Line Set Length 221.4 ft.

Features

Specifications Details
Inverter DC
Compressor Type Rotary
Fan Only Option Yes
Quiet Mode Yes
Auto Cool Yes
Wifi Compatibility Yes
App Compatibility Yes
Works with IOS Yes
Works with Android Yes
Remote Control Included Yes

Certifications & Warranty

Specifications Details
Certifications Energy Star Certified, UL Listed, ETL Listed, AHRI Certified
Warranty 7 Years Compressor | 5 Years Parts

Frequently-Asked Questions

How many air handlers can this condenser support?

This unit supports up to four indoor air handlers, with total capacity not exceeding 36,000 BTU.

Is this condenser pre-charged?

Yes, it comes pre-charged with refrigerant for use with all supported zones.

Can I install this without an HVAC technician?

Yes, this condenser is part of the DIY Multi-Zone line and is designed for tool-free installation when used with MRCOOL Quick Connect air handlers and line sets.

Manual

  • MRCOOL DIY 5th Gen 27,000 BTU 4-Zone Mini Split Condenser 230V Manual
