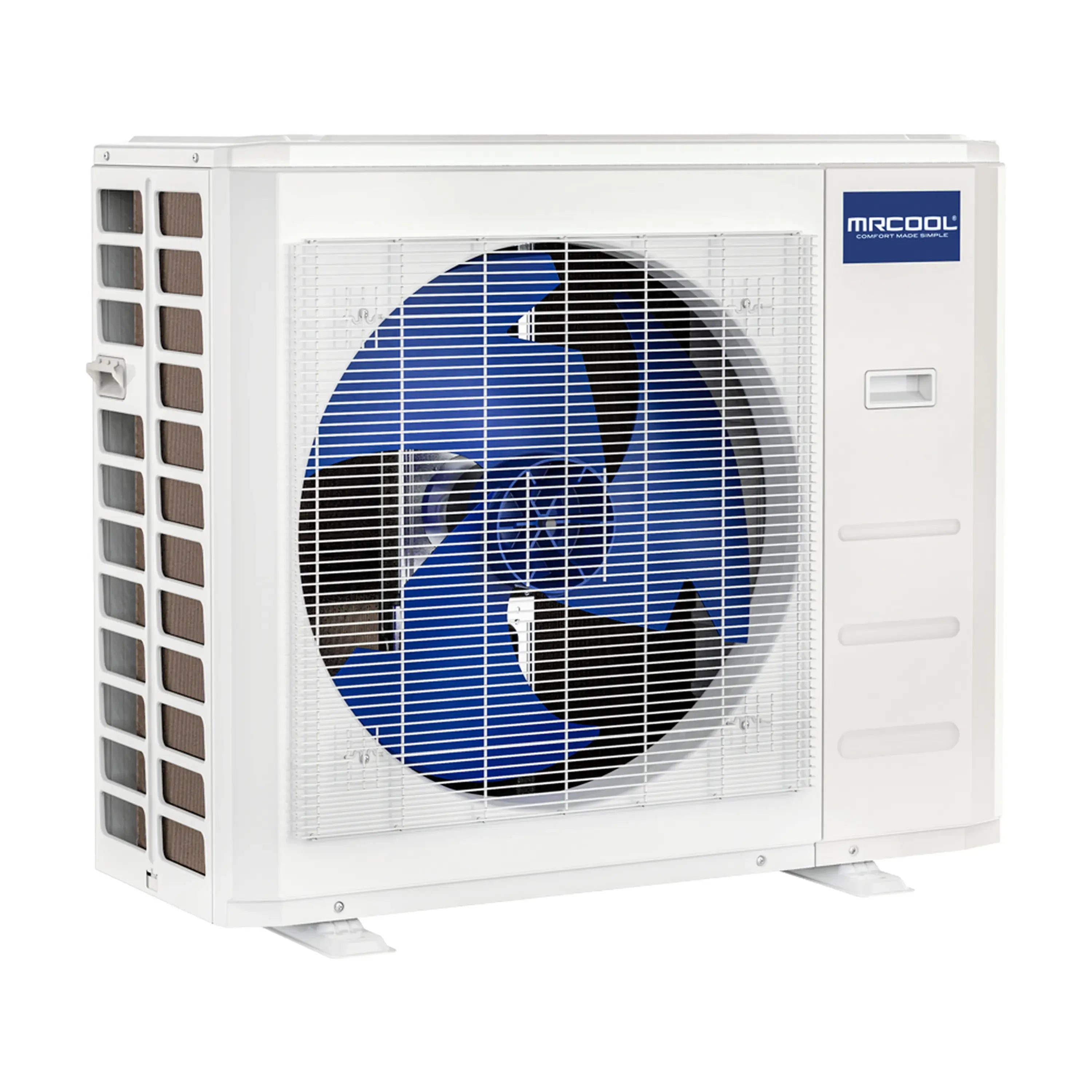

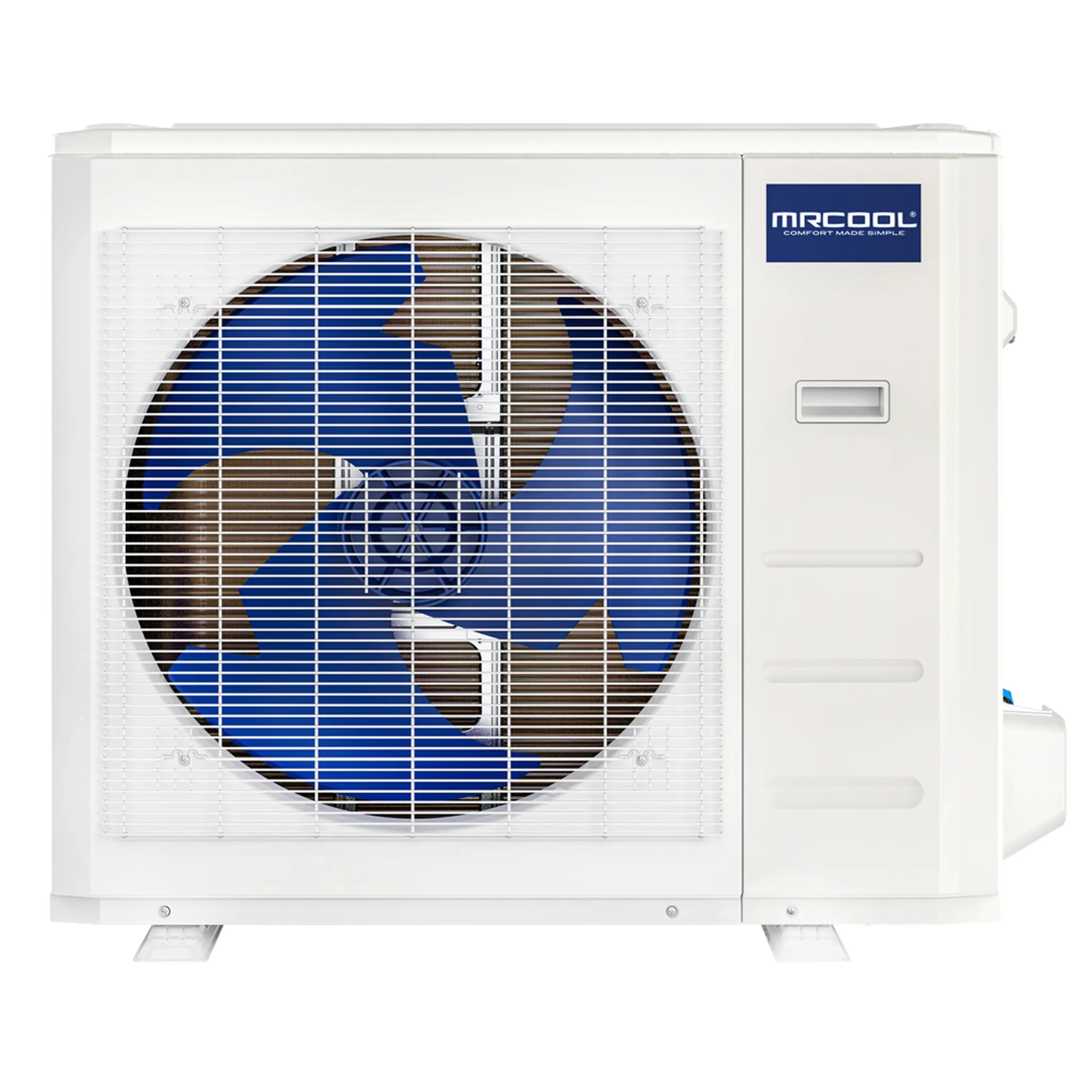

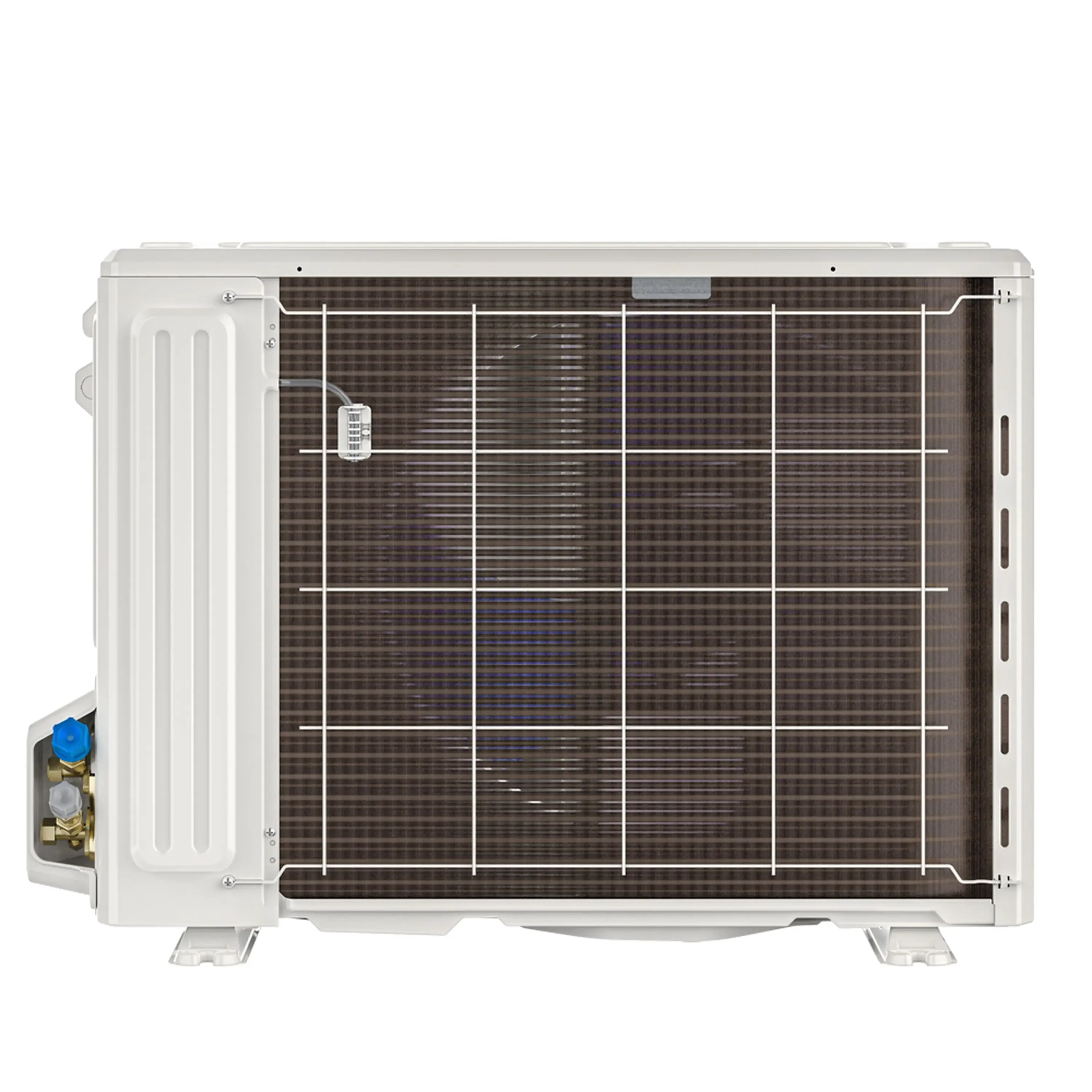

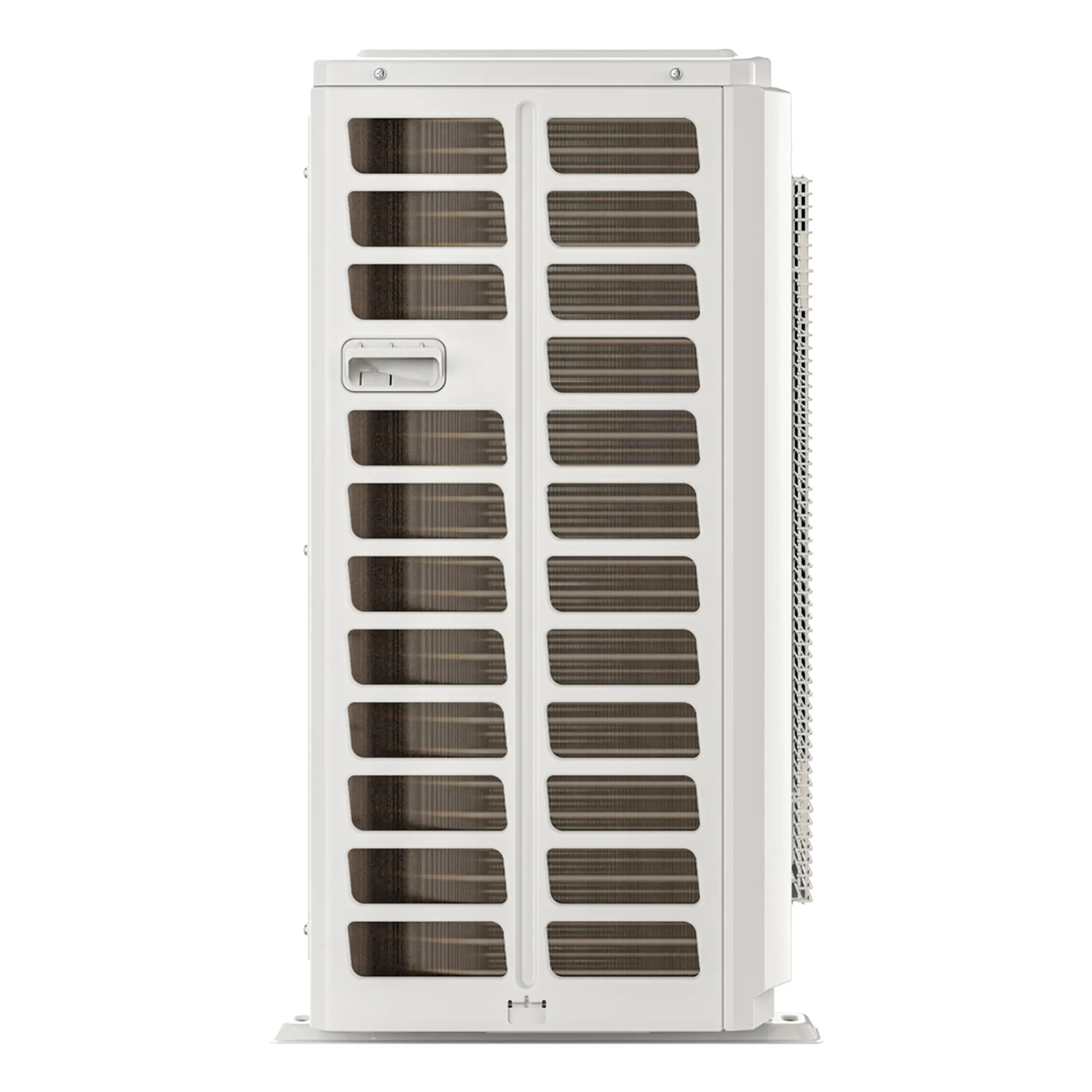

MRCOOL 36K BTU, 3 Ton, 17.4 SEER2 Hyper Heat Central Ducted Condenser (CENTRAL-36-HP-C-230B00-O)

This product only includes a condenser.

The 36K MRCOOL® Hyper Heat Central Ducted Condenser is specifically designed to deliver exceptional performance in extreme weather conditions, from freezing winters to sweltering summers. This high-performance system is engineered for efficiency, integrating DC Inverter and variable speed technology for reliable operation. With a SEER2 rating of up to 17.4 and an HSPF2-4 rating of up to 10.2, it effectively balances powerful heating and cooling while optimizing energy use. The system comes with the MRCOOL® Smart thermostat, allowing you to control your indoor climate easily.

The 36K MRCOOL® Hyper Heat Central Ducted Condenser and the 36K MRCOOL® VersaPro® Central Ducted Air Handler are designed to work together seamlessly. The air handler is versatile, accommodating multiple installation configurations and supports an optional heat kit for enhanced functionality. The system uses R-454B refrigerant to reduce environmental impact, an eco-friendly choice that aligns with sustainable practices. The outdoor condenser is made with a painted galvanized steel exterior, while the air handler boasts a compact design, a slide-out blower, and a self-diagnostic panel for simplified maintenance and troubleshooting.

This system is backed by a comprehensive 10-year warranty covering the compressor, parts, and labor, providing lasting reliability and peace of mind. The labor warranty is automatically activated at the time of installation, eliminating the need for registration. Upgrade your home's heating and cooling system with the dependable and efficient 36K MRCOOL® Hyper Heat Central Ducted Condenser today!

Dimensions

16.34" D x 38.39" H x 38.58" W

SEER2

17.4

EER2

11.7

HSPF-4

10.2

HSPF-5

8.6

CFM

3001.8

Tonnage

3

Cooling Capacity (BTU)

36000

Heating Capacity (BTU)

37000

Voltage (V)

208-230

Phase

1

Cycle

60

Max Fuse Breaker (A)

30

Min Circuit Ampacity (A)

29

Color

gray

Refrigerant Type

R454B

Refrigerant Volume (OZ)

126.99

Decibel Rating (DBA)

62.5

Liquid Line Size

3/8

Suction Line Size

3/4

WIFI Compatibility

Yes

APP Compatibility

Yes

ETL Certified

Yes

Energy Star Certified

Yes

AHRI Certified

Yes

Base Parts Warranty

10 Years

Base Compressor Warranty

10 Years

Base Labor Warranty

10 Years

Contains Electronics

Yes

Contains Chemicals

Yes

Contains Compressed Gas

Yes

Net Weight (Lbs)

204.15

Gross Depth (In)

19.68

Gross Height (In)

42.52

Gross Width (In)

45.08

Gross Weight (Lbs)

253.23
