Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package

Description

The new CX Generator system is next generation steam power. Now, big things come in an impeccably designed, thoughtfully engineered, compact and concise unit. The CX Generator is innovation in action. Like an old main frame computer that took up an entire room but can now be held in a cell phone, the CX Generator is pure brawn, engineered for peak performance.

Features

CX Generator

• Industrial-grade, large diameter, serviceable heating element
• Electronic water-level control system
• Stainless steel jacket prolongs life
• Quieter than a pressurized system
• Program to preheat the steam room at the start of each day
• Internal temperature shut-off to prevent low water conditions and integral high water cut-off
• Factory installed AutoFlush System flushes old water and impurities promoting a healthy life for generators
• Compact size offers more flexibility with room design and straightforward installation
• All units are wired and pre-tested before shipping to assure all parts of the generator are working perfectly
• Designed for commercial applications that require continuous or near continuous use so they are available to use all day
• Dimensions: 33.9"L x 7.9"W x 22"H (per Generator including factory-installed AutoFlush System)

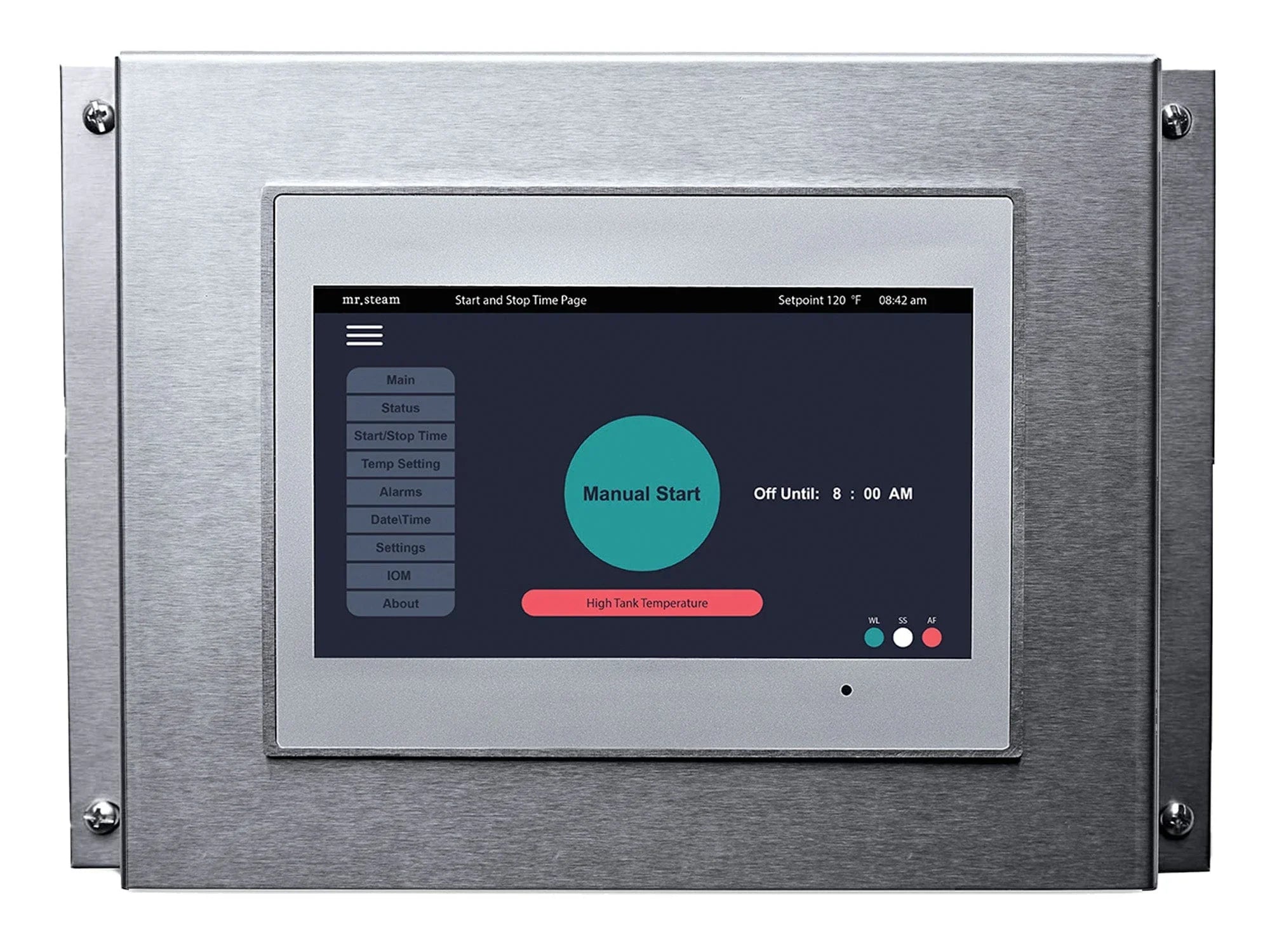

CX Control

• 7” color touch screen control with menu driven user interface
• Easily set on/off time and view system status while the unit is running
• Controls multiple CX Generators in series
• Dimensions: 7.1"L x 1.6"W x 5.3"H

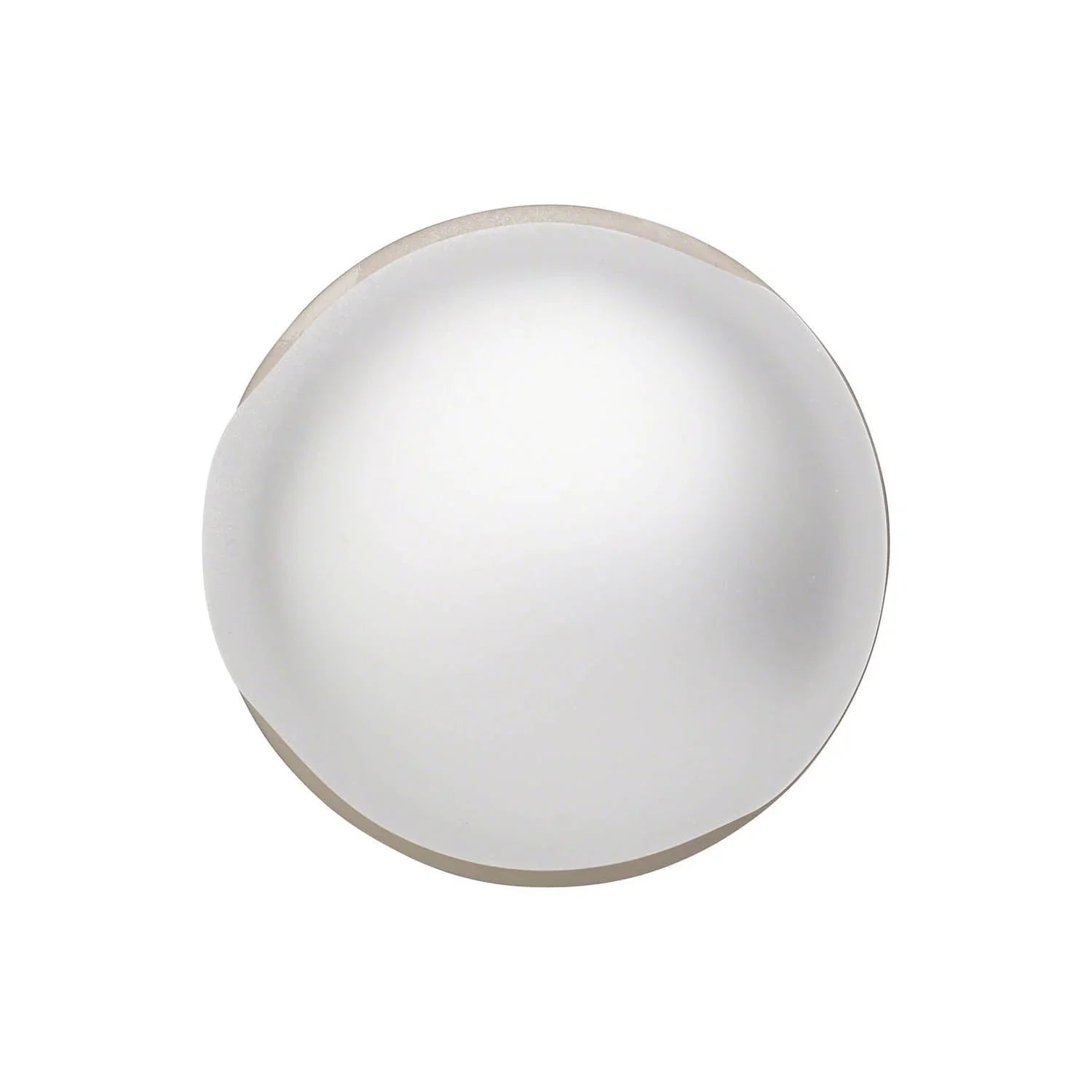

Commercial SteamHead

• Complete with polycarbonate Acrylic Shield
• Comes in a Polished Chrome finish
• No assembly of moving parts required
• Dimensions: 3.1”Diameter x 1.8”W

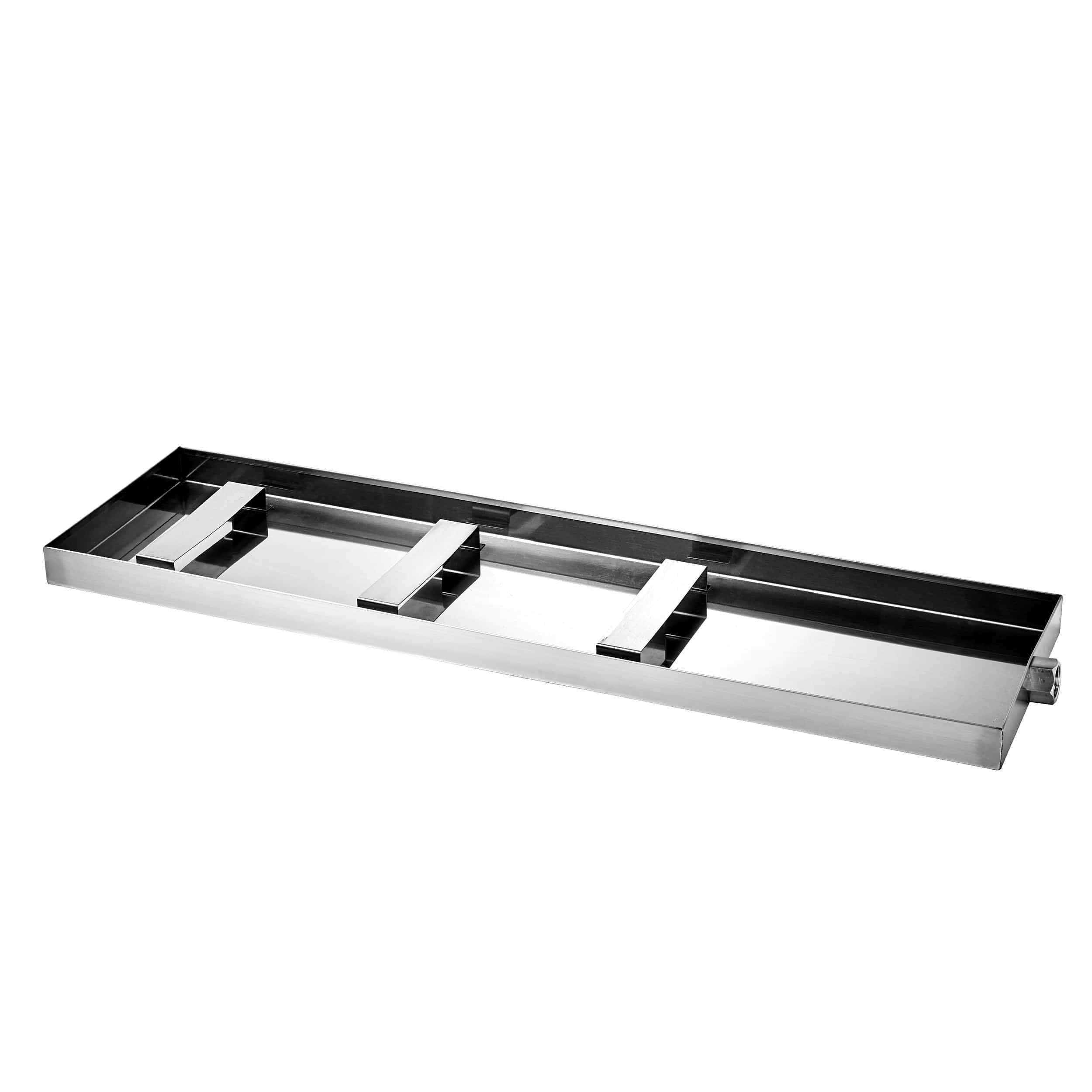

Condensation Pan

• Protects against potential water leaks
• Will trap and redirect the water to a predetermined area
• Goes on a solid level surface with steam generator placed inside
• Dimensions: 33"L x 1.5"W x 9"

Product Specifications

Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package Product Specifications

What's in the box?

CX Generator

• CX Generators
  • CX1250
  • CX1600-CX2500 (2)
  • CX3000 (3)
  • CX5000 (4)
• Installation and Operation Manual
• 1-Year Limited Warranty

CX Control

• CX Control
  • CX1250
  • CX1600-CX2500
  • CX3000
  • CX5000
• 1-Year Limited Warranty

Commercial SteamHead

• Commercial SteamHeads

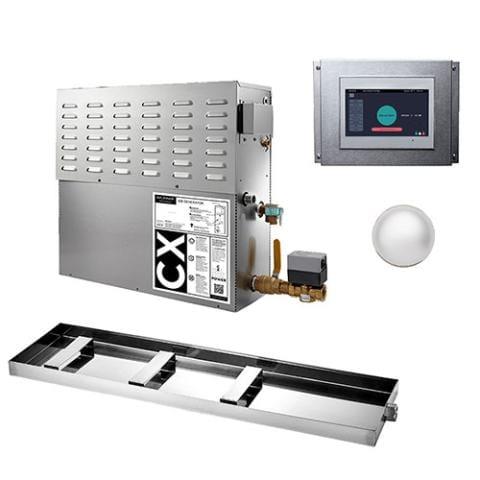

  • CX1250

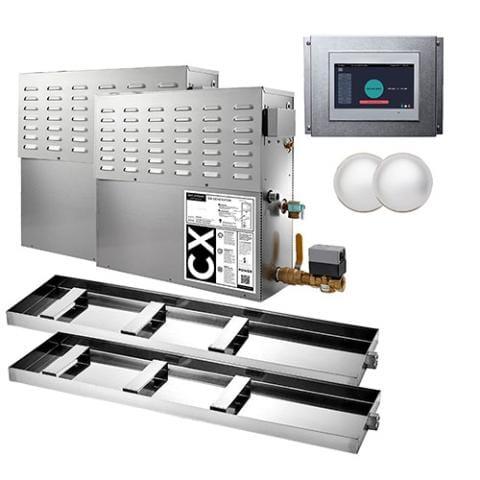

  • CX1600-CX2500 (2)

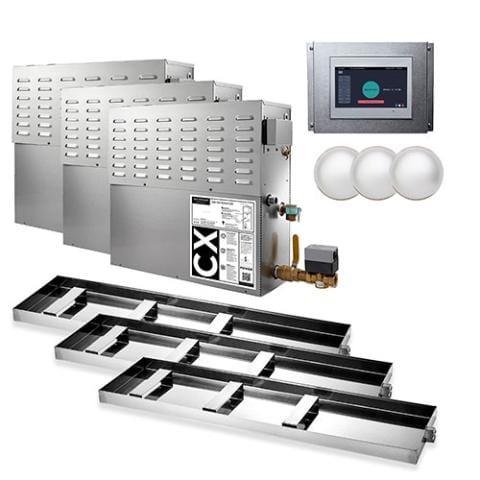

  • CX3000 (3)

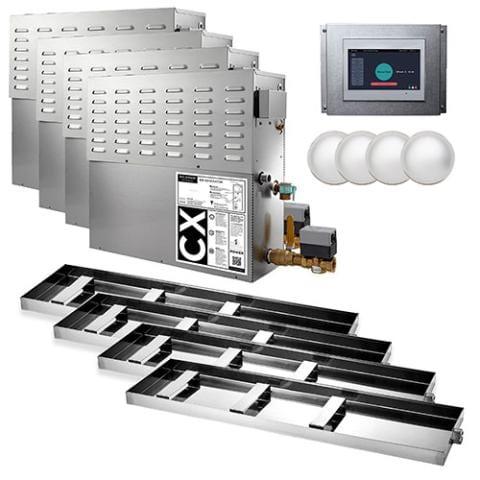

  • CX5000 (4)
• 1-Year Limited Warranty

Condensation Pan

• Condensation Pans
  • CX1250
  • CX1600-CX2500 (2)
  • CX3000 (3)
  • CX5000 (4)
• 1-Year Limited Warranty

Product Manual

Mr.Steam CX Generator Package CX1250 thru CX5000 Health Club Steam Shower Generator Package Product Manual

Installation Manual

Mr. Steam CX Generator Installation Manual

Mr. Steam Planning Guide

Technical Specifications

Mr. Steam CX Generator Technical Specifications

Product Warranty

Mr. Steam Product Warranty

Product FAQs

N/A
