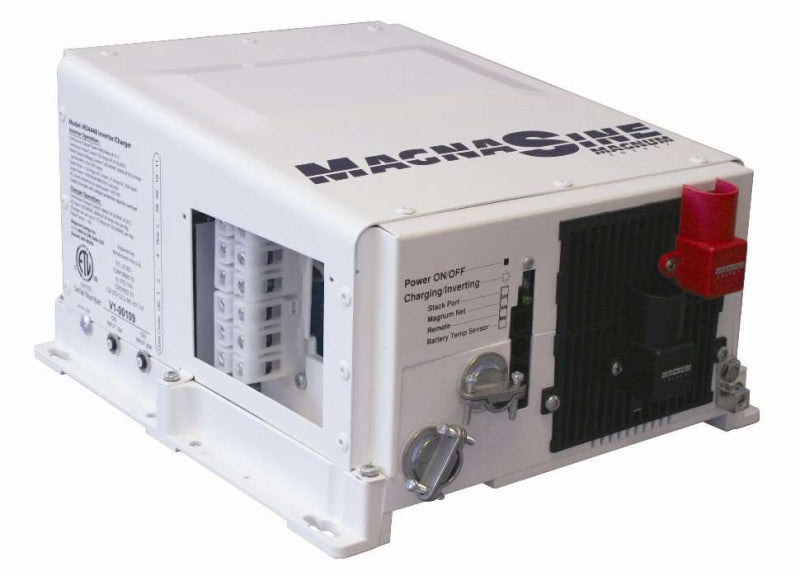

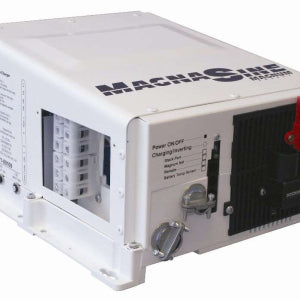

Magnum Energy MS4024PAE 4000 Watt 24V Pure Sine Inverter Charger

Magnum Energy Part Number: MS4024PAE



The MS-PAE Series Inverter / Charger from Magnum Energy is a pure sine wave inverter designed specifically for the most demanding renewable energy applications. The unique design of the MS-PAE Series can provide 120 and 240 volts AC output in one unit, eliminating the need to stack two units together to get 240 volts.



No series stacking required: The unique design of the MS-PAE Series can provide 120 and 240 volts output in one unit, eliminating the need to stack two units together to get 240 volts.



Parallel stacking: You can parallel up to four inverter / chargers for up to 17.6kw of power at 120/240V. The MP panels and router are required for parallel stacking the MS-PAE Series.



Power Factor Corrected (PFC) Charger: The PFC charger is built into all of our inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers.



Safe and reliable: The MS-PAE Series is ETL Listed to the stringent requirements of UL 1741, 1st edition, and CSA C22.2 #107.1-01 for renewable energy installations.



Features:

  • Pure sine wave
  • 24 and 48 volt configurations
  • Versatile mounting
  • Lightweight
  • Multiple ports
  • Accessible design
  • Convenient switches
  • Backed by a three-year (36-month) limited warranty, and a five-year limited warranty when installed on an MMP or MP system.



Inverter Specifications:

  • Input battery voltage range: 18.0 – 33.8 VDC
  • Nominal AC output voltage: 120/240 VAC split phase
  • Output frequency and accuracy: 60 Hz ± 0.04%
  • Total Harmonic Distortion (THD:) < 5%
  • 1 msec surge current (amps AC) Line-Neutral: 120, Line-Line: 195
  • 100 msec surge current (amps AC) Line-Neutral: 72, Line-Line: 92
  • 5 sec surge power (real watts): 5800
  • 30 sec surge power (real watts): 5200
  • 5 min surge power (real watts): 4800
  • 30 min surge power (real watts): 4500
  • Continuous power output at 25° C: 4000 VA
  • Maximum continuous input current: 222 A
  • Inverter efficiency (peak): 93%
  • Transfer time: 16 msecs
  • Search Mode: < 6 watts
  • No Load (120 VAC output): 27 watts
  • Waveform: Pure Sine Wave



Charger Specifications:

  • Continuous output at 25° C: 105 ADC
  • Charger efficiency: 85%
  • Power factor: > 0.95
  • Input current at rated output (AC amps): 15 AAC per leg at 120/240 VAC split phase



General Features and Capabilities:

  • Transfer relay capability: 2 legs at 30A per leg transfer standard on all models
  • Five stage charging capability: Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
  • Battery temperature compensation: With available temp sensor (battery temp 0 – 50° C)
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Over current protection: Yes, with two overlapping circuits
  • Over temperature protection: Yes on transformer, MOSFETS, and battery
  • Conformal coating on PCB’s for corrosion protection: Yes
  • Powder coated chassis & top for corrosion protection: Yes
  • Stainless steel fasteners for corrosion protection: Yes
  • Listings: ETL Listed to ANSI / UL1741 and CSA STD C22.2 No.107.1-01
  • Warranty: Two years parts and labor



Physical Specifications:

  • Dimensions (l x w x h): 13.75” x 12.65” x 8.0”
  • Mounting: Shelf or wall (no vents on bottom)
  • Unit Weight: 54.5 lb (24.7 kg)
  • Shipping Weight: 58 lb (26.3 kg)
  • Max operating altitude: 15,000’ (4570 m)
