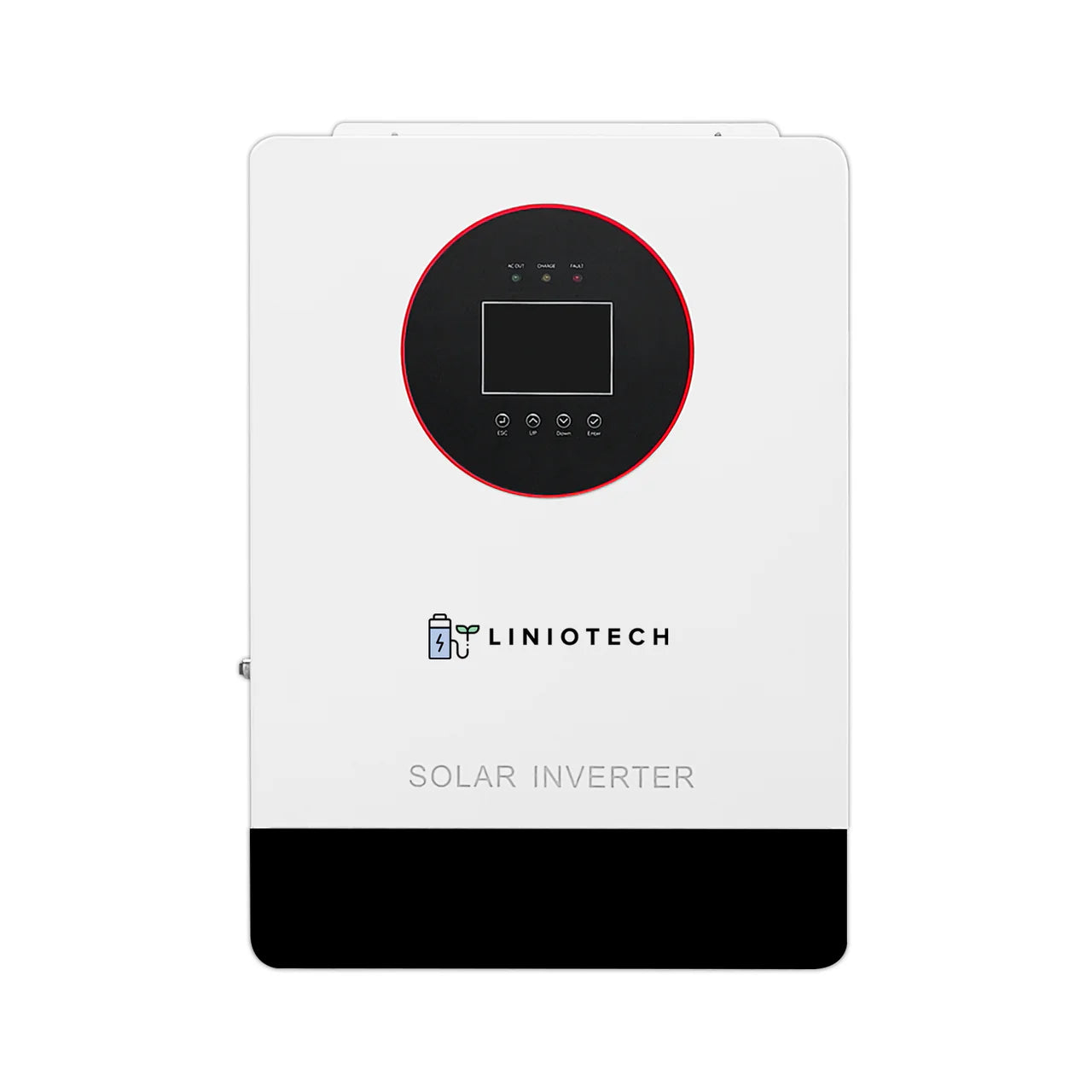

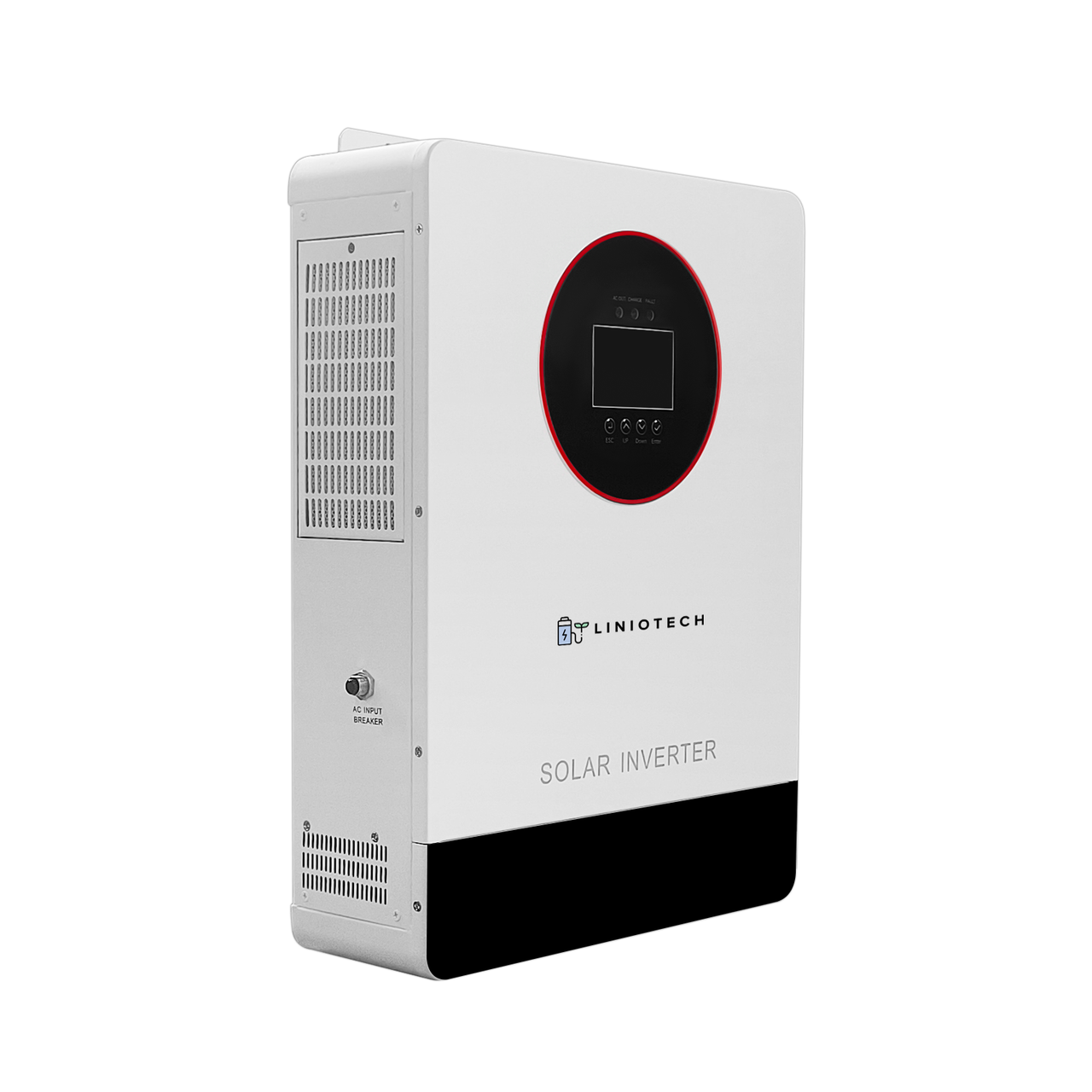

Liniotech wall-mounted solar inverter with digital display and control panel, white casing
Liniotech solar inverter with digital display, white rectangular wall-mounted unit

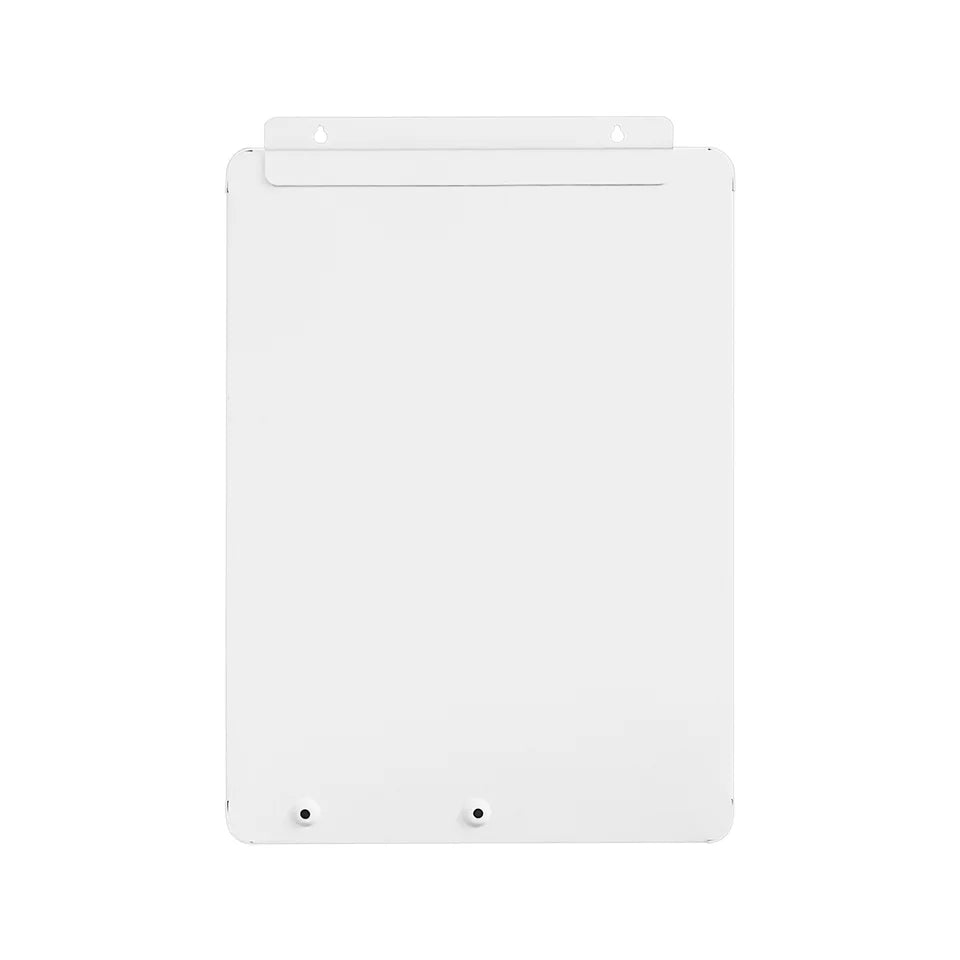

White wall-mounted electrical panel backplate with mounting holes, isolated on white background

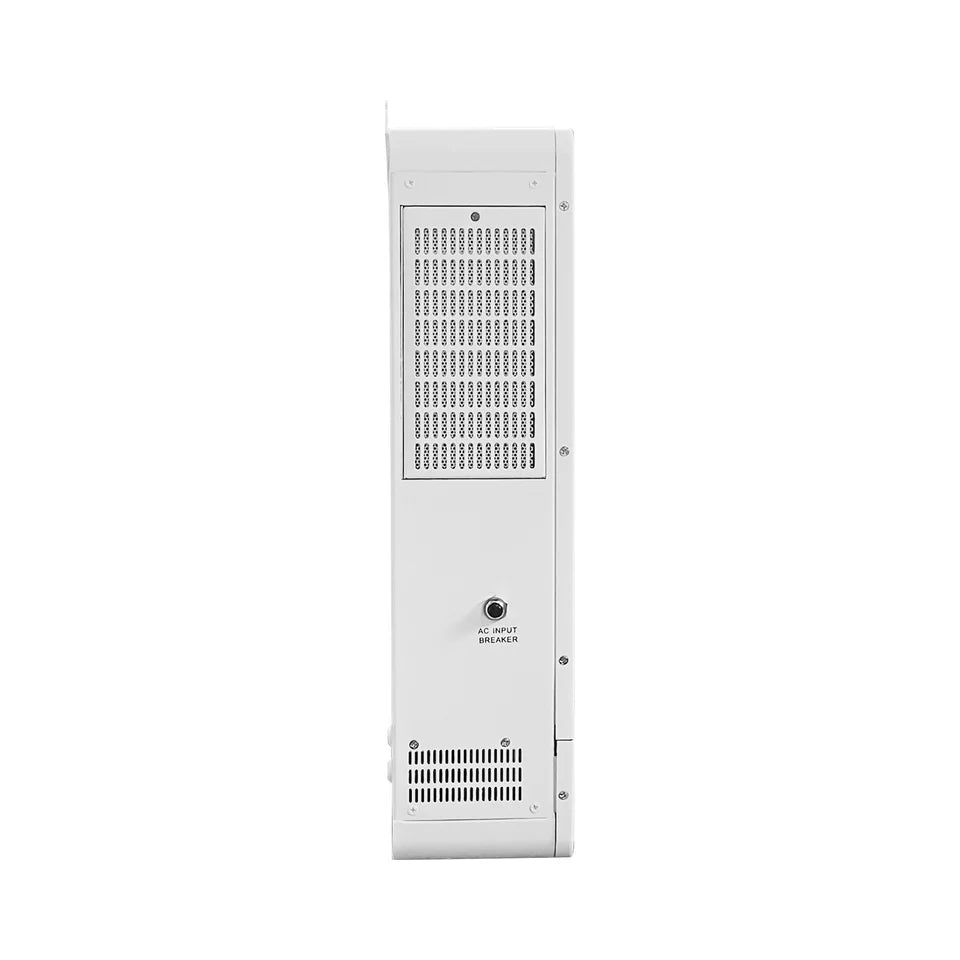

Side view of white power inverter with AC input breaker and vented panel

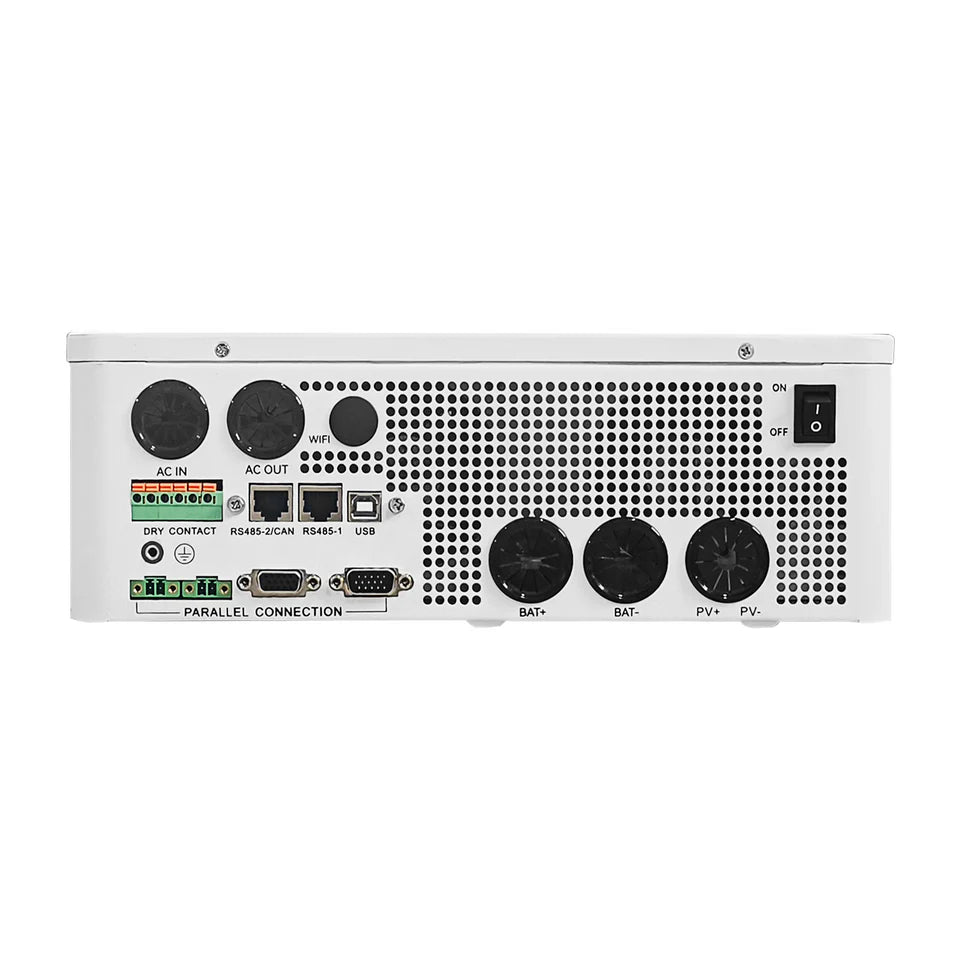

Inverter rear panel with AC input, AC output, USB ports, WiFi, battery and PV connections

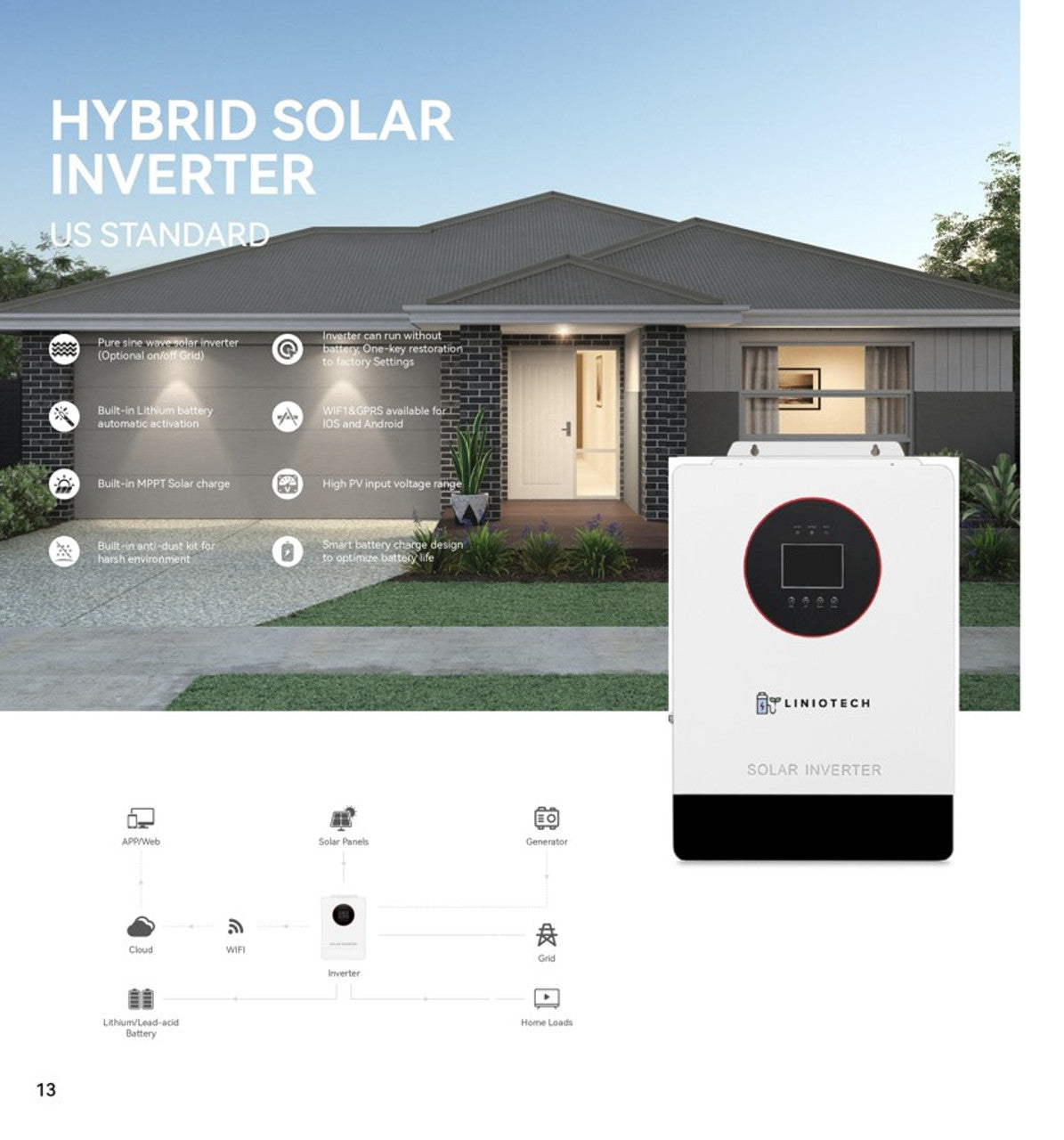

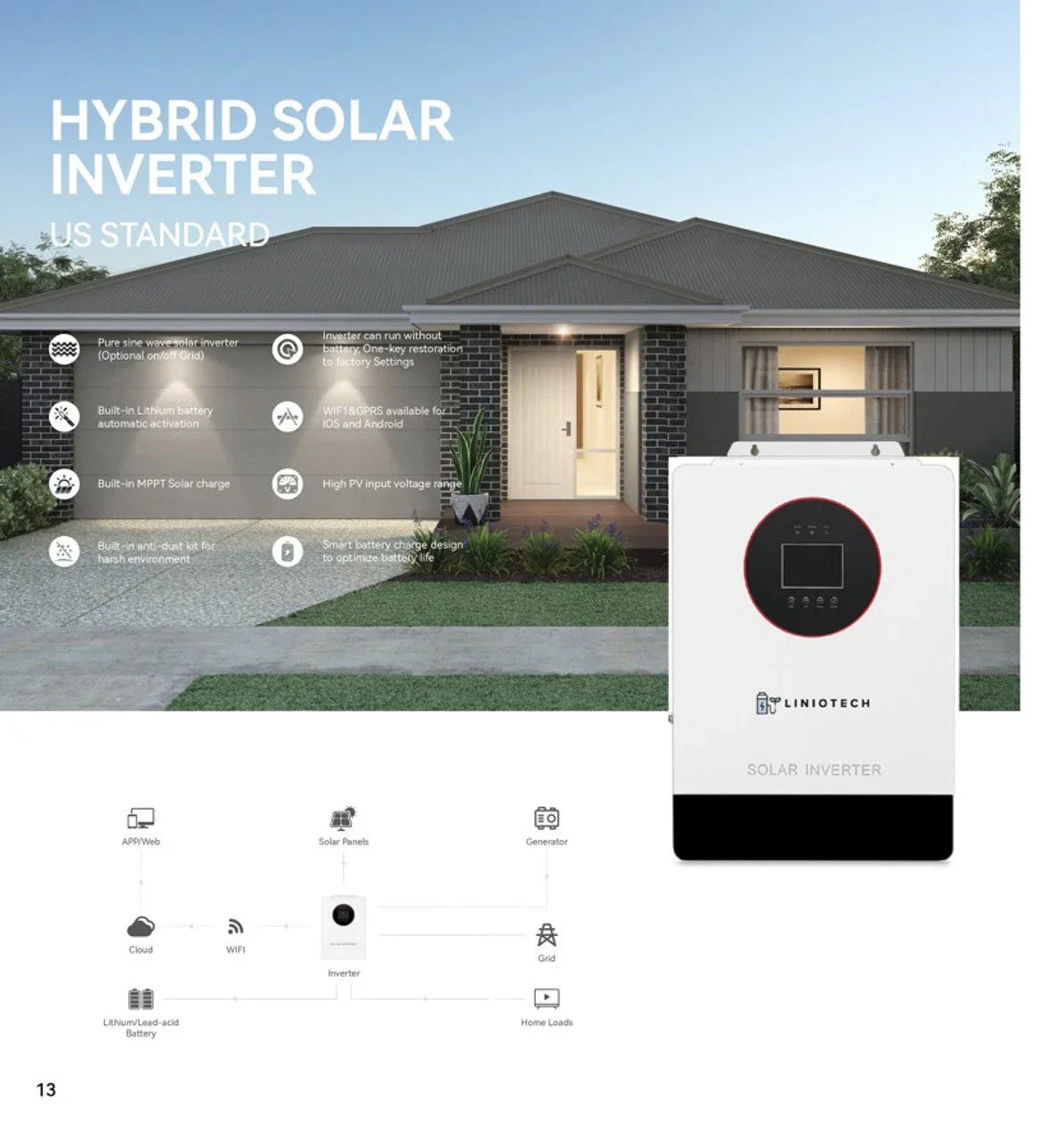

Liniotech hybrid solar inverter product with diagram, modern house background, and feature icons.

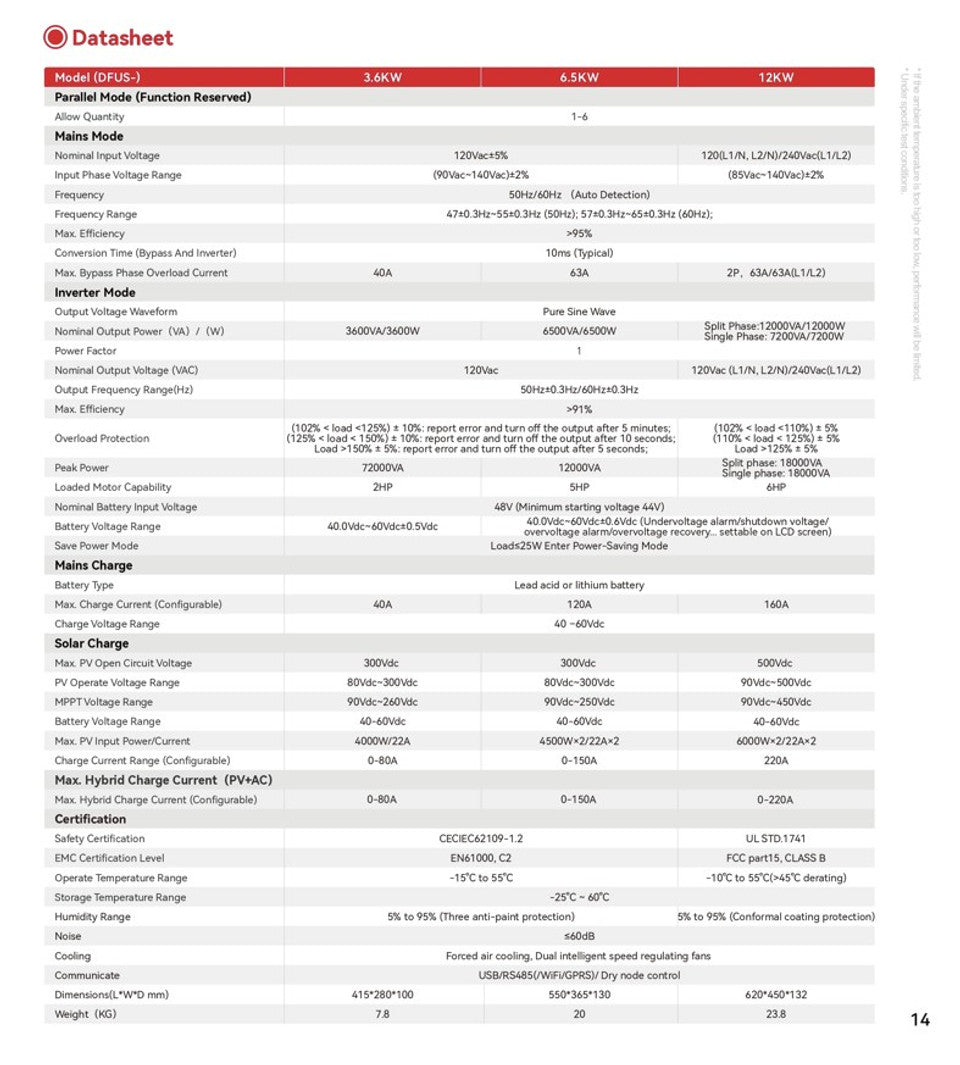

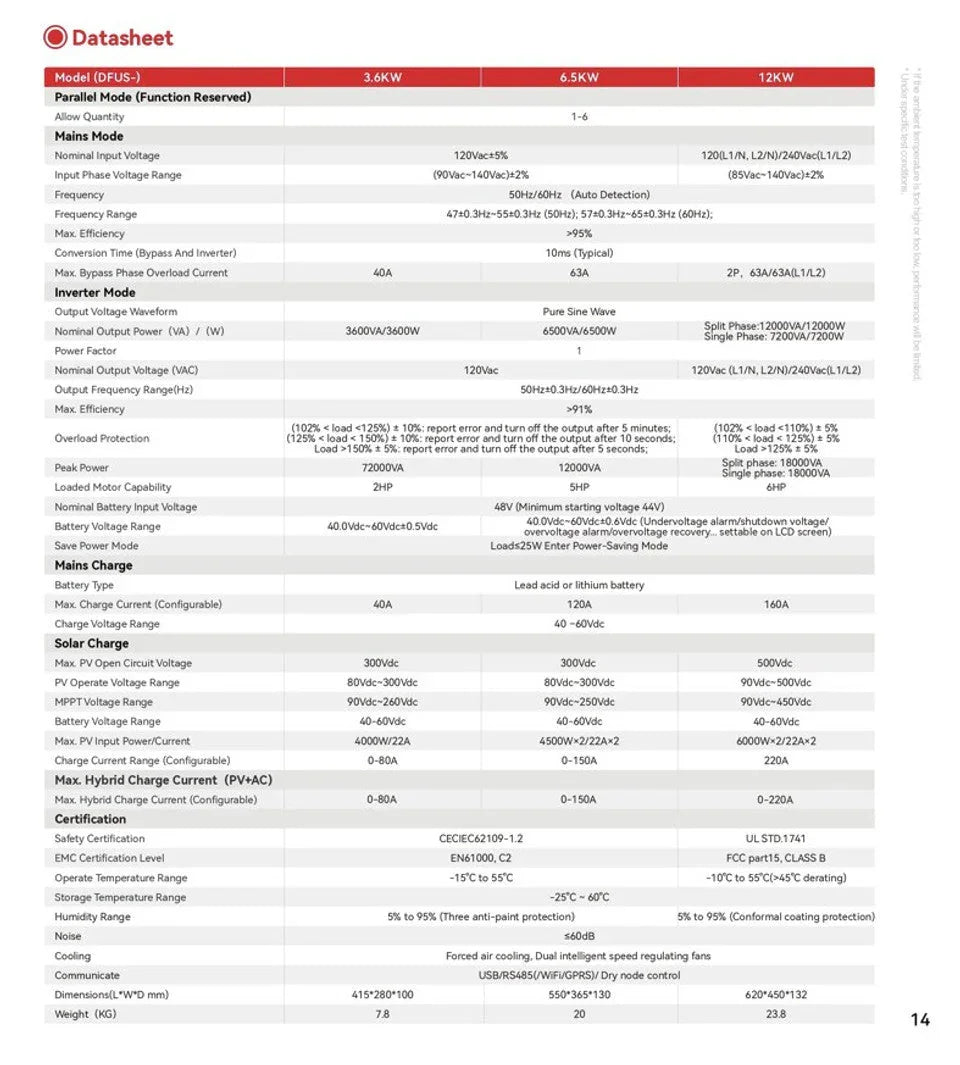

Datasheet showing technical specifications for DFUS inverter, including power ratings, voltage, and certifications.
Liniotech wall-mounted solar inverter with digital display and control panel, white casing
Liniotech solar inverter with digital display, white rectangular wall-mounted unit
White wall-mounted electrical panel backplate with mounting holes, isolated on white background
Side view of white power inverter with AC input breaker and vented panel
Inverter rear panel with AC input, AC output, USB ports, WiFi, battery and PV connections
Liniotech hybrid solar inverter product with diagram, modern house background, and feature icons.
Datasheet showing technical specifications for DFUS inverter, including power ratings, voltage, and certifications.

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

Authorized Liniotech Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 417 reviews.
$499.00
$799.00
$499.00
Save $300.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except AZ, CA, FL, OH, IL)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
Liniotech wall-mounted solar inverter with digital display and control panel, white casing

Liniotech

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

$799.00 $499.00
Liniotech wall-mounted solar inverter with digital display and control panel, white casing
Liniotech solar inverter with digital display, white rectangular wall-mounted unit
White wall-mounted electrical panel backplate with mounting holes, isolated on white background
Side view of white power inverter with AC input breaker and vented panel
Inverter rear panel with AC input, AC output, USB ports, WiFi, battery and PV connections
Liniotech hybrid solar inverter product with diagram, modern house background, and feature icons.
Datasheet showing technical specifications for DFUS inverter, including power ratings, voltage, and certifications.

Liniotech

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

$799.00 $499.00
  • Description

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter

Power Your Solar Energy System with the High-Performance Liniotech 3.6kW Off-Grid Inverter — Built for Efficiency, Durability & Intelligent Energy Management

The Liniotech LNT3600-48 is a premium 3600W off-grid solar inverter designed for high-efficiency power conversion in residential, commercial, or remote energy systems. Engineered with advanced MPPT charge controller technology, robust safety features, and intelligent battery management, this all-in-one hybrid solar inverter delivers stable, clean, and reliable energy from your solar panel array directly to your home or battery bank.

Key Features & Benefits:

  • ✅ Pure Sine Wave Output (120V Single Phase) – Delivers smooth, reliable AC power safe for sensitive electronics and appliances.

  • ✅ Built-In 4000W MPPT Solar Charge Controller – Automatically tracks the maximum power point to maximize solar efficiency and power output.

  • ✅ Wide PV Input Voltage Range (Max 300VDC VOC) – Compatible with high-voltage solar arrays for flexible solar panel configurations.

  • ✅ Supports 48V Lithium & Lead-Acid Batteries – Fully compatible with multiple battery types, including Liniotech 5.12kWh lithium batteries.

  • ✅ Fast 80A Charging Current – Quickly recharge batteries to full capacity in as little as 2 hours (based on 5.12kWh battery).

  • ✅ Battery-Free Operation Supported – System can run directly off solar power when battery is not present.

  • ✅ One-Key Factory Reset – Reset to default settings with a single button.

  • ✅ Smart Monitoring via WiFi, RS485, GPRS, USB – Real-time system diagnostics and control via mobile app (iOS & Android).

  • ✅ Built-in Lithium Battery Wake-Up & Anti-Dust Kit – Designed to operate efficiently even in harsh and dusty environments.

  • ✅ Stackable Design – Parallel up to 6 Units – Expand power capacity up to 21.6kW for larger off-grid systems or future upgrades.

Ideal for Off-Grid, Backup, and Remote Solar Energy Systems

Whether you're powering a residential solar system, off-grid cabin, mobile solar RV setup, or building an emergency backup power solution, the Liniotech 3.6kW all-in-one hybrid inverter offers unmatched performance, reliability, and expandability.





Product Specifications

LINIOTECH 3600W Off-Grid Inverter | 4000W PV Input | 3600W Output | 300V VOC Input | 48V 120 Single Phase | All-In-One Solar Inverter Product Specifications

⚙️ Technical Specifications:

  • Rated Output Power: 3600W / 3.6kW

  • Max PV Input Power: 4000W

  • Battery Voltage: 48VDC

  • Max PV VOC: 300VDC

  • Max PV Input Current: 22A

  • Max Charging Current: 80A (Adjustable 0A–100A)

  • Output Voltage: 120V AC ±5%

  • Frequency: 50Hz / 60Hz Auto Detection

  • Efficiency: ≥99% MPPT Charging Efficiency

  • Self-Consumption: <25W

  • Communication Ports: RS485, USB, WiFi, GPRS, Dry Node

  • Supported Battery Types: LFP, AGM, GEL, Flooded (Multiple Brands Supported)

⚡ Liniotech MPPT100-48HV – Built-In High Voltage Solar Charge Controller

This inverter incorporates the Liniotech MPPT100-48HV, a reliable and high-efficiency solar MPPT charge controller that intelligently regulates solar power to charge your batteries at optimal rates.

  • MPPT Voltage Range: 150–300VDC

  • Max Solar Panel Power: 4000W

  • Max String Current: 22A

  • Battery Voltage: 48V Nominal

  • Charging Voltage Range: 48V–60V (Default 56V)

  • Fast Charge Capability: Charge 5.12kWh Liniotech battery in ~2 hrs @ 80A

  • Built-In DC Disconnect & Battery Breakers for added safety
