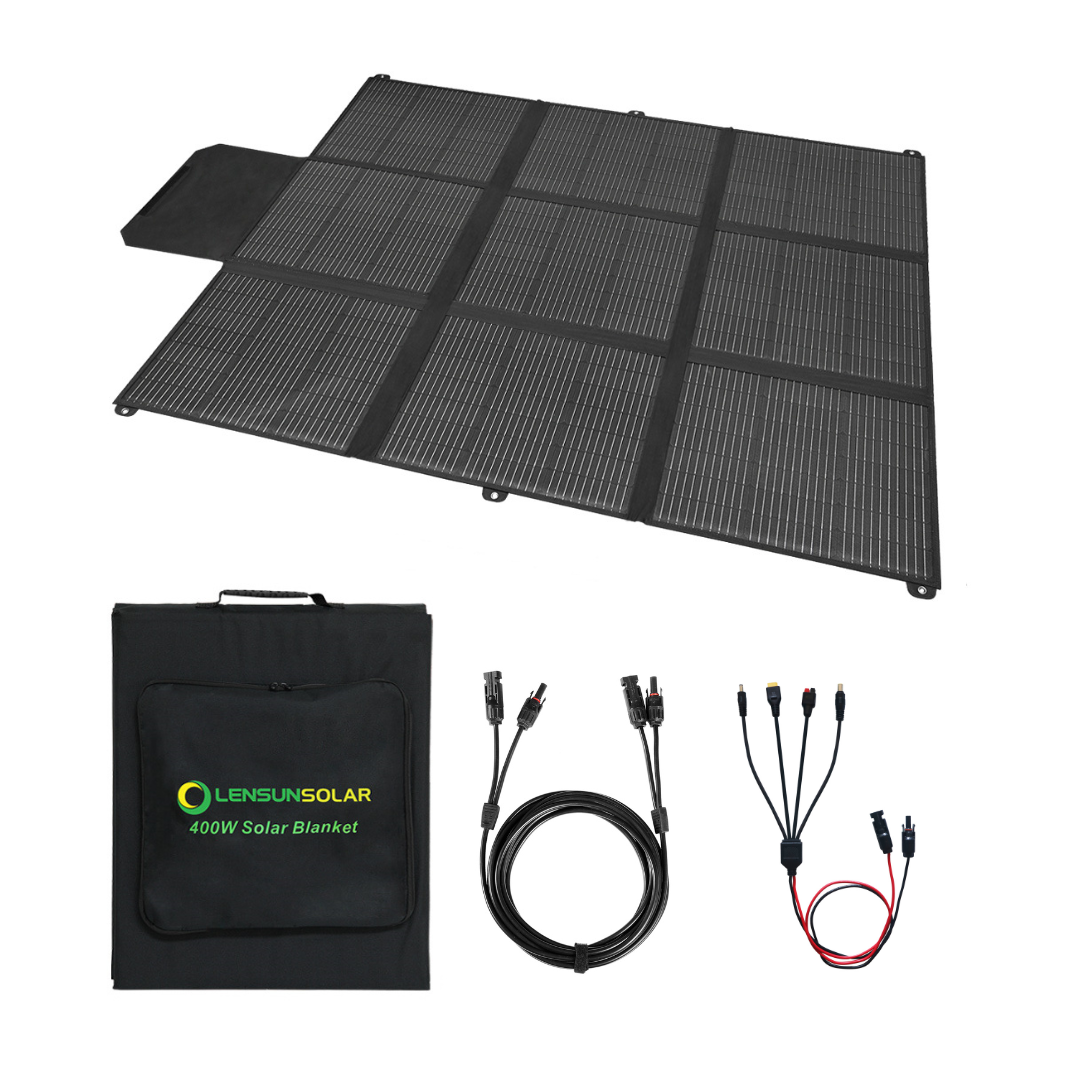

LensunSolar 400W 36V Solar Blanket, the Most Durable Solar Mat on the market

This solar blanket working volt is 36V for some solar generator power stations that request high voltage solar panels, also charging for 24v battery.

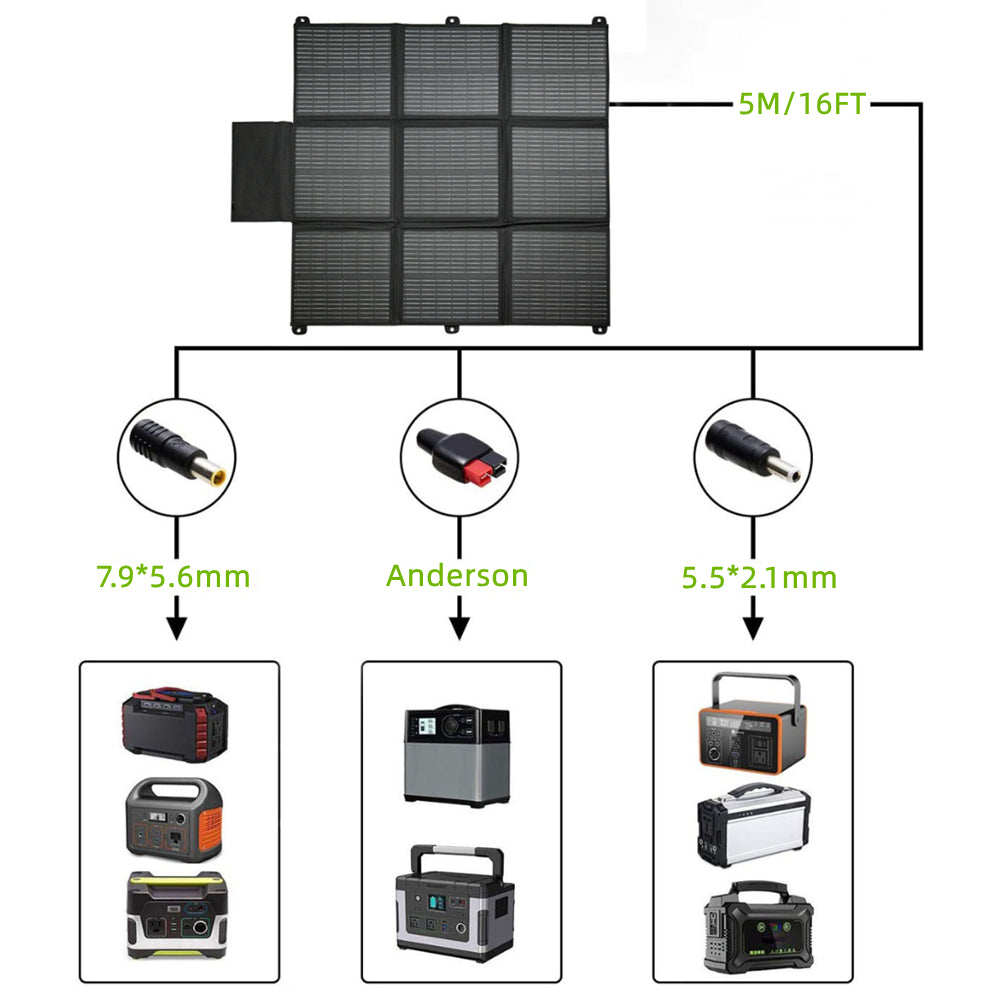

Come With adapter cables that can be compatible with most solar generators on the market.

The LensunSolar 36V 400W Portable Solar Blanket is the ultimate in portable, lightweight solar power for any camping lifestyle. Built for durability and efficiency, it features a solid copper backing and thick connectors for better performance.

With top-grade PERC 9BB monocrystalline solar cells, it keeps your power station or 12V dual battery system charged, powering fridges, camp lights, and more. Perfect for anyone from the casual camper right through to the 24/7 caravanners after an extra bit of power.

Made from high-quality canvas, this flexible, lightweight blanket packs down to 1/9th of its size, just like one compact tile, and weighs just 10kgs/23 lbs. Our solar blankets are an ideal charging solution for those short on space.

Feature:

1. Solar Cells: Made with Grade A PERC 9BB monocrystalline cells offering 23.5% efficiency and more durability than other solar cells.
2. High Portability: Ultra-compact when folded (23x19in/60x49cm) and lightweight at 23 lbs/10kgs. With 6 metal grommets for easy setup.
3. Waterproof & Durable: Constructed from waterproof 600D Oxford cloth (IP54 rating) and operates in extreme temperatures from -40°F to 185°F (-40° C to 85° C).
4. Output: Standard MC-4 connectors with a 16ft/5m extension cable for easy panel connections.
5. Optional MPPT Controller: 20A waterproof MPPT controller supports multiple battery types (AGM, Gel, Lithium batteries) and Bluetooth wireless monitoring.

Item Specifications:

Model: LS-400BK-36V
Rated Power Output: 400W
Optimum Operating Voltage [Vmp]: 36V
Optimum Operating Current [Imp]: 11.11A
Open Circuit Voltage [Voc]: 42.48V
Short Circuit Current [Isc]: 12.22A
Cell Technology: Monocrystalline Solar Cells
Solar Cells Efficiency：23.5%
Production Tolerance: +3%
Output Type: Solar Cables, Solar Controller

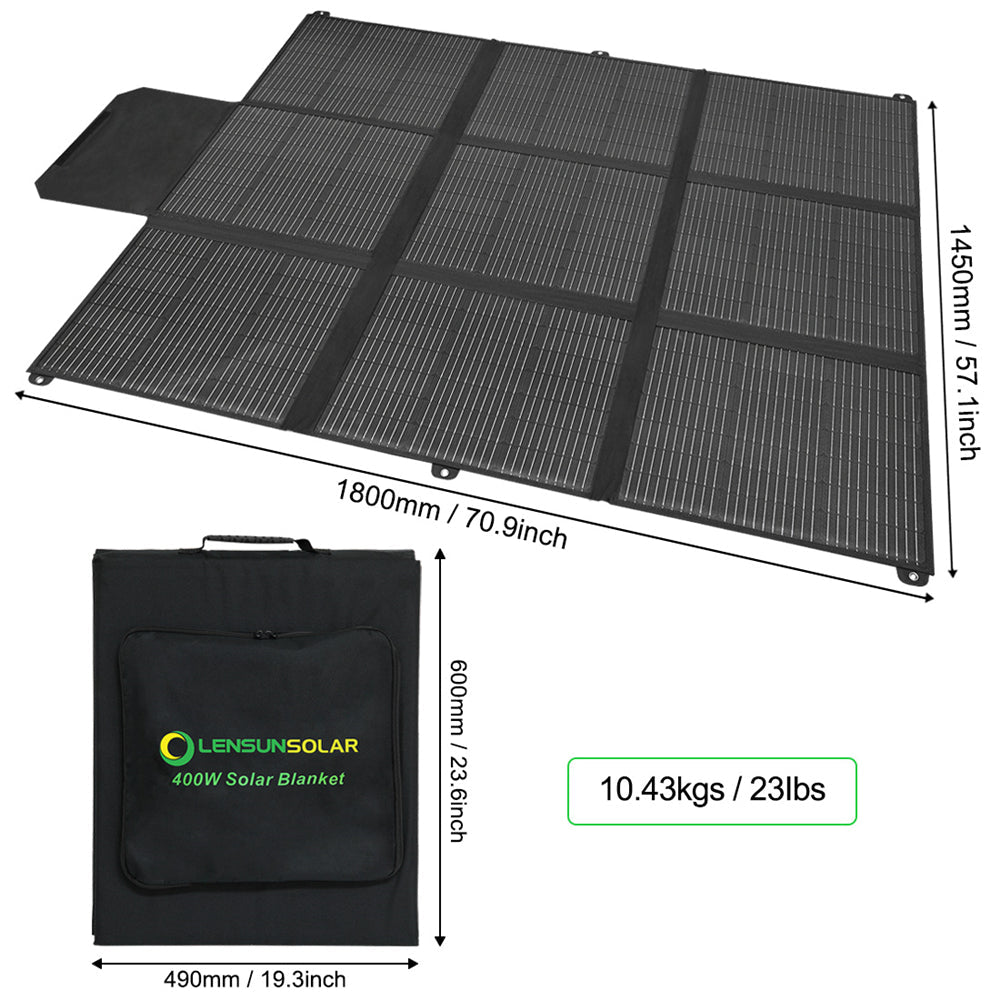

Dimensions(unfolded): 1800x1450mm/70.9x57.1inch
Dimensions(folded): 600x490x65 mm/ 23.6x19.3x2.5inch
Net. Weight: 10.4 kgs/23 lbs
All Technical data at standard test conditions AM=1.5, E=1000W/mm, Tc=25℃

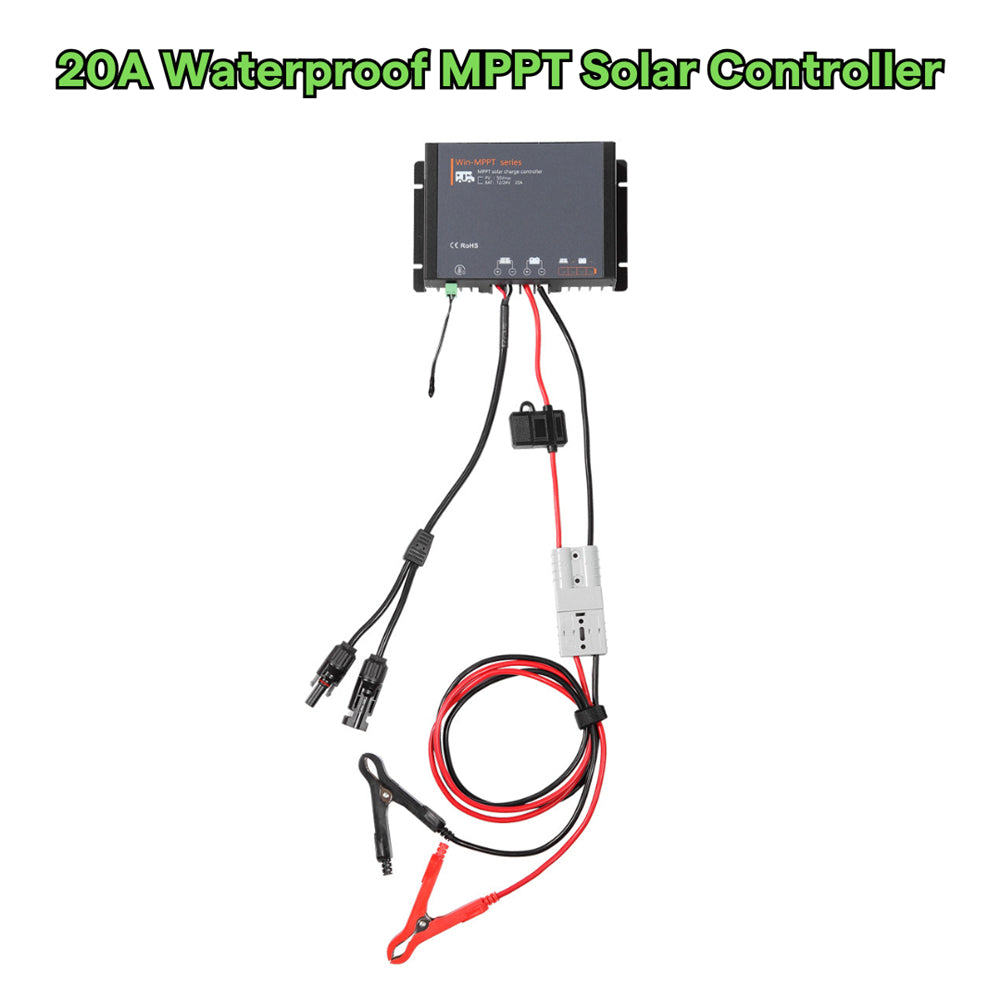

LensunSolar Waterproof 20A MPPT Solar Controller

Charge for AGM, Liquid, GEL, and Lithium Battery
Waterproof: Suitable for indoor or outdoor use
Battery Types: Gel, AGM, Liquid, Lithium(default: Gel)
Bluetooth: Support mobile phone APP, wireless monitoring

Specification:
Model: Win500-KT
System Voltage: 12V/24V
Max Charging Power: 500W
Max volt on Bat. Terminal: 35V
Max volt on PV Terminal: 55V
Temp. Compensation: -4.17mV/K per cell (Boost, Equalization), -3.33mV/K per cell (Float)
Communication: Bluetooth
Working temperature: -20 to +55℃, -68 to +131℉
Storage temperature: -25 to +80℃, -77 to +176℉
Enclosure: IP54
Dimensions: 164x106x32mm/6.5x4x1.3 inch
Weight: 700g/1.5 lbs
Maximum Terminals Wire Size: 10AWG(4mm²)

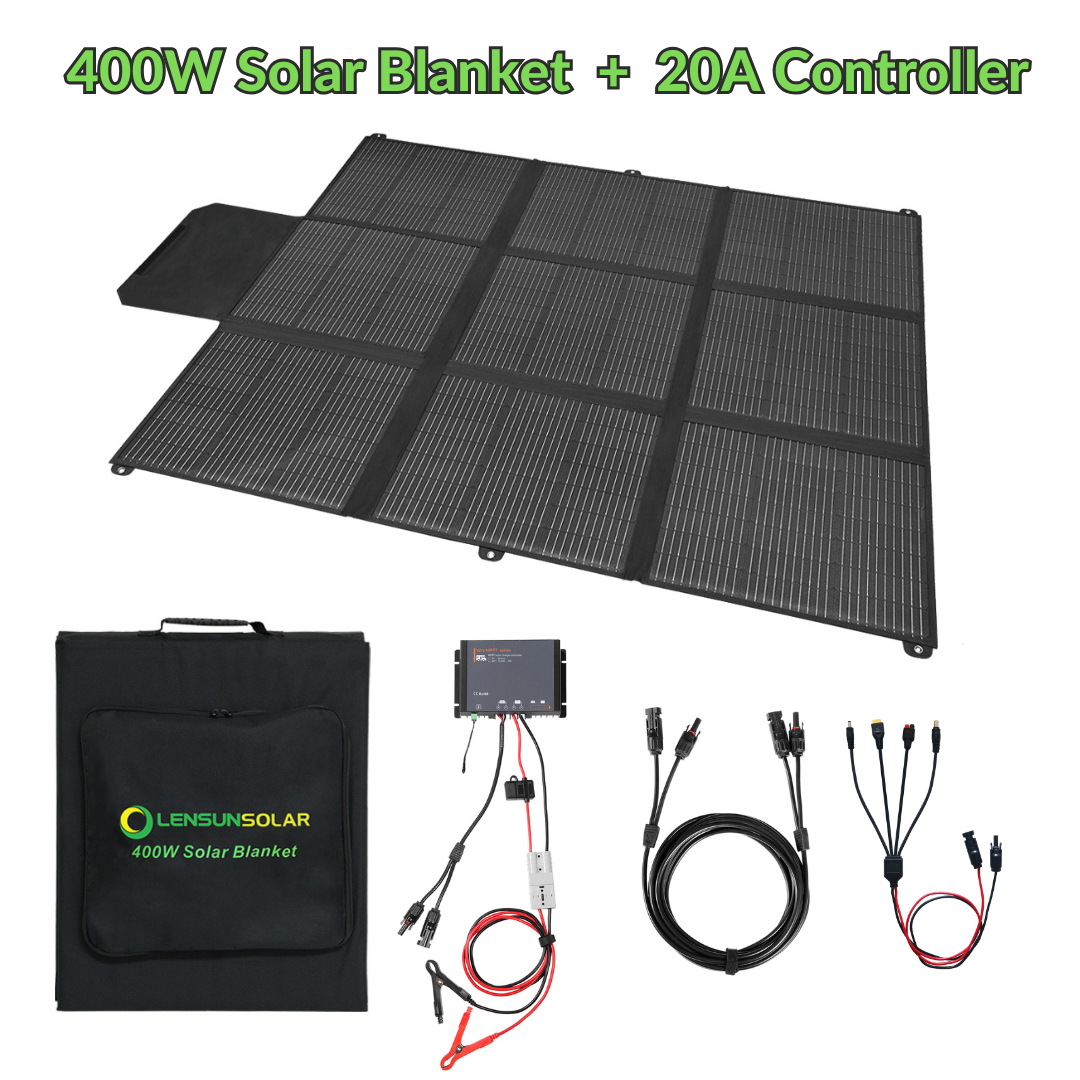

Packing:

1 x LensunSolar 400W 36V solar blanket panel
1 x 16ft/5m extend cable
1 x  3.2ft/1m solar panel Y adaptor cable
1 x 20A Waterproof MPPT Solar Controller (at your option)

Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.
