Lensun 100W(2x50W) Waterproof Foldable Solar Panel

Lensun’s new IP67 waterproof, 11-layer monolithic foldable panel. Features dual aerospace-grade window films—same as commercial aircraft—for unmatched UV and impact resistance.
 Built to endure vibration, extreme temperatures, and rugged outdoor use—reliably powering your adventures anywhere.

Feature:

1. 11-Layer Monolithic Lamination: Seamless 11-material encapsulation, it delivers unmatched resilience against vibration, extreme temperatures, and harsh outdoor abuse.
2. Aerospace-Grade Window Film: Dual layers of aircraft-window composite for superior UV, impact, and microcrack resistance—built to last in extreme conditions.

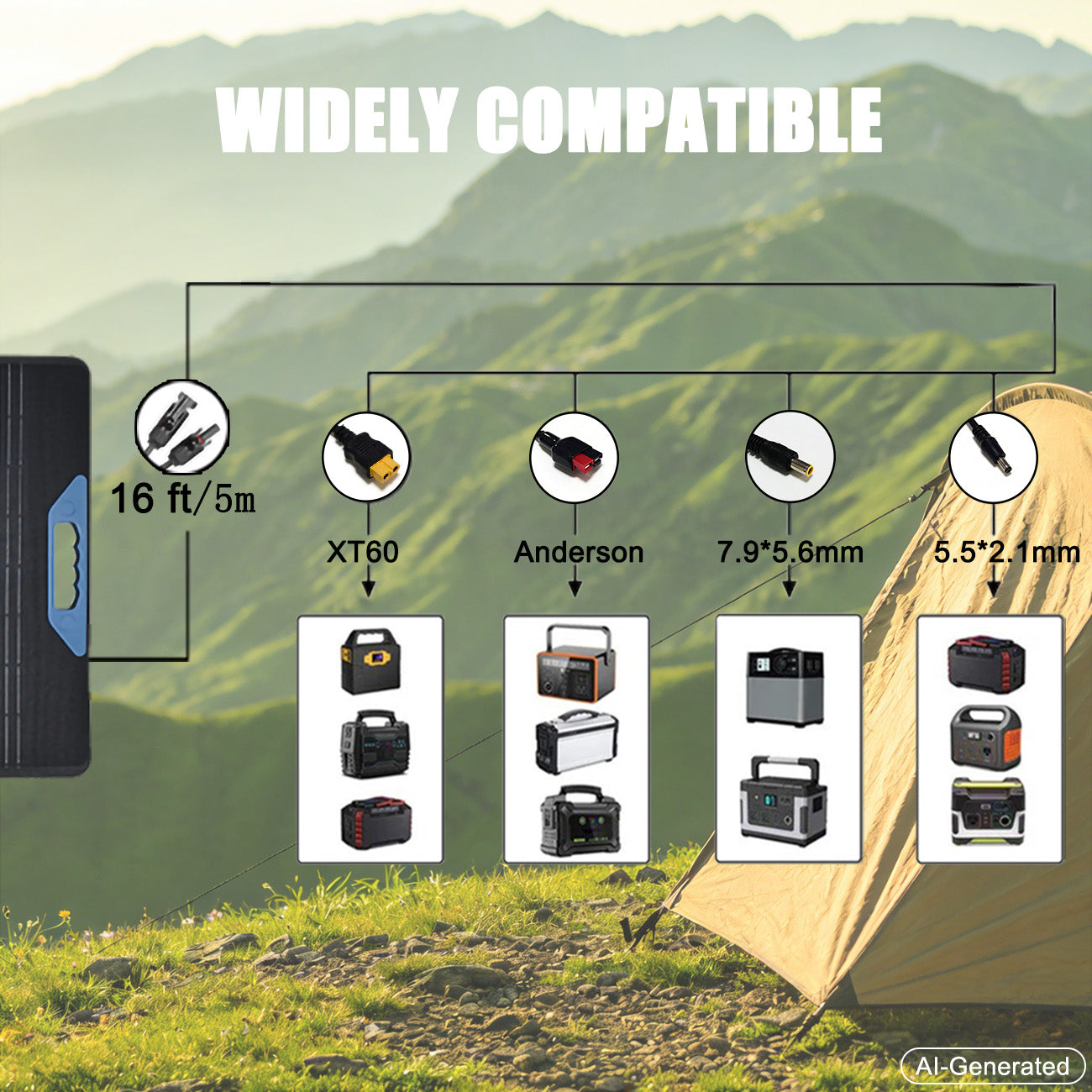

3.High Compatibility: Standard 5m/16ft MC4 cable, 4-in-1 adapter cable, fits Anderson/DC5521/XT60/DC7956, seamlessly connecting most power stations
4. N-Type Solar cell: Advanced 18BB N-type cells (25% efficiency) deliver more power from the same size—perfect for camping, RVs, and backup power.
5. IP67 Waterproof: Advanced one-piece lamination resists scratches, UV, and wear—ensuring reliable power in harsh or emergency conditions.
6. Premium ETFE Film: High light transmittance with heat, UV, and corrosion resistance—plus self-cleaning for consistent performance.

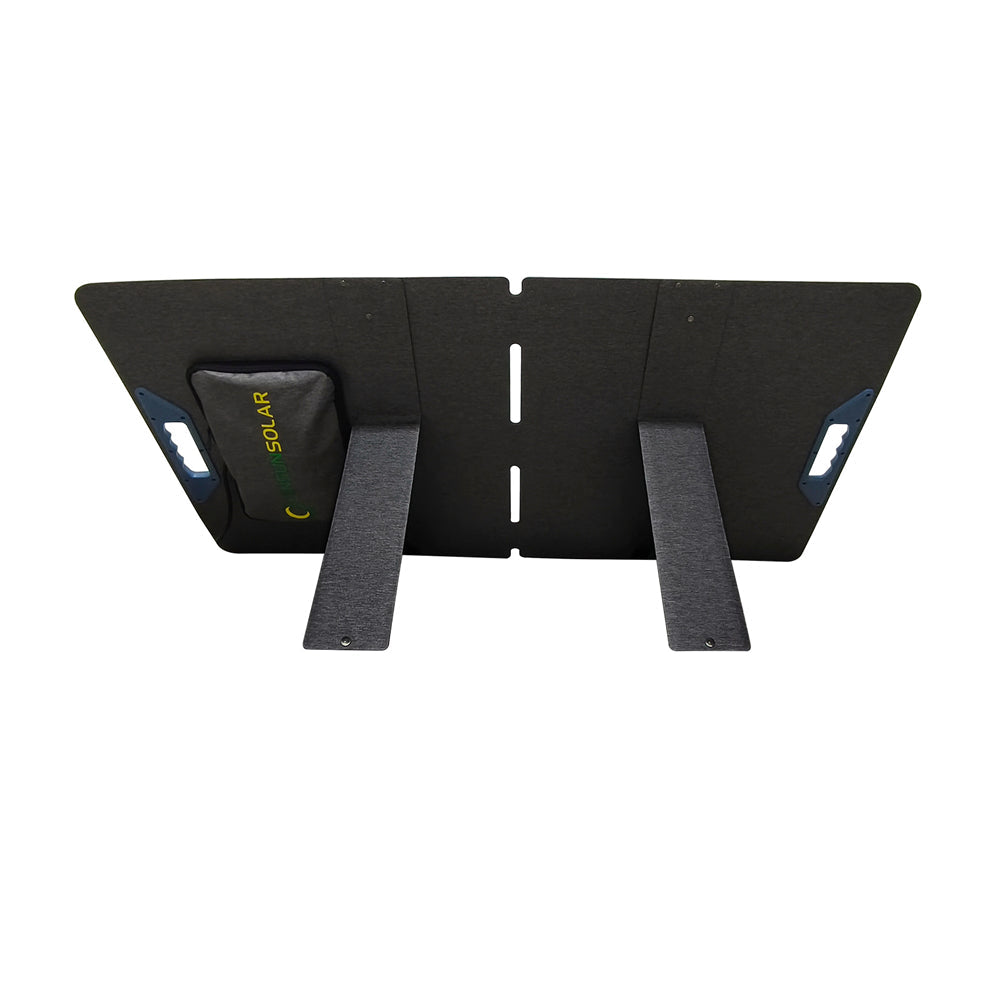

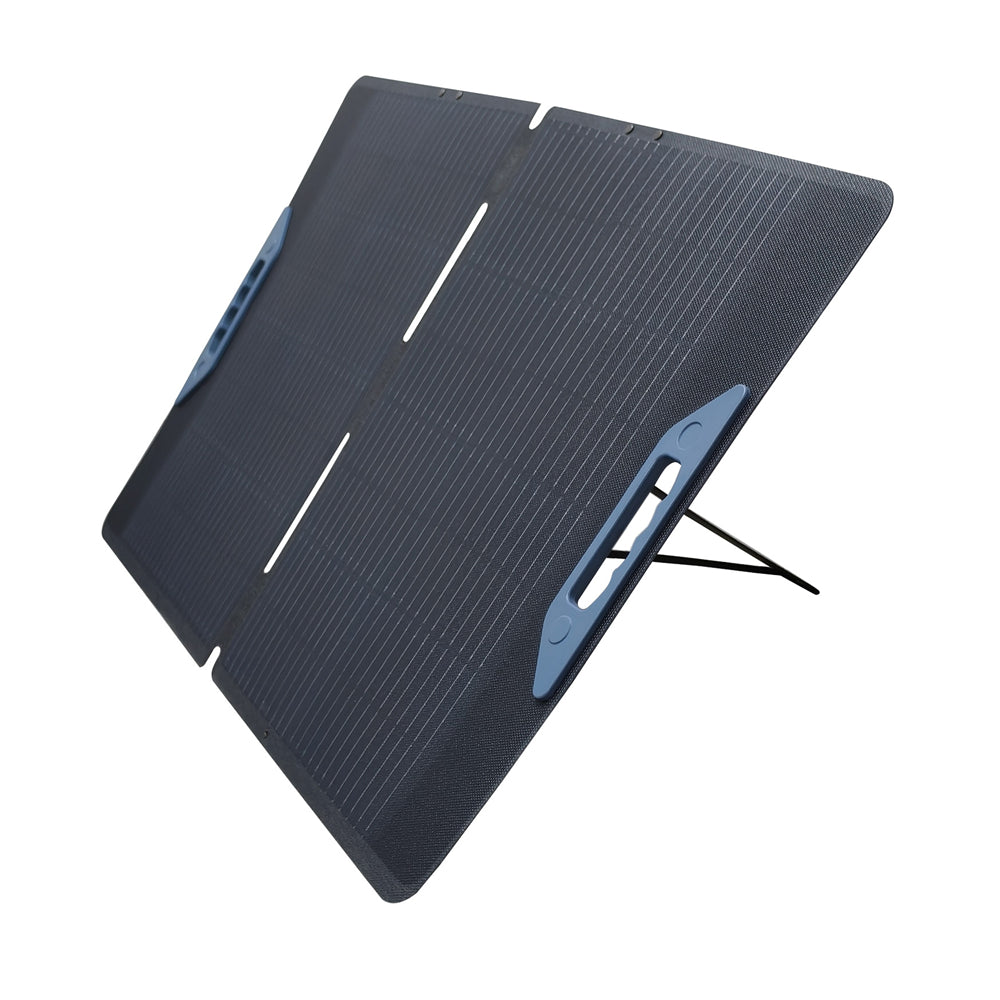

7. Kickstands design: Kickstands designs get up to 30% more solar energy than flat laying.

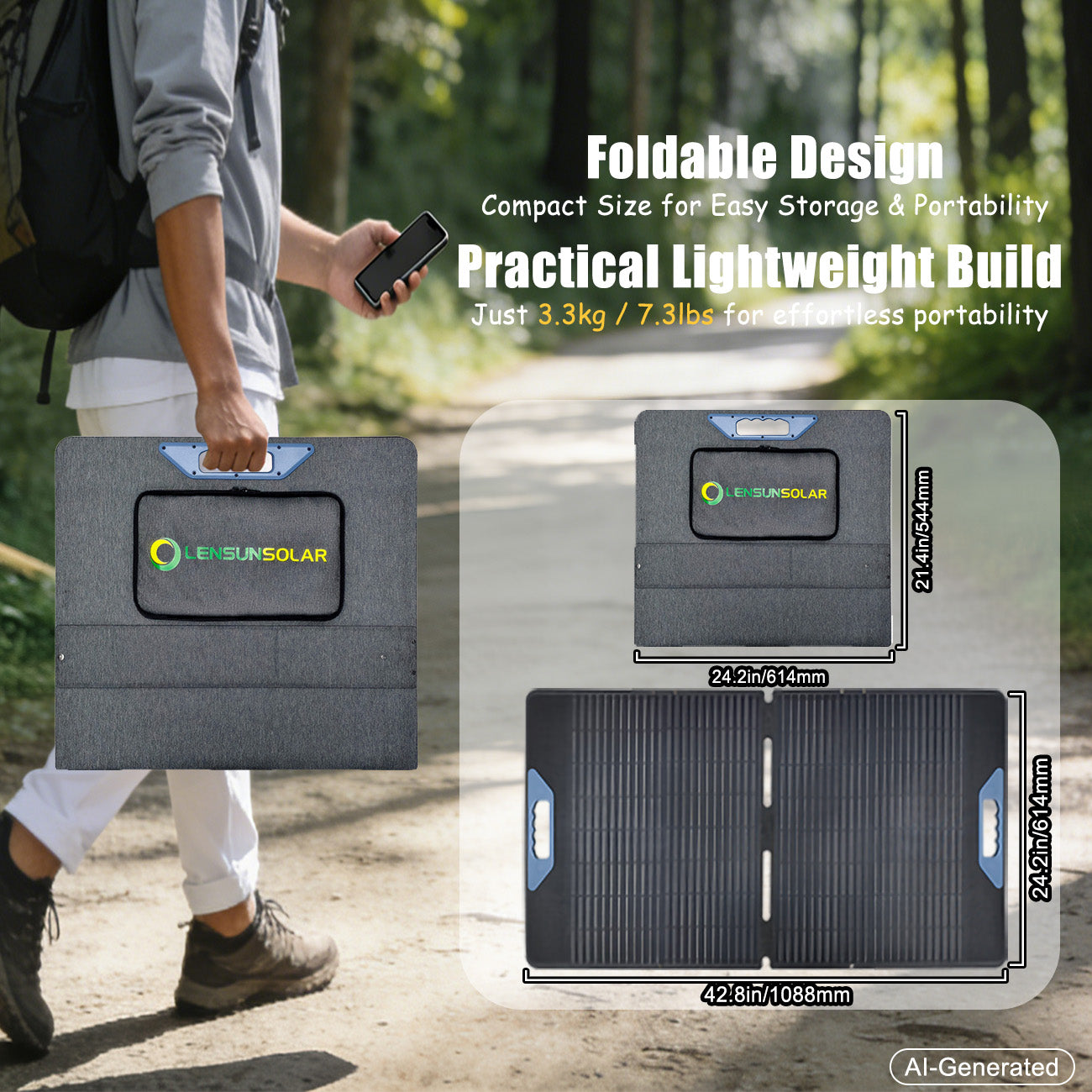

8. Lightweight: Weighing only 3.3kgs/7.3 lbs, Lensunsolar portable solar panel is the lightest in its class. Innovative folding design packs down to 24.2x21.4 in/614x544 mm.
9. Optional plug-and-play 10A waterproof MPPT controller—pre-wired with fuses and connectors, featuring smart protection (reverse polarity, overcharge) and compatibility with sealed, AGM, Gel, and Lithium batteries.

Specifications:

Model: OP100W
Rated Power Output: 100W
Optimum Operating Voltage [Vmp]: 18.5V
Optimum Operating Current [Imp]: 5.4A
Open Circuit Voltage [Voc]: 21.83V
Short Circuit Current [Isc]: 5.94A
Cell Technology: Monocrystalline Solar Cells
Solar Cells Efficiency: 25%
Production Tolerance: +/-3%
Output Type: 5m/16ft solar cable with solar connector
Dimensions(unfolded): 1088x614mm/42.8x24.2 inch
Dimensions(folded): 614x544x40 mm/24.2x21.4x1.6 inch
Net. Weight: 3.3kgs /7.3 lbs
All Technical data at standard test conditions AM=1.5, E=1000W/mm, Tc=25℃

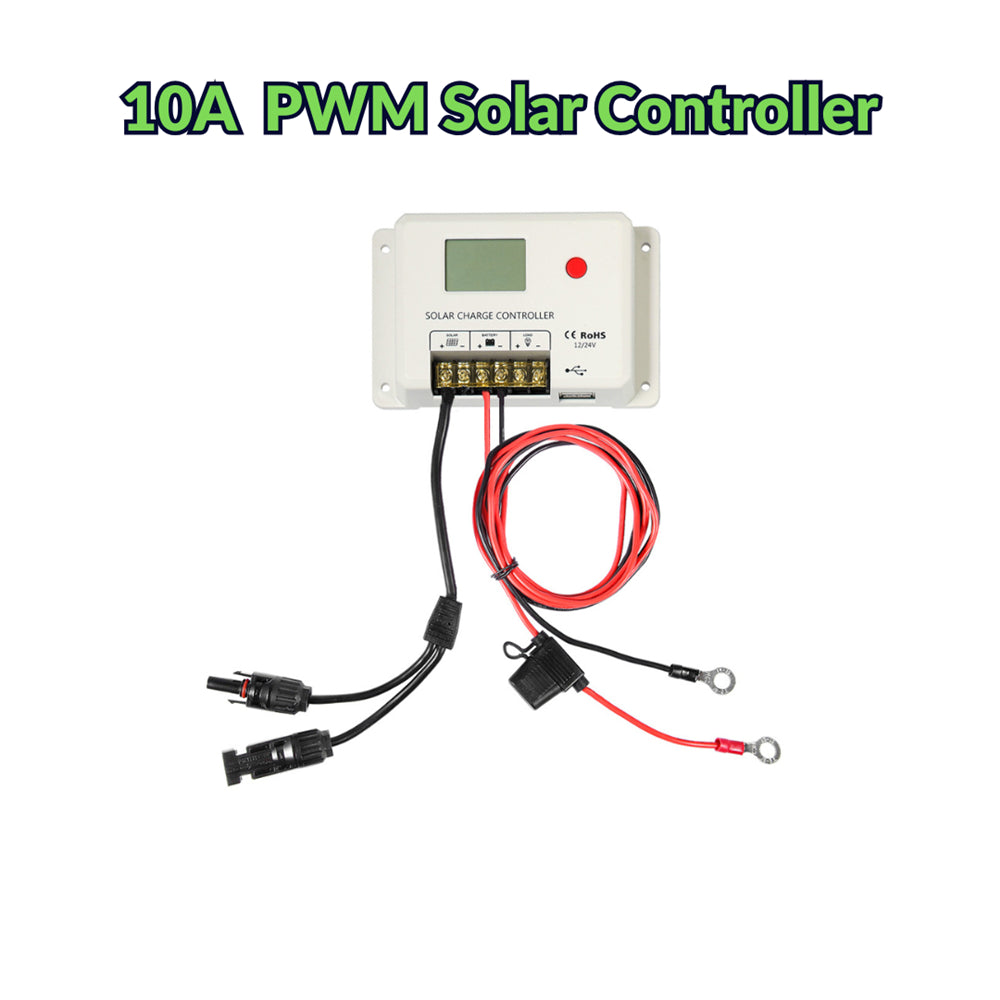

10A PWM Solar Controller

Includes battery alligator clips and solar connectors—ready to work with Lensun or any standard solar panel.

Feature

1. For 12/24V lead-acid batteries, ternary lithium batteries, and lithium iron phosphate batteries
2. Large-screen LCD for display, charge, and discharge parameters adjustable. Allow selection of multiple battery types, with the flexibility to set the load to work during the day or night.
3. Dual USB output, maximum current up to 2A, supporting high current charging of iPhone, iPad, and Android mobile phones and other devices.
4. Complete multi-stage PWM charge management.
5. Built-in reverse connection protection, open-circuit protection, high-temperature protection,
over-current/short-circuit protection (optional), which are all self-recovery type, with no damage to the controller.

Battery Parameters
System voltage: 12/24V automatical recognization
Max charging current: 10A
MPPT charging voltage: <14.5/29.0V@25℃
Max volt on bat terminal: 55V
Battery type: Gel, AGM, Liquid, Lithium(default: Gel)
Max tracking efficiency: >99.9%
Max conversion efficiency: 98.0%
Dimensions: 120x75x34mm/4.7x3x1.3 inch
Weight: 130g/0.3lbs

Packing:

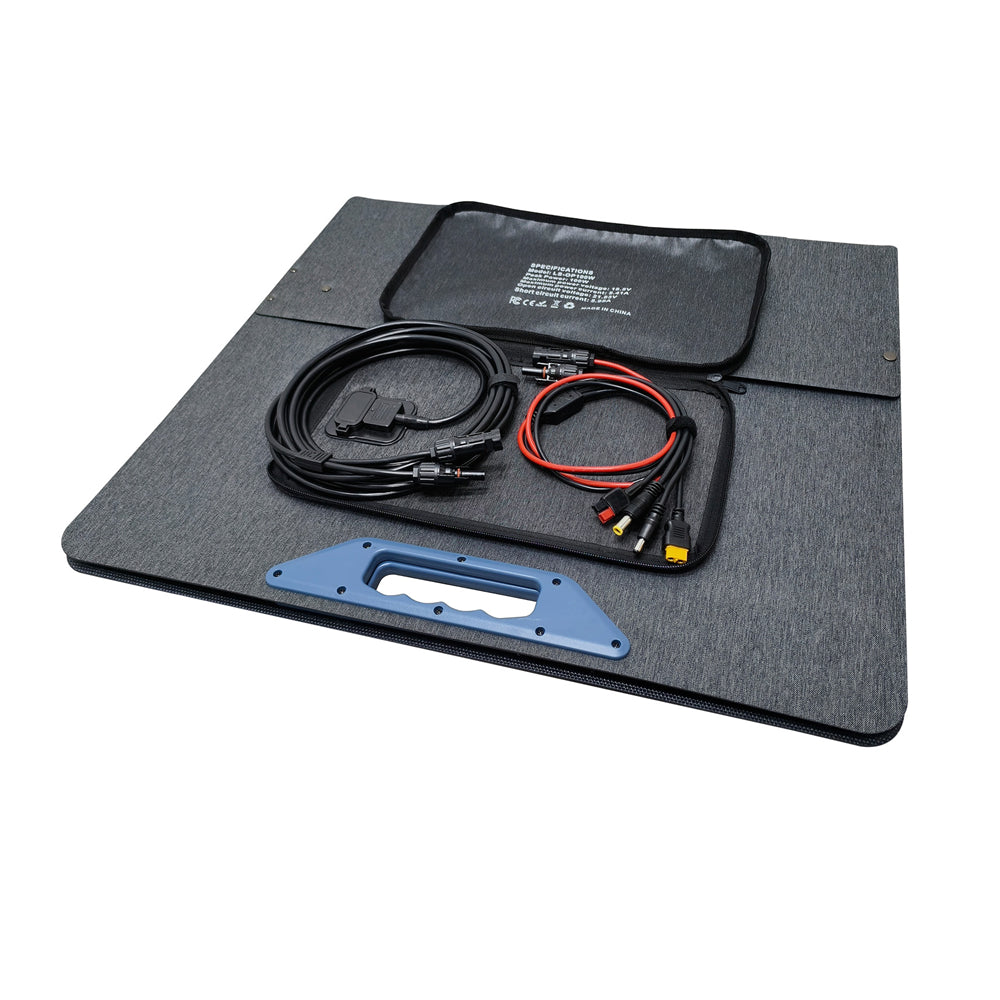

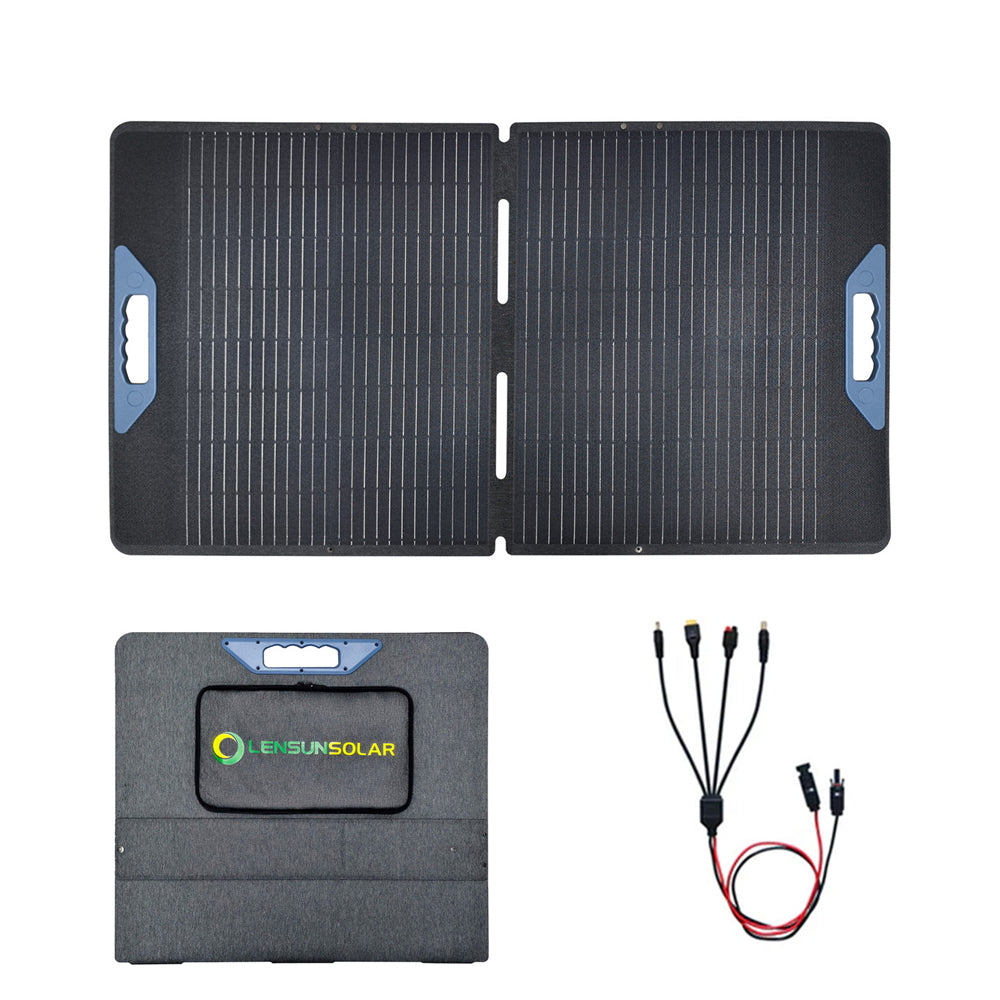

1 x 100W waterproof foldable solar panel
1 x 4 in 1 adaptor cable (DC 8mm, DC 5.5x2.1mm, Anderson, XT60)
1 x 10A solar controller( (at your option)

Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.
