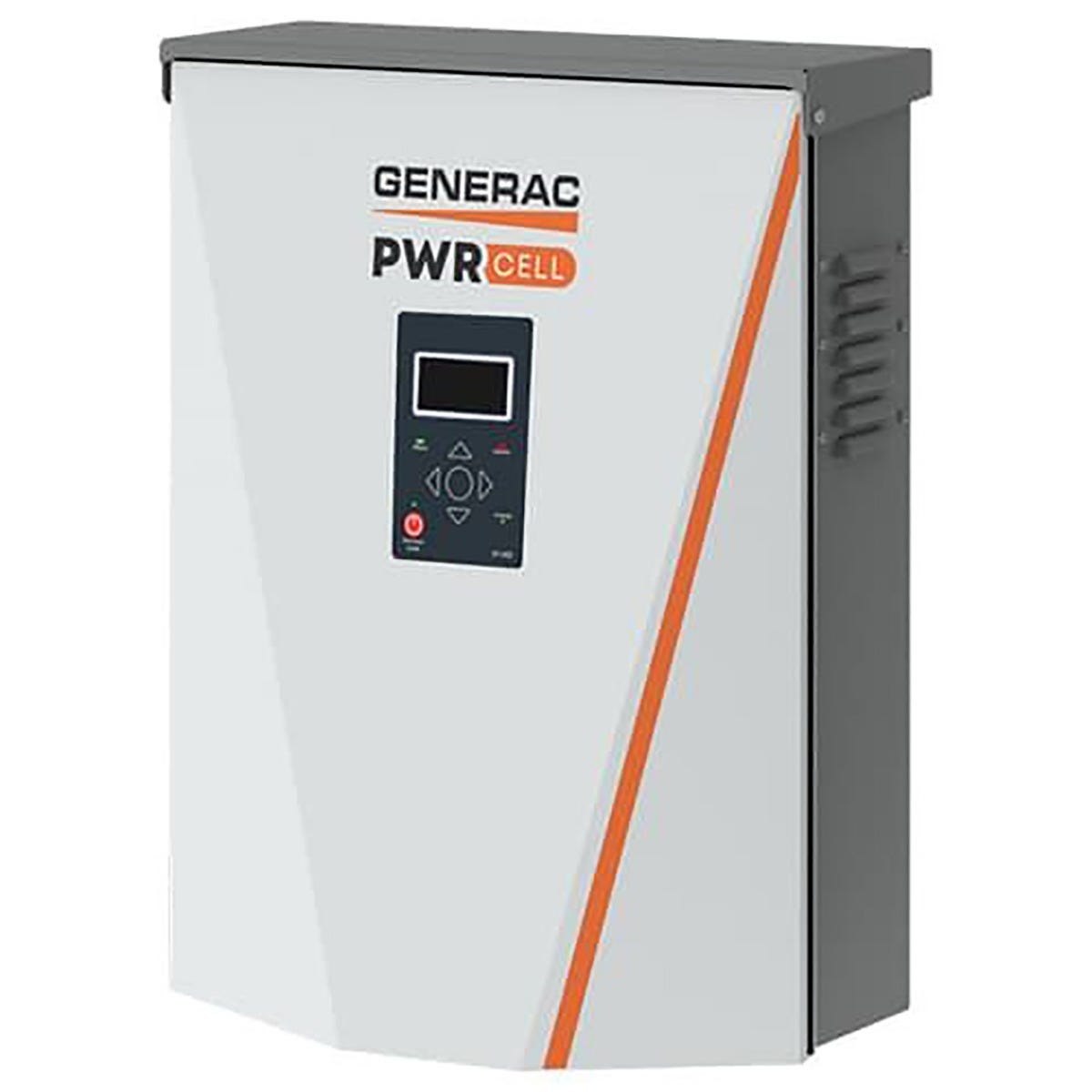

Generac PWRcell inverter unit with digital control panel and orange accent line
Generac PWRcell inverter unit with digital control panel and orange accent line

Generac PWRcell 7.6kW Single Phase 120/240Vac Grid-Tie/Back-Up Inverter XVT076A03

Authorized Generac Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 417 reviews.
$3,699.00
$3,999.00
$3,699.00
Save $300.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except AZ, CA, FL, OH, IL)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
Generac PWRcell inverter unit with digital control panel and orange accent line

Generac

Generac PWRcell 7.6kW Single Phase 120/240Vac Grid-Tie/Back-Up Inverter XVT076A03

$3,999.00 $3,699.00
Generac PWRcell inverter unit with digital control panel and orange accent line

Generac

Generac PWRcell 7.6kW Single Phase 120/240Vac Grid-Tie/Back-Up Inverter XVT076A03

$3,999.00 $3,699.00
  • Description

Generac PWRcell 7.6kW Single Phase 120/240Vac Grid-Tied / Battery Back-Up Inverter - UL1741-SA (Rule-21)

Solar-plus-storage is simple with the Generac PWRcell Inverter. This bi-directional, REbus-powered inverter offers a simple, efficient design for integrating smart batteries with solar. Ideal for self-supply, backup power, zero-export and energy cost management, the PWRcell inverter is the industry’s most feature-rich line of inverters, available in single-phase and three-phase models.

Features
  • No autotransformer or battery inverter needed
  • User-selectable modes
  • Free system monitoring
  • Single inverter for grid-tied solar with smart battery integration
  • Simplified system design: No autotransformer or battery inverter needed
  • User-selectable modes for backup power, self-supply, time-of-use and zero-export
  • Free system monitoring included via PWRview Web Portal and Mobile App
Specifications:
  • Model: APKE00014
  • Series: PWRcell
  • Manufacturer: Generac
Mechanical:
  • Type: Grid Interactive / Peak Shaving / Battery Back-up
  • Operating Temperature Range: -0° C - 50° C
  • Cooling: Advanced Front Venting
  • Dimensions (W x H x D): 24.5" x 19.25" x 8"
  • Weight: 62.7 lbs
  • Shipping Method: Freight
AC Output / Grid Tie:
  • Continuous Power Output at 25° C: 7600 VA
  • AC Output Voltage: 120/240 VAC
  • AC Frequency: 60 Hz
  • Maximum Continuous Output Current: 32 A, RMS
  • Ground-Fault Isolation Detection: Included
  • Charge Battery From AC: Yes
  • THD (Current): < 2 %
  • Typical Nighttime Power Consumption: < 7 Watts
AC Output / Battery Backup:
  • Continuous Power Output at 25° C: 8000 VA
  • Maximum AC Backup Power Output: 10000 W
  • AC Backup Output Voltage: 120/240, 1Ø VAC
  • AC Frequency: 60 Hz
  • AC Circuit Breaker: 50 A
  • THD (Voltage): < 2 %
  • Automatic Switchover Time: < 1 Seconds
  • Typical Nighttime Power Consumption: 30 Watts
DC Input:
  • DC Input Voltage Range: 360-420 VDC
  • Nominal DC Bus Voltage: 380 VDC
  • Max Input Current: 20 A
  • Reverse-Polarity Protection: Yes
  • Ground-Fault Isolation Detection: Yes
  • Transformerless, Ungrounded: Yes
DC Input / Battery Backup:
  • Maximum Continuous Power: 8000 W
  • Internal DC Distribution Breakers: 4X 2P30A
  • DC Fuses on Plus and Minus: 40 A
  • 2-Pole Disconnection: Yes
Efficiency:
  • Peak Efficiency: 97 %
  • CEC Weighted Efficiency: 96.5 %
Additional Features:
  • Supported Communications Interfaces: CANbus, RS4854, Ethernet
  • System Monitoring: PWRview Web Portal and Mobile App
  • Critical Load Disconnect: Yes
  • Manual Inverter Bypass Switch: Automatic
  • Warranty: 10 Years
Standard Compliance:
  • Safety: UL1741 SA, CSA 22.2
  • Grid Connection Standards: IEEE1547, Rule 21, Rule 14H
  • Emissions: FCC part15 class B
Installation Guidelines:
  • Battery Types Supported: PWRcell battery module
  • Module String Size Per PV Link Optimizer: 2-9 PV modules
  • Maximum Recommended DC Power From PV: 10kW (1Ø)
  • Batteries Per Inverter: Up to 2
