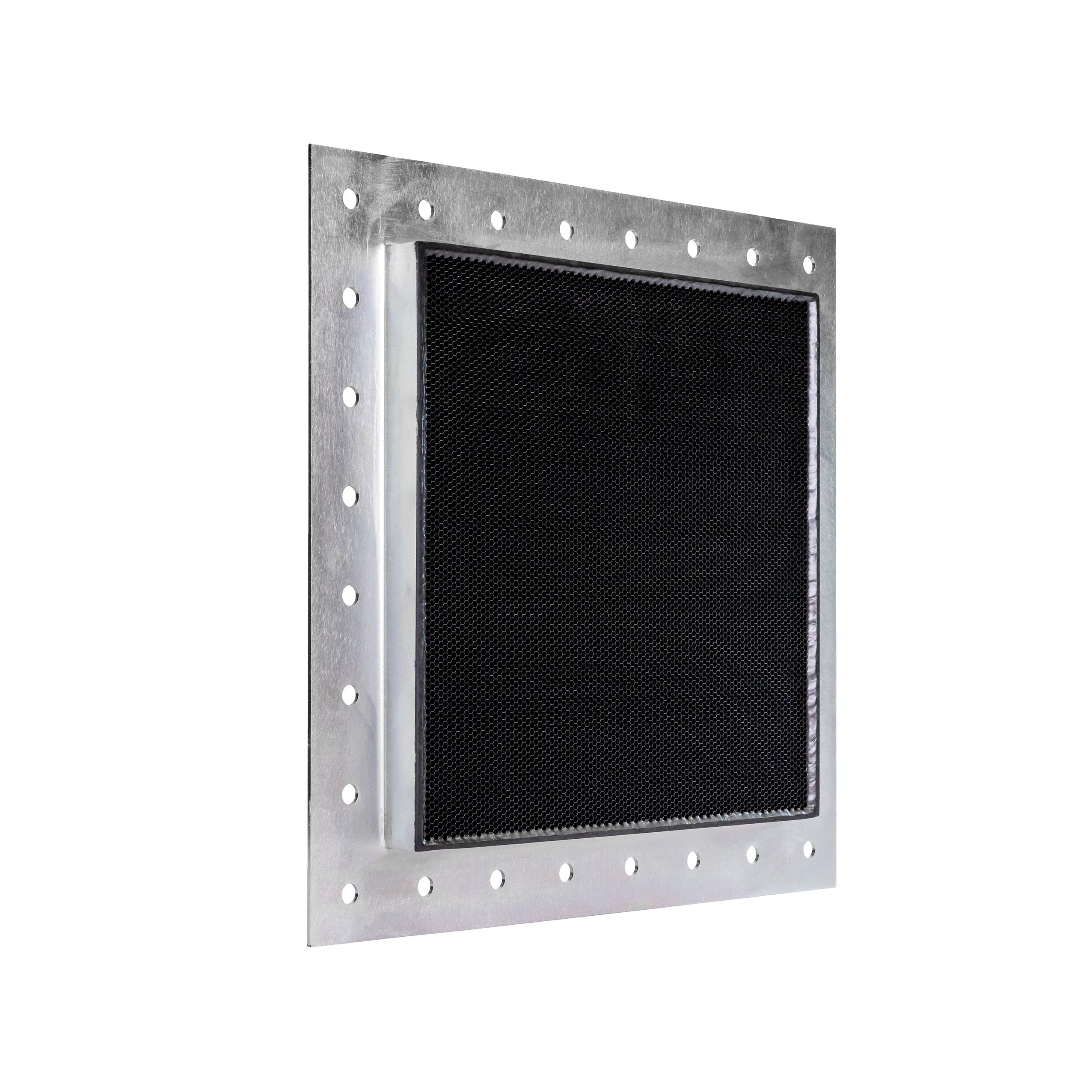

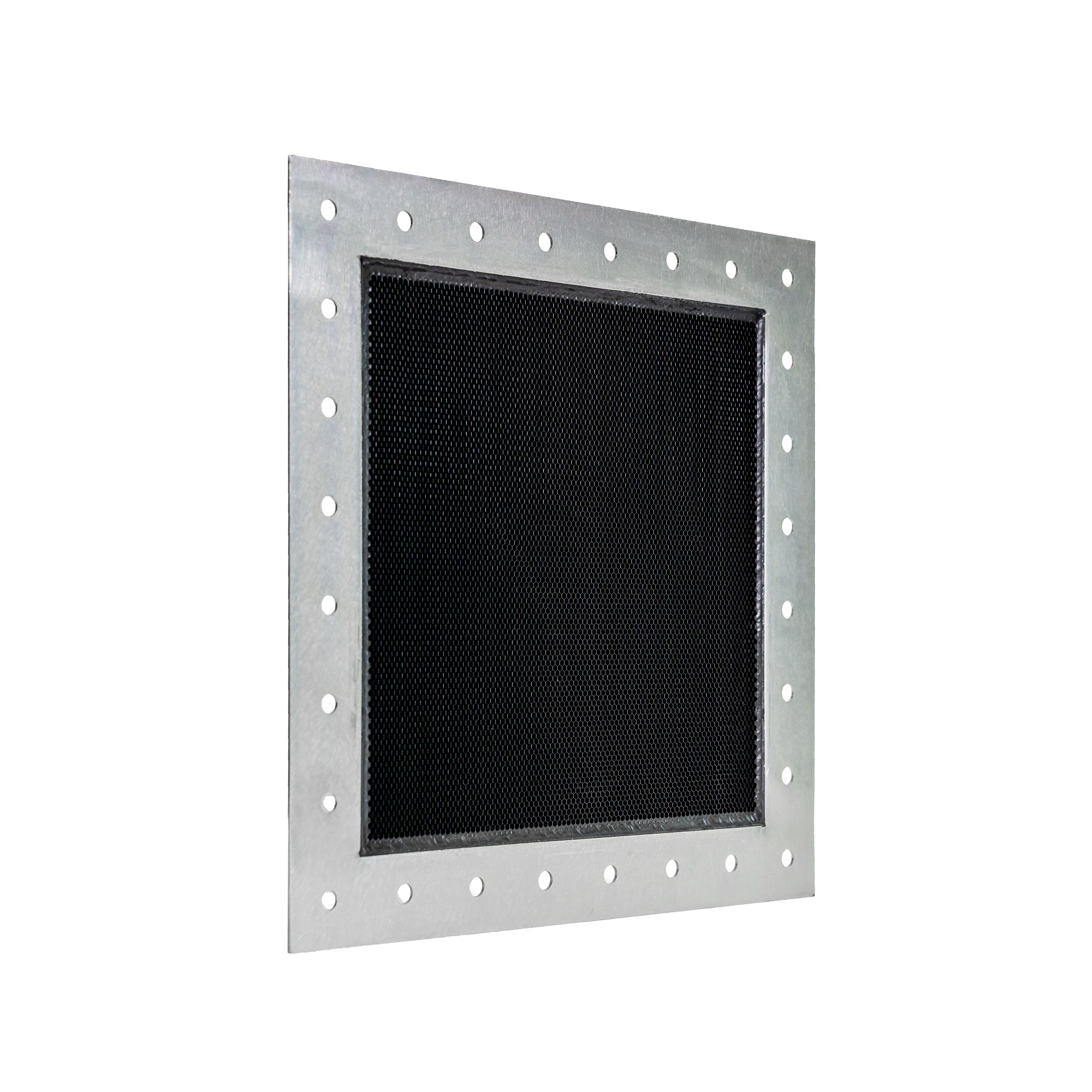

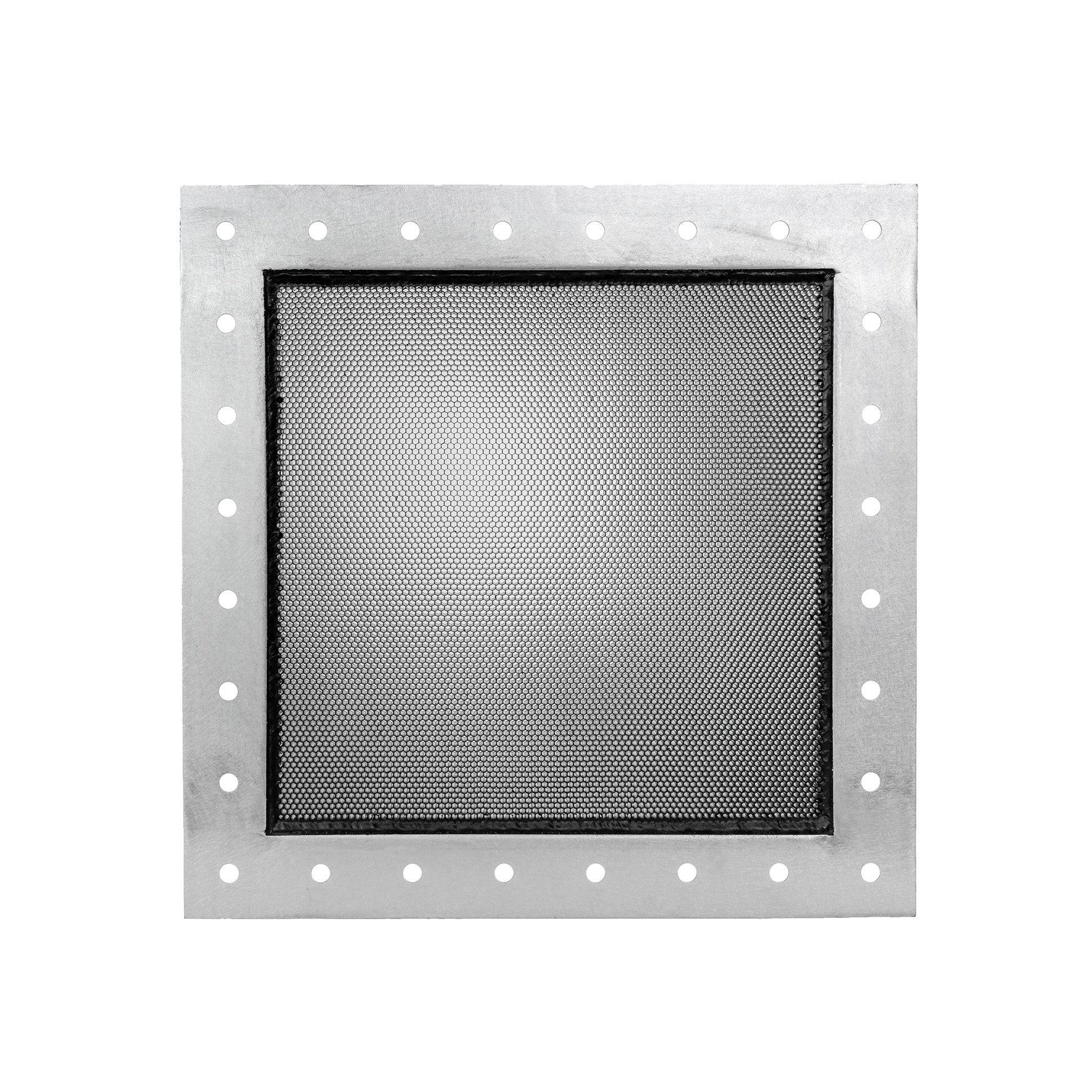

Faraday Defense 12×12 Honeycomb EMC Vent

The Faraday Defense 12×12 Honeycomb EMC Vent is engineered for high-performance EMI/RFI shielding applications where both effective ventilation and maximum electromagnetic protection are critical. Utilizing a precision honeycomb waveguide structure, the filter allows air to circulate freely while significantly reducing electromagnetic signal leakage through ventilation openings.

Designed to host VDC fans for shielded airflow and to achieve shielding effectiveness primarily from 300 MHz – 40 GHz, averaging > 100 dB, this filter is well suited for demanding environments including shielded rooms, EMC test chambers, microwave anechoic chambers, and other secure facilities where maintaining enclosure integrity is essential.

Its durable all-metal construction and large 12 × 12 inch format provide increased airflow capacity while maintaining reliable shielding performance. The perimeter mounting flange allows for secure installation into shielded walls, equipment enclosures, and custom EMI-protected systems.

Whether installed in permanent secure facilities or specialized test environments, the Faraday Defense 12×12 Honeycomb EMC Vent delivers dependable ventilation without compromising electromagnetic shielding performance.

Key Features

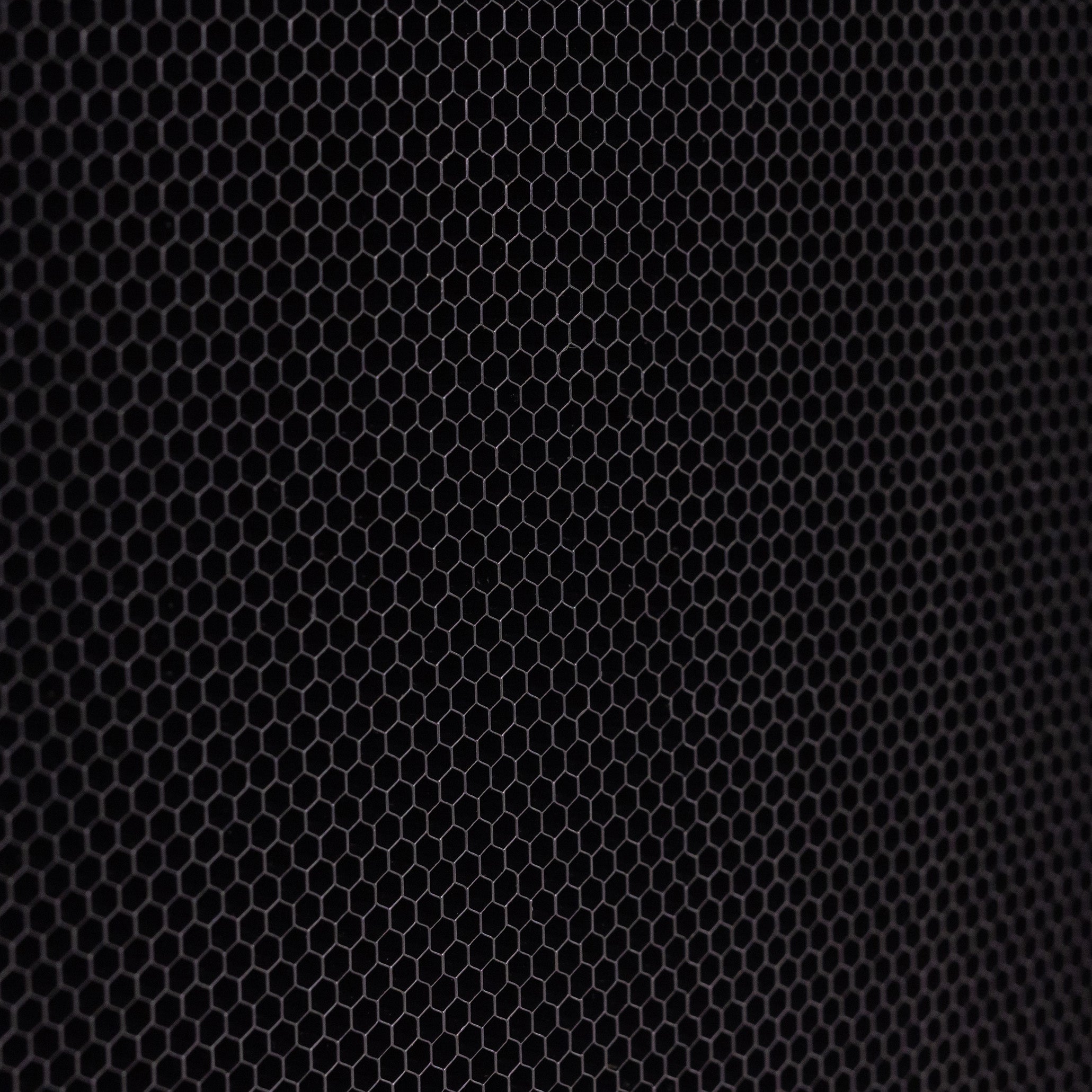

• High-performance honeycomb waveguide design
• Shielding effectiveness up to 100 dB at 40 GHz
• Allows high-volume airflow while reducing EMI/RFI leakage

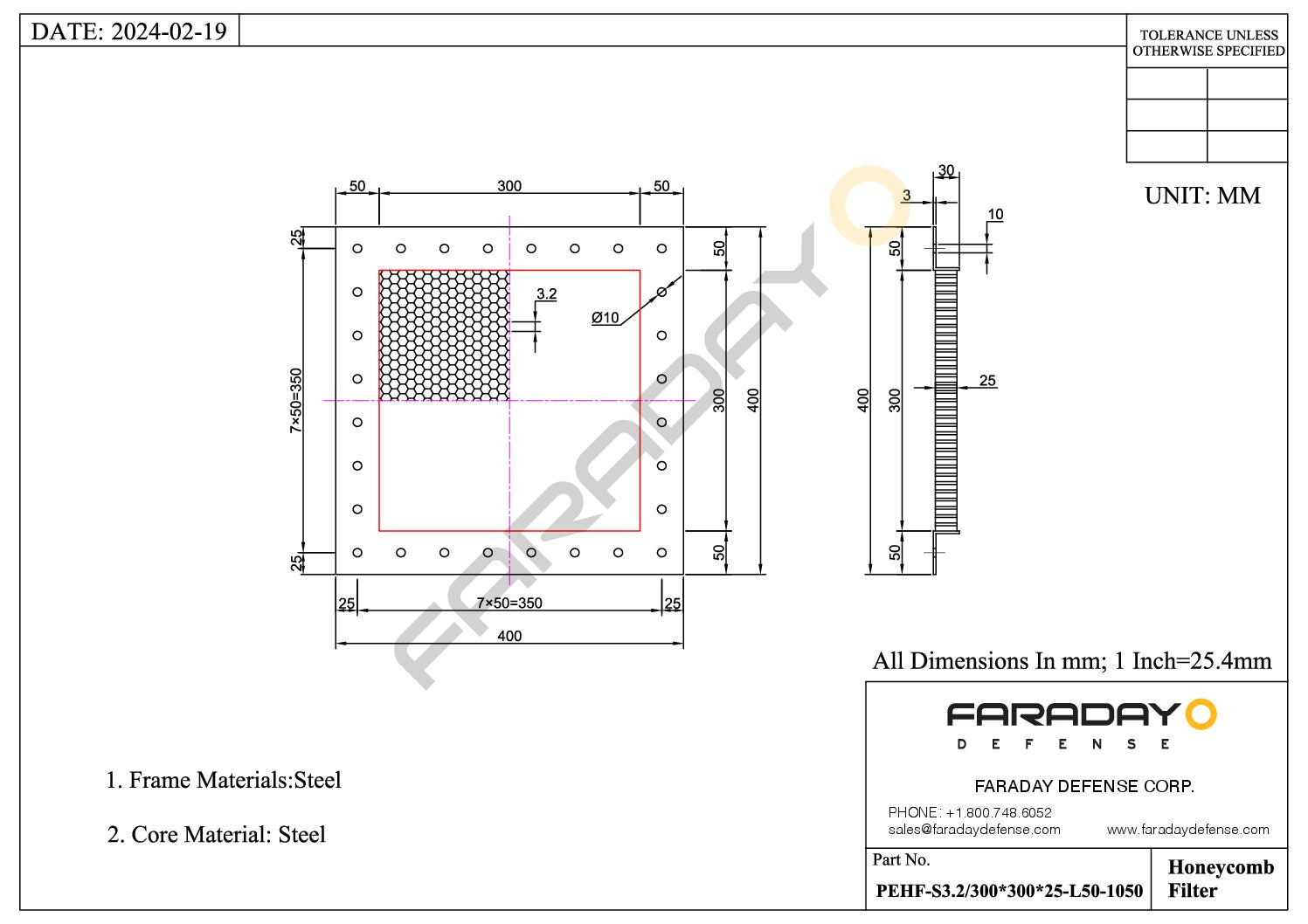

• Large 12 × 12 inch ventilation panel
• Heavy-duty all-metal construction
• Flanged mounting design for secure installation
• Ideal for permanent shielded installations
• Maintenance-free passive operation

Applications

• Shielded rooms
• EMC testing chambers
• RF and microwave anechoic chambers
• TEMPEST and secure facilities
• Military and government installations
• Data centers and secure communications rooms
• High-performance EMI/RFI shielded enclosures
