Enervex RS 12" Axial Vane Chimney Fan

Enervex

Enervex RS 12" Axial Vane Chimney Fan

$3,930.00
Enervex RS 12" Axial Vane Chimney Fan

Enervex

Enervex RS 12" Axial Vane Chimney Fan

$3,930.00
  • Description

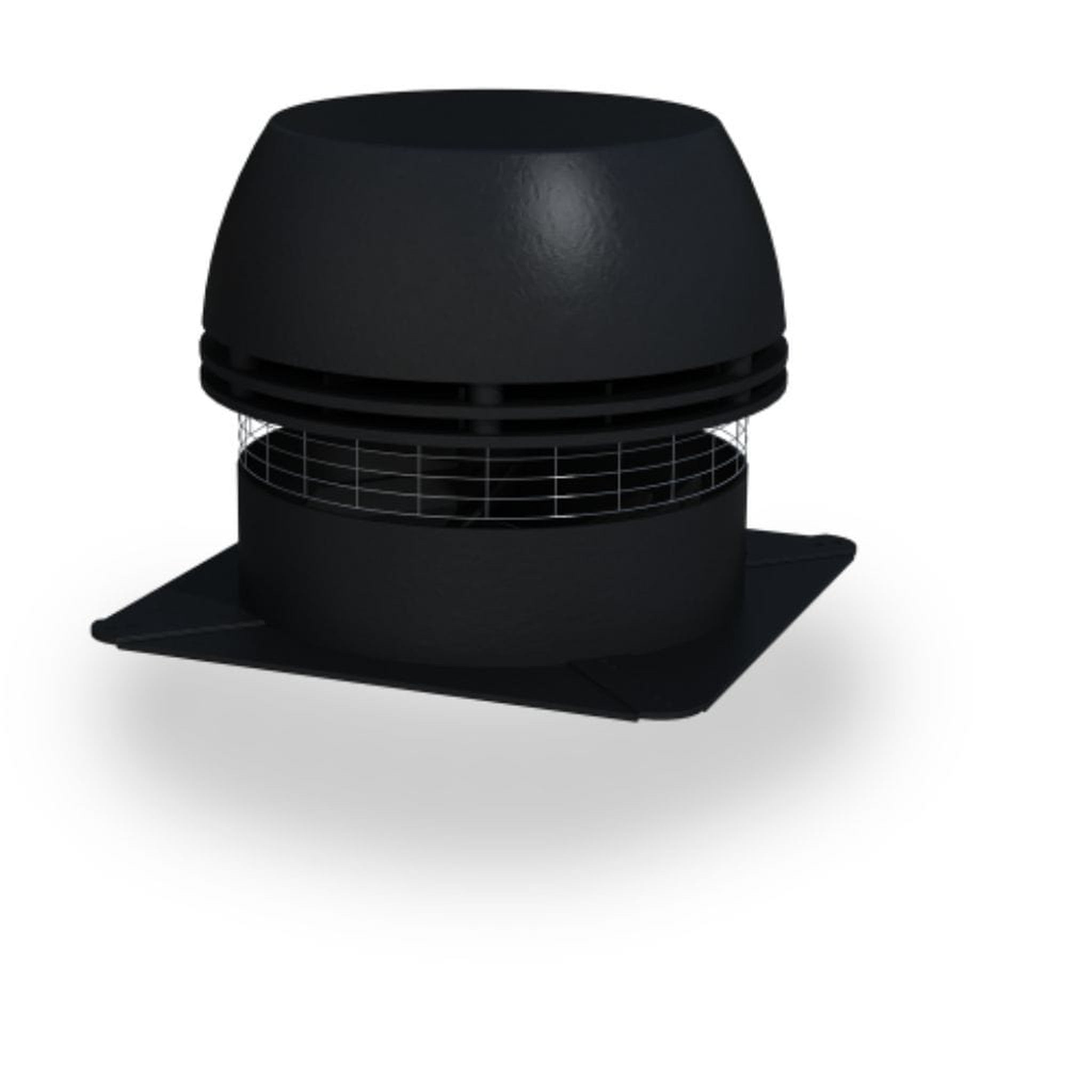

Enervex RS 12" Axial Vane Chimney Fan

The RS Chimney Fan is specifically designed for applications where efficient operation, low noise level, low energy consumption, variable speed and compact design are of utmost importance. It should be installed at the termination point of the chimney or stack section and can be mounted on masonry or metal chimneys. It is typically mounted in the vertical position, but may be sidewall vented as well.

The fan assures a negative pressure is maintained in the entire chimney or stack system. The fan discharges horizontally (vertically, if side-wall vented) at a high velocity.

The fan housing is hinged and the top can be opened for easy service and access to stack.

The RS is for use where flue gas temperatures do not exceed 575°F (300°C) for intermittent operation and 482°F (250°C) for continuous operation.

The RS Chimney Fan is a component of the IntelligentDraft® System.

What's Included

  • 2"x4" or 4"x4" Junction Box with Cover and Conduit
  • Fiber Mat and Mounting Brackets
  • Bird Screen
  • 5 Amp Fan Speed Control

Not Included (Sold Separately)

  • ADC 100 Fan Control
  • ADC 150 Fan Control
  • EFC 211 Fan Control
  • PDS Proven Draft Switch
  • FSC Fan Speed Control
  • SCA Steel Chimney Adaptor
  • MFD-S Manual Fireplace Damper
  • MFD Mechanical Fireplace Damper

Features

  • Material
    • Housing is 3/16" thick cast aluminum.
    • Finished with one coat of grey hammerpaint for added corrosion resistance.
  • Motor
    • Split capacitor, totally enclosed.
    • Class H insulated, IP54 Protection Class.
    • Sealed ball bearings.
    • Variable Speed.
    • Thermal overload protection.
  • Quiet Operation
  • Use with gas-fired appliances
  • Low operating costs
  • 6-months Performance Guarantee

Specifications

Item Number 101.0499.1200
Capacities 0-950 CFM (0-1,614 m3/h)
Material Cast Aluminum Housing and Stainless Steel Axial Vane
Discharge Horizontal
Fan Type Axial Vane
Motor Type Totally enclosed, Variable speed, Class H
Voltage (VAC) 1x120V @ 60 Hz
Amperage 1.2
RPM 1600
CFM (@0.0 Ps) 950
Motor Output (hp / kW) 1/10 / 0.08
Weight (lbs / kg) 37 / 17
Temperature Rating (Interm.) 575°F / 300°C
Temperature Rating (Cont.) 482°F / 250°C
Listings
  • UL 378 Standard for Draft Equipment
  • UL 705 Standard for Power Ventilators
  • CSA3-B255-M81 Standard for Mechanical Flue Gas Exhauster

Technical Drawings & Dimensions

Dimensions (in / mm)

A 11.5 / 292
B x B 14.3 / 364
C 13.5 / 344
D 3.3 / 85
E 11.6 / 294

Parts Diagram

1 Junction Box 7 Base Plate
2 Conduit/cord 8 Locking nut
3 Motor 9 Inlet
4 Motor housing 10 Axial vane
5 Motor plate 11 Hinges
6 Bird Screen 12 Capacitor (Inside junction box)

Sound Data

Lw dB (measured in accordance with ISO 3744)

125Hz 64
250Hz 60
500Hz 55
1000Hz 52
2000Hz 48
4000Hz 42
8000Hz 34
Lp dB(A) 30

Warranty

2-Year Factory Warranty

We promise the original user that we will replace or repair as we may elect, any part or parts of the new RS Chimney Fan which are defective in material or workmanship without charge for parts and labor (not including labor for dismantling and installation, freight, etc.) during the first 2-years following the date of invoice.

10-Year Factory Warranty Against Corrosion Perforation

We promise the original user that we will replace or repair as we may elect, any part or parts of the RS Chimney Fan which are
perforated due to corrosion without charge for parts or labor (not including dismantling and installation, freight, etc.) during the first
10-years following the date of invoice.
