• Description

EG4 24K Hybrid Multizone Mini-Split

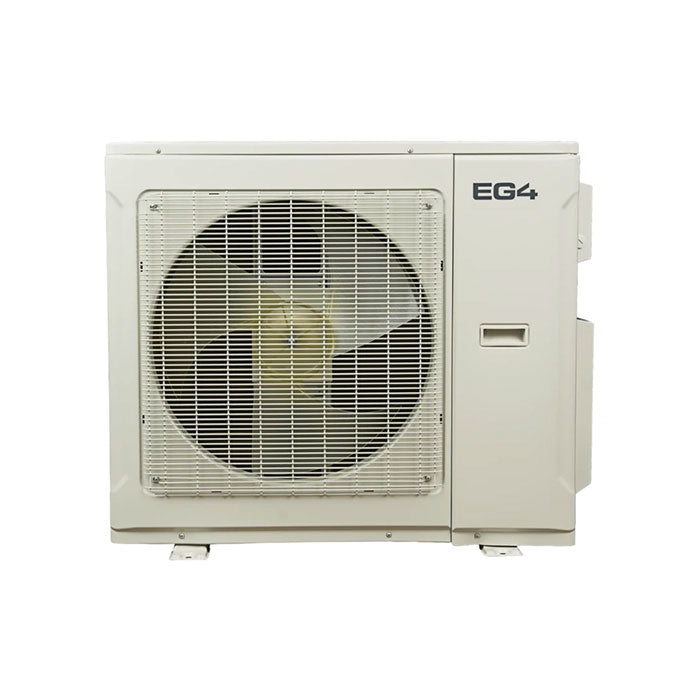

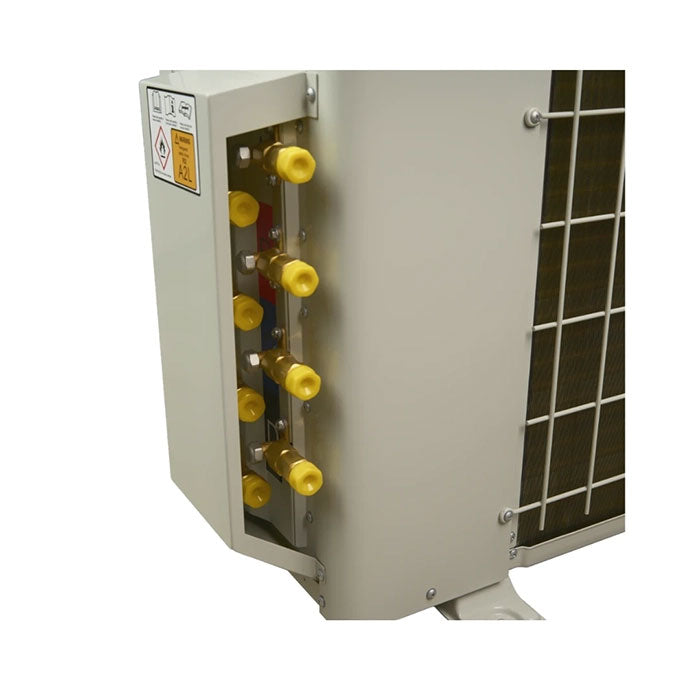

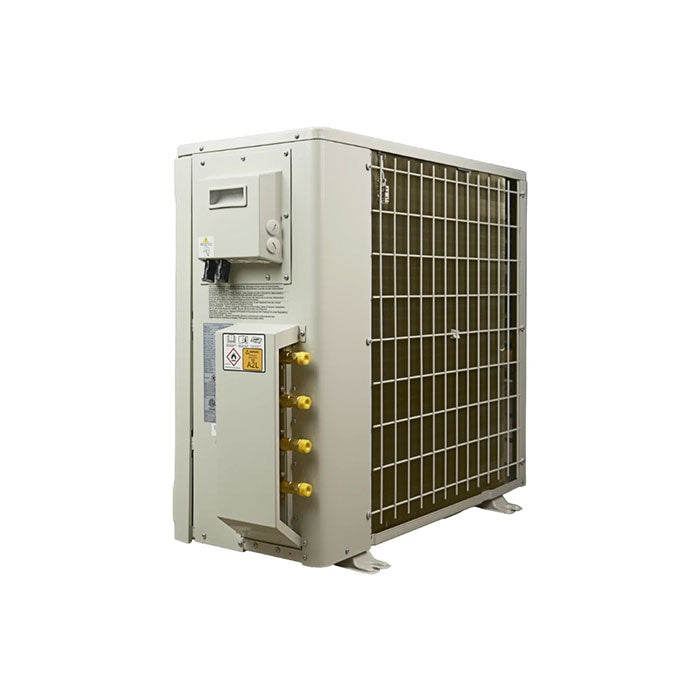

This is the outdoor condenser unit for EG4's multizone mini-split system — it pairs with 1 to 3 separately-sold indoor units (12K, 18K, or 24K) to cover your layout. If your indoor total exceeds the 24K compressor rating, EG4's own sizing guide simply caps combined output at 24K rather than causing a mismatch.

A built-in MPPT controller takes solar power directly — up to 5 panels rated at 550W each — alongside standard grid power, with SEER2 up to 22.5 and heating rated down to 5°F outdoor temperature.

Full Specifications

Capacity 24,000 BTU, up to 3 indoor zones
Efficiency SEER2 up to 22.5, HSPF2 up to 10
Solar/DC Input 150–410VDC (built-in MPPT), rated for 5 x 550W panels; AC grid-draw limiter configurable to 25/50/75%
AC Input 208–230VAC
Refrigerant R32, 57.85 oz (1.71L)
Operating Range Cooling 5°F–125°F, heating 5°F–75°F
Rated Current 8.4–9.2A
Dimensions 34.96" x 12.5" x 27.55" (888 x 318 x 700mm)
Weight ~118 lb (126.75 lb shipping)
Sound Level 58–60 dB(A)
Certifications AHRI certified, ENERGY STAR certified
Warranty 5-year limited
