Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H - Green Vista Living
Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H - Green Vista Living

Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H

Authorized Discover Energy Dealer | Full Vendor Warranty Included

Customers rate us 4.6/5 based on 417 reviews.
$1,699.00
$1,999.00
$1,699.00
Save $300.00
Hurry! Only a few left in stock
Order in the next h min to get this to you between and

Need Help? Talk to our experts today!

Live Chat:
Bottom Right Text or Call us:
513-743-2829
🚚
Shipping & Delivery Time Shipping timeline above is an estimate. Please live chat for precise ETAs and shipping costs.
🛡️
30-Day Return Guarantee
Check Policy
💲
Price Match Available
🏷️
Sales Tax Free! (Except AZ, CA, FL, OH, IL)
☀️ SUMMER DEALS ARE HERE – LOWEST PRICES GUARANTEED ☀️
Summer prices are here! Shop now to grab the lowest prices of the season before the sun sets.
Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H - Green Vista Living

Discover Energy

Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H

$1,999.00 $1,699.00
Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H - Green Vista Living

Discover Energy

Discover ESS Battery Module 5.0 KWH 51.2V 100 AH, Heated 48-48-5120-H

$1,999.00 $1,699.00
  • Description

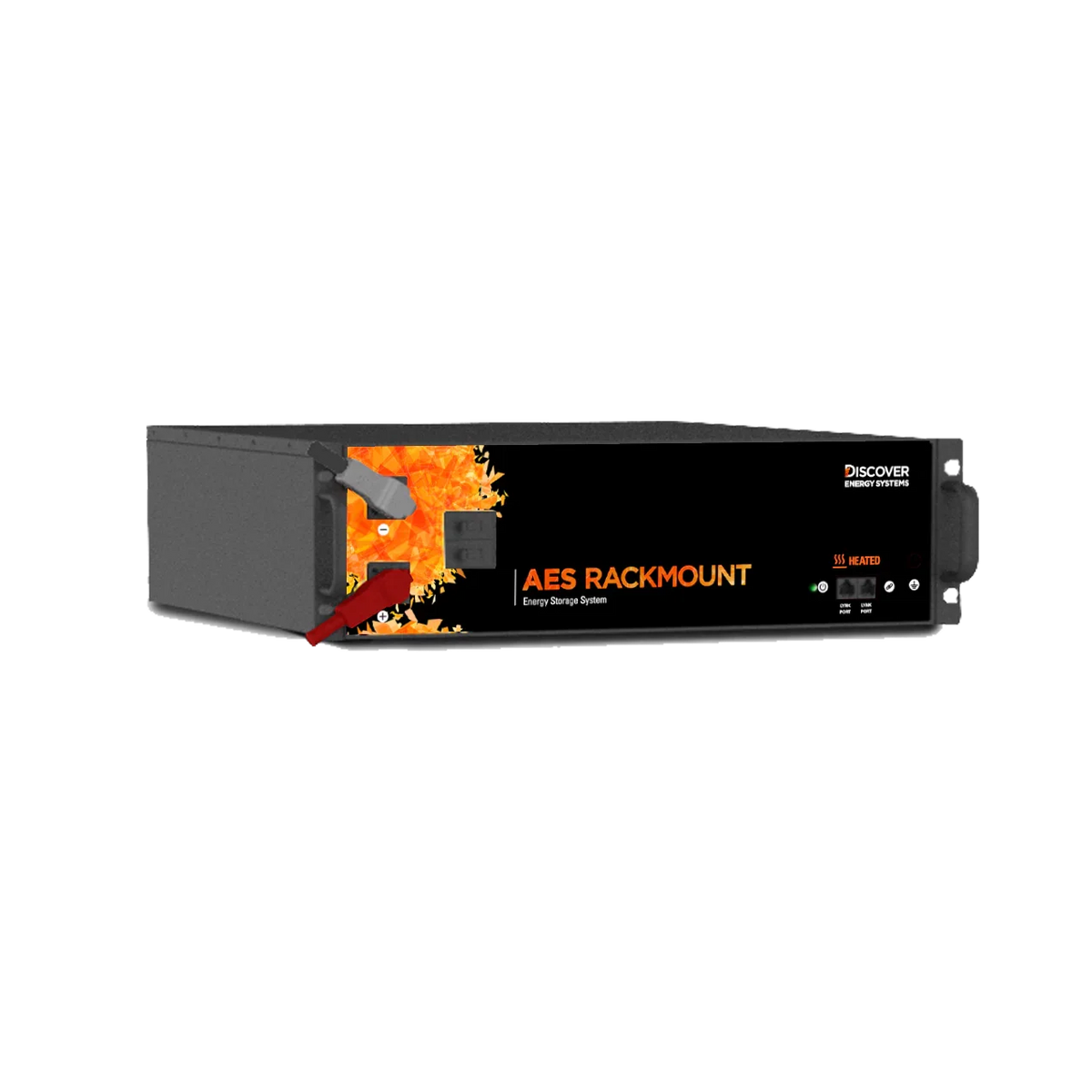

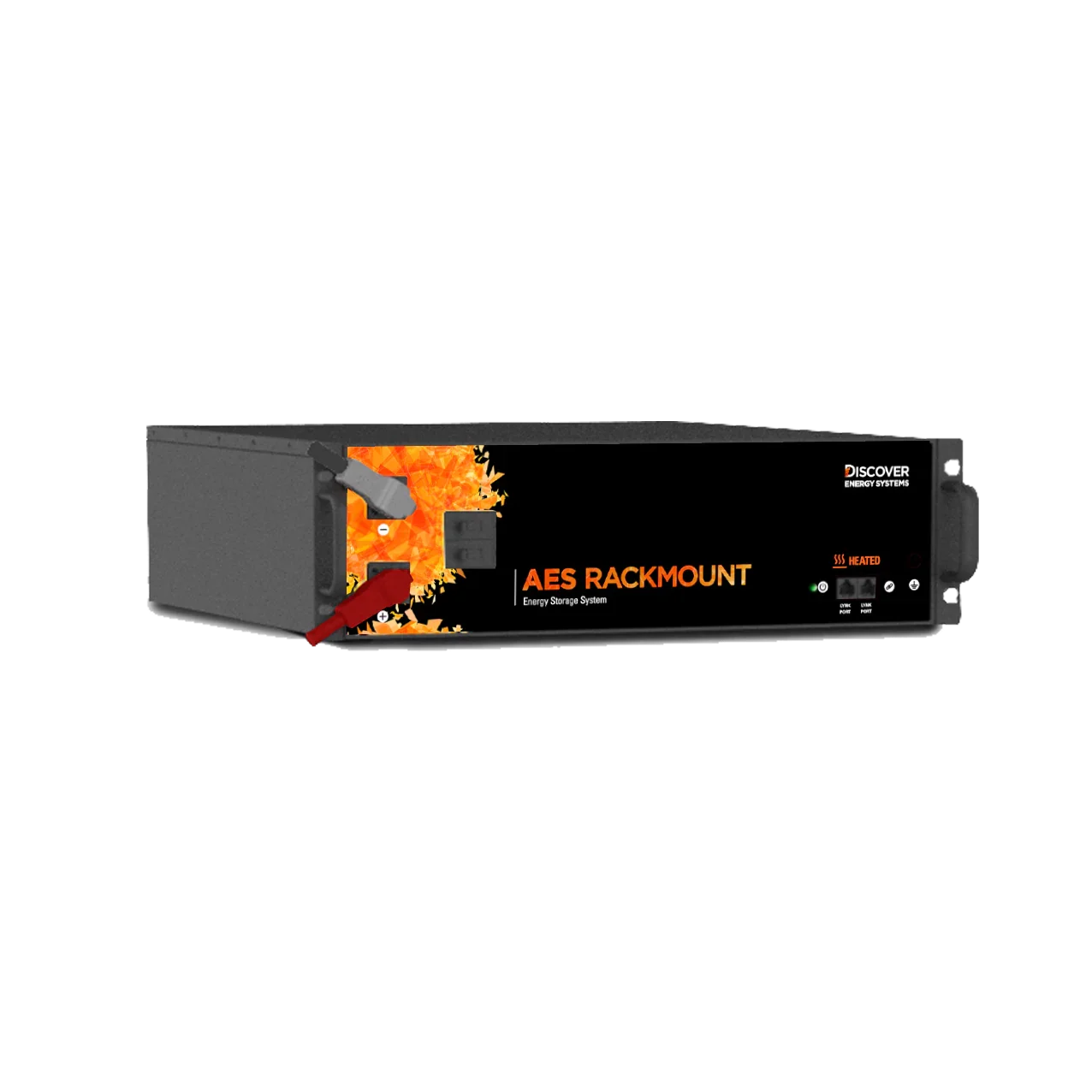

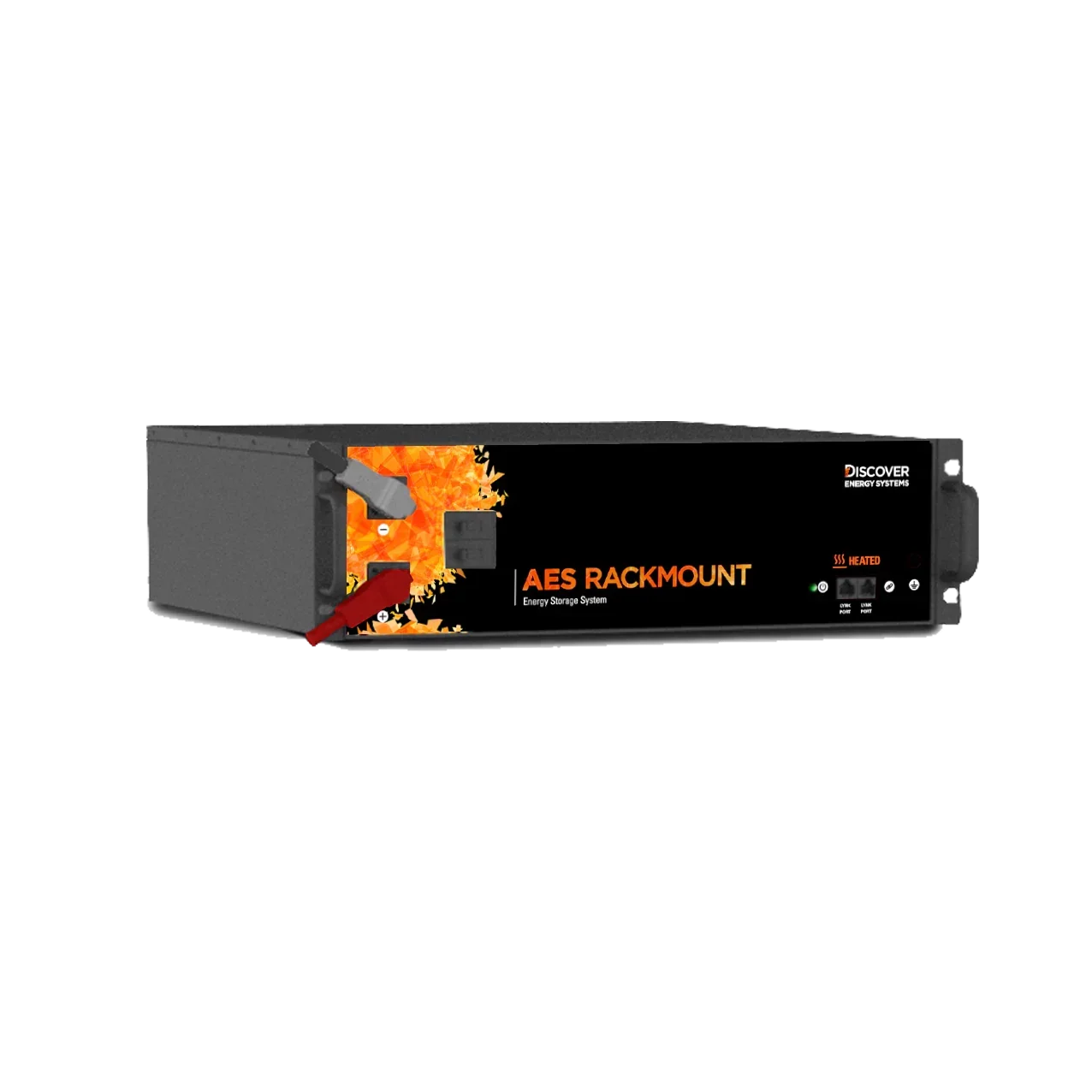

Discover ESS Battery Module, 5.0 KWH, 51.2V, 100 AH, Heated, 3U 19 inch

AES RACKMOUNT is the rapid install energy storage system designed for Residential Off-Grid Solar and Whole-Home Backup Power. The battery features a high-current GEN-4 BMS that delivers superior peak power for demanding load support, 1C charge/discharge rates and self-heating allowing for cold charge functionality. Easy configuration, UL1973 and UL9540-BESS enable seamless permitting throughout North America. An industry-leading 10-year warranty and energy throughput performance guarantee delivers a strong ROI.

Features

LYNK PORT

  • Connect battery string to LYNK Gateway
  • Multi-battery BMS communication
  • Remote ON/OFF capability

HIGH-CURRENT BMS

  • High peak surge, continuous current
  • Sets charge voltage, broadcasts SoC and temperature, balances cells

HEATED

  • Integrated self-heating

LYNK ACCESS

  • Monitor and troubleshoot
  • Configure communication with charger
  • Export battery data logs
  • Update battery firmware
ACCESSORIES

LYNK GATEWAY

  • Closed-loop charger configuration
  • J1939 / CAN Open / Serial CAN
  • Three programmable relays

ELEMENT ESS BATTERY COMBINER

  • Fully assembled. Quick connect cables
  • 19-inch rack mount
  • Combine up to 6 Battery Modules
  • Disconnect breaker
  • System ON/OFF button
BENEFITS

RUNS LONGER

  • 2x Runtime of lead-acid batteries
  • Up to 100% usable capacity

LASTS LONGER

  • 10x the life of lead-acid battery (BCI-06)
  • 10-Year warranty and energy performance guarantee

CHARGES FASTER

  • 1C max charge rate, regardless of SoC
  • 2x faster than C/2 rated Lithium batteries

SURGE POWER

  • Up to 2.2C peak power
  • Up to 1C charge/discharge

HIGH-EFFICIENCY

  • Up to 50% more energy efficient than lead-acid batteries
  • Up to 98% round-trip efficiency

DYNAMIC CHARGING

  • Up to 40% faster recharge from 0% to 100% SoC
  • Real-time charge rate optimization

PARALLEL POWER

  • Up to 160 kWh (per LYNK)
  • Linear scaling of charge, discharge, peak capacity

CERTIFICATION STANDARDS

  • IEC 62619
  • UL 1973
  • UL 9540a (pending)
  • UL9540 (pending)
  • CE
SHIPPING CLASSIFICATION
  • UN 38.3
  • UN 3480, Class 9 (Lithium batteries)
