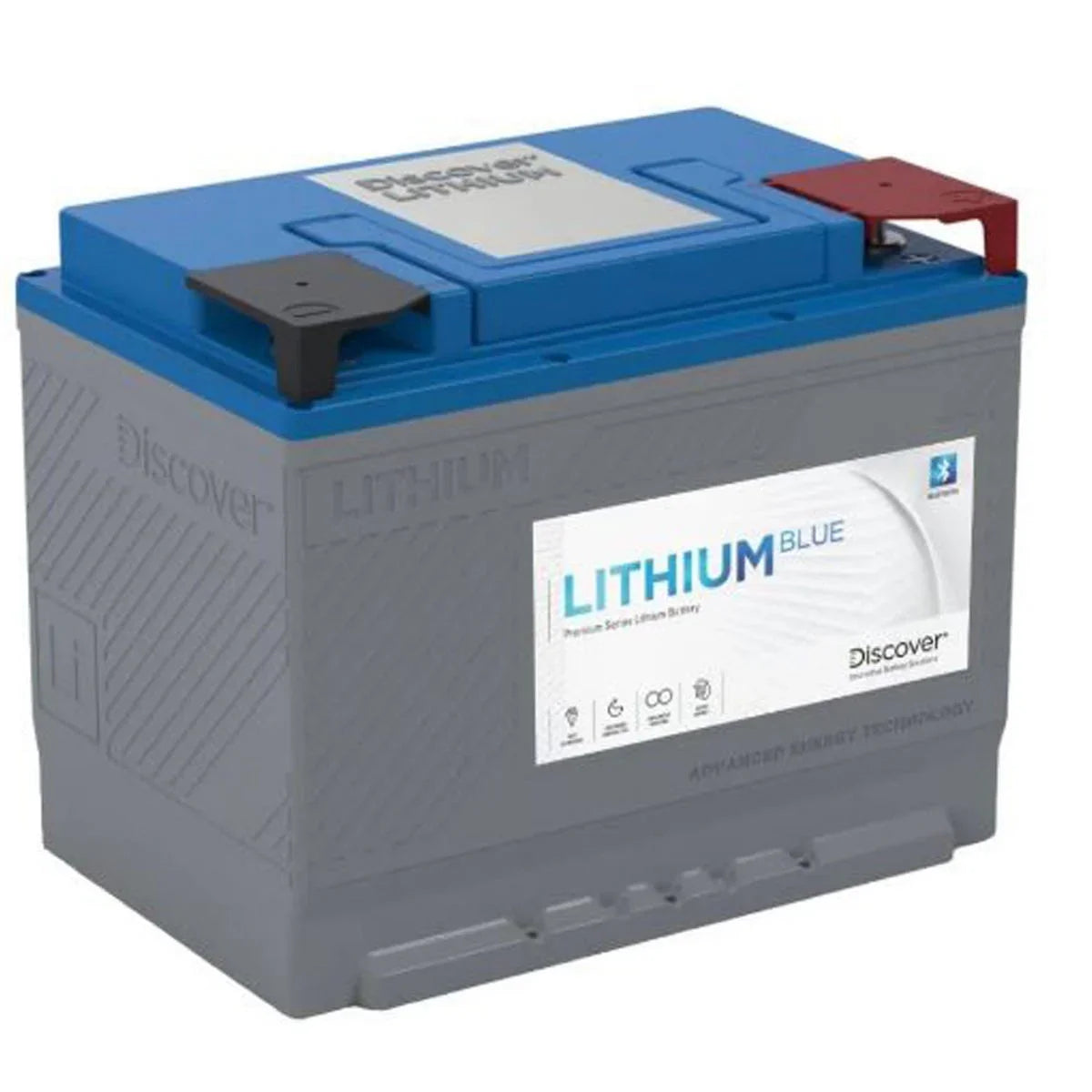

Discover DLB-G24-24V Lithium Blue 24V 45Ah Battery With BMS & Bluetooths



Discover LITHIUM BLUE LiFePO4 Premium Series batteries offer BMS controlled safety, long life, lightning fast charging performance and real-time Bluetooth access to battery State of Charge, voltage, current, temperature status. LITHIUM BLUE batteries reflect Discovers Design for Excellence philosophy, incorporating suitcase style carrying handles, terminal protection and field serviceable fuses. LITHIUM BLUE batteries are safe, easily to install and parallel for more capacity.

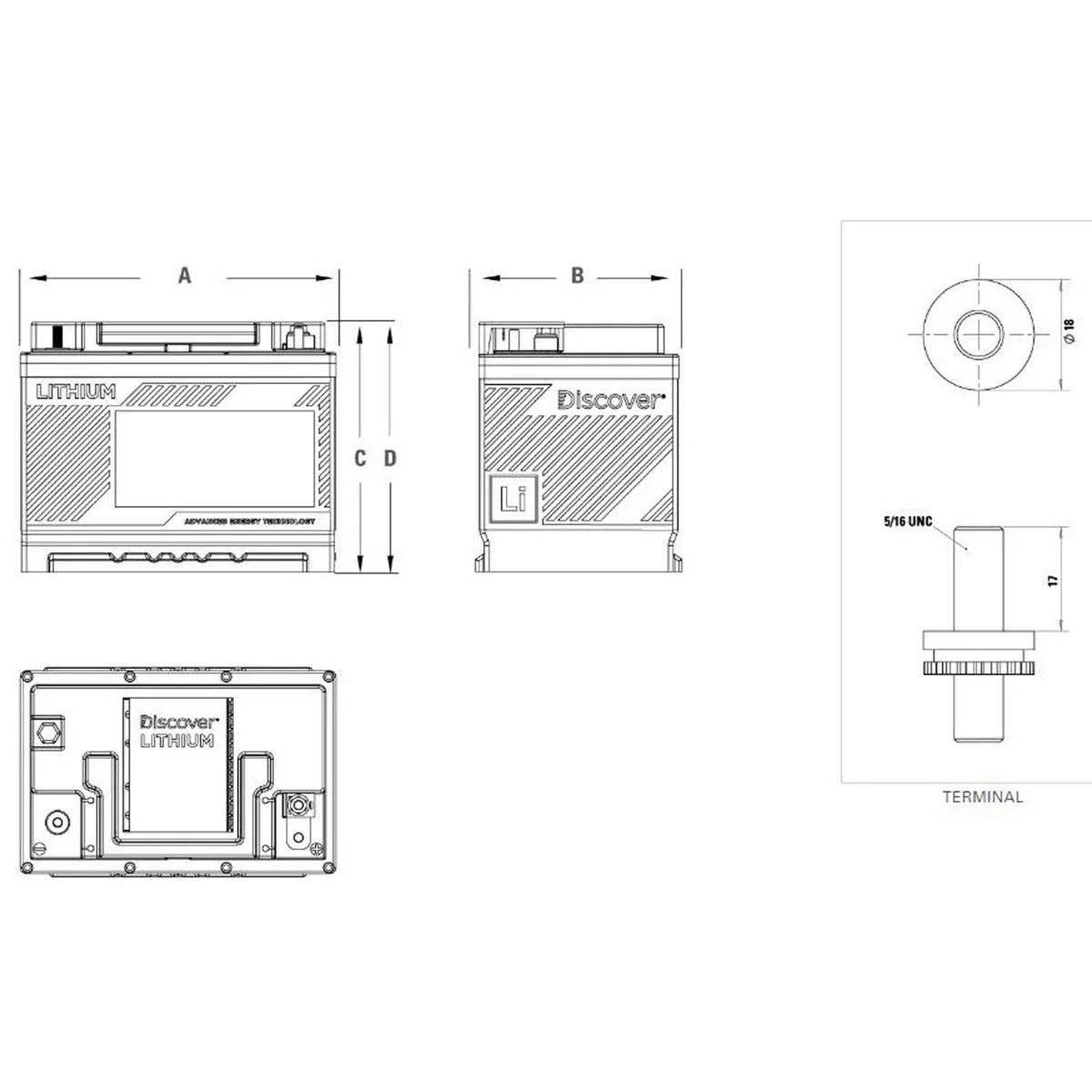

MECHANICAL SPECIFICATIONS
  • Industry Reference: BCI: Low G24R DIN: Tall H6 JIS: D26L
  • Length A (in/mm): 10.3 262
  • Width B (in/mm): 6.9 175
  • Height C (in/mm): 8.3 210
  • Total Height D (in/mm): 8.3 210
  • Weight (lbs/kgs): 25.3 11.5
  • Terminal*: ST 5/16
  • Cell(s): Prismatic 8S12P
  • Case Material: UL94-VO PBT/PC
  • IP Rating: 67
  • Electrolyte: LiFePO4
  • *TERMINAL TORQUE: 8 to 10 Nm (5.9 to 7.4 ft-lb). DO NOT EXCEED 10 Nm (7.4 ft-lb)
ELECTRICAL SPECIFICATIONS
  • Open Circuit Voltage (V): 25.6
  • Charge Voltage (Bulk Vdc): 27.6 - 28.4
  • Max Absorption Voltage (U1 Vdc): 27.6
  • Float Voltage (U2 Vdc): 27.2
  • BMS Max. Voltage protection (Vdc): 29.2 (Approximately)
  • Suggested Low Voltage Cutoff (Vdc) *: 24
  • BMS Min. Voltage protection (Vdc): 20.0 (Approximately)
  • Max. Continuous Charge Current (I Max. Adc): 45
  • Min. Finishing Charge Current (I Min. Adc): 2%-3% C1 / Min. 200ma
  • Max Continuous Discharge Current (Adc): 45
  • Max. Peak Current (Adc): 120 A RMS (2 sec)
  • Self Discharge (25°C / 77°F): < 3% per month
  • Charge Temperature: Min: 0°C (32°F) | Max: 55°C (131°F)
  • Discharge Temperature: Min: -20°C (-4°F) | Max: 60°C (140°F)
  • Storage Temperature: Min: -10°C (14°F) | Max: 30°C (86°F)

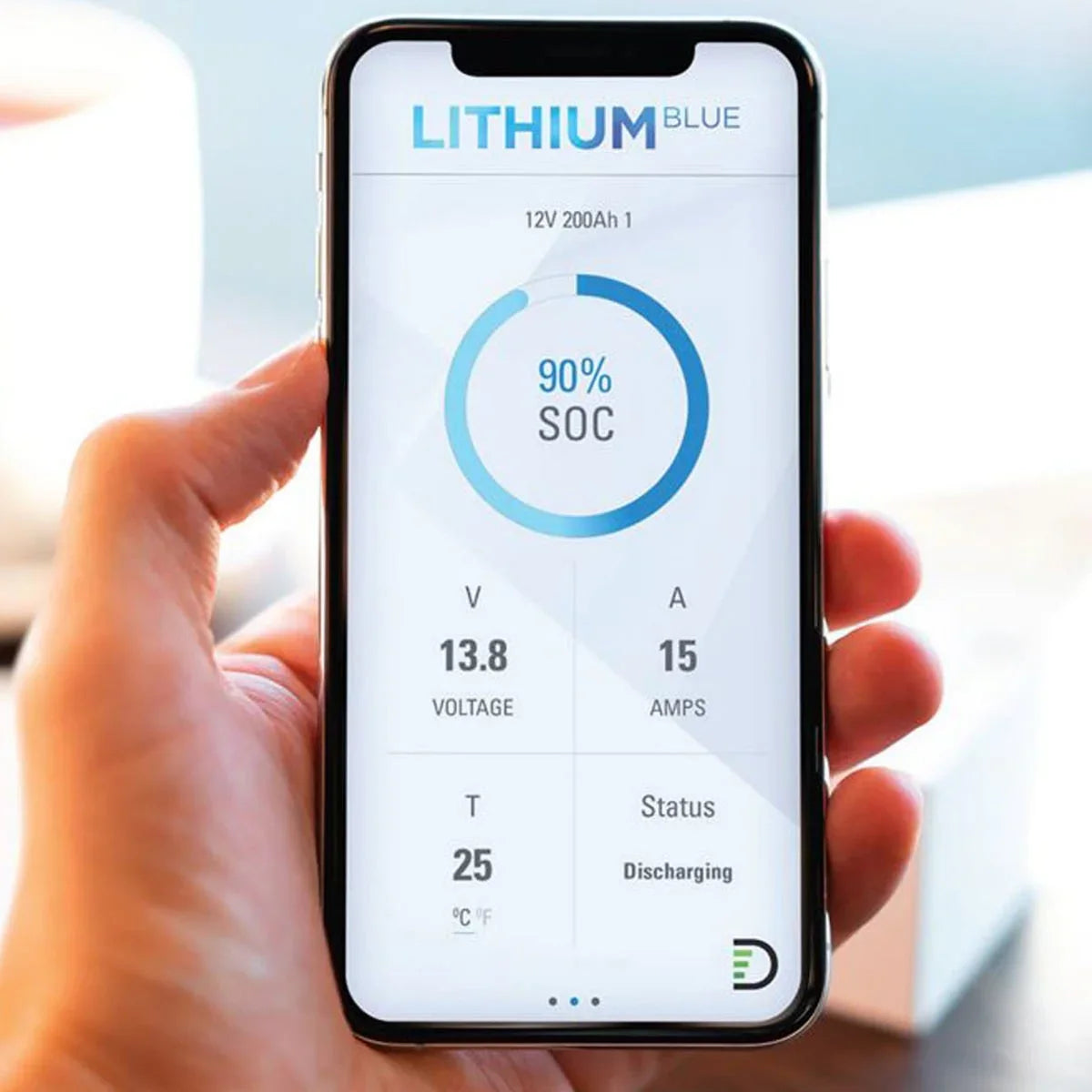

LITHIUM BLUE Battery FEATURES BLUETOOTH APP
  • State of Charge
  • Voltage / Current
  • Temperature ËšF/ËšC
HIGH-CURRENT BMS
  • Field replaceable fuse protection
LITHIUM BLUE Battery BENEFITS ENHANCED RUNTIME
  • Double the high-current runtime of lead-acid battery
  • Up to 100% usable capacity
  • Up to 100% Depth of Discharge
EXTENDED SERVICE LIFE
  • 10x the life of lead-acid battery (BCI-06)
  • Unlimited Partial State of Charge cycles
  • Energy throughput warranty
FAST CHARGING
  • Up to 5x faster than new lead-acid batteries
  • Up to 10x faster than aged lead-acid batteries
  • 2x faster than C/2 rated lithium batteries
  • Opportunity charge at 1C rate anytime, regardless of SoC
SURGE POWER
  • Surge power for inverter chargers
  • Up to 3C peak power discharge rate
  • Up to 1C continuous discharge rate
HIGH-EFFICIENCY
  • Up to 50% more energy efficient than a lead-acid battery
  • Up to 98% round-trip efficiency
PARALLEL POWER
  • Easy to parallel more capacity
  • Linear scaling of charge, discharge and peak capacity
QUICK INSTALL
  • Fast installation. No special tools
  • Drop-in lead-acid replacement
RELIABLE AND SAFE
  • LiFePO4 is safe
  • Maintenance-free
  • UL94 V0 flame retardant case and cover
  • IP 67 rated
CERTIFIED QUALITY
  • Discover manufacturing facilities are fully certified to ISO 9001/14001 and OSHA 18001 standards.
CERTIFICATION STANDARDS
  • CE
  • UN 38.3
SHIPPING CLASSIFICATION
  • UN 3480, Class 9 (Lithium batteries)
