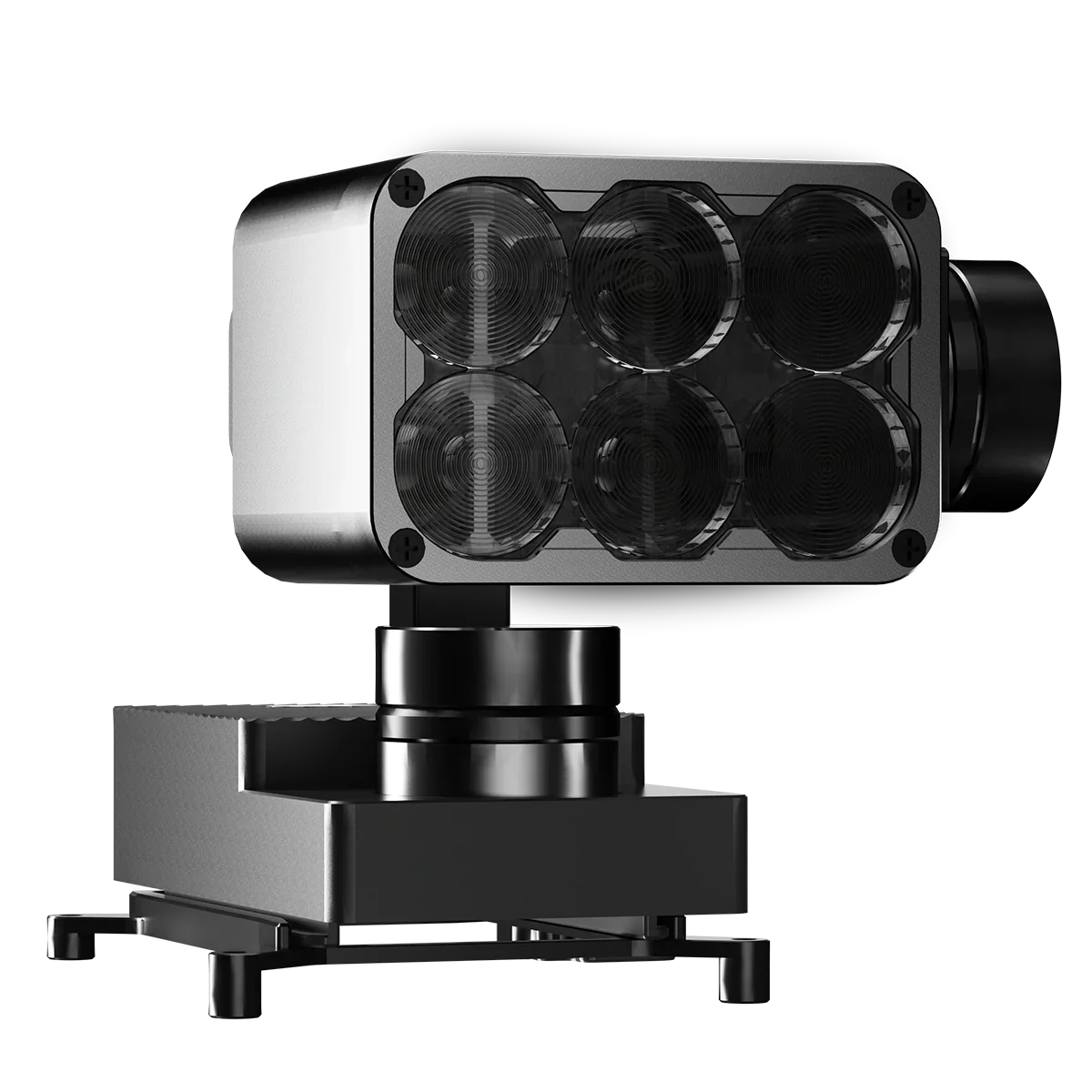

CZI GL60 Mini Gimbal Searchlight for DJI Matrice 30 Series

The CZI GL60 Mini Gimbal Searchlight is a compact yet powerful aerial illumination solution designed specifically for the DJI Matrice 30 Series. Equipped with a 3-axis stabilized gimbal, intelligent AI Follow functionality, and a high-output LED lighting system, the GL60 Mini provides reliable illumination for search and rescue, public safety, inspections, emergency response, and nighttime operations.

Its lightweight design minimizes impact on flight performance while delivering focused, long-range lighting with exceptional stability and precision.

Key Features

• Designed for DJI Matrice 30 Series drones
• 3-axis stabilized gimbal for steady illumination
• AI Follow functionality for intelligent target tracking
• Maximum illumination distance of up to 150 meters
• High-output 60W LED lighting system
• Up to 7,000 lumens of brightness
• Compact and lightweight design
• Wide gimbal movement range for flexible operation
• Ideal for public safety, inspection, and emergency missions

Performance Specifications

• Electrical Interface: DJI OSDK
• Weight: 240 g
• Dimensions: 158 × 87 × 82 mm
• Total Power Consumption: 65W
• LED Power: 60W
• Supply Voltage: 24V
• Luminous Flux: 7,000 lumens ±3%
• Field of View: 13°

Illumination Performance

• Maximum Illumination Distance: 150 m
• Spot Diameter at 150 m: 34 m
• Spot Diameter at 100 m: 22.8 m
• Spot Diameter at 50 m: 11.4 m

Illumination Coverage Area

• 150 m: 917 m²
• 100 m: 407 m²
• 50 m: 102 m²

Gimbal Movement Range

• Pitch: -70° to +90°
• Horizontal Rotation: ±125°
• Roll: ±125°

The extensive gimbal movement allows operators to precisely direct illumination without repositioning the aircraft, improving efficiency during complex missions.

Operating Temperature

• -20°C to +50°C

Designed for challenging environments, the GL60 Mini delivers dependable performance across a wide range of weather and operating conditions.

Ideal Applications

• Search and rescue operations
• Public safety missions
• Law enforcement support
• Emergency response
• Infrastructure inspections
• Utility and powerline inspections
• Security patrols
• Nighttime surveillance
• Disaster assessment

Compact Power for Night Operations

The CZI GL60 Mini Gimbal Searchlight for DJI Matrice 30 Series combines powerful illumination, intelligent tracking, and precision gimbal control in a lightweight package, making it an essential tool for professional aerial operations after dark.
