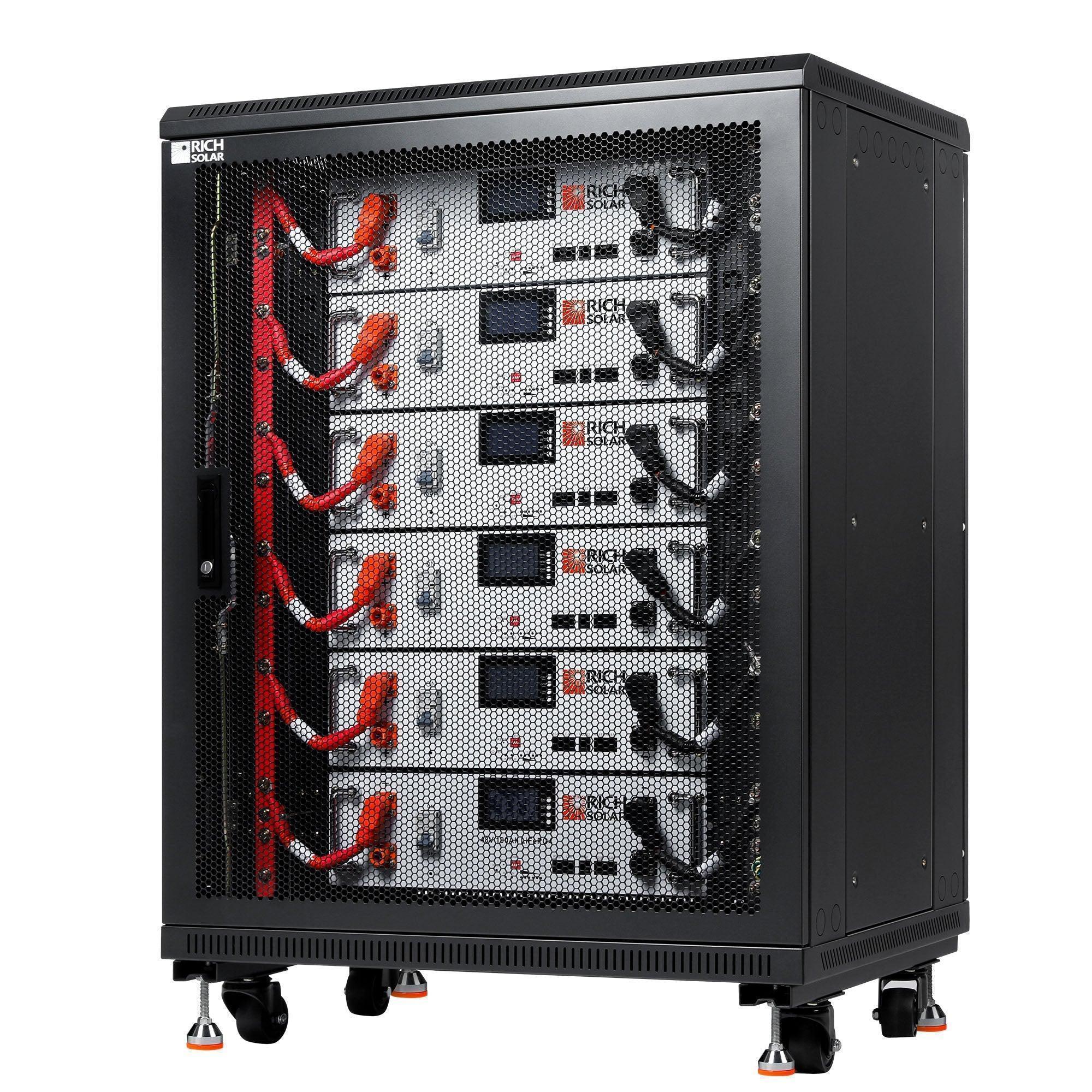

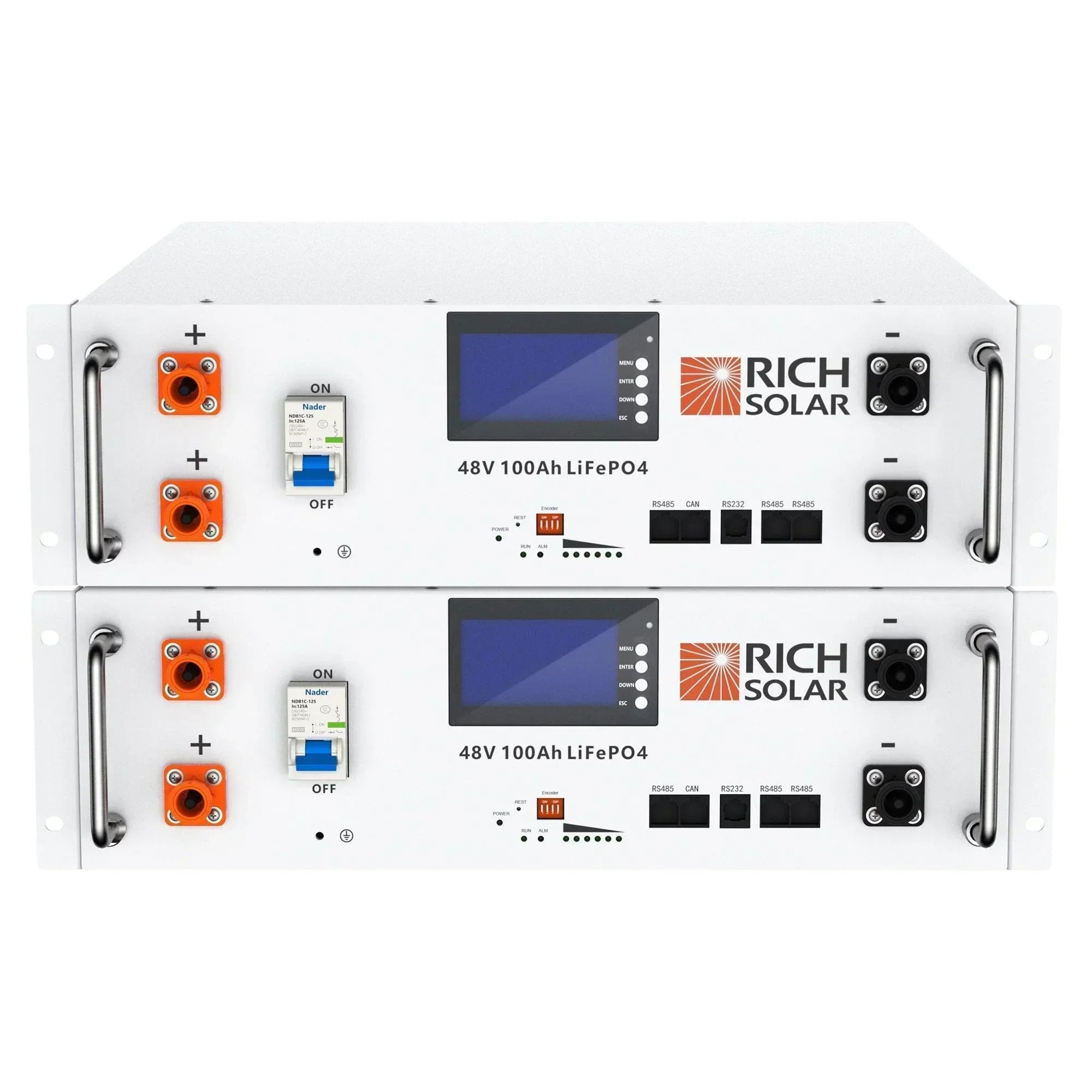

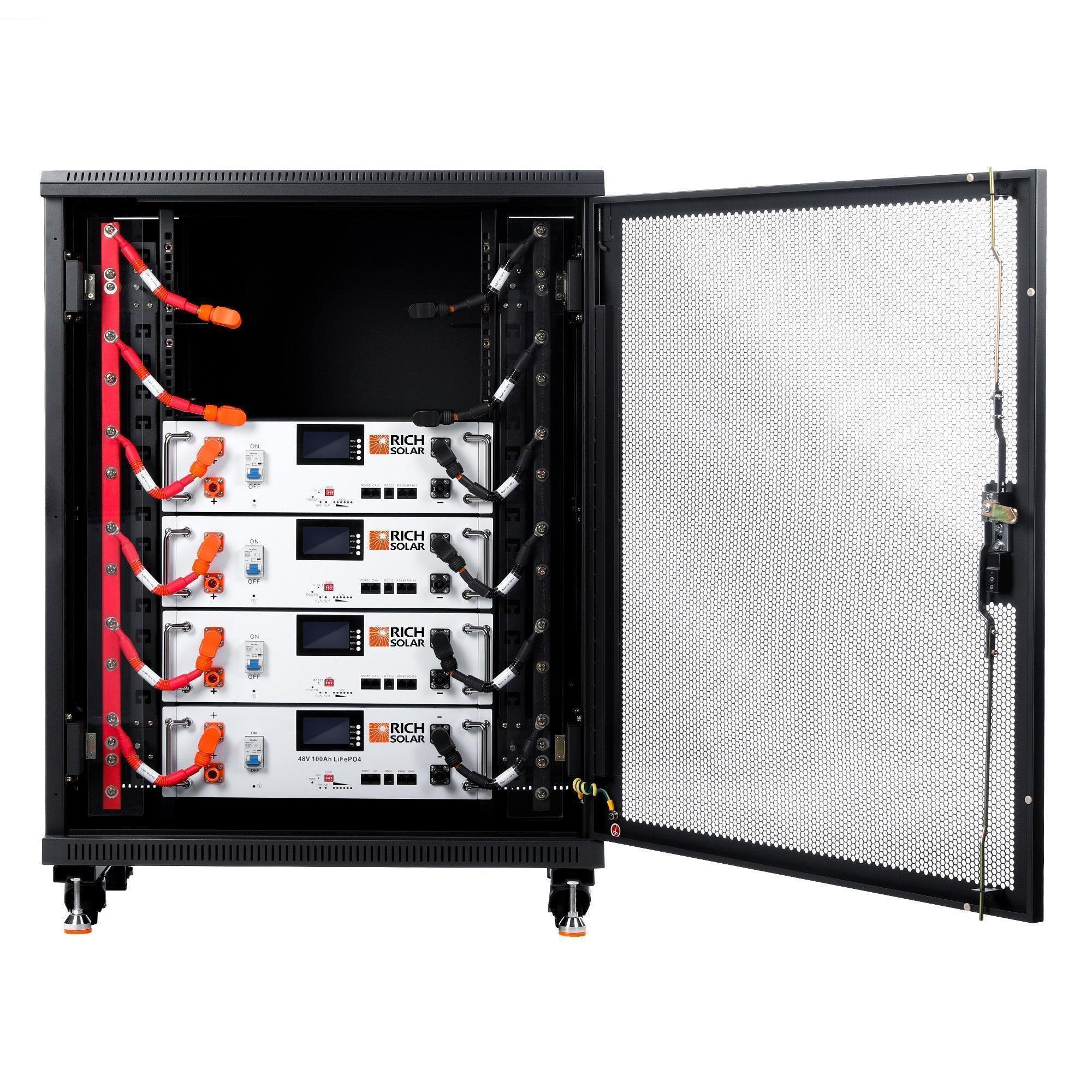

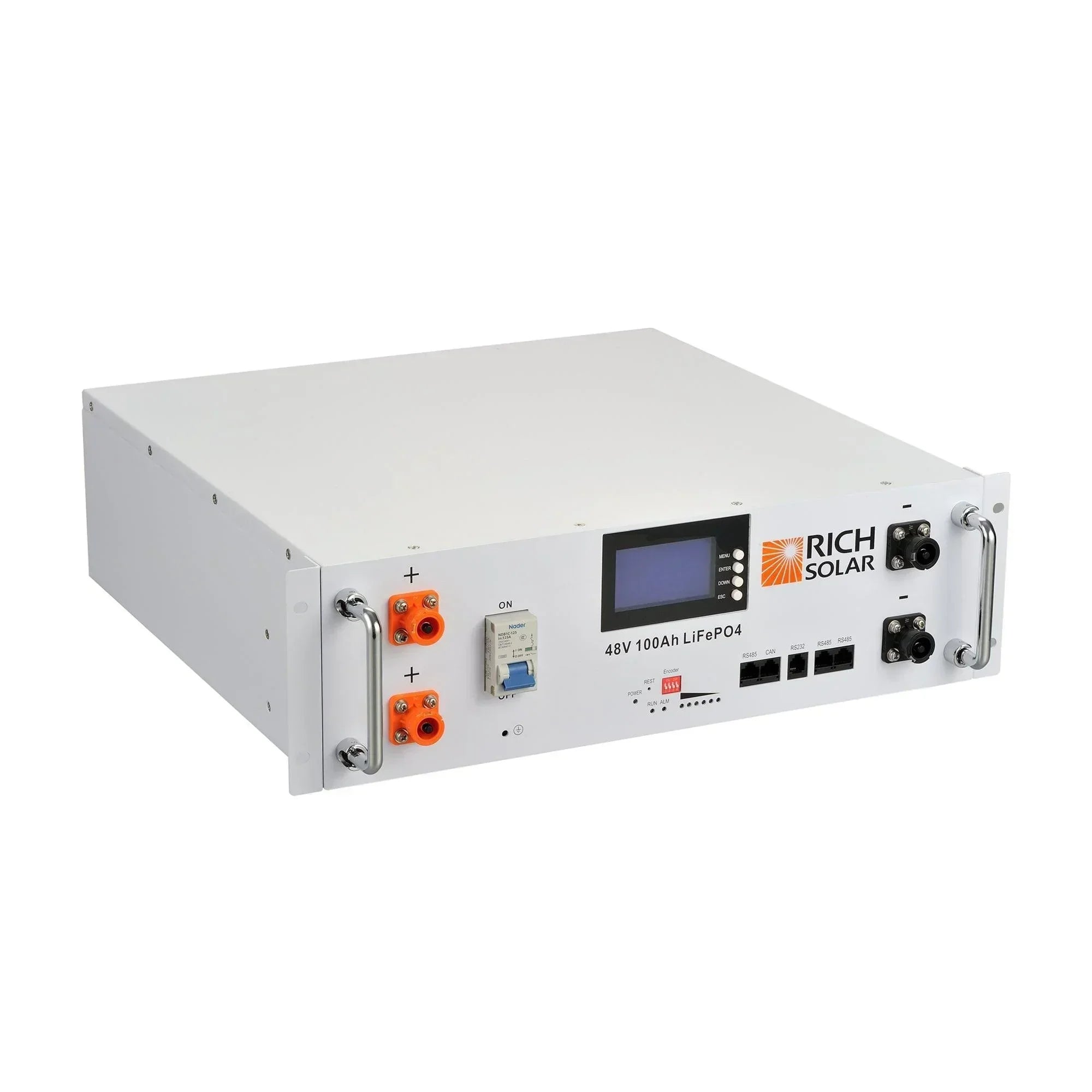

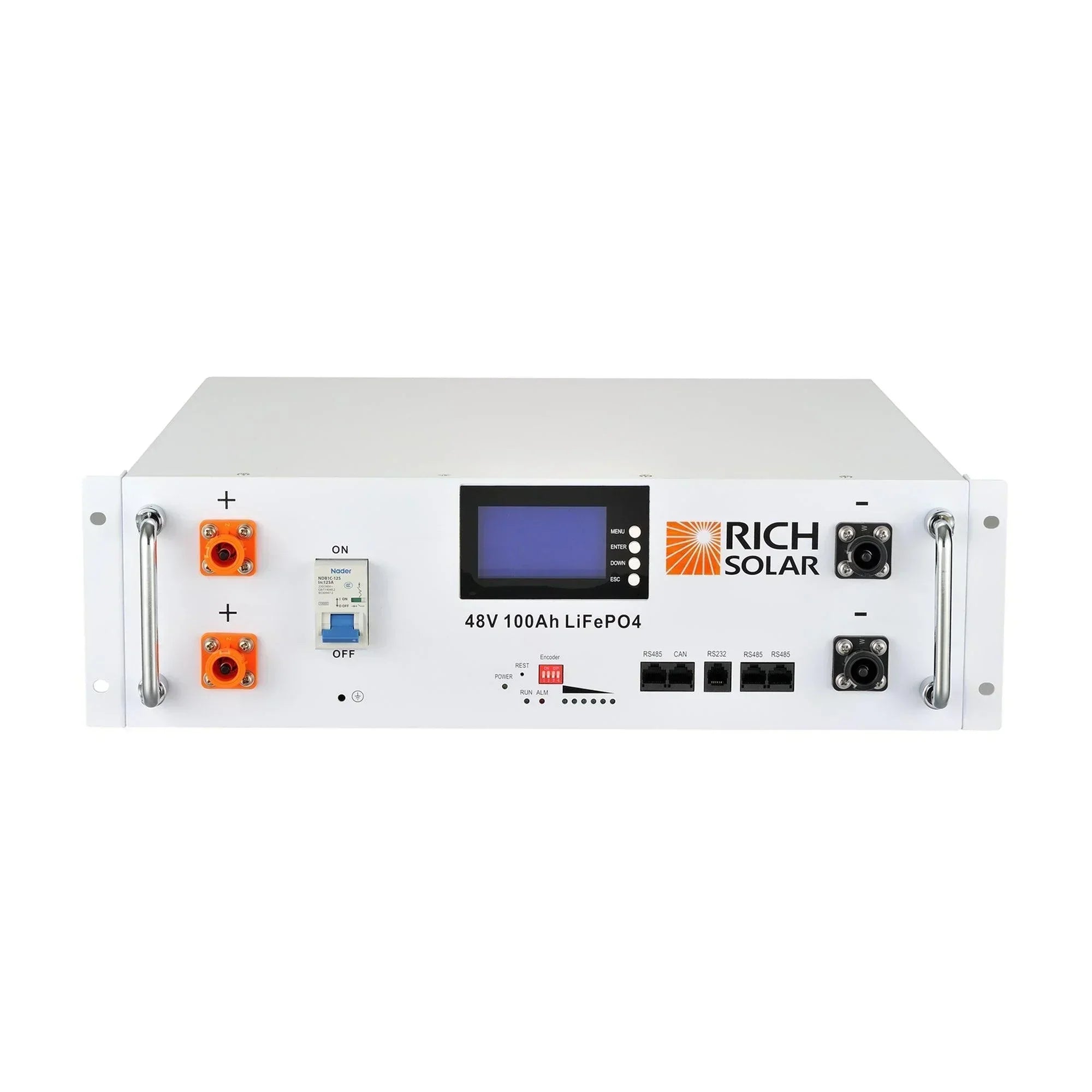

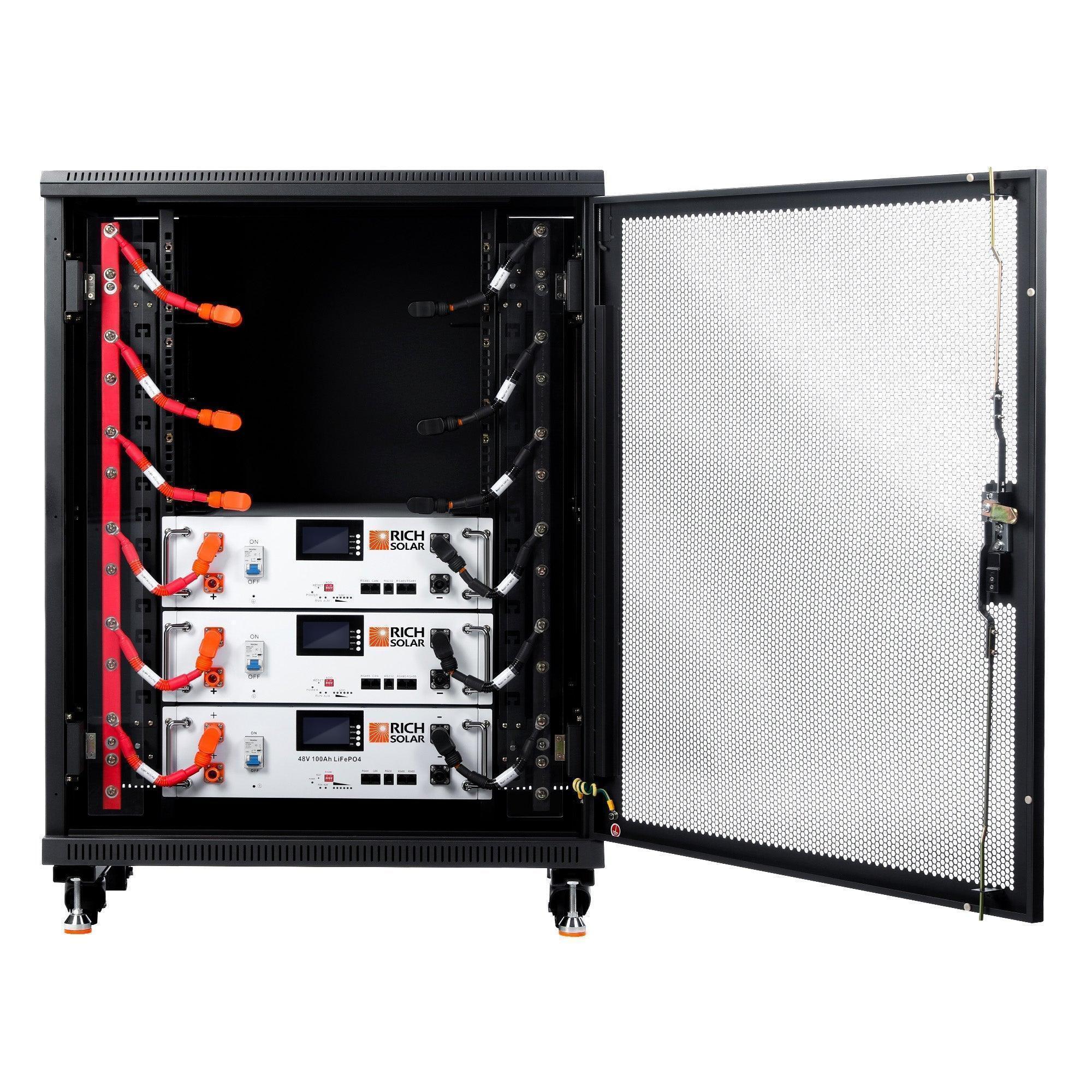

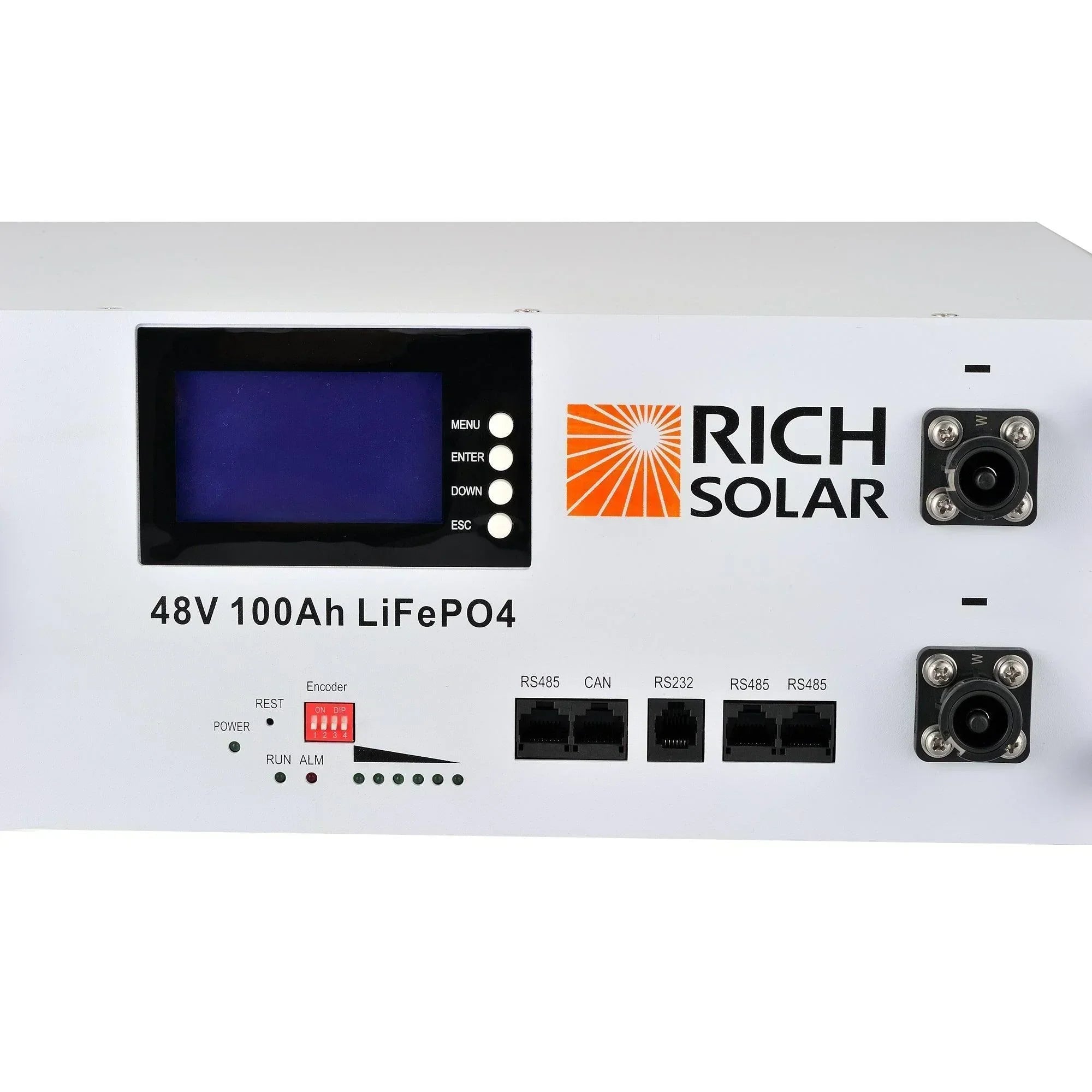

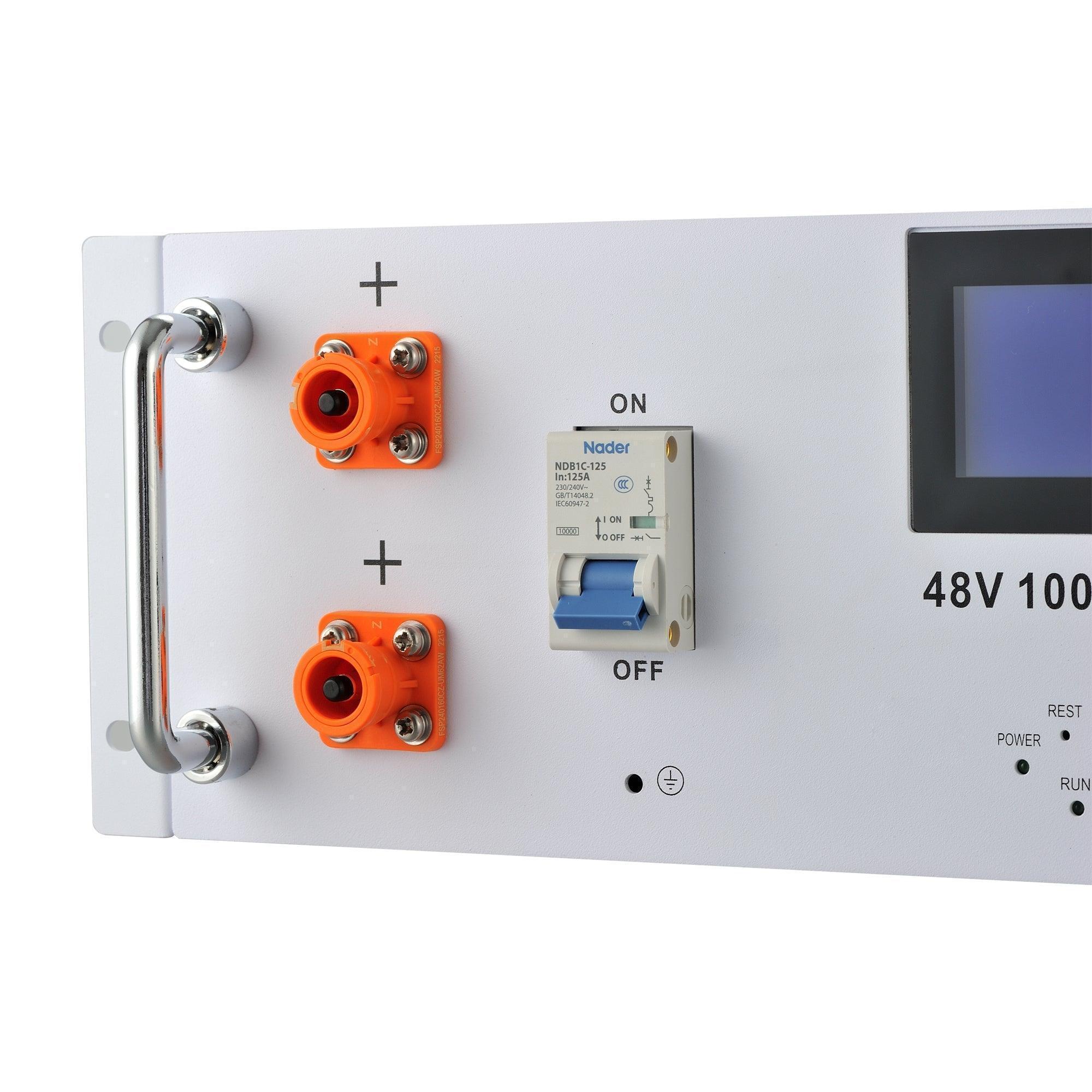

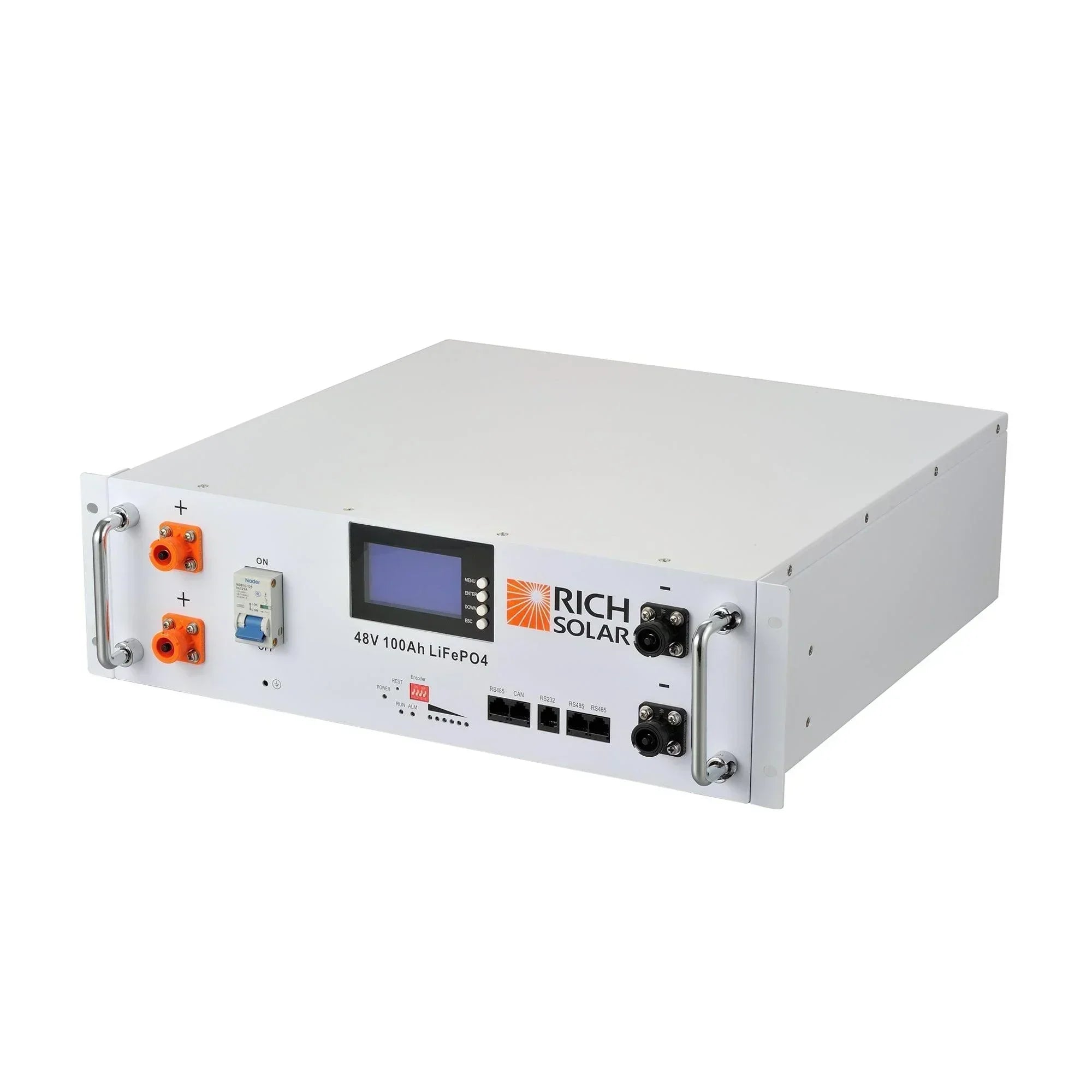

RICH SOLAR 48V 100Ah lithium iron phosphate battery (Alpha 5 Server) has a much longer cycle life capacity, and is easier to maintain compared to other battery technologies. The LiFePO4 technology has better thermal and chemical stability, which improves battery safety and packed with power in a small and lightweight footprint.
Features:
BMS Safety Protection
Included:

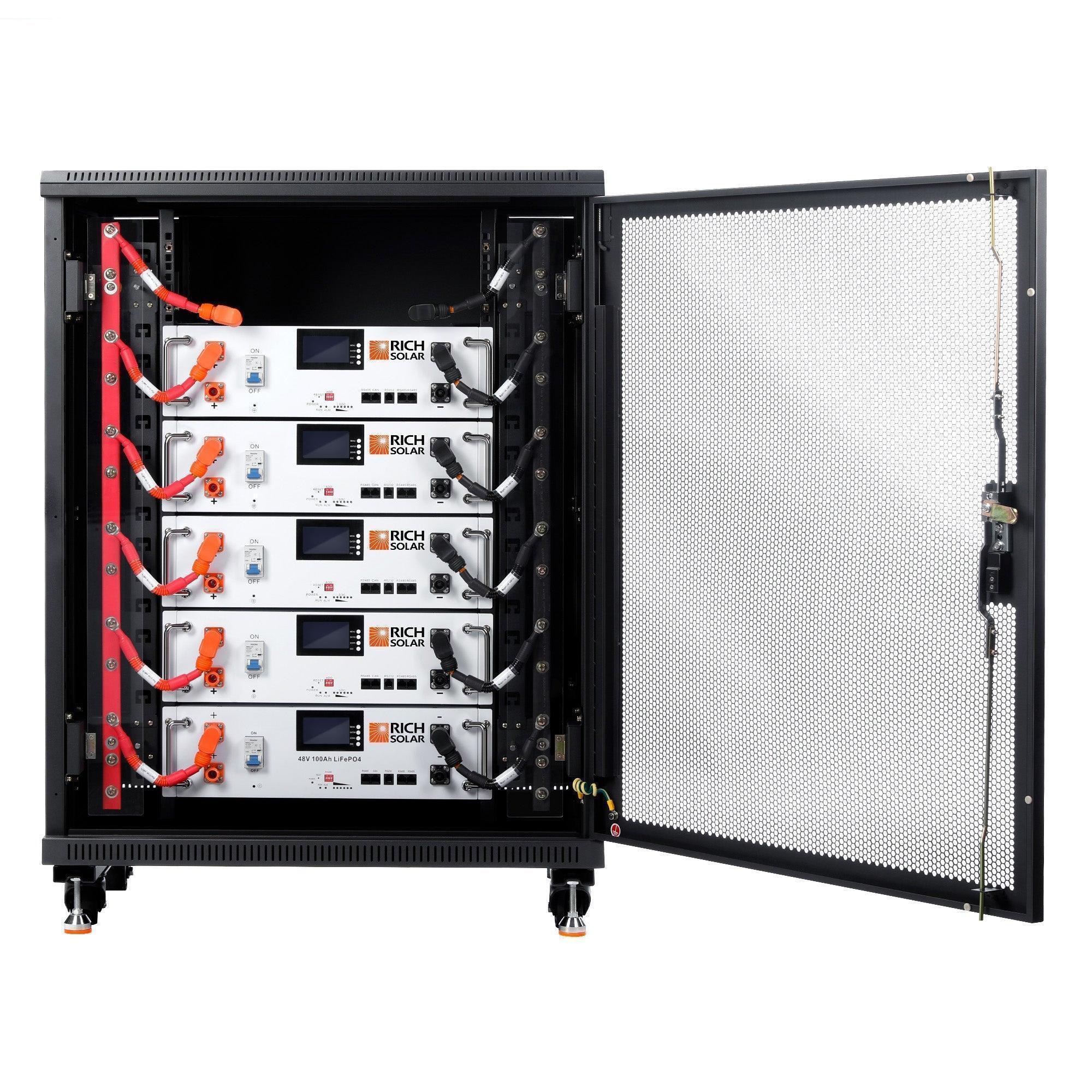

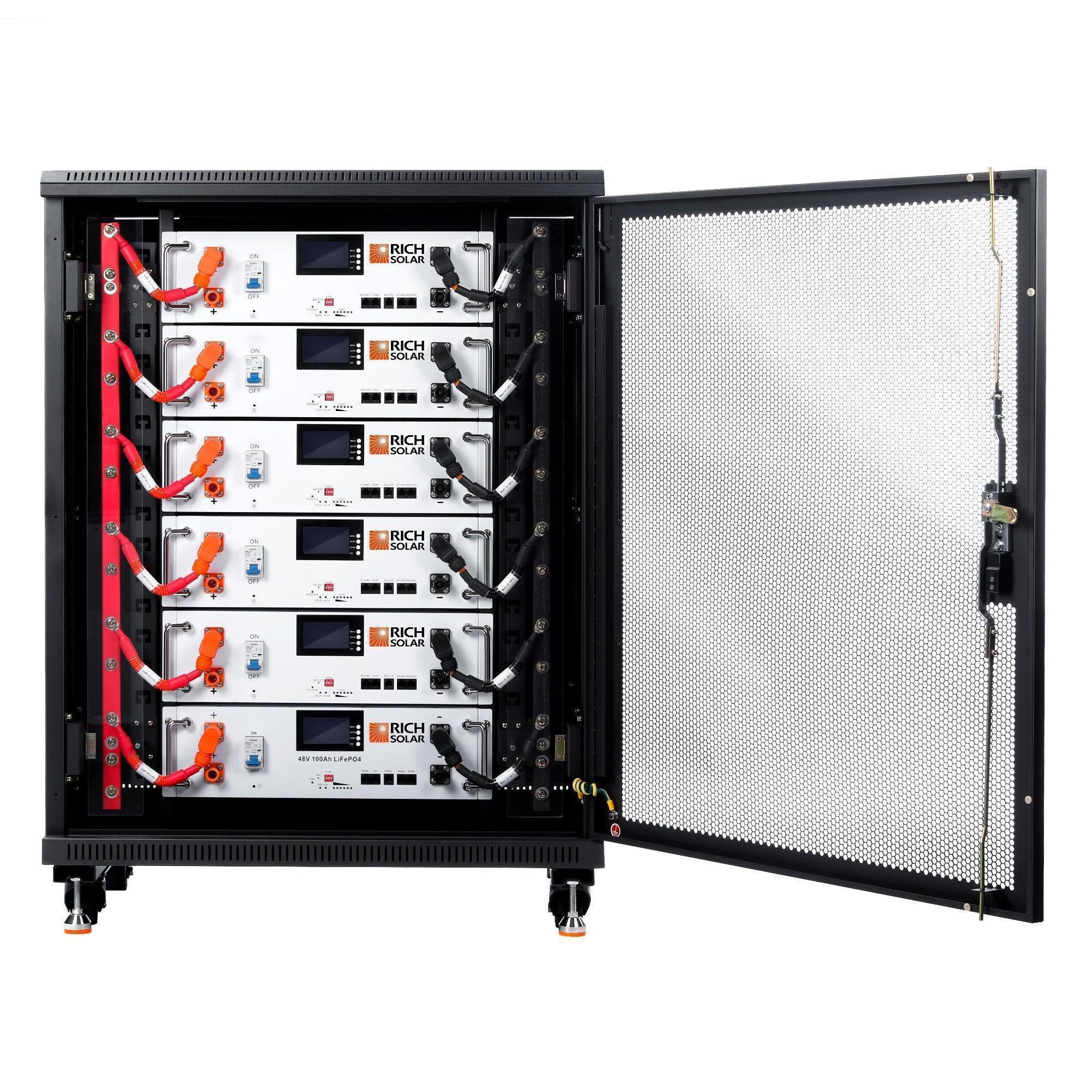

Battery Server Rack
Nominal Voltage:
48V
Nominal Capacity (at .5C, 77°F):
100Ah
Minimum Capacity (at .5C, 77°F):
99.5Ah
Expected Cycle Life:
>7000 cycles w/1C charge and discharge rate, at 77°F, 80% DOD
Charge Method:
Smart charger, constant current, constant voltage
Operating Voltage:
48 V
Capacity:
100 Ah
Energy:
4800 Watt Hours
Charge Voltage Range (Max 52.5V):
52.0 -52.5V
Continuous Charge Current:
100A
Continuous Discharge Current:
100A
Over Voltage Shutdown:
52.5 +/-0.2V
Discharge Cut-off Voltage:
42V =/- 0.5V
Self Discharge (stored at 50% SOC):
<3%/month
Waterproof:
IP65
Charge Temperature:
32° F to 113° F
Discharge Temperature:
-4° F to 122° F
Storage Temperature:
-4° F to 122° F
BMS High Temperature Cut-off:
149°F
BMS Low Temperature Cut-off:
32°F
Battery Dimensions(L*W*H):
19x 17.7x 5.2 in
Weight:
42kg/92.6 lb

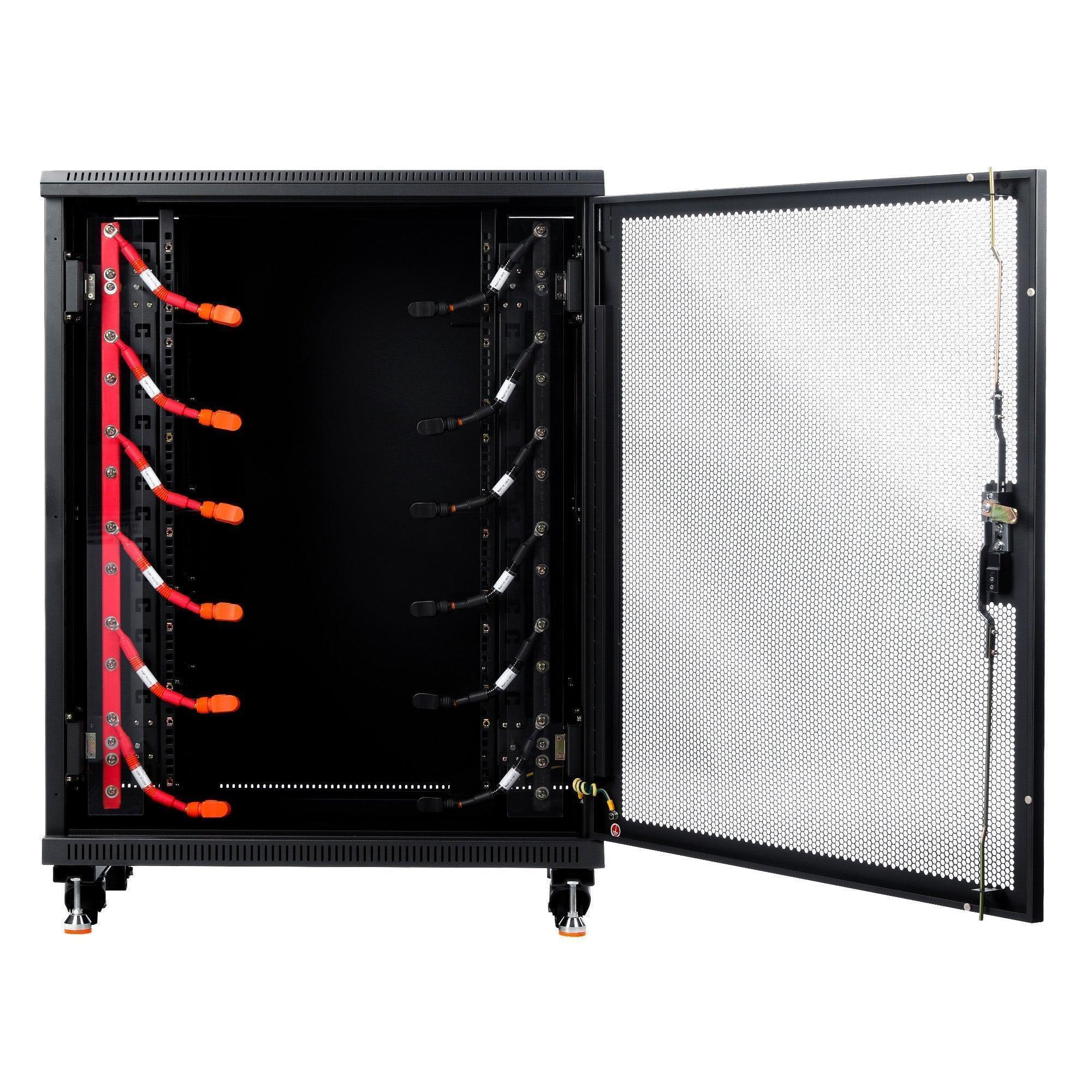

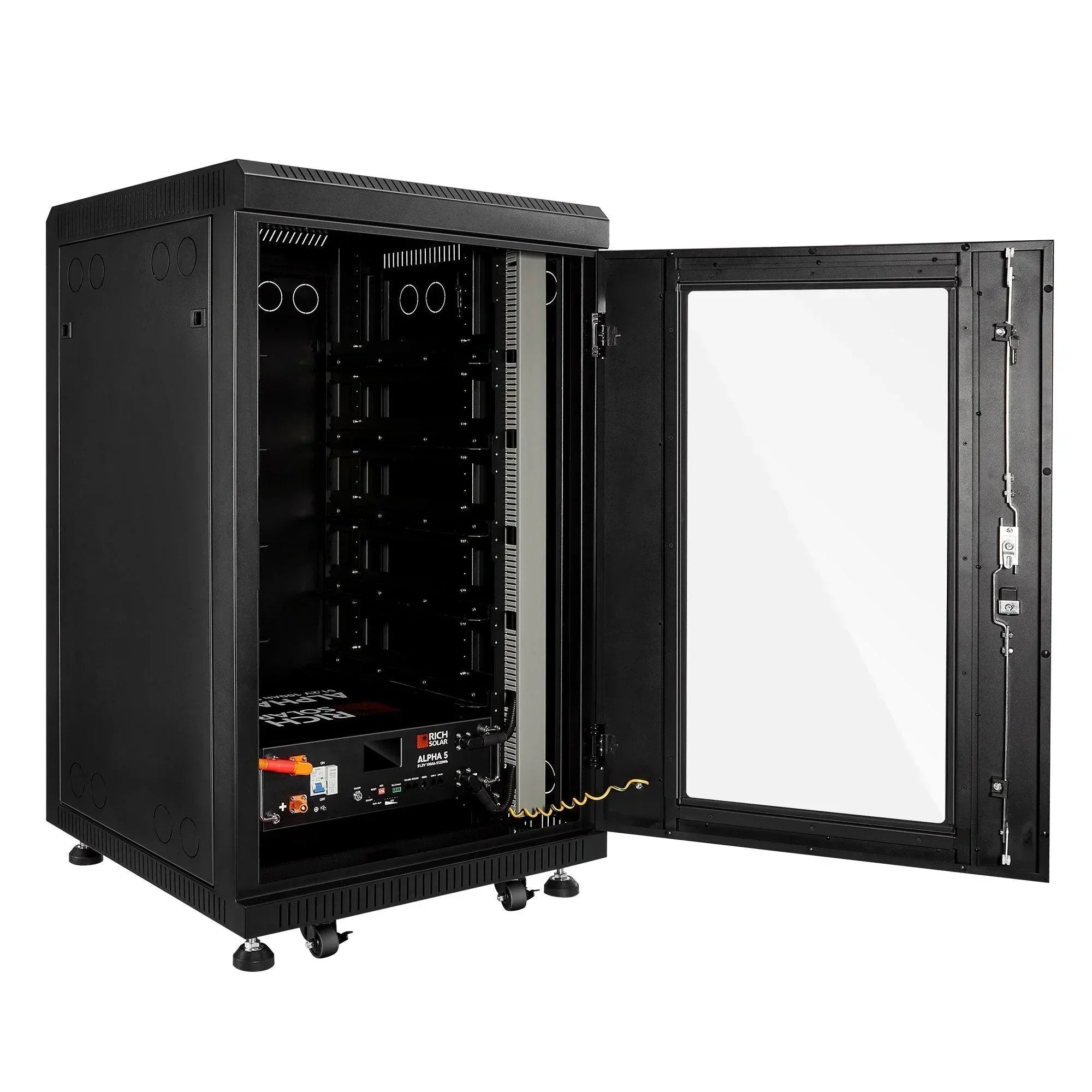

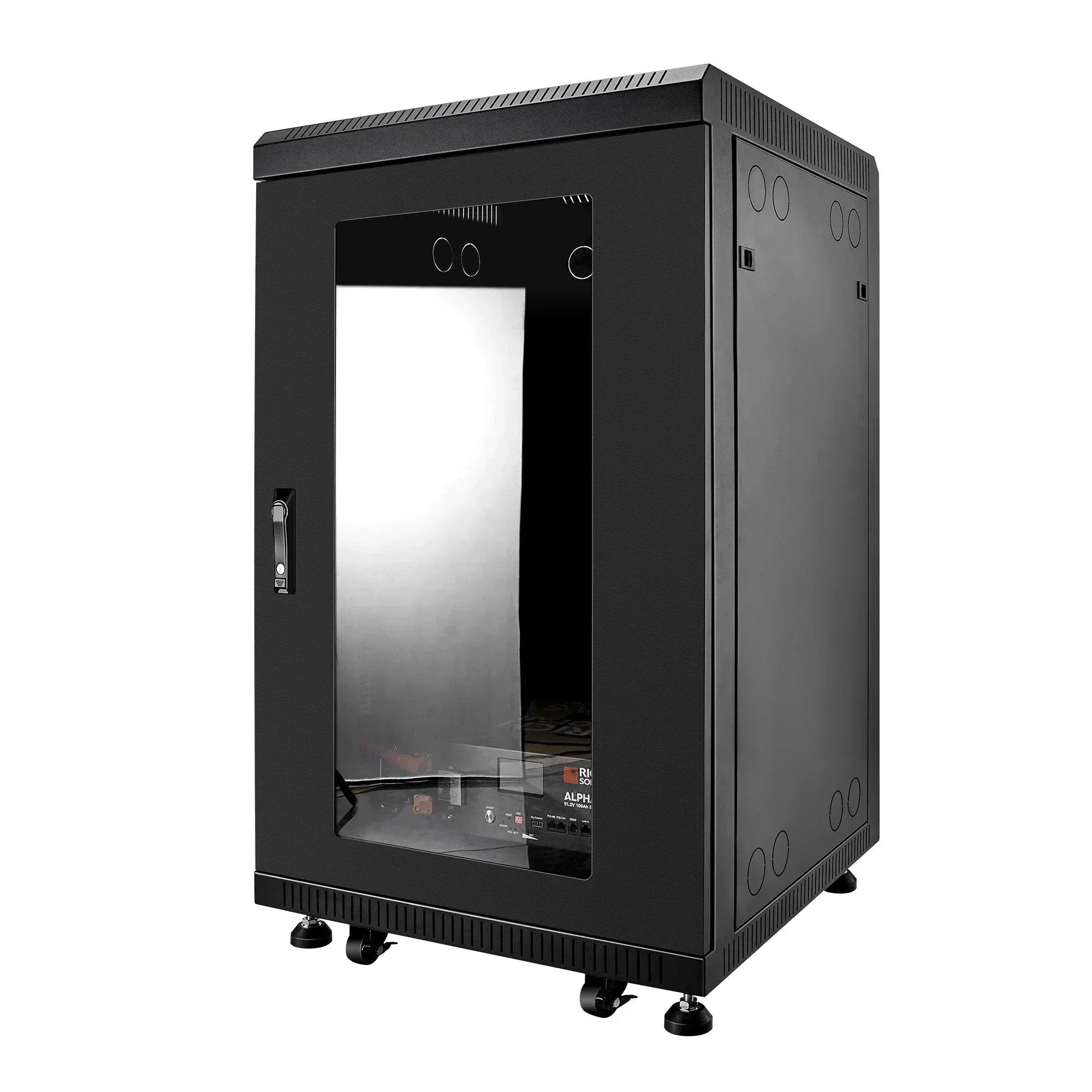

Battery Server Rack Dimensions(L*W*H):
27.6 x 27.6 x 44 in
Weight:
196 lb
Thickness:
Frame 1.5mm, top/bottom plate 1.2mm, column 2.0mm, mesh door plate 1.2mm, side plate (screw fixed) 1.0mm, L-shaped bracket 2.0mm;
Material:
High-quality cold-rolled steel plate
Protection level:
IP20
Over charge detection voltage:
3.9 +/- 0.05V
Over charge detection delay time:
0.96 – 1.4s
Over charge release voltage:
3.80 +/-0.05V
Maximum charge voltage:
3.65 +/-0.05V
Over discharge detection voltage:
2.0V +/- 0.05V
Over discharge detection delay time:
115-173ms
Over discharge release voltage:
2.3V +/- 0.10V
Over Current Protection Over current detection delay time:
9 +/- 2ms
Over current release condition:
Cut load
Polarity Reverse Protection: Yes
Short Circuit Protection: Yes
Communication Ports: RS485/CAN
Warranty: 10 Year Manufacturer Defect
