Renogy Battery Voltage Sensor with Battery Ring Terminals

 DESCRIPTION
【More Accurate Voltage Sensing】 The Battery Voltage Sensor (BVS) provides a more accurate battery charging voltage to the charge controller, which allows for more precise charging stage regulation and increases overall battery performance and life.
【Works with Most Charge Controllers】 Compatible with most Renogy flagship MPPT and PWM charge controllers, including Rover 60A/100A, Rover Boost 10A, Rover Elite 20A/40A, Adventurer Li 30A charge controllers as well as the 30A/50A DC-DC MPPT battery chargers.
【Compatible with Various Batteries】 Works with 12V, 24V, 36V, and 48V battery banks as well as lead-acid (Flooded, Sealed, and Gel) and lithium iron phosphate batteries.
【Simple Installation】 Plug in the connector to your charge controller, connect the M8 ring terminals to your battery bank, and you're ready to go!
【Certified BVS】 Made of high-quality materials, the BVS is UL, ETL, CE, RoHS, and FCC compliant. This solar-powered device is the perfect accessory to enhance the performance of your solar solution system.



The Battery Voltage Sensor (BVS) is the perfect solution by providing a more accurate battery voltage to the controller and allowing it to adjust the charging stage more precisely resulting in overall extension of your battery life. In certain applications with long line runs, there can be a difference between the voltage measured at an MPPT/PWM solar charger’s terminals and that measured at the battery terminals. This BVS provides a more precise voltage from the battery terminals. It's a plug-and-play solution for your solar system.

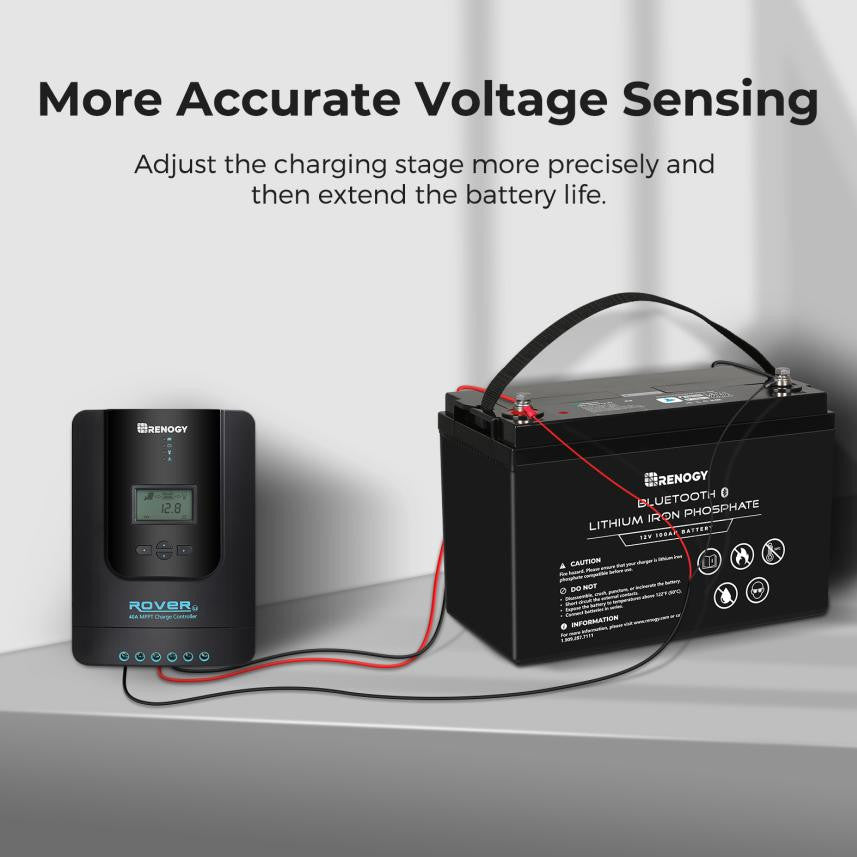

More Accurate Battery Voltage

This Battery Voltage Sensor provides a more accurate battery charging voltage to the charge controller. It allows the controller to adjust the charging stage more precisely, thereby improving overall performance and longevity of the battery.

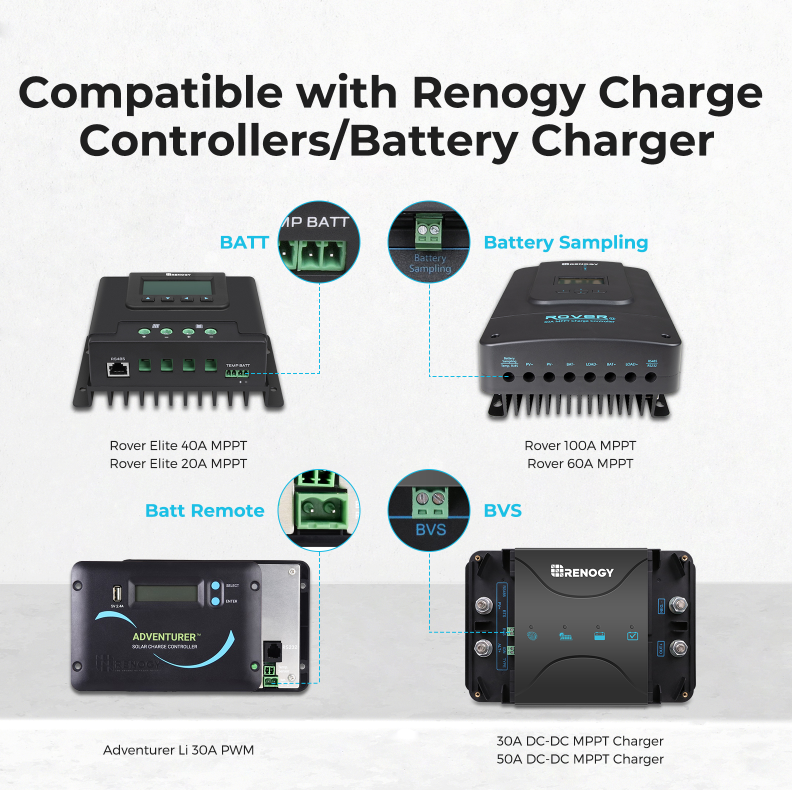

Compatible with Renogy Controllers and Chargers

Works with Rover 60A/100A, Rover Boost 10A, Rover Elite 20A/40A, Adventurer Li 30A charge controllers as well as the 30A/50A DC-DC MPPT battery chargers.

- Rover 60A/100A: "Battery Sampling" port

- Rover Boost 10A and Rover Elite 20A/40A: "BATT" port

- Adventurer Li 30A: "Batt Remote" port

- 30A/50A DC-DC Charger w/ MPPT: "BVS" port

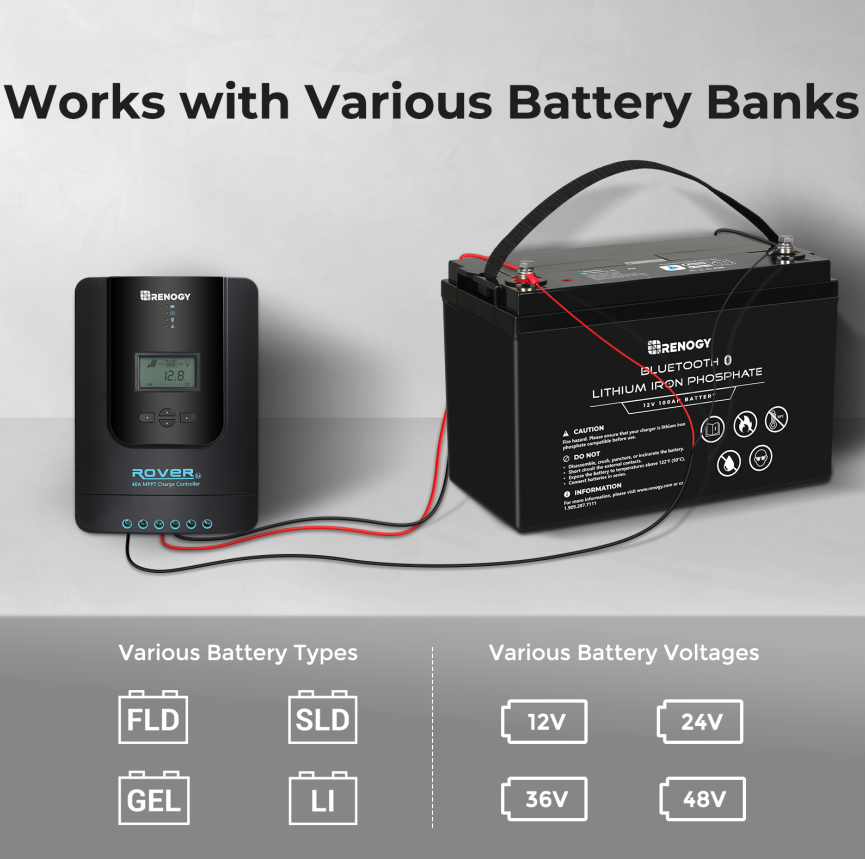

Works with Most Batteries

- Compatible with 12V, 24V, 36V, and 48V battery banks as well as lead-acid (Flooded, Sealed, and Gel) and lithium iron phosphate batteries.

- Works with all Renogy Lithium 12V/48V, AGM 12V, and GEL 12V batteries.

Step 1: Assemble the Green Terminal

1) Position the green terminal block as shown in the picture.

2) Loosen the terminal block screws on top by rotating it counterclockwise.

3) Connect the positive pin - Left, using the Red Wire. Tighten the screws by rotating clockwise.

4) Connect the negative pin - Right, using the Black Wire. Tighten the screws.

Step 2: Connect to Battery Terminals

Connect two M8 ring terminals to the battery. Red for the positive end, black for the negative.

Step 3: Connect to the Controller/Charger Port

- Simply plug the green terminal block into the compatible battery voltage sensor port of your charge controller or battery charger.

- Verify successful connection by making sure that the green connector is plugged firmly in the port and using a multi-meter to read the respective battery terminals on the screws.

NOTE
  • If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or contact us for troubleshooting assistance.
  • More questions about your off-grid power system? Learn more from Renogy Learning Center!

RV

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK

Package Includes

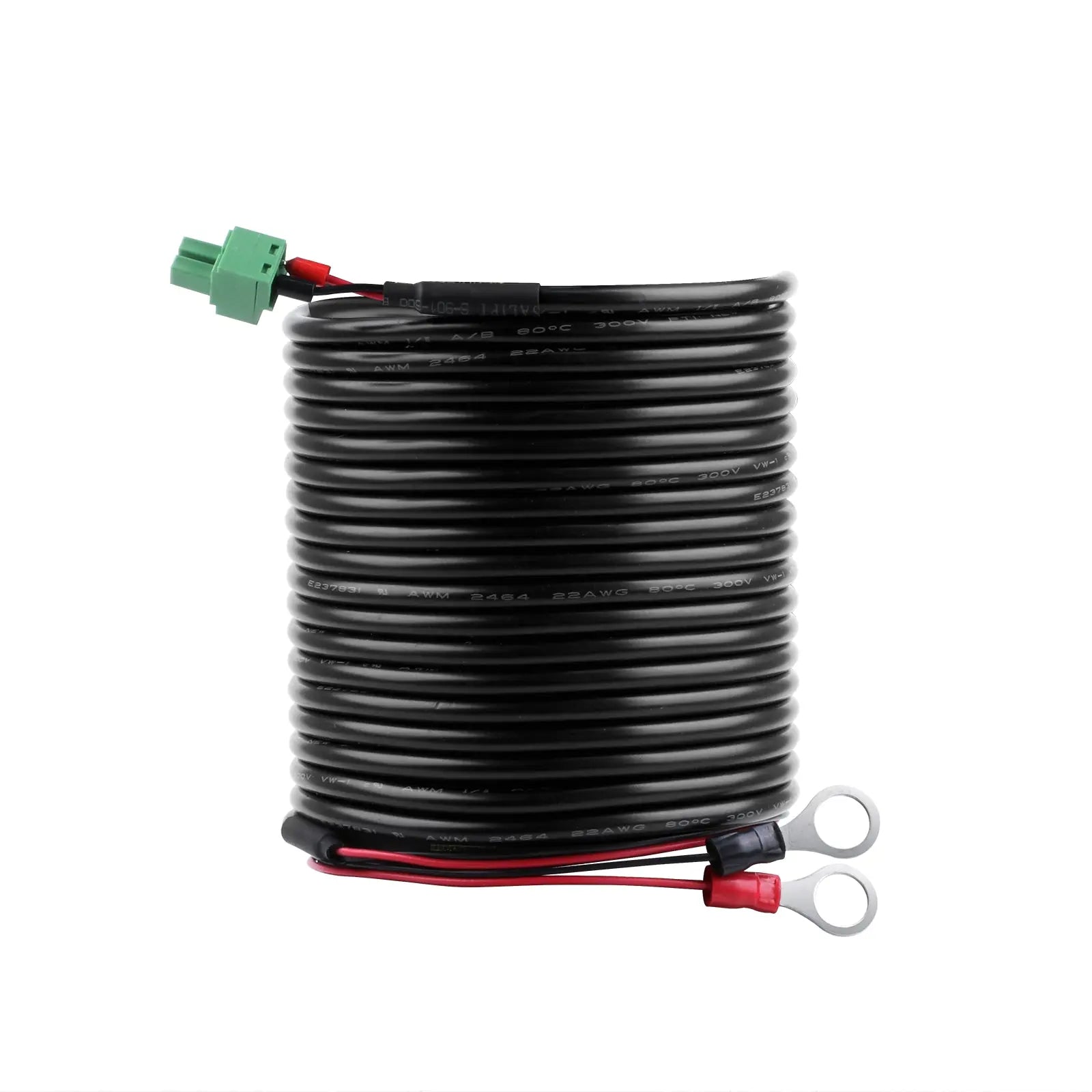

Battery Voltage Sensor with Battery Ring Terminals

1 x




Battery Voltage Sensor with Battery Ring Terminals

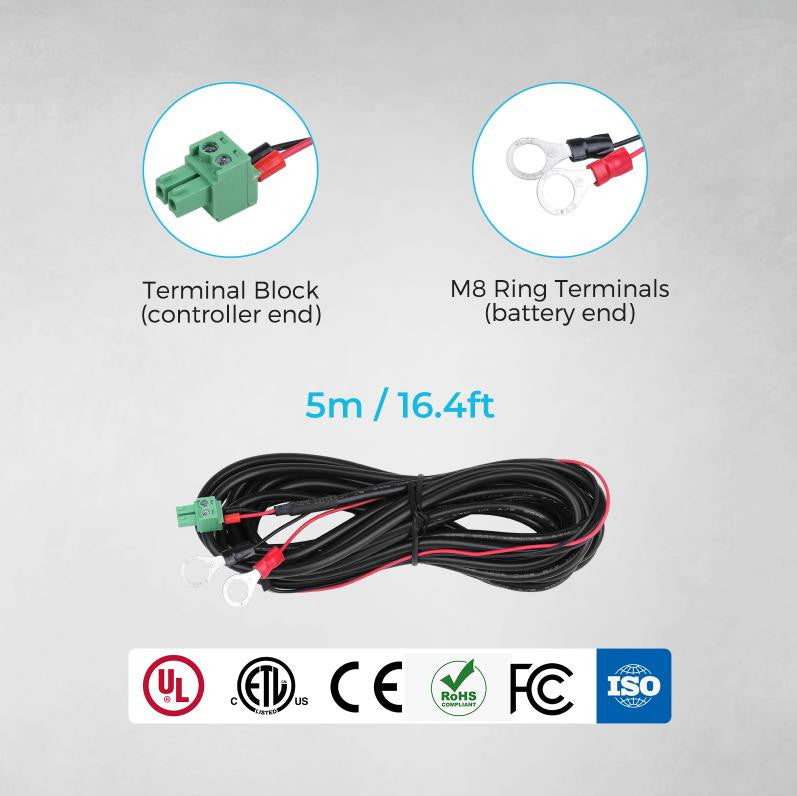

Nominal Voltage: 12V/24V/36V/48V Battery Banks Length: 16.4 ft (5 m)
Terminals: M8 (Approx. 5/16") Ring Terminals Weight: 0.44 lbs (0.2 kg)



Warranty Information

Accessories 1-year material and workmanship warranty

Is this compatible with the Adventurer Charge Controller?


Yes, it works with Renogy Adventurer Li- 30A PWM charge controller. The connection port is "Batt Remote".

How long is it?

It's 16.4 ft (5 m).
Why do I need this battery voltage sensor?


In certain applications with long line runs, there can be a difference between the voltage measured at an MPPT/PWM solar charger’s terminals and that measured at the battery terminals. This Battery Voltage Sensor provides a more accurate battery voltage to the controller and allows the controller to adjust the charging stage more precisely, resulting in an overall extension of your battery life.

More questions about your off-grid power system? Learn more from Renogy Learning Center!
