Key Feature
Boosts 12V/24V solar panels to charge 36V/48V batteries.
Increases driving range for EVs, golf carts, scooters, etc.
MPPT tech: 99% tracking and 90% charge efficiency.
AGM, Gel, Flooded, Lithium presets, plus custom user mode.
Overcharge protection, reverse polarity protection, etc.
Add Bluetooth for remote monitoring via DC Home App.
Add Renogy ONE M1 for smart, real-time energy monitoring.

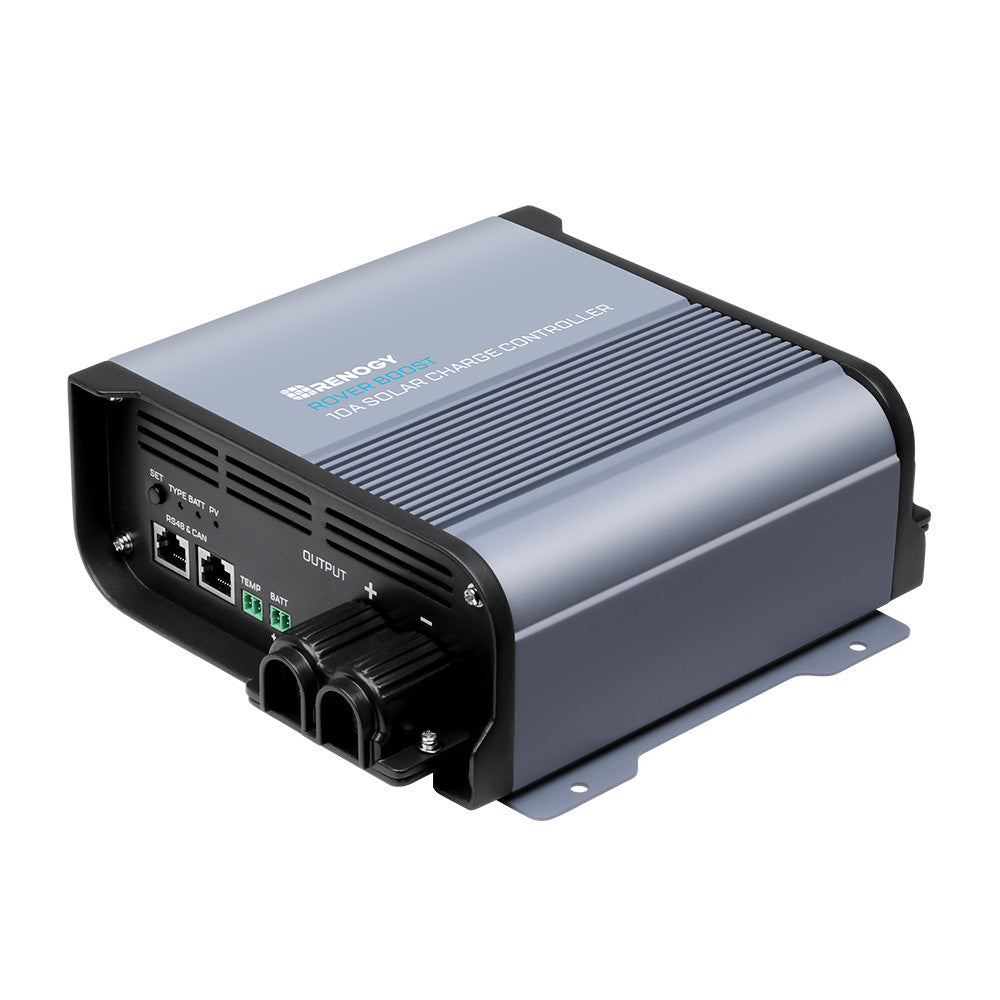

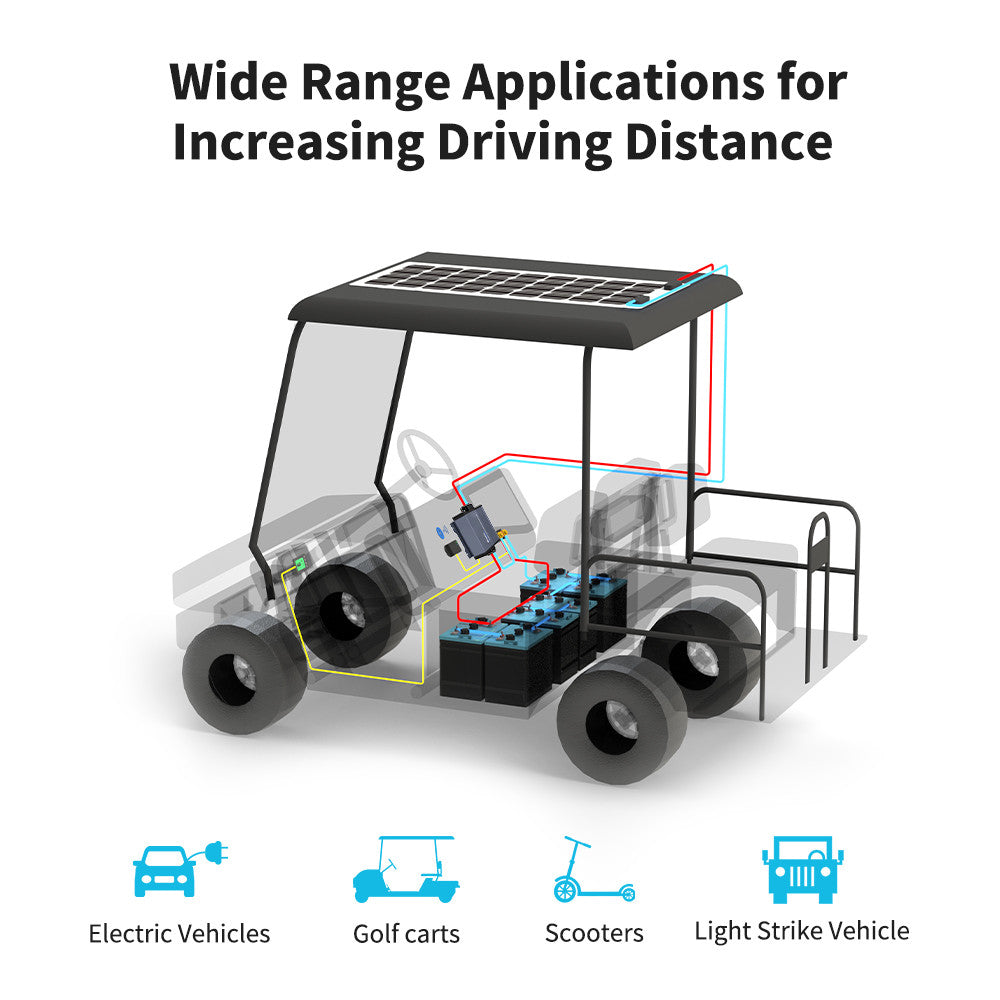

The 10A Rover Boost charge controller is a one-of-a-kind solution for charging 36V or 48V battery banks using 12V or 24V low voltage solar panels. It has been especially designed for golf carts and electric vehicles to increase both driving range and battery life by harnessing solar power. The Rover Boost increases panel voltage with the built-in advanced MPPT technology, maintaining high-speed tracking for maximum performance. Compact yet powerful, this unit is particularly suitable for narrow spaces and requires less setup. Pre-programmed for lead-acid and lithium batteries, it also supports the Renogy Bluetooth monitor for remote reading and adjusting via a smartphone.

99% MPPT Charging Efficiency

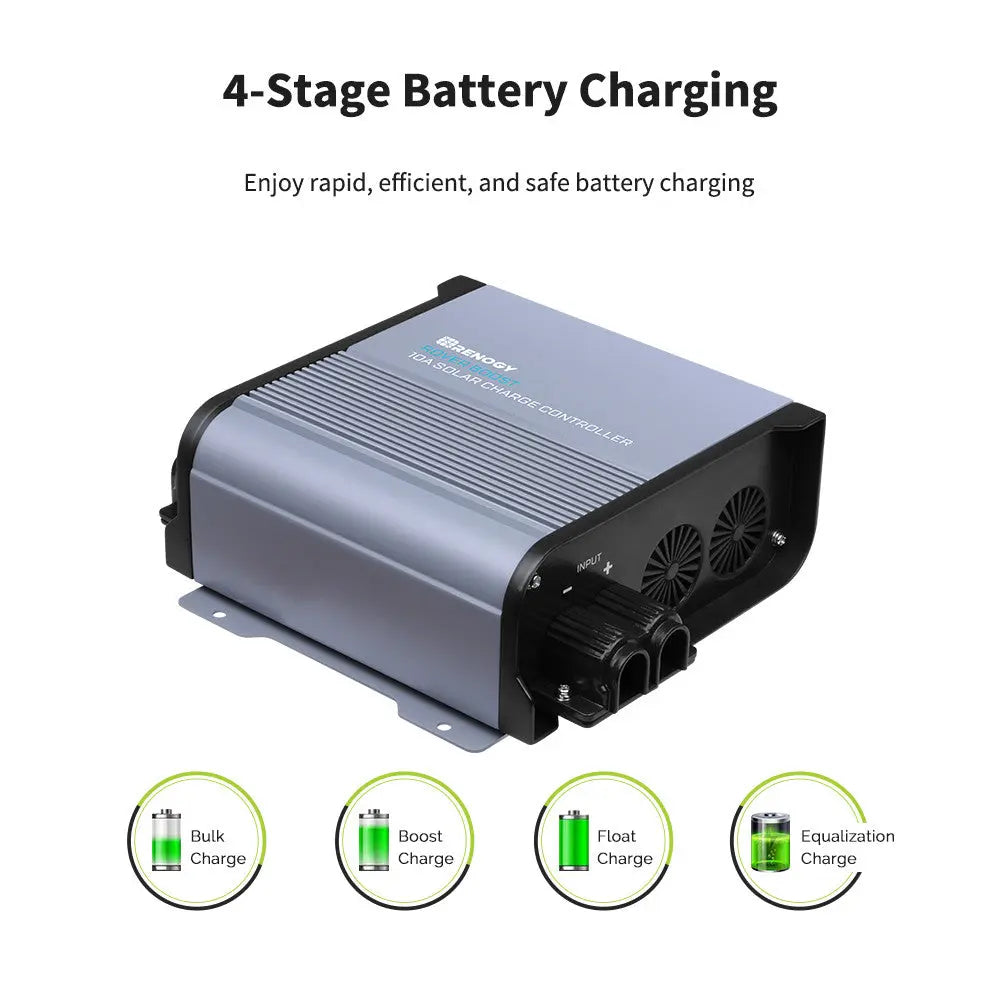

The advanced MPPT technology delivers a minimum of 99% tracking efficiency and 90% charge conversion efficiency, ensuring optimal battery charging. With a 4-stage charging process (Bulk, Boost, Float, and Equalization), it provides efficient and precise charging for various battery types.

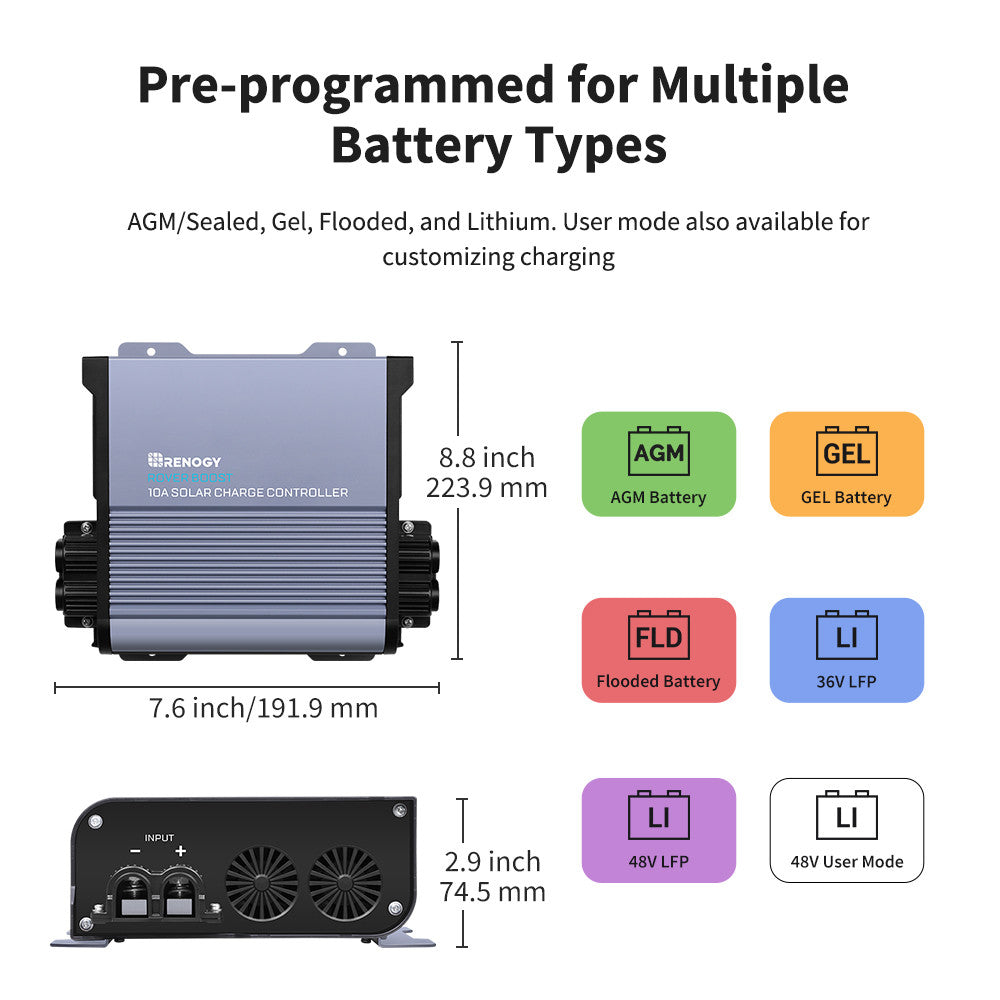

36V/48V Automatic System Recognition of Lead Acid Batteries

4-preset battery charge profiles for AGM/Sealed, Gel, Flooded, and Lithium. User mode also available for a wide variety of applications. User mode also available for customizing charging.

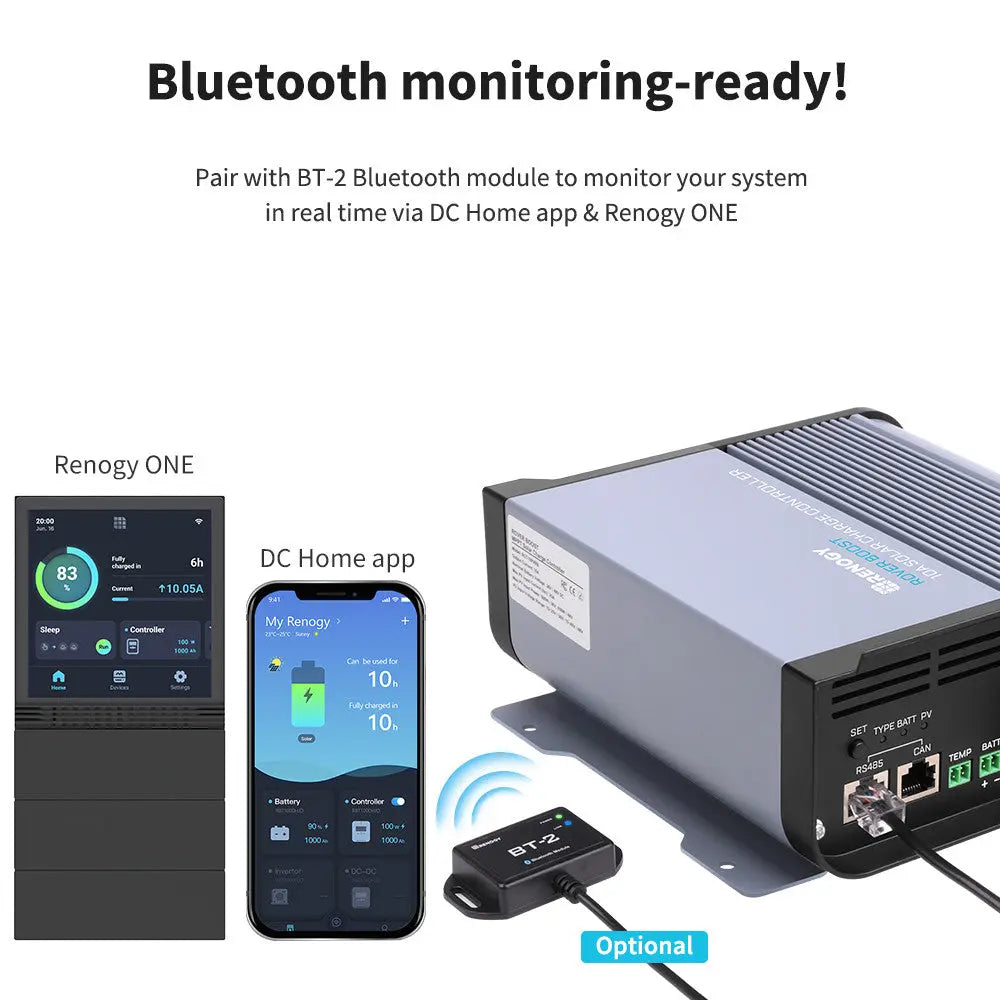

Real-Time Bluetooth Monitoring

Enhance your system with the Renogy ONE M1 by connecting it to the BT-2 Bluetooth Module (sold separately). This integration enables Wi-Fi connectivity, allowing your energy status to be uploaded to the cloud while you're on the go. Monitor your system in real-time from anywhere using your phone.

● SKU: RCM-BT2

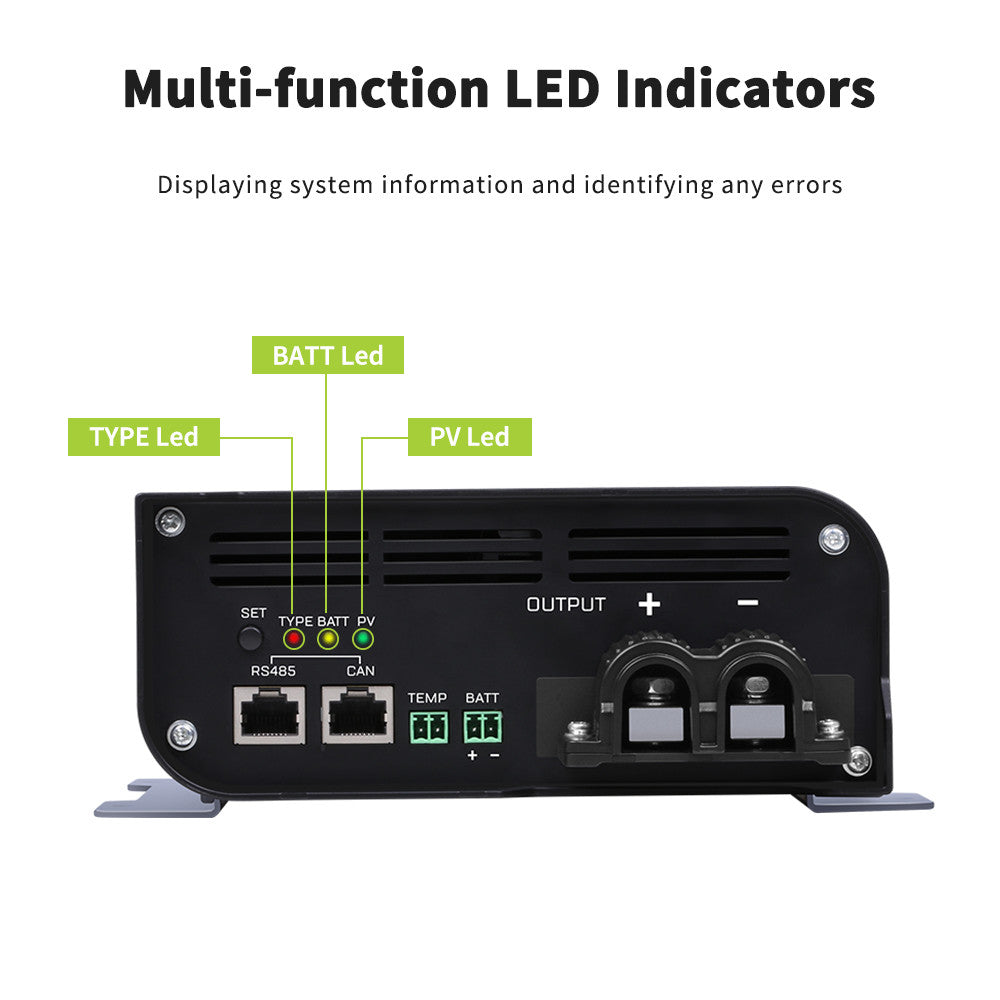

LED Indicators

Multi-Function LEDs display system information and identify any errors.

Optional: Remote Temperature Sensor

Remote temperature sensor to active temperature compensation function of solar charge controller

● SKU: RTSCC

Optional: Renogy Voltage Sensor

Accurate voltage sensing enhances overall battery performance and health, ensuring efficient charging and preventing damage from overcharging or undercharging.

● SKU:RVSCC

NOTE

If you have any questions regarding this product, please call us at 1 (909) 287-7111 or or submit a ticket for troubleshooting assistance.

More questions about your off-grid power system? Learn more from Renogy Learning Center!


RV

MARINE

CAMPING

OUTDOOR

CABIN

TRUCK


Package Includes

36V/48V Rover Boost 10A MPPT Solar Charge Controller

1 x




36V/48V ROVER BOOST 10A MPPT SOLAR CHARGE CONTROLLER (RCC10RVRB)
Electrical Parameters Environmental Data
Nominal System Voltage 36V / 48V, Auto Recognition (Non-Lithium) Protection Level IP20
Rated Charge Current 10A Operating Temperature Range -31°F ~ 149°F/ -35°C ~ + 65°C
Max. PV Input Power

PV Input Power: 500W/36V; 650W/48V

Charging Power: 450W/36V; 600W/48V

Storage Temperature Range -40°F ~ 176°F / -40℃ ~ + 80℃
MPPT Voltage Range

15 ~ 25VDC / 36V

15 ~ 40VDC / 48V

Operating / Storage Humidity 0-95% RH
Max Input Current (short-circuit, Isc) 35 A Temperature Compensation

-3mV / ℃ / 2V (Non-Lithium)

0mV / ℃ / 2V; no compensation (Lithium)

Solar Input Voltage Range (VOC)

15 ~ 25VDC / 36V

15 ~ 40VDC / 48V

Mechanical Specifications
Power Limiting Protection Up to 600W/36V; 800W/48V Dimensions 8.8 x 7.6 x 2.9 inch / 224 x 192 x 74.5mm
Battery Operating Range 30 ~ 65 VDC Weight 2.65 lbs / 1.2 Kg
Power Consumption ≤ 2W Max. Terminals Size 16 ~ 2 AWG, M6-12x1
Ground Type Common Negative Lug (M3) Certifications
Battery Types AGM/Sealed, GEL, FLOODED, LFP, USER* CE and RoHS compliant YES

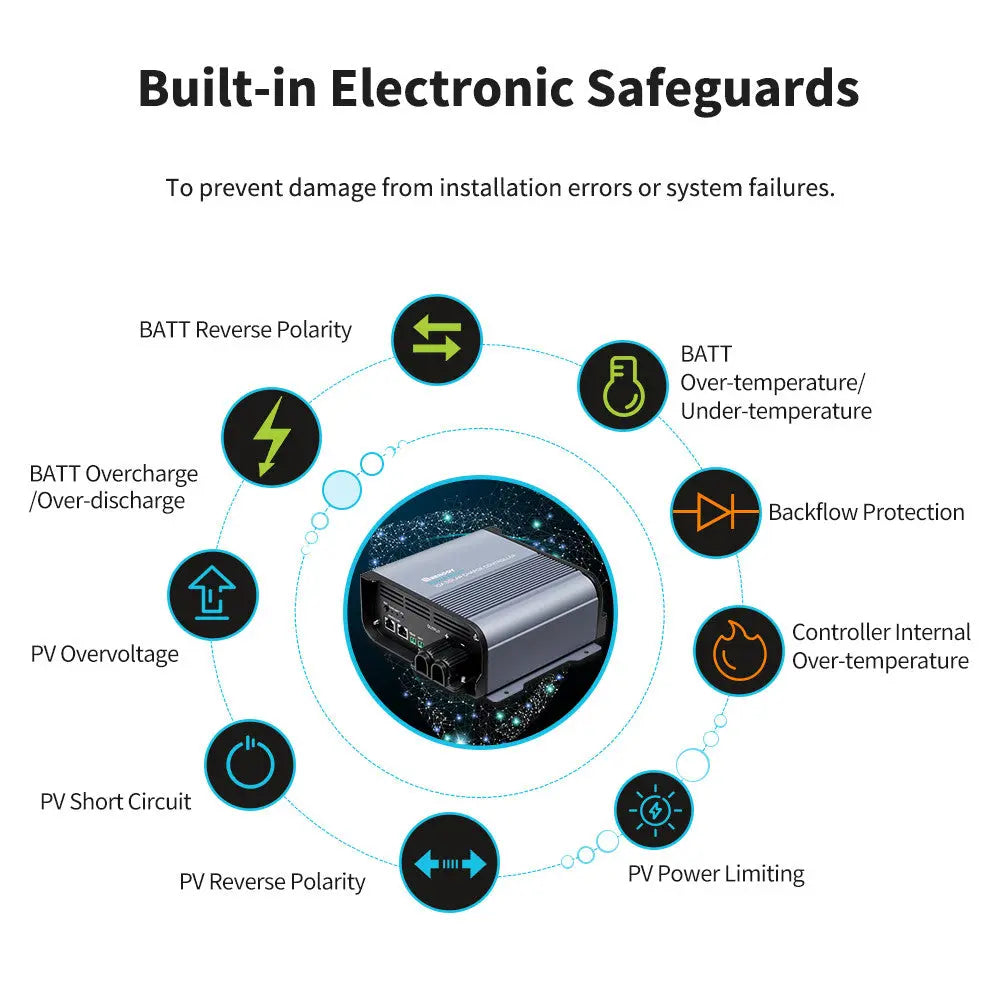

Electronic Protections Battery overcharging, Battery over discharge, Battery reverse polarity protection, PV reverse polarity, PV Reverse flow, PV short-circuit protection, Controller internal over-temperature protection, Charging over-current protection FCC Class B Part 15 Compliant YES
Optional Accessories Warranty
Remote Monitor Bluetooth Module BT-2 (RS485 / CAN bus signal) Material and workmanship warranty 2 Year

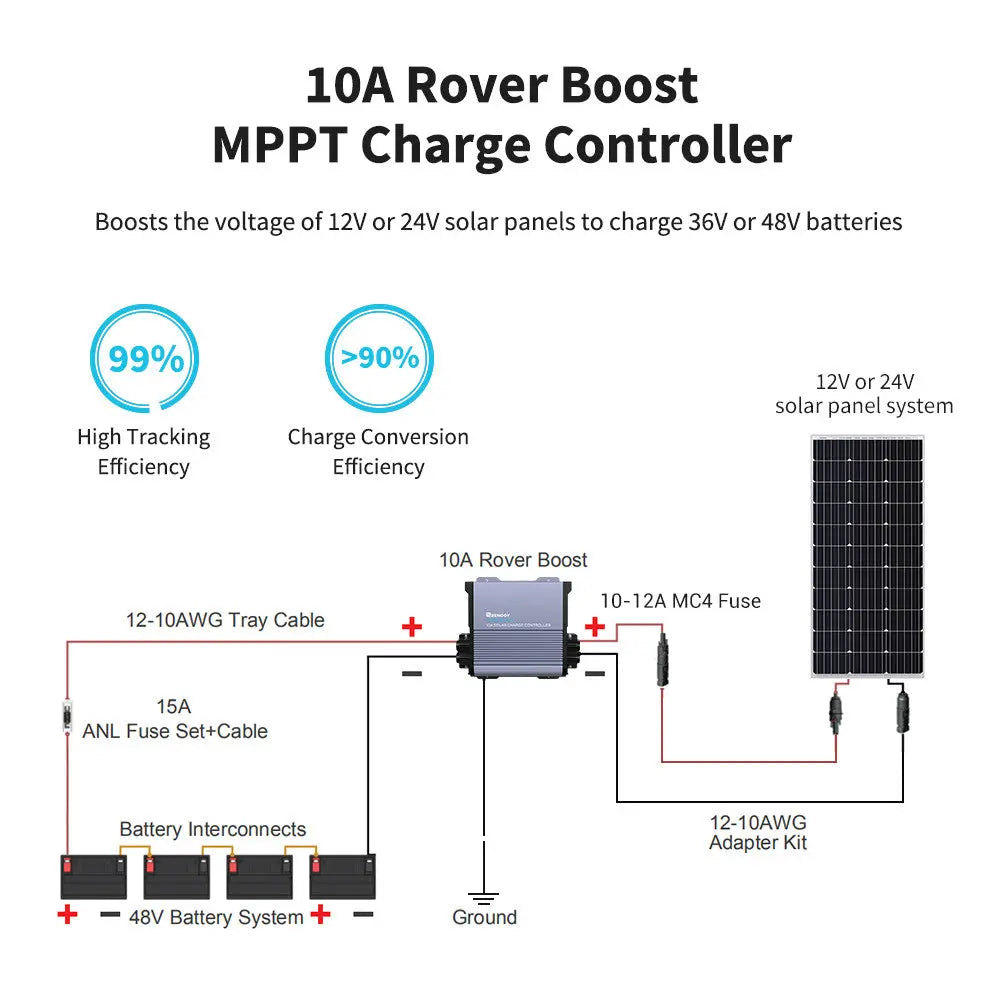

1.How Do I Charge a 36V/48V Battery Bank With a 12V Solar Panel?


To charge the 36V/48V battery bank with either PWM or MPPT charge controller, the solar panel voltage should be more than 36V/48V. But in some cases, you may only have just one single 12V or 24V solar panel to charge a 36V or 48V battery bank, especially when you would like to charge batteries in places with limited space for solar, such as a golf cart. The Renogy 10A Rover Boost charge controller is a unique solution to boost the lower solar voltage to charge a high voltage battery bank.

2. I have 2 x 100W panels, can I use both of them for this controller?


Yes, the rated solar input is 500W for 36V batteries and the solar input can not go above 25VDC. The rated solar input is 650W for 48V batteries and the solar input voltage can not go above 40VDC. Connect the panels in parallel when using this controller.

3. In what order do I connect my system, and what operations do I have to do?



The off-grid solar system includes the solar panels, charge controller, batteries, inverter, Bluetooth module, and wirings.

First, the battery should be hooked up to the charge controller with tray cables. Second, then connect your solar panel to your charge controller with adaptor kits.

After the wiring connections, you will need to set your battery type using the SET button, and then the controller can take care of the rest. The LED Indicators and SET buttons are found on the OUTPUT side of the Rover Boost.

4. What type of protection does the Rover Boost Charge Controller have?



Battery Protection: Battery Over Discharge protection , Battery Over Voltage protection, Battery Reverse Polarity protection

Load Protection: Load Overload protection, Load Short Circuit protection, Controller Overheating protection

PV Protection: PV Over Current Protection , PV Short Circuit protection , PV Reverse Polarity protection, Battery overheating protection

5. How many watts can Renogy Rover Boost 10 amp charge controller handle?


The Rover Boost charge controller can work with standard off-grid 12/24V solar panels with PV Input Power: 500W/36V; 650W/48V, and Solar Input Voltage Range (VOC) 15 ~ 25VDC / 36V, 15 ~ 40VDC / 48V.

6. What does 10A on MPPT charge controller mean?


10A represents the maximum amount of current the controller can output to the batteries.

7. What are the recommended wiring gauge and ring terminal sizes?


The Rover Boost accepts ring terminals or lugs. Due to the terminal housing, ring terminals must comply with the instructions manuals.

8. How can I design a 200W solar and 48V battery system?



More questions about your off-grid power system? Learn more from Renogy Learning Center!










Please click the links below to download Manual:
Renogy BT-2 Bluetooth Module
Renogy DC-Home App for Renogy products with communication ports
