Renogy 160A 2P DC Molded Case Circuit Breaker

 DESCRIPTION

【DOUBLE SECURITY】 Equipped with both the thermal and magnetic tripping mechanism for reliability and safety.
【SAFE TO USE】 Designed for reversible connection and can work under bidirectional current.
【DURABLE FOR USE】 After the circuit breakers is disconnected, only reset is needed and there will be no damage.
【CLEARLY MARK】 Built-in indicator window helps identify the contact position.
【QUICK TO INSTALL】 Equipped with DIN rail and panel mounting for easy installation.



The Suntree DC Molded Case Circuit Breaker is designed to protect DC electrical installations against overloads and short circuits with both the thermal and magnetic tripping mechanism equipped. Once a fault is detected, the circuit breaker automatically switches off the electrical circuit to prevent damage to wires and avoid the risk of fire. The circuit breaker can also be manually opened under the full rated load without any damage when electrical maintenance needs to be performed. Engineered for reversible connection, the circuit breaker is allowed to be wired in either direction and functions under bidirectional current. The markings on the handle help identify the contact position of the circuit breaker at a glance. The special design enables easy installation on both the standard DIN rail and the vertical surface.

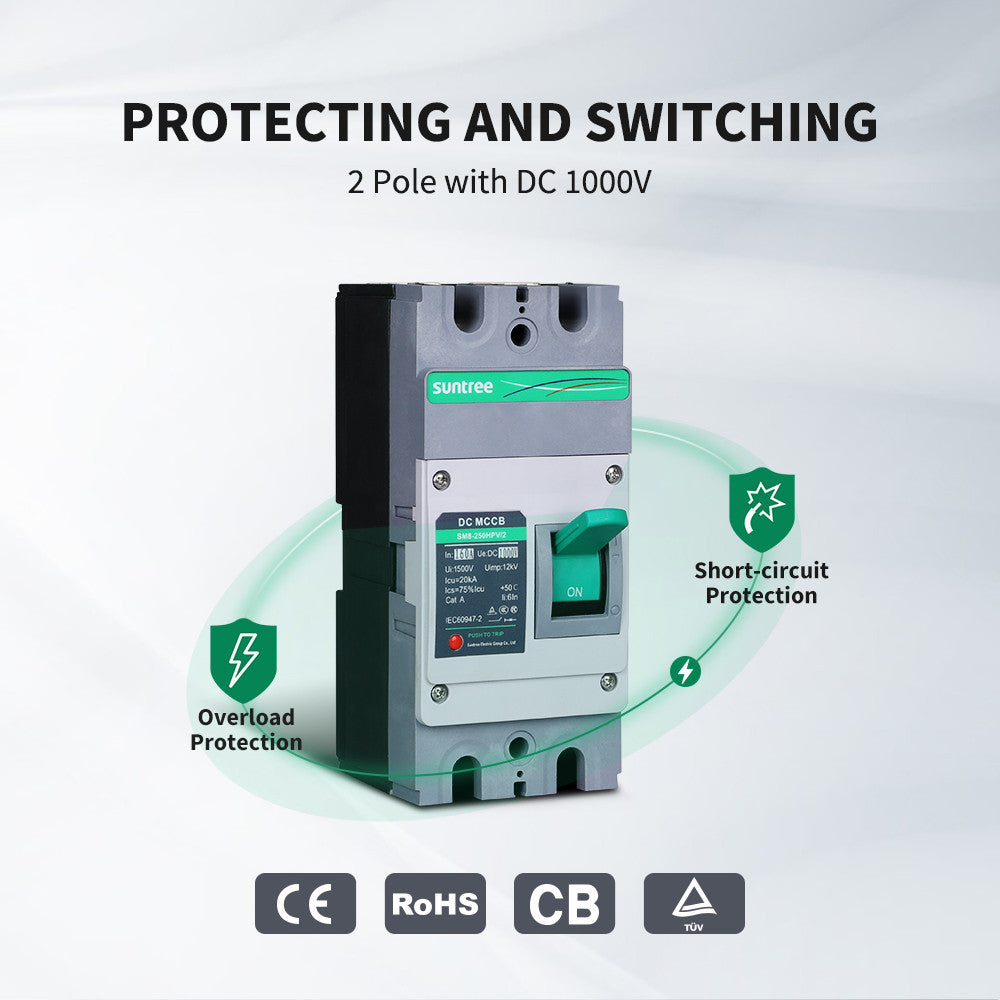

RELIABLE AND SAFETY

Equipped with both the thermal and magnetic tripping mechanism for reliability and safety, along with the certification of CE, RoHS, CB, TUV.

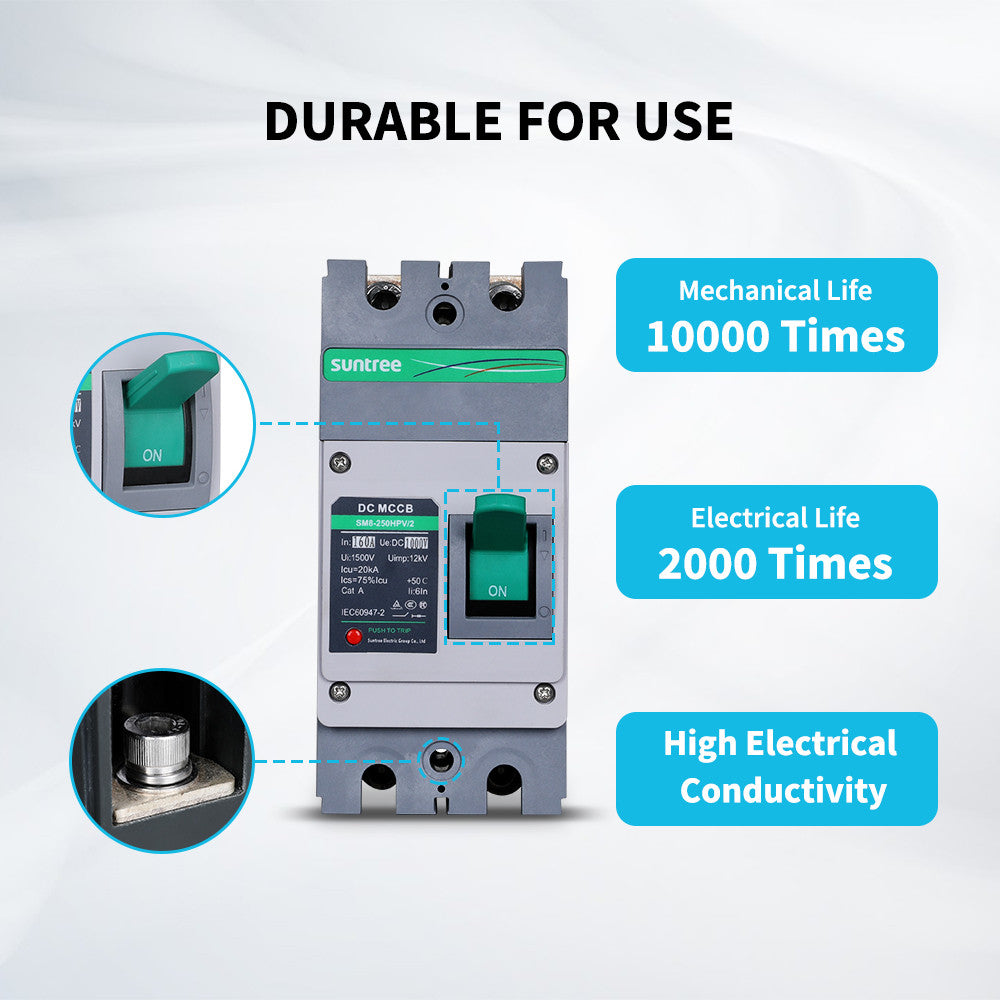

DURABLE FOR USE

Excellent product quality and strong service life. Material and workmanship warranty for 1.5 years.

SIZING TIPS

Advice of choosing suitable circuit breaker for different situations.

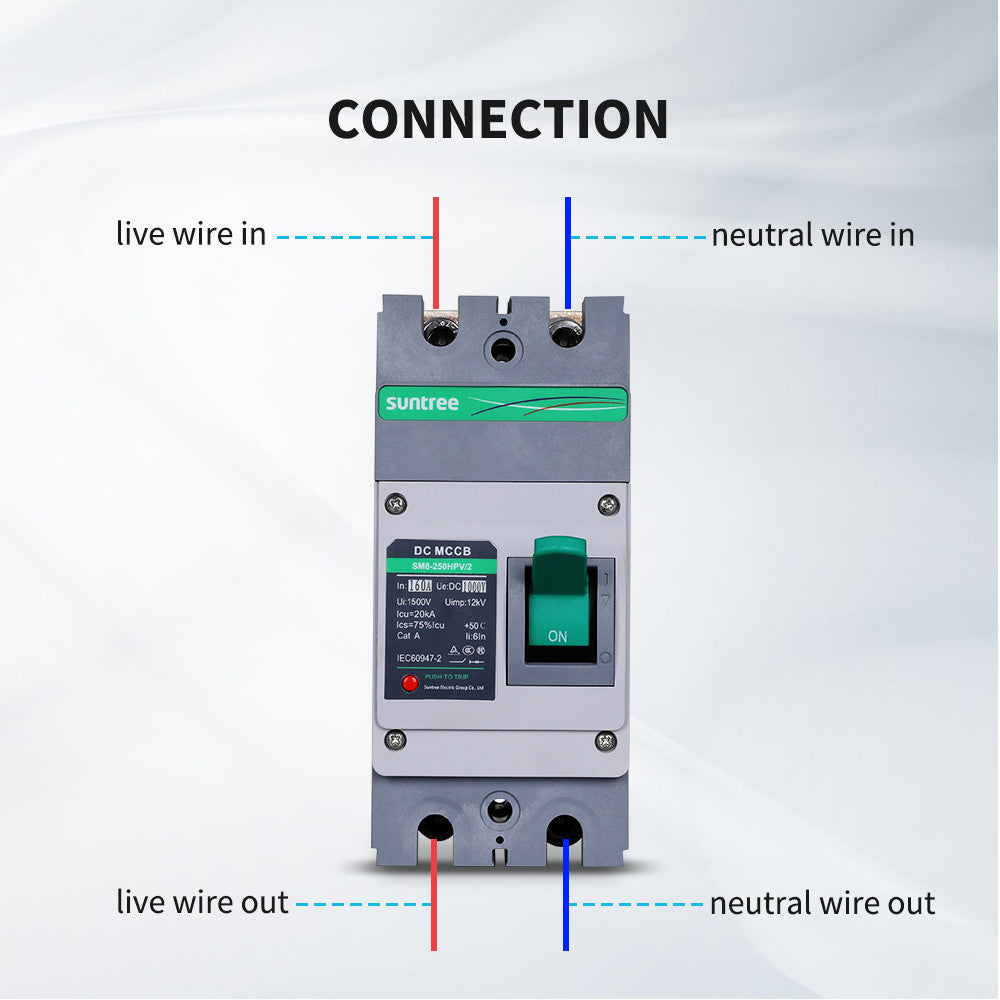

CONNECTION

Connected on positive and negative.

MARK CLEARLY

Built-in indicator window helps identify the contact position.

QUICK TO INSTALL

Offers DIN rail installation and panel installation. Remember to install the insulation barriers before operation to ensure safety.



RV

MARINE

CAMPING
OUTDOOR
CABIN
TRUCK

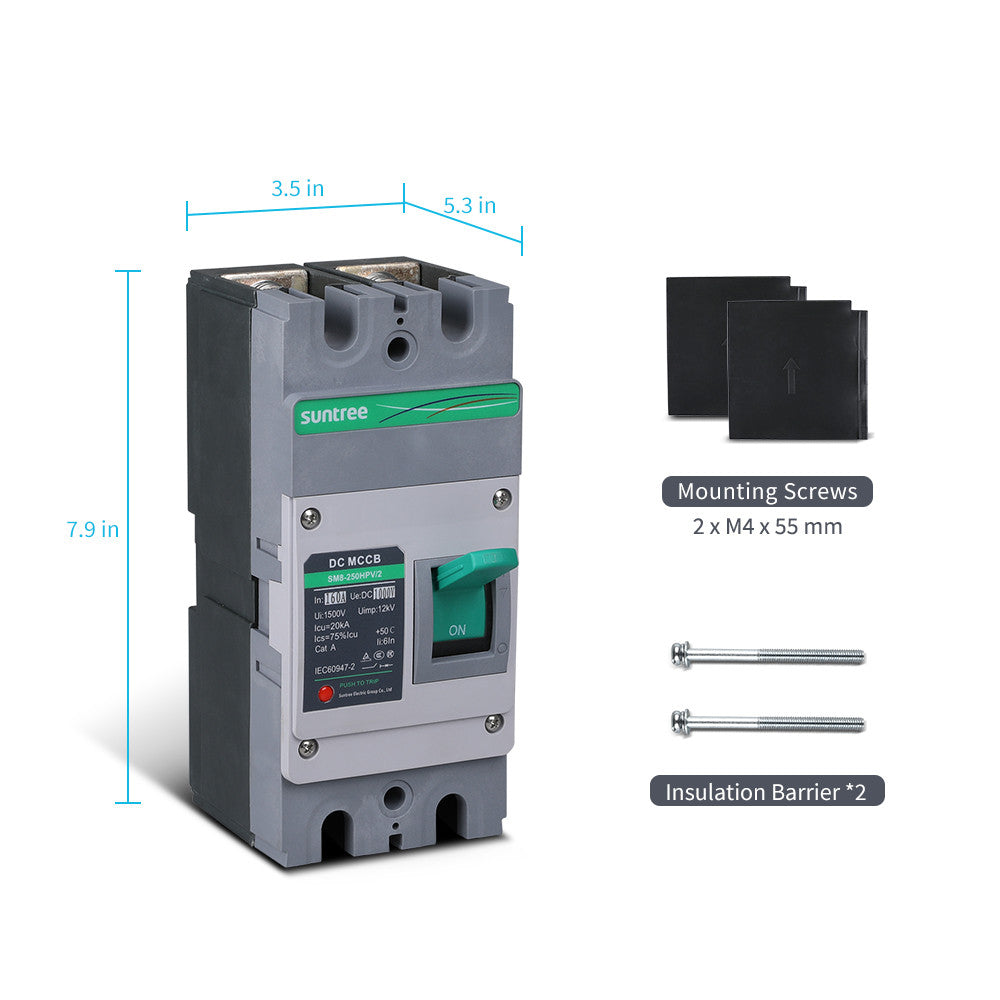

Package Includes

160A 2P DC Molded Case Circuit Breaker

1 x



Mounting Screws

2 x M4 x 55 mm



Insulation Barrier

2 x




160A 2P DC Molded Case Circuit Breaker
Rated Insulation Voltage 1500V Operating Temperature Range -40℉~167℉ (-40℃~75℃)
Rated Operating Voltage 1000V Storage Temperature Range -40℉~167℉ (-40℃~75℃)
Rated Frame Current 250A Protection Rating IP20
Rated Current 160A Operating Relative Humidity ≤95%
Number of Poles 2 Rated Non-Tripping Current 168A (≥2h)
Operating Short-Circuit Breaking Capacity 15KA Rated Tripping Current 208A (<2h)
Ultimate Short-Circuit Breaking Capacity 20KA Rated Instantaneous Tripping Current 1000A (<0.1s)
Rated Impulse Withstand Voltage 12KV Accessories
Mechanical Life 10000 Times Mounting Screw (2) M4 x 55 mm
Electrical Life 2000 Times Insulation Barrier
Trip Mechanism Thermal-Magnetic Certifications
Damp Heat Resistance N/A CE YES
Mechanical Specifications RoHS YES
Dimensions 7.9 x 3.5 x 5.3 in (200 x 90 x 135 mm) CB YES
Weight 4.67 lb TUV YES
Recommended Terminal Torque 44.3 inch·lbs (5 N·m) Warranty
Conductor Size 4 AWG-4/0 AWG Material and workmanship warranty  1 Year

1.How to choose suitable circuit breaker?


For controller/inverter/DCdevice

1. Determine the maximum continuous operating current=watt/voltage

2. Maximum current = 1.25 x maximum continuous operating current

3. Select the circuit breaker whose rated current is greater than and closest to the maximum current

For solar panel

1. Determine short-circuit current

2. Maximum current = Short-circuit current x 1.25 x 1.25

3. Select the circuit breaker whose rated current is greater than and closest to the maximum current

2. What size wire will it accept?

The circuit breaker accepts wire of 4 AWG~4/0 AWG.
3. What is the difference between 1P and 2P circuit breaker?


1P connects on the live wire only.

2P connects on both live wire and neutral wire, so it can cuts them at the same time.

Normally, 2P can afford greater rated current and working voltage than 1P.

4. What is the difference between fuse and circuit breaker?


Circut breaker:

Functions: overload/short circuit protection and active disconnection can be realized

Breaking time: small current delay trip, large current instant trip

Rated operating voltage: 250V/1000V

Replacement: after disconnecting, only reset is required, don't need to replace it

Fuse:

Function: overload/short circuit protection only

Breaking time: high current also has delay

Rated operating voltage: 72V

Replacement: Replacement is required immediately after breaking

5. Where is the circuit breaker often connected in?

Combinar box, breaker box, home kits, etc.
